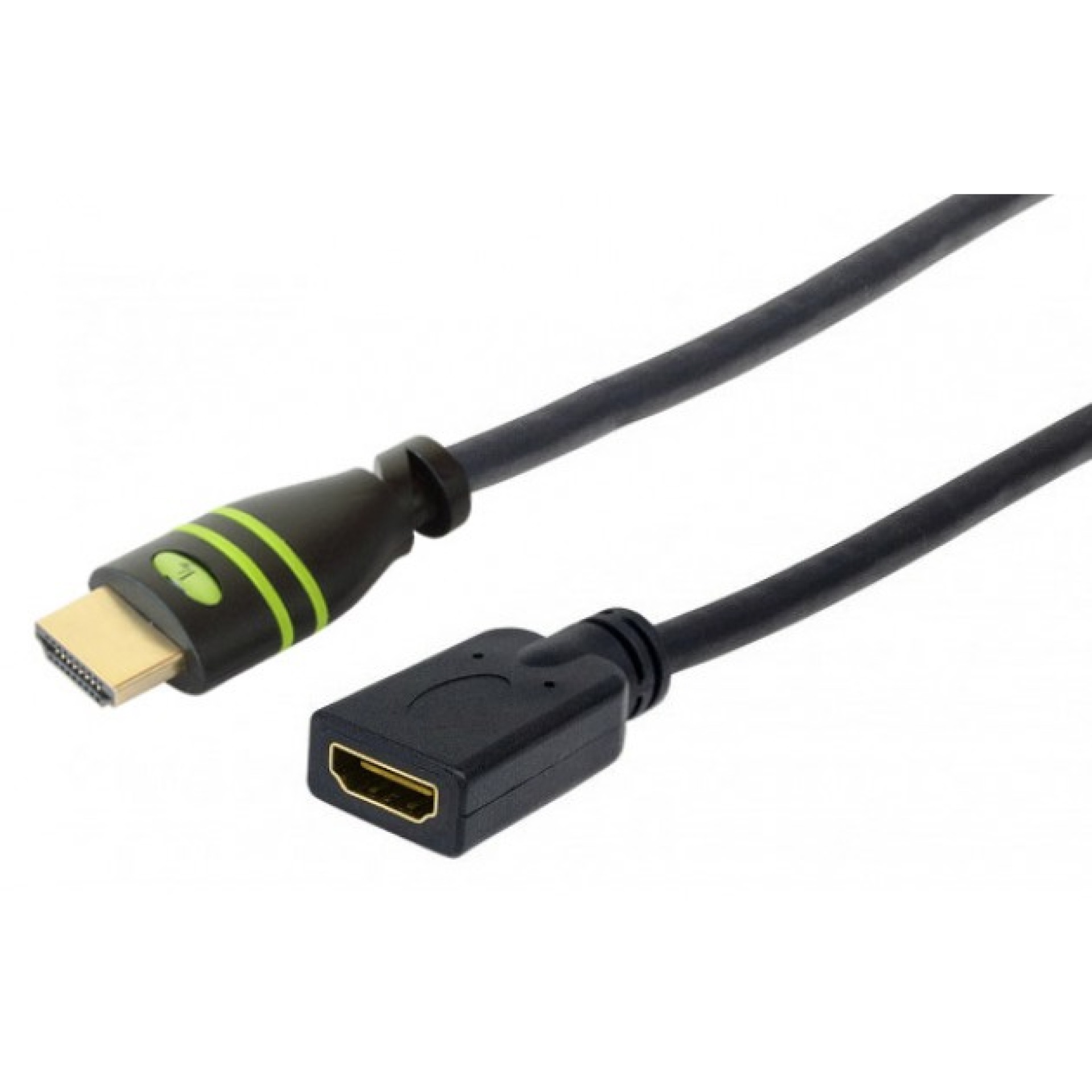

HDMI High Speed with Ethernet Extender Cable 4K 30Hz

HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m
HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m
HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m
HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m
HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m
Varenummer: ICOC-HDMI-4-EXT075
EAN Nr.: 8051128106381
Piece
Log ind som kunde
Beskrivelse

Produktinformation til HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m

  • HDMI 19-pin male to HDMI 19-pin female
  • Ensures signal integrity between HDMI devices
  • Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 30Hz video resolution and Deep Color
  • Conforms to HDMI High Speed specifications with Ethernet
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Die-cast PVC connector cover


    • Standards and certifications:
  • UL 20276
  • RoHS
  • EC


    • General Information:
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Compliant or superior to existing HDMI standards
  • Length: 1.8 m


    • Hardware specification
  • 1 x HDMI 19-pin male
  • 1 x HDMI 19-pin female
  • Gold contacts
  • PVC die-cast connector covers
  • Shielded, braided and aluminum foil
  • 30 AWG connectors


    • Electrical Information:
  • Current index: 0.5 A DC
  • Withstanding voltage: 300 V DC
  • Insulation resistance: 10 MOhms
  • Conductive resistance: 2 Ohms


    • Package Contents:
  • High Speed HDMI extension cable with Ethernet M / F
    • Varianten

    Varianten

    Art. Nr. Bezeichnung Farbe Länge
    ICOC-HDMI-4-EXT010 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 1m schwarz 1,0 m
    Vælg varianter
    ICOC-HDMI-4-EXT018 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 2m schwarz 2,0 m
    Vælg varianter
    ICOC-HDMI-4-EXT030 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 3m schwarz 3,0 m
    Vælg varianter
    ICOC-HDMI-4-EXT050 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 5m schwarz 5.0 m
    Vælg varianter
    ICOC-HDMI-4-EXT075 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m schwarz 7.5 m
    Vælg varianter
    ICOC-HDMI-4-EXT002 HDMI High Speed with Ethernet Extender Cable 4K 30Hz schwarz 0,2 m
