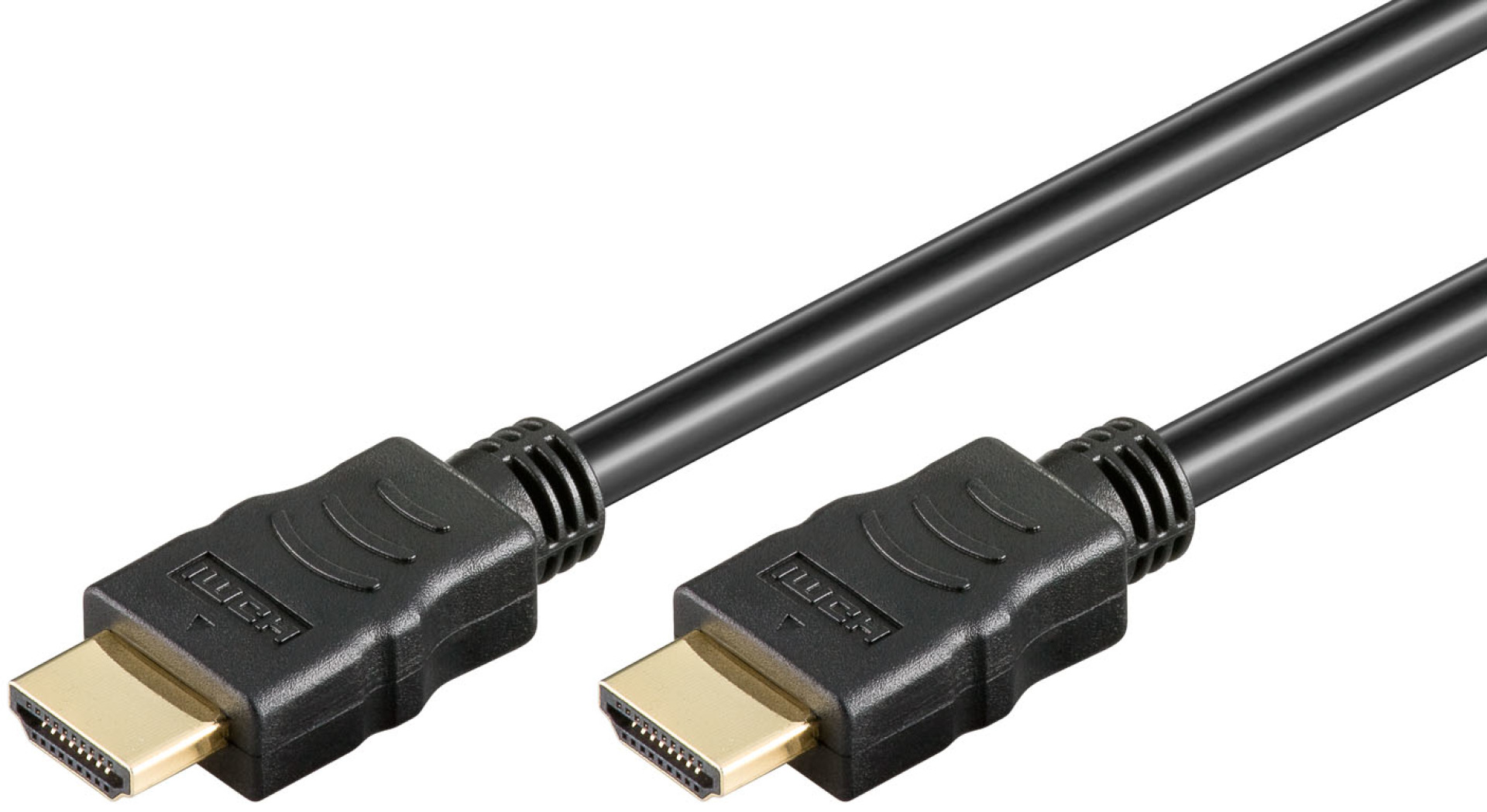

HDMI High Speed with Ethernet Cable A/A M/M, black
HDMI Kabel High Speed with Ethernet, black, 0,5 m
Varenummer:
ICOC-HDMI-4-005
EAN Nr.:
8057685304444
Produktinformationen für HDMI Kabel High Speed with Ethernet, black, 0,5 m
• Triple shielded with resistant connectors for a better performance
• This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free

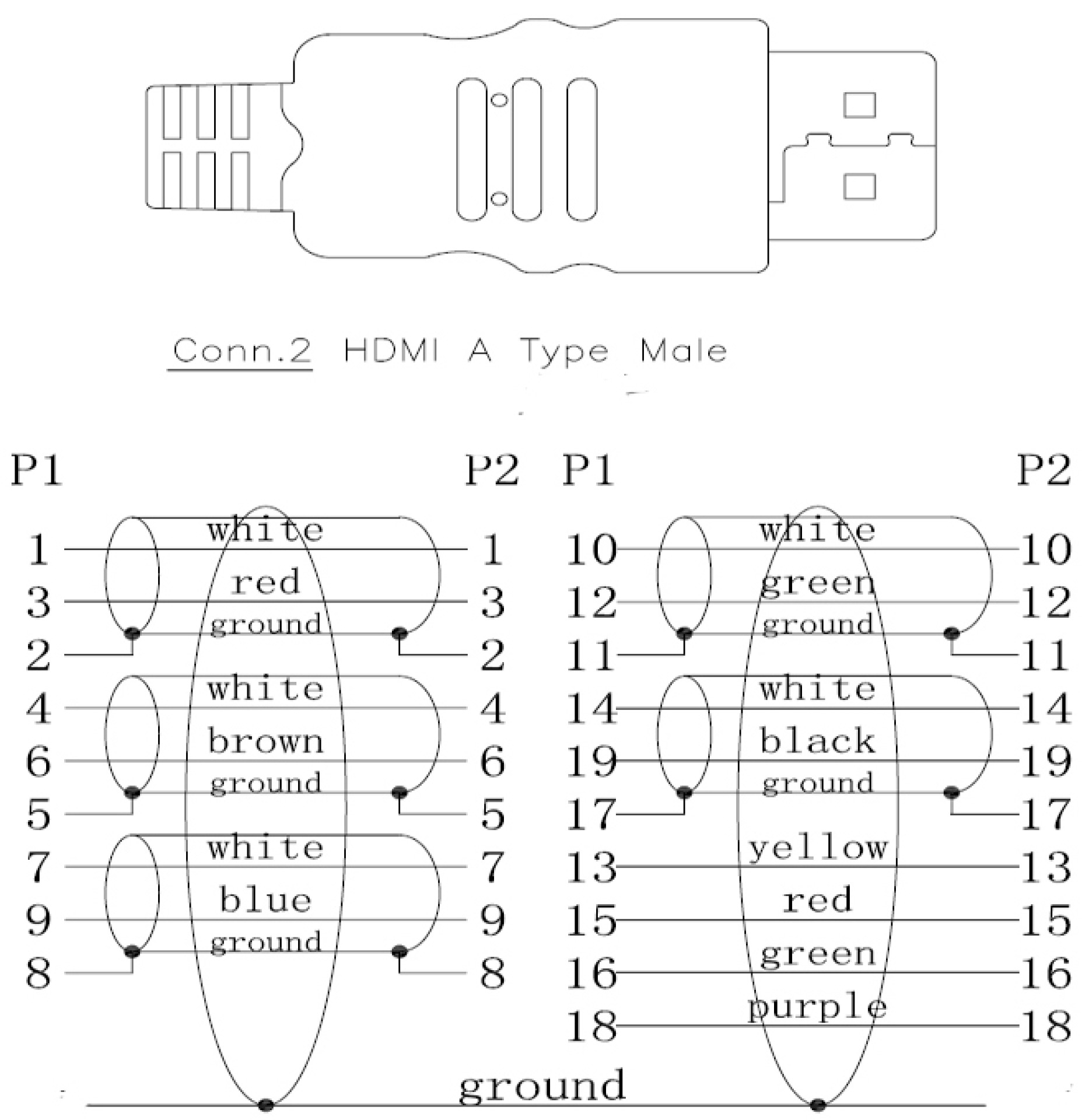

• Connections: HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC boot
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
• No separate audio cable needed
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports a resolution of Ultra HD 4K
General information
• Bandwidth: 18 Gbps
• 600 MHz
• Supports HEC
Connectors and Cable
• 2x HDMI 19-pin male
• Gold-plated contacts
• Shield: braid and aluminium foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm
Features
• Supports YCbCr 4:2:0
• Supports 32 audio channels
• Supports audio 1536 kHz
• Supports 4 audio streams
• Supports display 21:9
Electrical information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhm
• Conductive resistance: 2 Ohm
Standards and Certifications
• UL 20276
• ISO 9002
• RU
• EC
Package Contents
• High Speed HDMI Cable with Ethernet
• This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
• Connections: HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC boot
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
• No separate audio cable needed
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports a resolution of Ultra HD 4K
General information
• Bandwidth: 18 Gbps
• 600 MHz
• Supports HEC
Connectors and Cable
• 2x HDMI 19-pin male
• Gold-plated contacts
• Shield: braid and aluminium foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm
Features
• Supports YCbCr 4:2:0
• Supports 32 audio channels
• Supports audio 1536 kHz
• Supports 4 audio streams
• Supports display 21:9
Electrical information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhm
• Conductive resistance: 2 Ohm
Standards and Certifications
• UL 20276
• ISO 9002
• RU
• EC

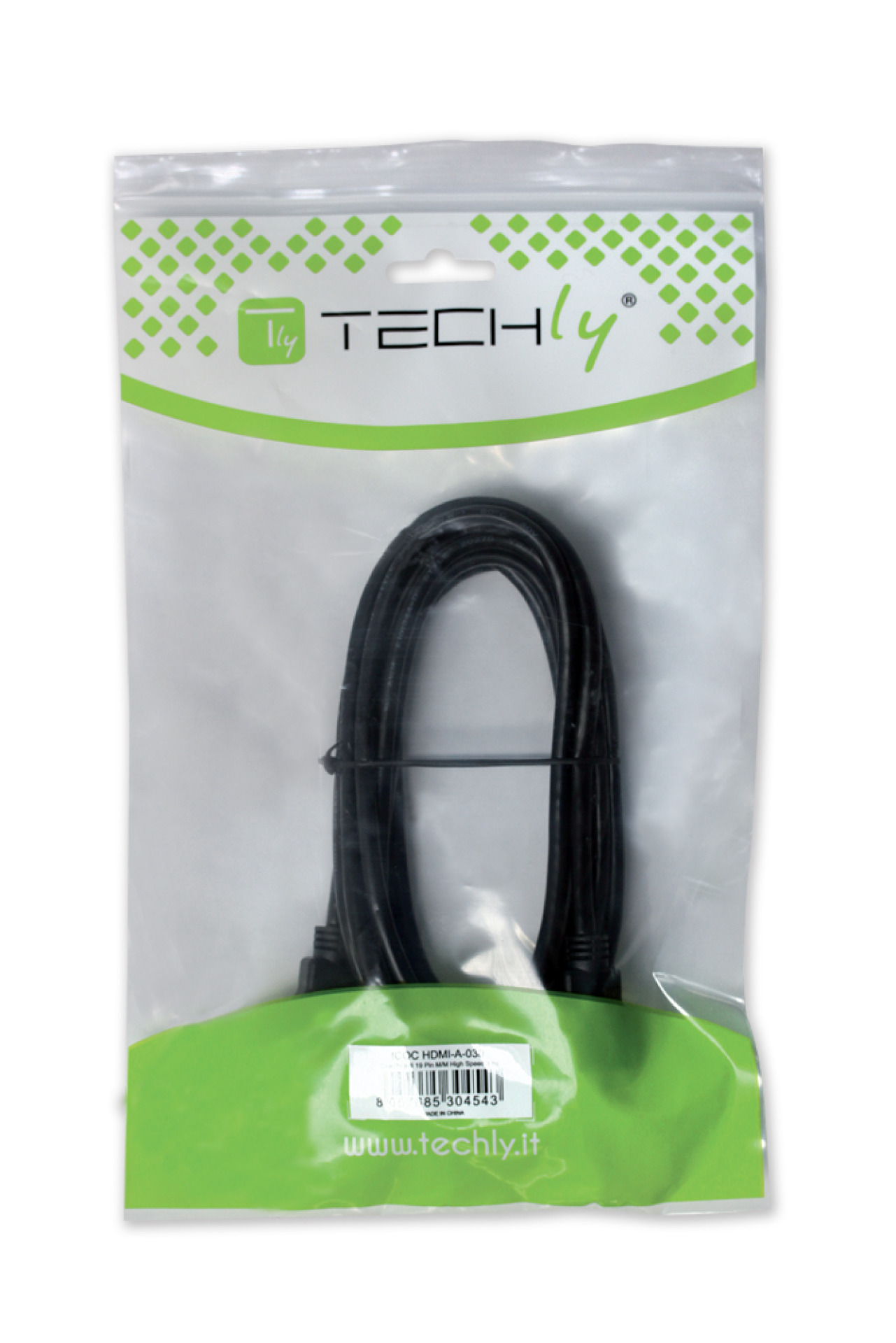

Package Contents
• High Speed HDMI Cable with Ethernet
Varianten
| Art. Nr. | Bezeichnung | Colour | Length | |
|---|---|---|---|---|
| ICOC-HDMI-4-005 | HDMI Kabel High Speed with Ethernet, black, 0,5 m | black | 0.5 m | |
| ICOC-HDMI-4-010 | HDMI Kabel High Speed with Ethernet, black, 1 m | black | 1.0 m | |
| ICOC-HDMI-4-020 | HDMI Kabel High Speed with Ethernet, black, 2 m | black | 2.0 m | |
| ICOC-HDMI-4-030 | HDMI Kabel High Speed with Ethernet, black, 3 m | black | 3.0 m | |
| ICOC-HDMI-4-050 | HDMI Kabel High Speed with Ethernet, black, 5 m | black | 5.0 m | |
| ICOC-HDMI-4-100 | HDMI Kabel High Speed with Ethernet, black, 10 m | black | 10.0 m | |
| ICOC-HDMI-4-150 | HDMI Kabel High Speed with Ethernet, black, 15 m | black | 15.0 m | |
| ICOC-HDMI-4-250 | HDMI Kabel High Speed with Ethernet, black, 25 m | black | 25.0 m |
