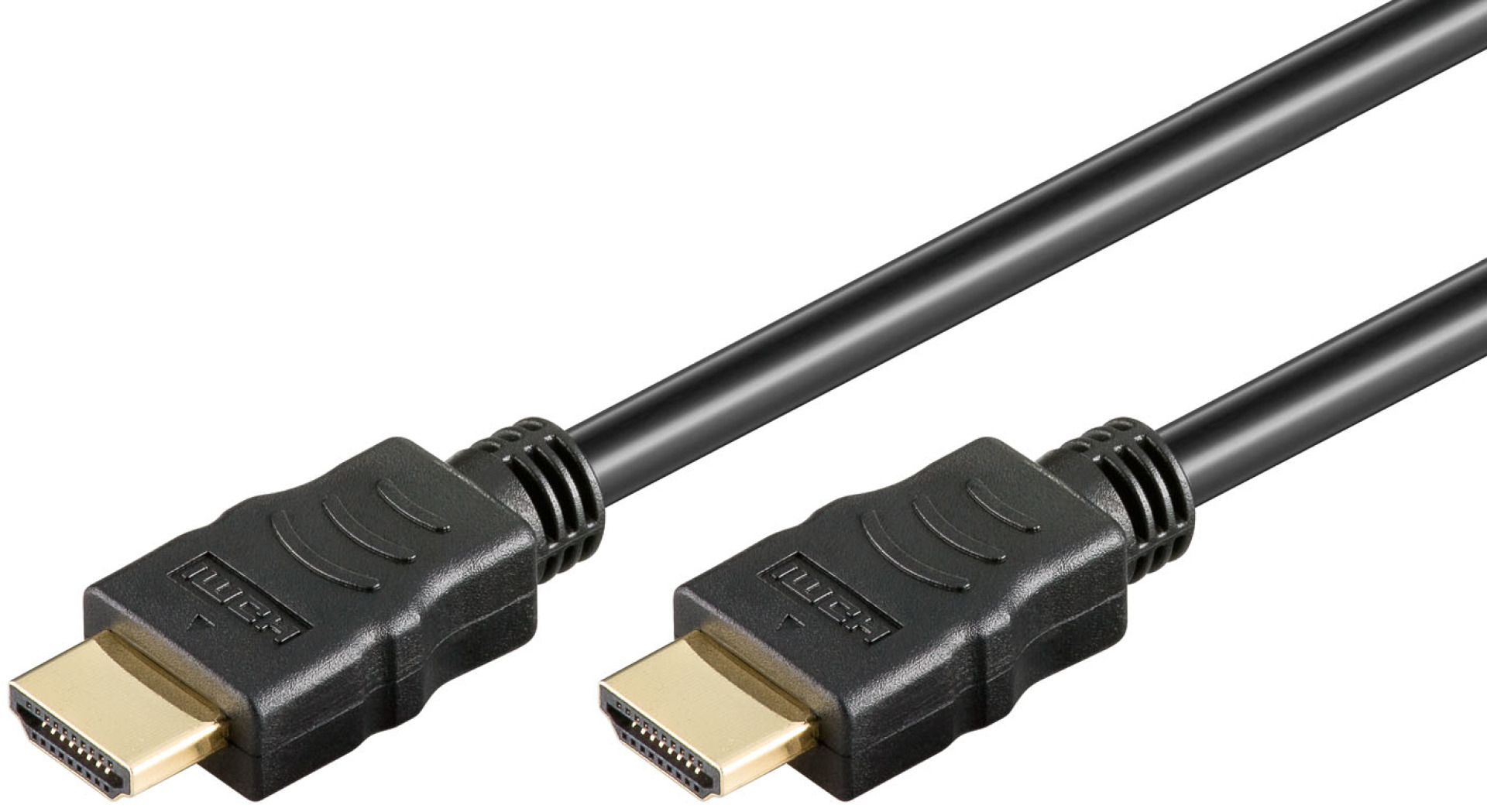

HDMI High Speed with Ethernet Cable A/A M/M, black
Produktinformation til HDMI Kabel High Speed with Ethernet, black, 1 m
• This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
• Connections: HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC boot
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
• No separate audio cable needed
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports a resolution of Ultra HD 4K
General information
• Bandwidth: 18 Gbps
• 600 MHz
• Supports HEC

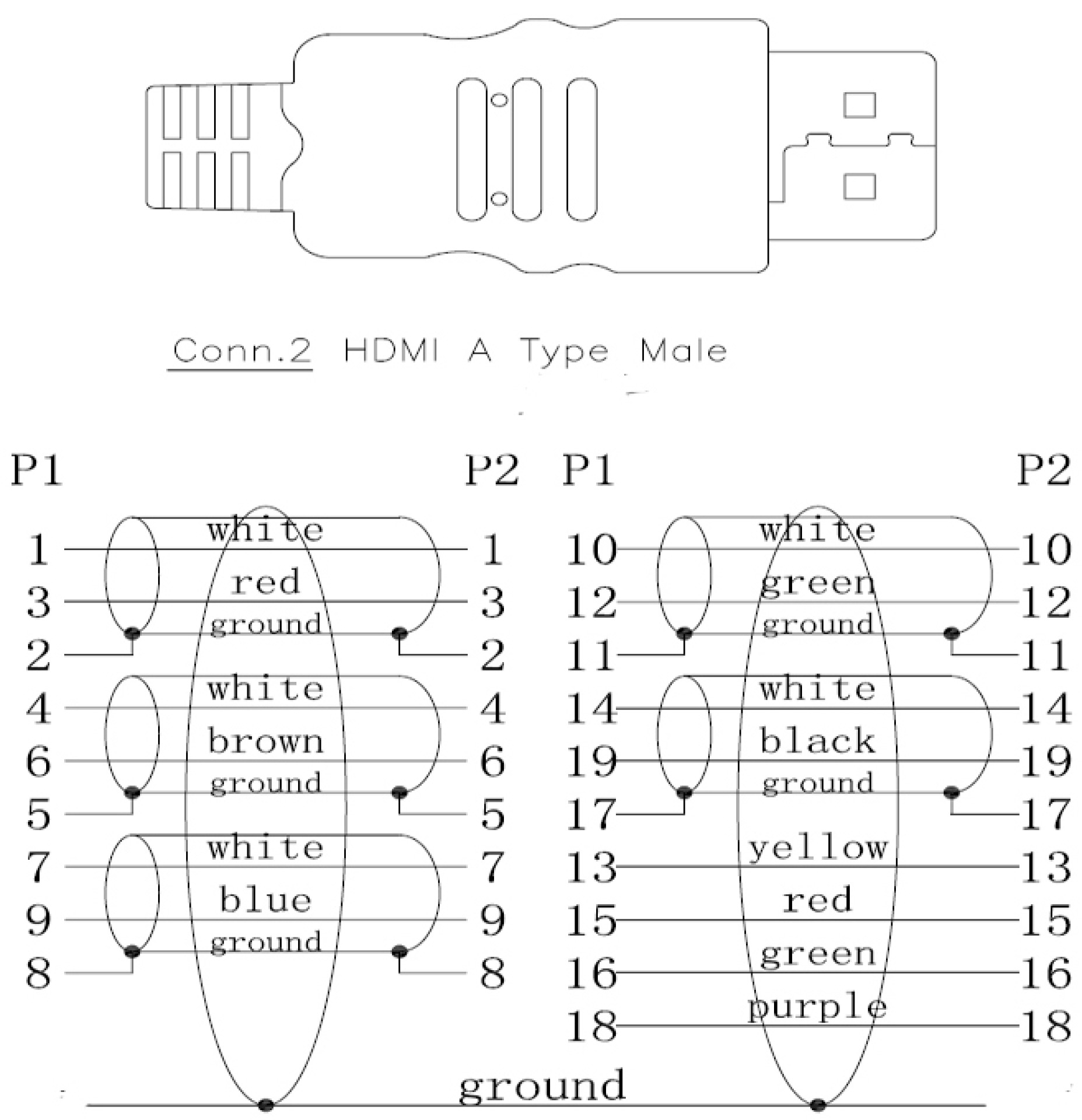

Connectors and Cable
• 2x HDMI 19-pin male
• Gold-plated contacts
• Shield: braid and aluminium foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm
Features
• Supports YCbCr 4:2:0
• Supports 32 audio channels
• Supports audio 1536 kHz
• Supports 4 audio streams
• Supports display 21:9
Electrical information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhm
• Conductive resistance: 2 Ohm
Standards and Certifications
• UL 20276
• ISO 9002
• RU
• EC

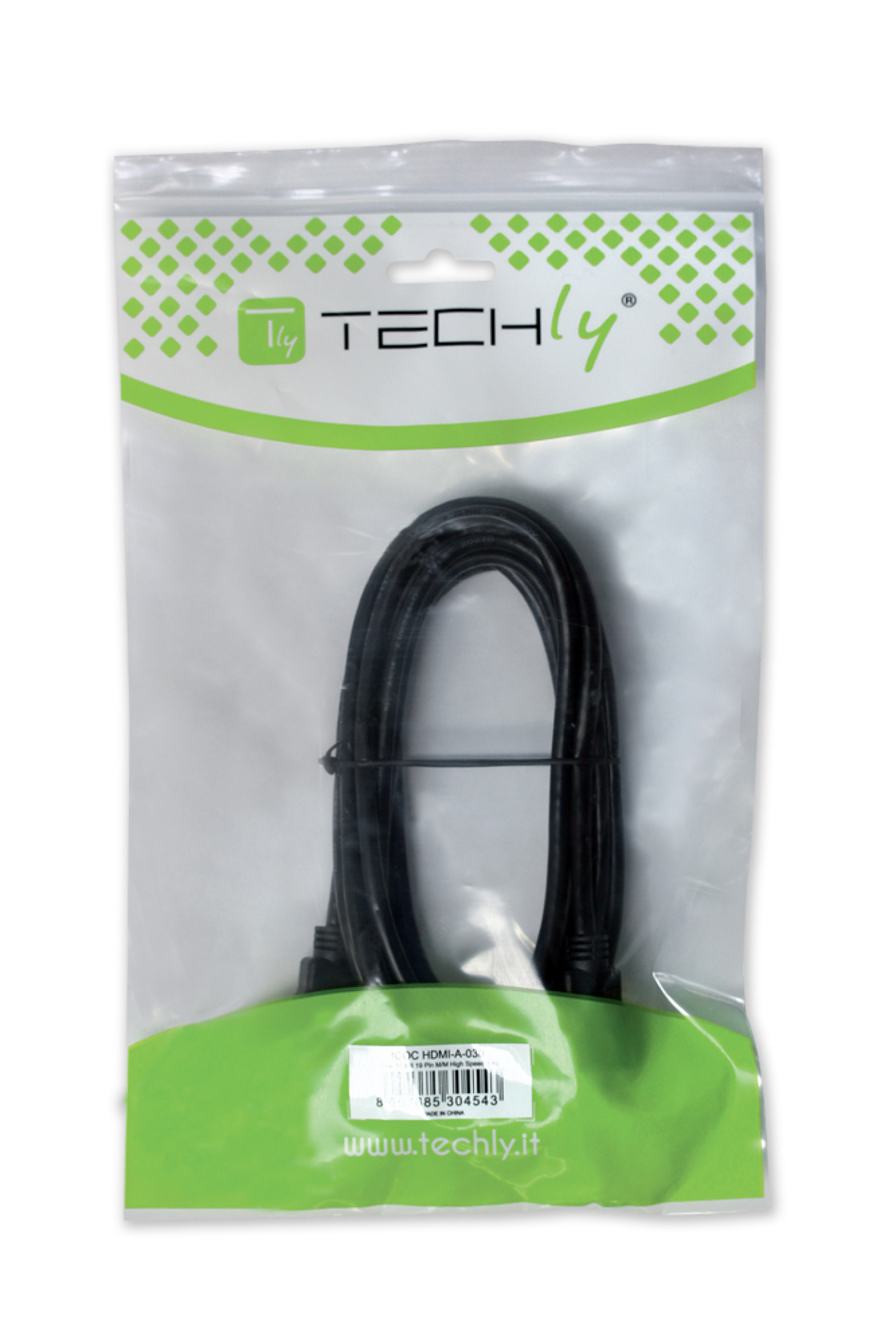

Package Contents
• High Speed HDMI Cable with Ethernet
Variants
| ON | Label | Color | Length | |
|---|---|---|---|---|
| ICOC-HDMI-4-005 | HDMI Kabel High Speed with Ethernet, black, 0,5 m | black | 0.5 m | |
| ICOC-HDMI-4-010 | HDMI Kabel High Speed with Ethernet, black, 1 m | black | 1.0 m | |
| ICOC-HDMI-4-020 | HDMI Kabel High Speed with Ethernet, black, 2 m | black | 2.0 m | |
| ICOC-HDMI-4-030 | HDMI Kabel High Speed with Ethernet, black, 3 m | black | 3.0 m | |
| ICOC-HDMI-4-050 | HDMI Kabel High Speed with Ethernet, black, 5 m | black | 5.0 m | |
| ICOC-HDMI-4-100 | HDMI Kabel High Speed with Ethernet, black, 10 m | black | 10.0 m | |
| ICOC-HDMI-4-150 | HDMI Kabel High Speed with Ethernet, black, 15 m | black | 15.0 m | |
| ICOC-HDMI-4-250 | HDMI Kabel High Speed with Ethernet, black, 25 m | black | 25.0 m |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.
