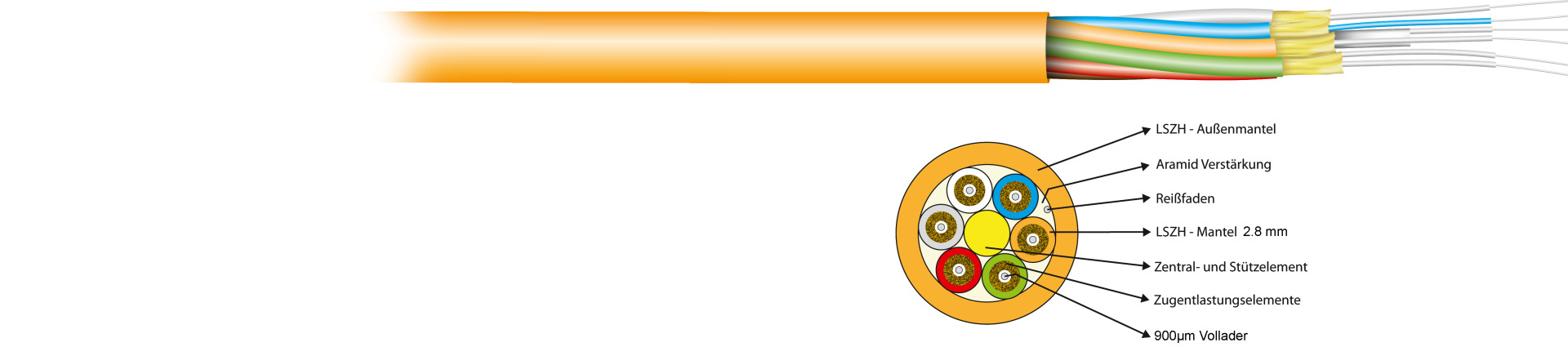

Breakout Indoor Cable I-V (ZN) HH 50/125µ OM2
I-V(ZN)HH Breakout OM2 2G (2x1) Eca 600N LSZH orange 2.8mm
Varenummer:
55002.1
EAN Nr.:
4049759072605
Produktinformationen für I-V(ZN)HH Breakout OM2 2G (2x1) Eca 600N LSZH orange 2.8mm
Indoor application
Installation in shafts, underfloor area
Secondary cabling (vertical): riser area (backbone)
Tertiary cabling (horizontal): working area, fiber-to-the-desk FTTD
Trunk cable, patch- and adapter cable
Indoor cable
Non-metallic, halogenfree, gel free
Suitable for connector assembly
Operation: -20°C ~ 60°C
Installation: -5°C ~ 50°C
Installation in shafts, underfloor area
Secondary cabling (vertical): riser area (backbone)
Tertiary cabling (horizontal): working area, fiber-to-the-desk FTTD
Trunk cable, patch- and adapter cable
Indoor cable
Non-metallic, halogenfree, gel free
Suitable for connector assembly
Operation: -20°C ~ 60°C
Installation: -5°C ~ 50°C
Technische Eigenschaften
| Application: | Inside |
|---|---|
| Armouring: | False |
| Cable metal free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | orange |
| Euro Class: | Eca |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Flame-retardant: | According to EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | < 2.7 dB/km |
| IL max. (dB/km) 1300nm: | < 0.7 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | False |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | False |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Type of tube: | Tight |
| With strain relief: | True |
Varianten
| Art. Nr. | Bezeichnung | Construct | Bending radius | VDE-Name | Cable Ø | Tensile Force | Weight | |
|---|---|---|---|---|---|---|---|---|
| 55002.1 | I-V(ZN)HH Breakout OM2 2G (2x1) Eca 600N LSZH orange 2.8mm | 02G ( 2 x 2.8 ) Multimode OM2 | 60 mm | I-V(ZN)HH 02G50/125 | 3.9x6.8 mm | 600 N | 28 kg/km | |
| 55004.1 | I-V(ZN)HH Breakout OM2 4G (4x1) Eca 800N LSZH orange 2.0mm | 04G ( 4 x 2.8 ) Multimode OM2 | 150 mm | I-V(ZN)HH 04G50/125 | 8.5 mm | 800 N | 62 kg/km | |
| 55008.1 | I-V(ZN)HH Breakout OM2 8G (8x1) Eca 1000N LSZH orange 2.8mm | 08G ( 8 x 2.8 ) Multimode OM2 | 210 mm | I-V(ZN)HH 08G50/125 | 12.1 mm | 1000 N | 133 kg/km | |
| 55012.1 | I-V(ZN)HH Breakout OM2 12G (12x1) Eca 1000N LSZH orange 2.8mm | 12G ( 12 x 2.8 ) Multimode OM2 | 275 mm | I-V(ZN)HH 12G50/125 | 15.8 mm | 1000 N | 240 kg/km |
