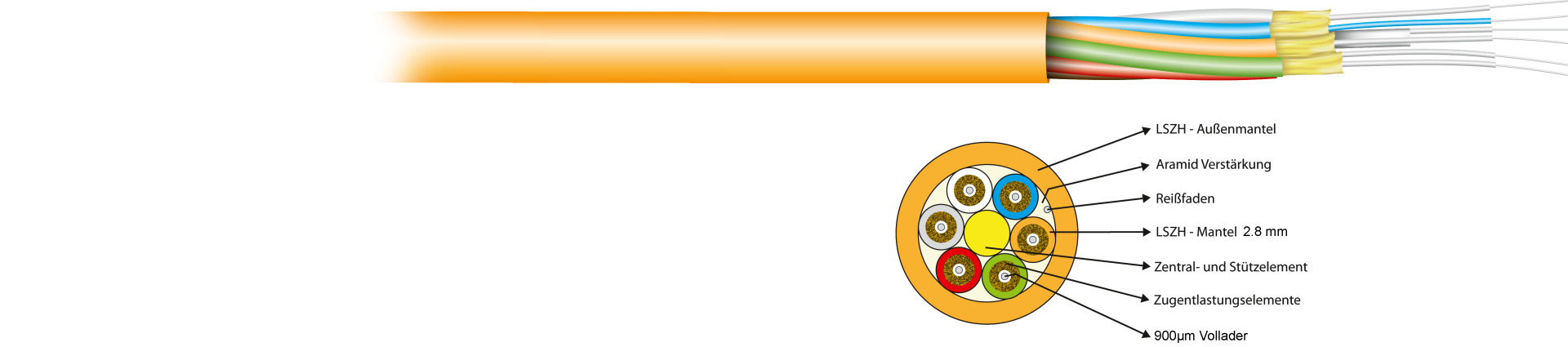

Breakout Indoor Cable I-V (ZN) HH 50/125µ OM3
I-V(ZN)HH Breakout OM3 2G (2x1) Eca 600N LSZH aqua 2.8mm
Varenummer:
55002.1OM3
EAN Nr.:
4049759072612
Produktinformation til I-V(ZN)HH Breakout OM3 2G (2x1) Eca 600N LSZH aqua 2.8mm
Indoor application
Installation in shafts, underfloor area
Secondary cabling (vertical): riser area (backbone)
Tertiary cabling (horizontal): working area, fiber-to-the-desk FTTD
Trunk cable, patch- and adapter cable
Indoor cable
Non-metallic, halogenfree, gel free
Suitable for connector assembly
Operation: -20°C ~ 60°C
Installation: -5°C ~ 50°C
Installation in shafts, underfloor area
Secondary cabling (vertical): riser area (backbone)
Tertiary cabling (horizontal): working area, fiber-to-the-desk FTTD
Trunk cable, patch- and adapter cable
Indoor cable
Non-metallic, halogenfree, gel free
Suitable for connector assembly
Operation: -20°C ~ 60°C
Installation: -5°C ~ 50°C
Tekniske egenskaber
Application: | Inside |
---|---|
Armouring: | False |
Cable metal free: | True |
Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
Circuit integrity: | False |
Colour outer sheath: | aqua |
Euro Class: | Eca |
Fiber marking: | Colour |
Fibre category: | OM3 |
Fibre type: | Multi mode 50/125 |
Flame-retardant: | According to EN 60332-1-2 |
Halogen free (acc. EN 50267-2-2): | True |
Harmonised Standard: | EN 50575 |
IL max. (dB/km) 850nm: | < 2.7 dB/km |
IL max. (dB/km) 1300nm: | < 0.8 dB/km |
Jacket material: | LSZH |
Longitudinal water blocking: | False |
Low smoke (acc. EN 61034-2): | True |
Oil resistant (acc. EN 60811-2-1): | False |
Radial water blocking: | False |
Temperature Range (Installation): | -5 – 50 °C |
Temperature Range (Operation): | -20 – 60 °C |
Temperature Range (Storage): | -25 – 70 °C |
Type of tube: | Tight |
With strain relief: | True |
Varianten
Art. Nr. | Bezeichnung | Construct | Bending radius | VDE-Name | Cable Ø | Tensile Force | Weight | |
---|---|---|---|---|---|---|---|---|
55002.1OM3 | I-V(ZN)HH Breakout OM3 2G (2x1) Eca 600N LSZH aqua 2.8mm | 02G ( 2 x 2.8 ) Multimode OM3 | 60 mm | I-V(ZN)HH 02G50/125 | 3.9x6.8 mm | 600 N | 28 kg/km | |
55004.1OM3 | I-V(ZN)HH Breakout OM3 4G (4x1) 800N LSZH aqua 2.8mm | 04G ( 4 x 2.8 ) Multimode OM3 | 150 mm | I-V(ZN)HH 04G50/125 | 8.5 mm | 800 N | 62 kg/km | |
55008.1OM3 | I-V(ZN)HH Breakout OM3 8G (8x1) 1000N LSZH aqua 2.8mm | 08G ( 8 x 2.8 ) Multimode OM3 | 210 mm | I-V(ZN)HH 08G50/125 | 12.1 mm | 1000 N | 133 kg/km | |
55012.1OM3 | I-V(ZN)HH Breakout OM3 12G (12x1) 1000N LSZH aqua 2.8mm | 12G ( 12 x 2.8 ) Multimode OM3 | 275 mm | I-V(ZN)HH 12G50/125 | 15.8 mm | 1000 N | 240 kg/km |
