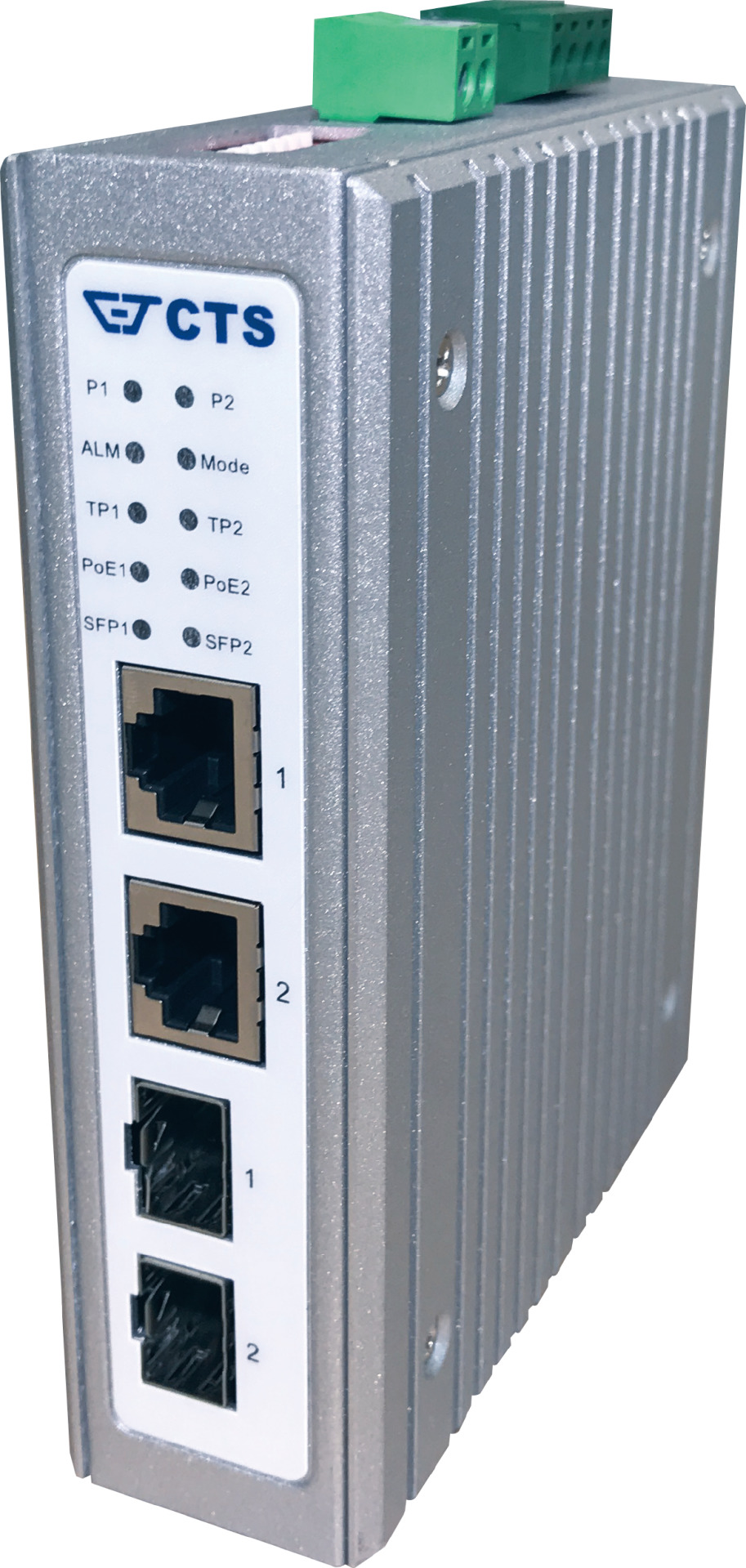

IAC-3014, Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Varenummer:
IAC-3014
EAN Nr.:
4049759194017
Produktinformation til Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Wide range of operation voltage 12 .. 48 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Support for 3 different modes: Switch, Fiber Backup and Dual Media Converter mode
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: HDR-15-24
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Support for 3 different modes: Switch, Fiber Backup and Dual Media Converter mode
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: HDR-15-24
Tekniske egenskaber
| Construction type: | Single device |
|---|---|
| Degree of protection: | IP30 |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| LWL-Port: | 2 x MGBIC 1000Mbit/s |
| Layer 2: | False |
| Managed: | False |
| Manufacturer: | CTS |
| Medium: | MM or SM |
| Power over Ethernet: | False |
| RJ45-Port: | 2x 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
Connection Technology Systems Northern Europe AB
August Barks gata 21b, Västra Frölunda
42132 Västra Frölunda
order@ctsystem.se
https://www.ctsystem.com
accessory
