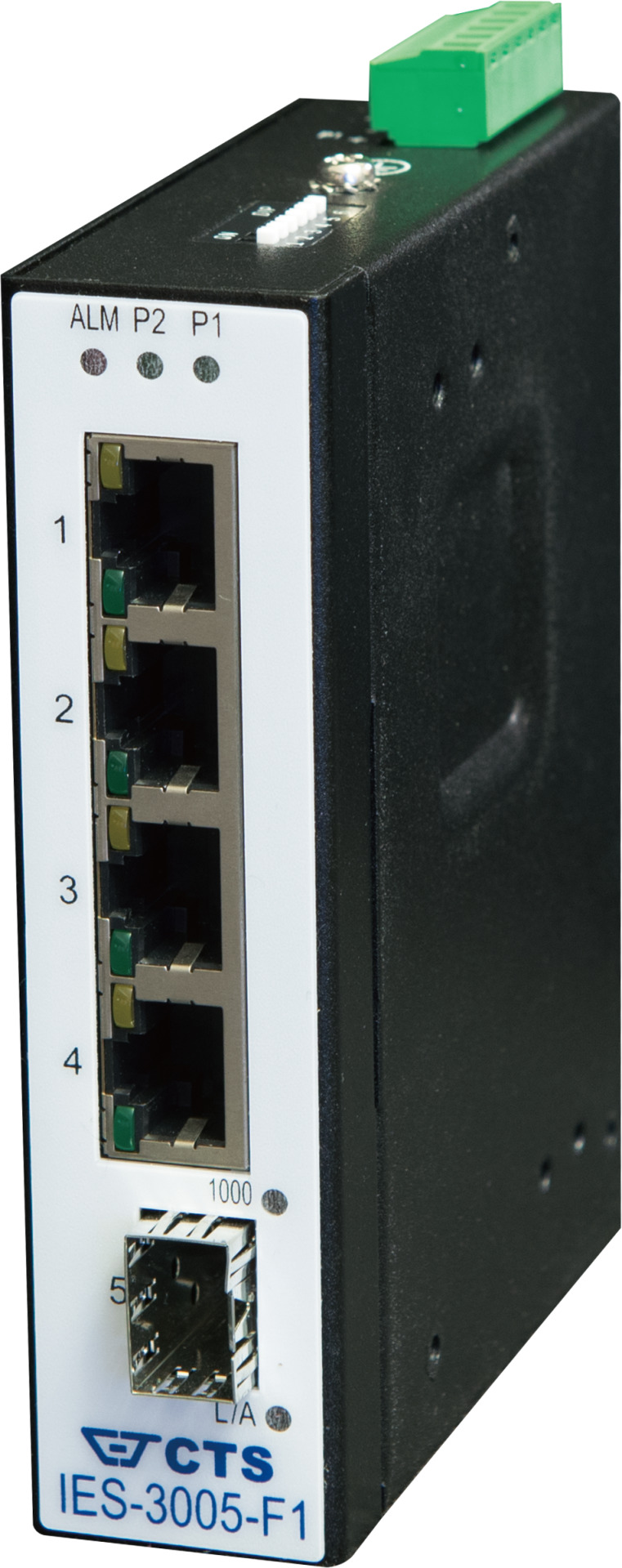

IES-3005-F1, Industrial Switch 4x 10/100/1000T RJ45, 1x 100/1000 SFP
Industrial Switch 4x 10/100/1000T, 1x 100/1000 SFP
Varenummer:
IES-3005-F1
EAN Nr.:
4049759194109
Produktinformation til Industrial Switch 4x 10/100/1000T, 1x 100/1000 SFP
Wide range of operation voltage 12 .. 58 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: DR-15-24
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: DR-15-24
Tekniske egenskaber
| Degree of protection: | IP30 |
|---|---|
| Depth: | 89.4 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 109.2 mm |
| Manufacturer: | CTS |
| Mounting method: | DIN rail (top hat rail) |
| Number of ports 10/100/1000 Mbps RJ45: | 4 |
| Number of ports 100/1000 Mbps Mini GBIC: | 1 |
| Operating Temperature: | -40 – 75 °C |
| Width: | 29.1 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Producentangivelse
Connection Technology Systems Northern Europe AB
August Barks gata 21b, Västra Frölunda
42132 Västra Frölunda
order@ctsystem.se
https://www.ctsystem.com
