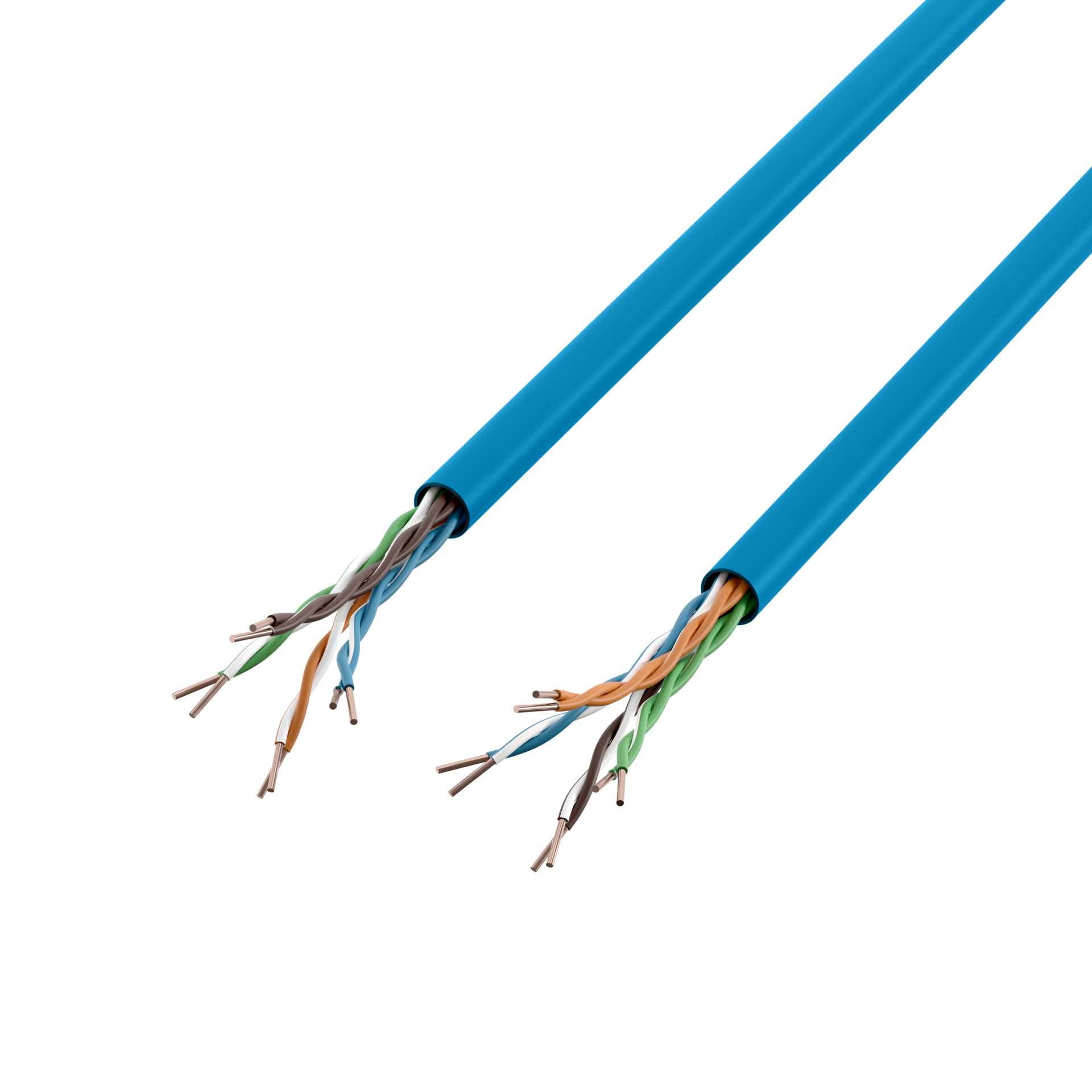

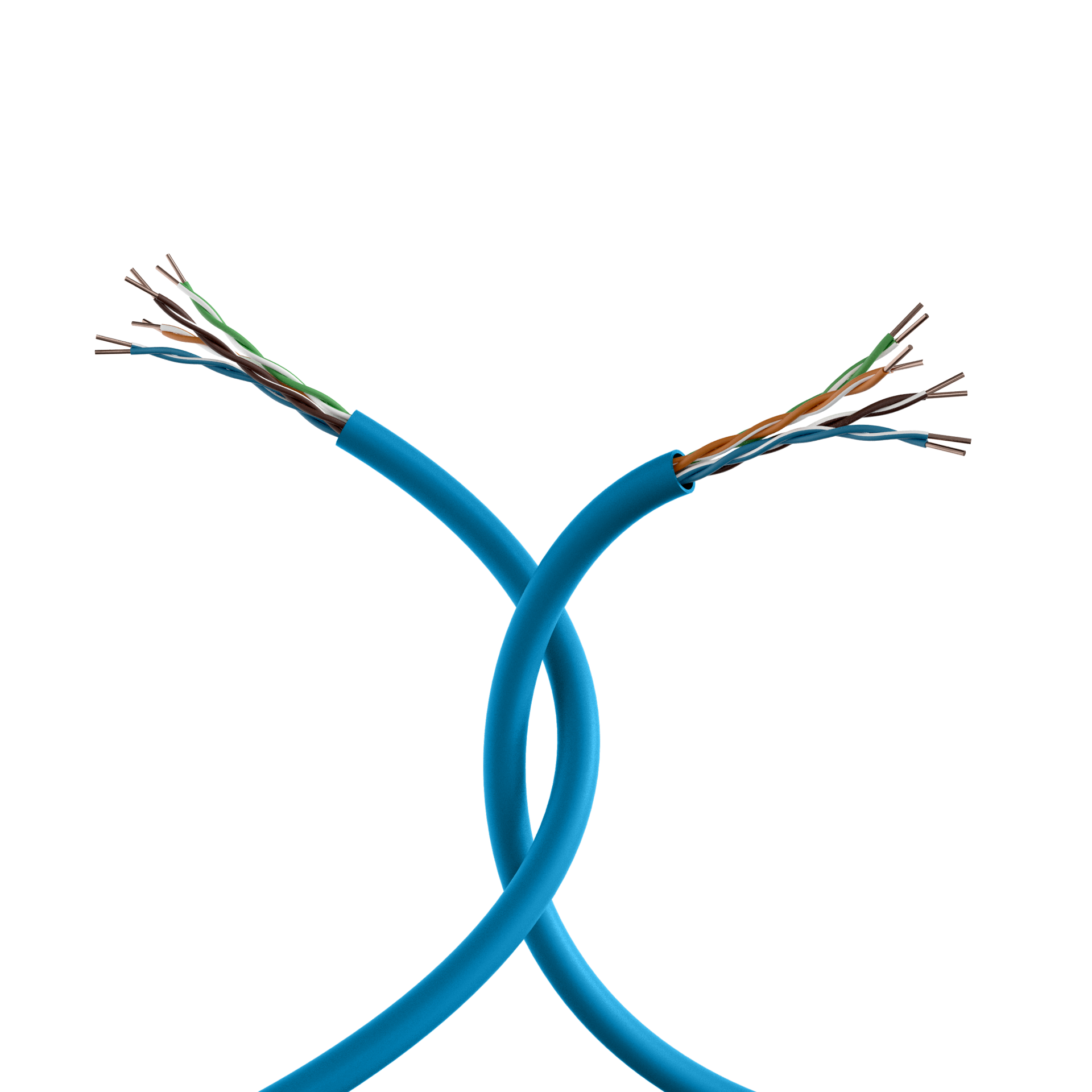

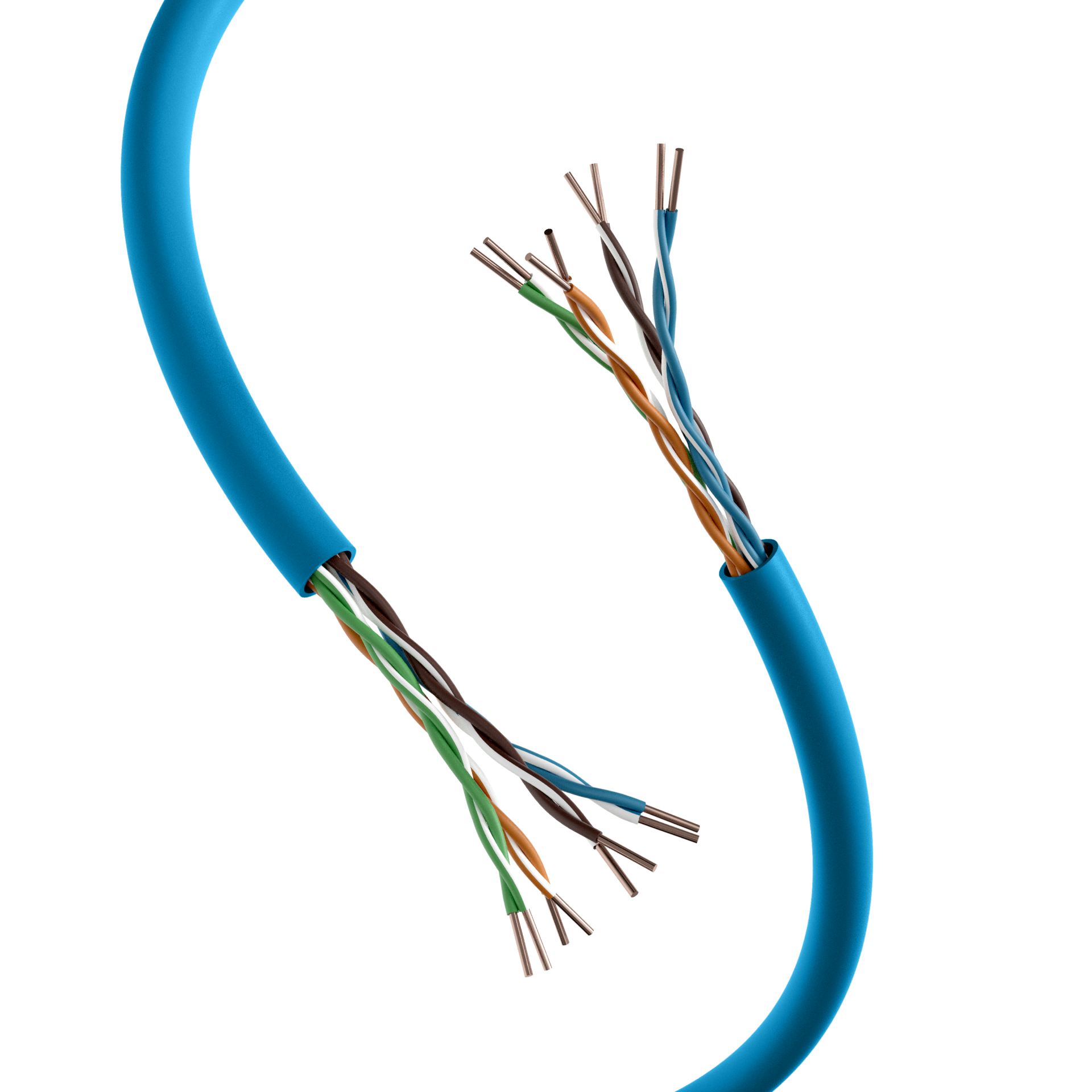

INFRALAN® Installation Cable U/UTP Cat.6A 500MHz



INFRALAN® Cat.6A 500 AWG23, U/UTP 4P CPR B2ca, RAL5015 blue, 305m
Varenummer:
99965.305-CPR
EAN Nr.:
4049759247782
Produktinformation til INFRALAN® Cat.6A 500 AWG23, U/UTP 4P CPR B2ca, RAL5015 blue, 305m
The INFRALAN® U/UTP Cat.6A installation cable is designed for transmissions up to 500MHz and complies with Cat.6A. With this cable, transmission rates of up to 10Gbit Ethernet are possible. Due to the small outer diameter of only 6.6 mm, the cable is also suitable for feed-throughs in narrow cable ducts. Thanks to the B2ca standard according to the Construction Products Regulation and its cable structure of 4x2xAWG23/1, the cable can be used in all areas of installation in buildings.
Areas of application:
Primary (Campus)
Secondary (Riser)
Tertiary (Horizontal)
Areas of application:
Primary (Campus)
Secondary (Riser)
Tertiary (Horizontal)
Tekniske egenskaber
(Halogenfree): | acc. EN 60754-1/2 |
---|---|
AWG-size: | 23/1 |
Bending radius (dynamic): | 65 mm |
Bending radius (static): | 65 mm |
Cable: | IEC 61156-5 |

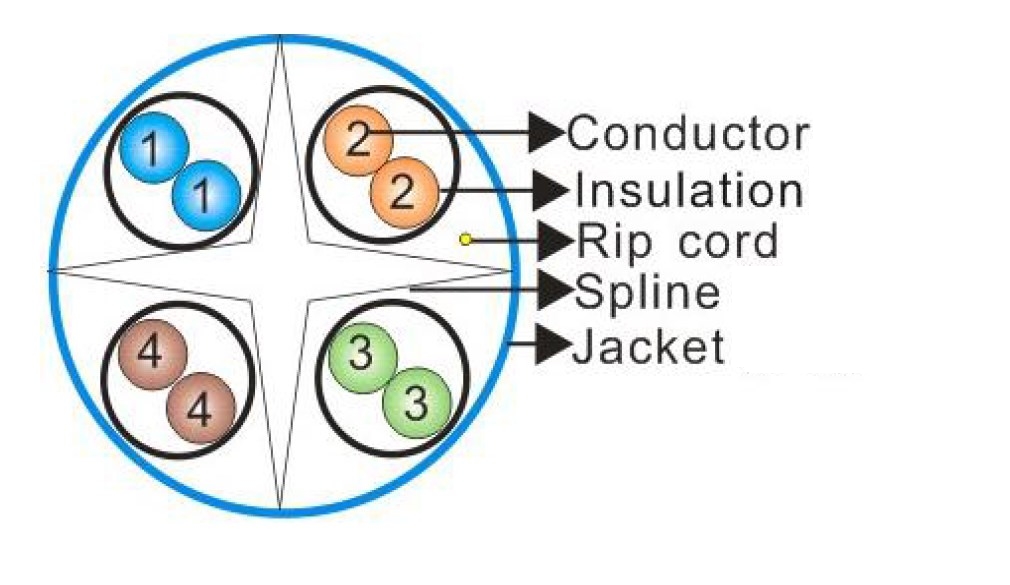

Cable Construction: | U/UTP |
Cable silicone free: | True |
Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
Capacity to earth: | 330 pF/km |
Category: | 6A (IEC) |
Conductor category: | Class 1 = solid |
Conductor material: | Cu, tinned |
Core identification: | Colour |
Core insulation: | foam-skin PE |
Coupling attenuation: | ≥ 50 dB |
Diameter conductor: | 0.57 mm |
Directive/Regulation: |
REACH 1907/2006/EC RoHS 2011/65/UE |
Euro class: | B2ca |
Flame-retardant: |
According to IEC/EN 60332-1-2 According to IEC/EN 60332-3-24 |
Harmonised Standard: | EN 50575 |
Impedance: | 100 ± 15 |
Installation standard: | EN 50174 |
Insulation resistance (500V): | ≥ 5000 MOhm/km |
Jacket Material: | LSZH |
Loop resistance: | 164 Ohm/km |
Low smoke: | acc. EN 61034 |
Max. Freuqency: | 500 MHz |
NVP value: | 68.2 % |
Nominal cross section conductor: | 0.26 mm² |
Operating temperature, fix: | -15 – 75 °C |
Operating temperature, flexible: | 0 – 60 °C |
Operating temperature, storage: | -15 – 75 °C |
PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
Resistance unbalance: | ≤ 5 % |
Screen over stranding: | without |
Screen over stranding element: | without |
Separation class acc. EN50174-2: | C |
Stranding element: | Pairs |
Test voltage DC, 1 min: | 500 V |
Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
UV resistance: | no |
Varianten
Art. Nr. | Bezeichnung | Length | Number of cores | RAL colour | Colour outer sheath | Type | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
---|---|---|---|---|---|---|---|---|---|---|---|
99965.305-CPR | INFRALAN® Cat.6A 500 AWG23, U/UTP 4P CPR B2ca, RAL5015 blue, 305m | 305.0 m | 8 | RAL5015 | blue | simplex | 50 kg/km | 110 N | 6.6 mm | 0.7812 MJ/m | |
99965.500-CPR | INFRALAN® Cat.6A 500 AWG23, U/UTP 4P CPR B2ca, RAL5015 blue, 305m | 500.0 m | 8 | RAL5015 | blue | simplex | 50 kg/km | 110 N | 6.6 mm | 0.7812 MJ/m |
