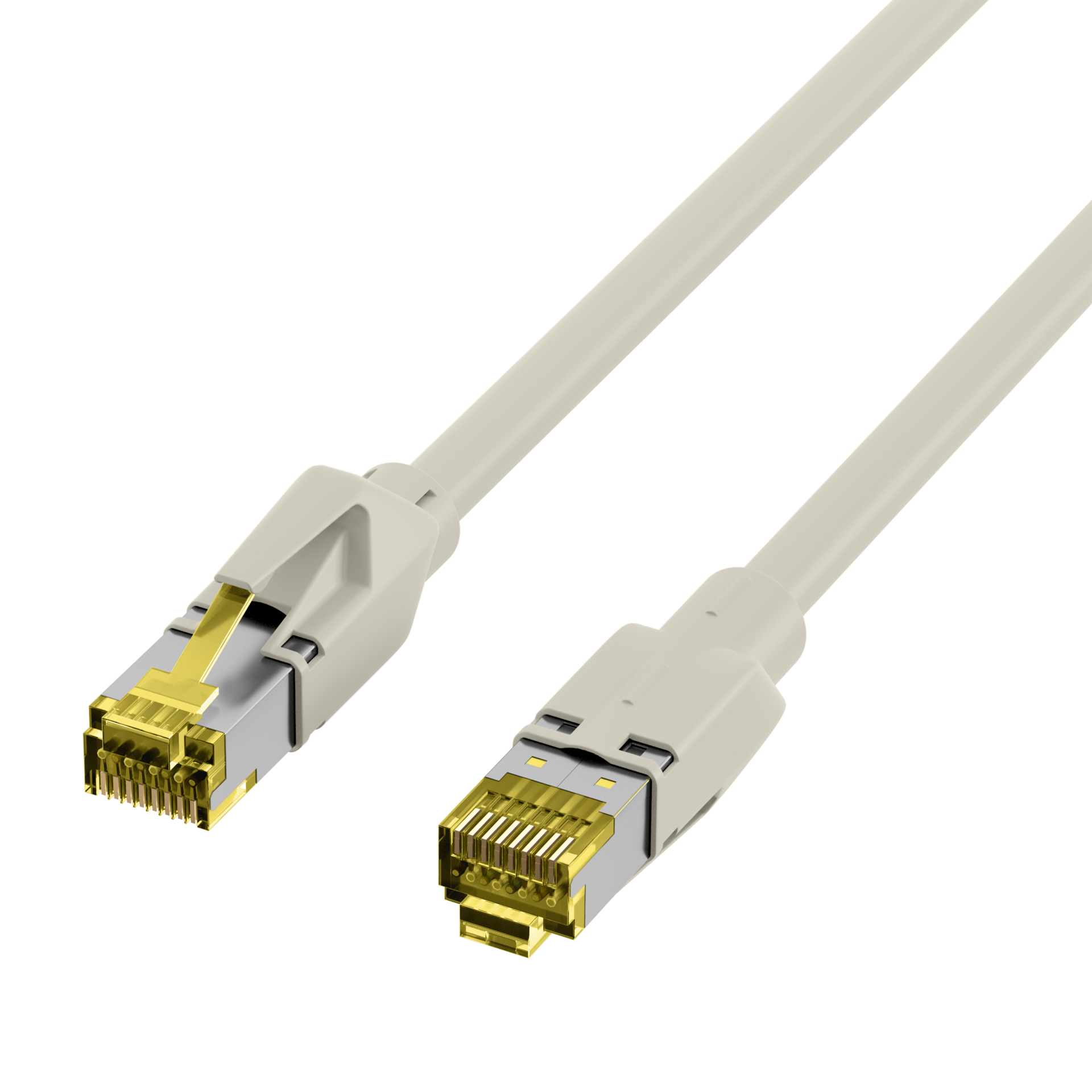

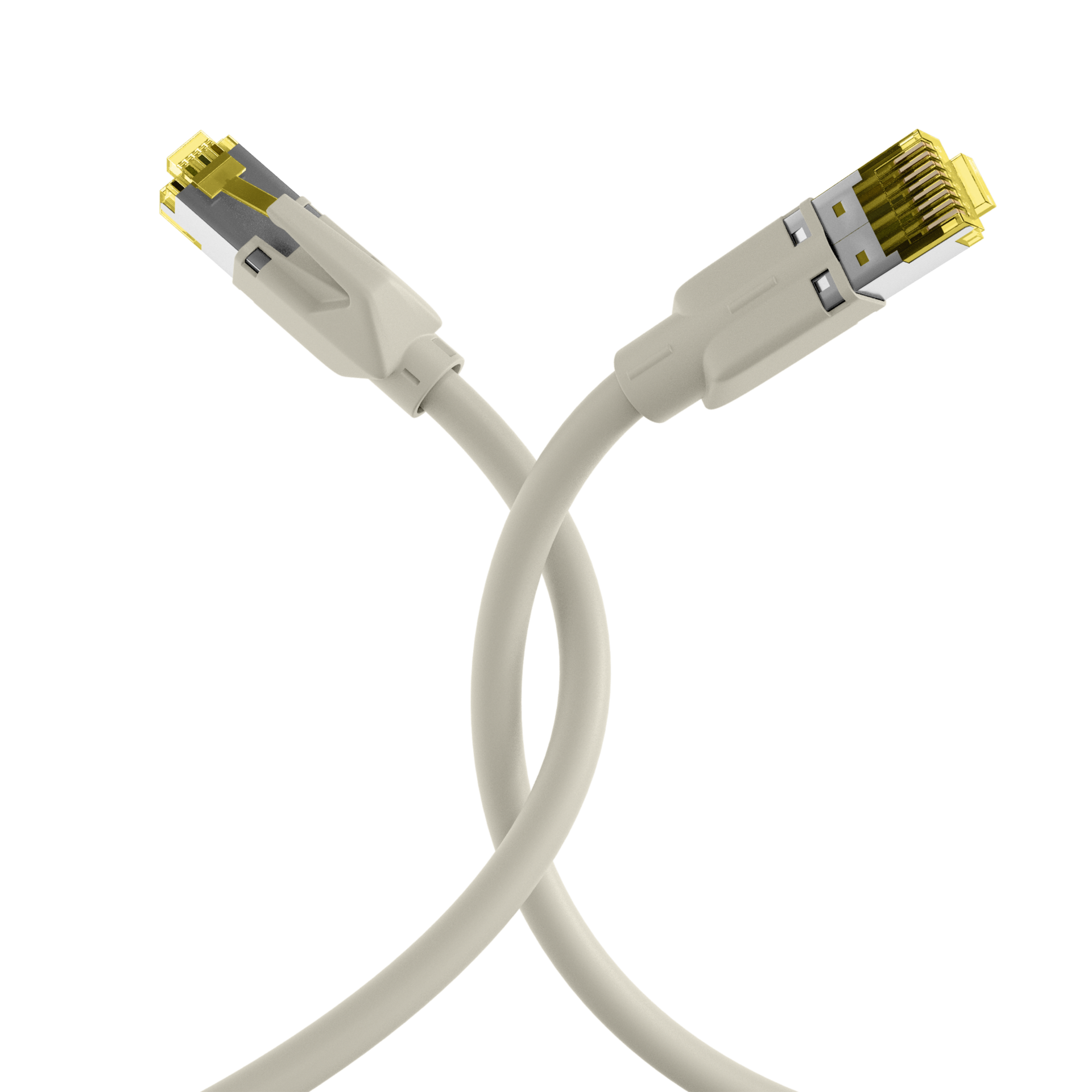

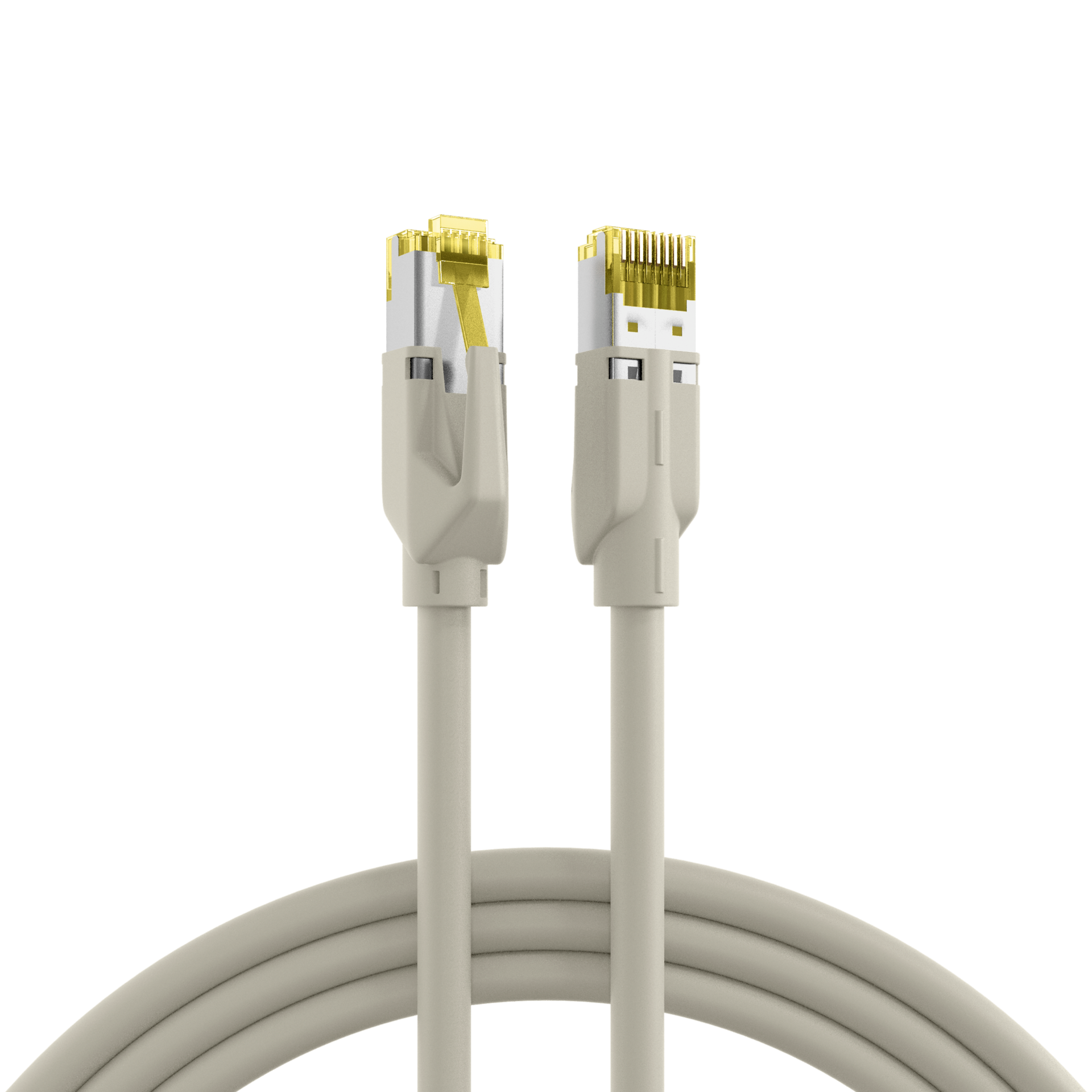

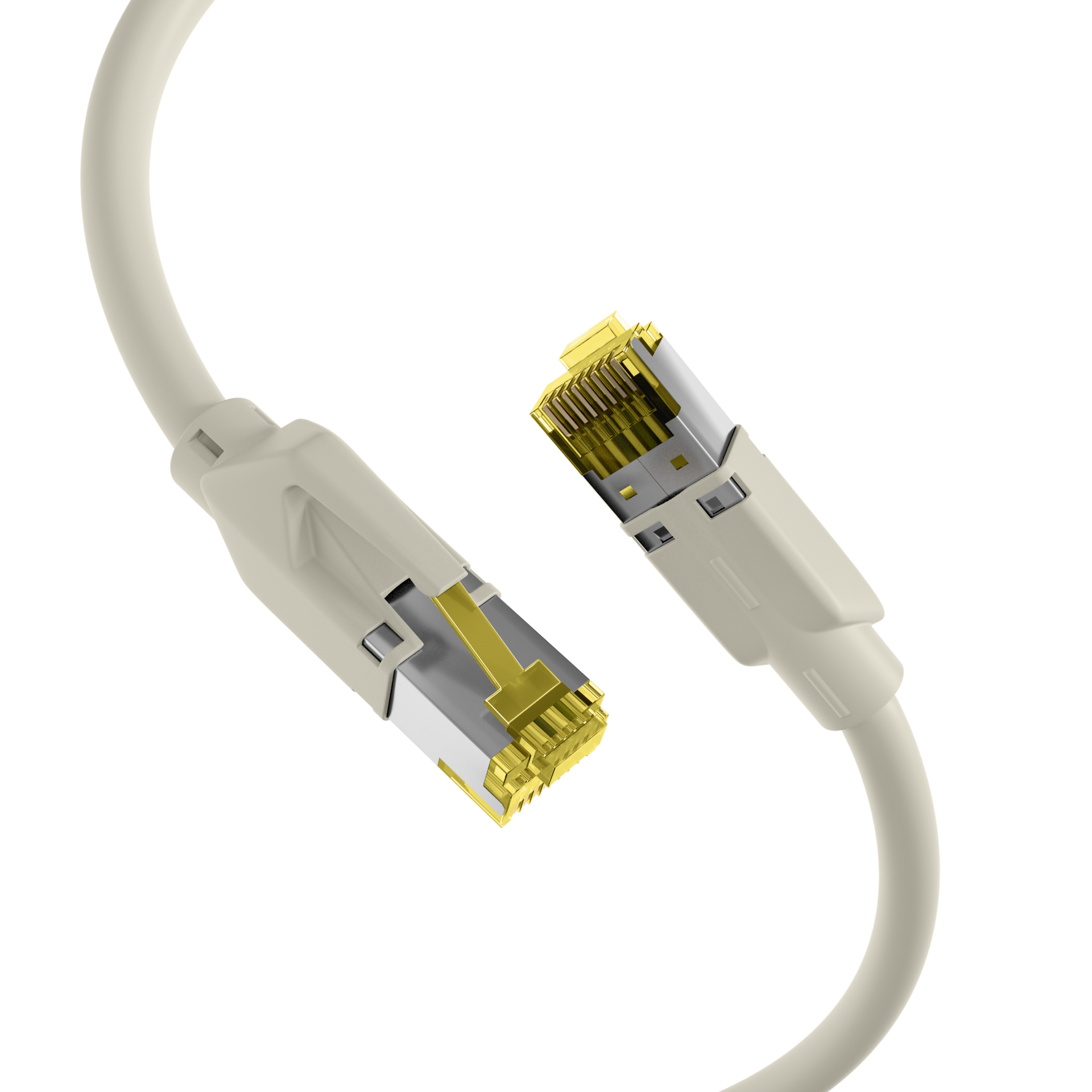

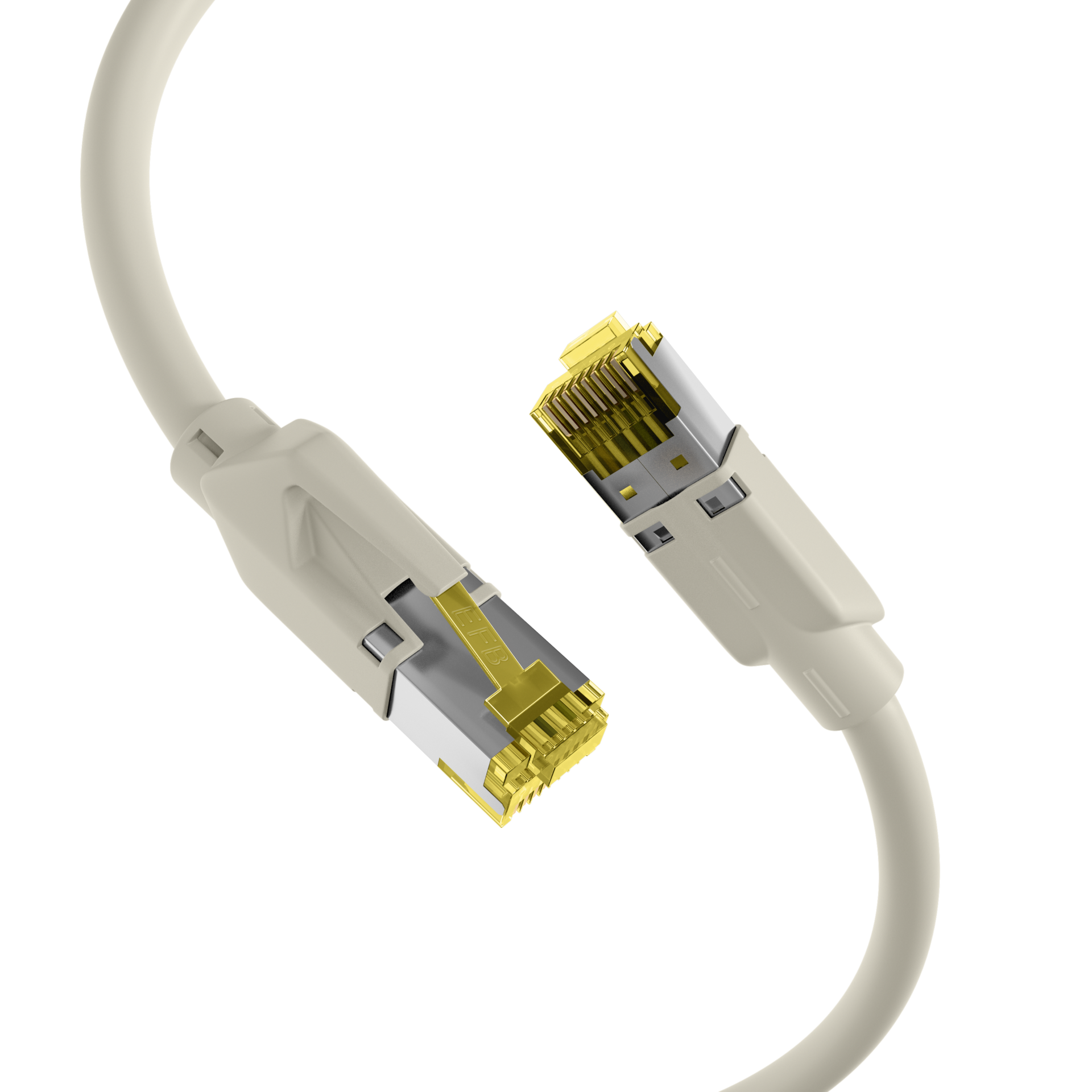

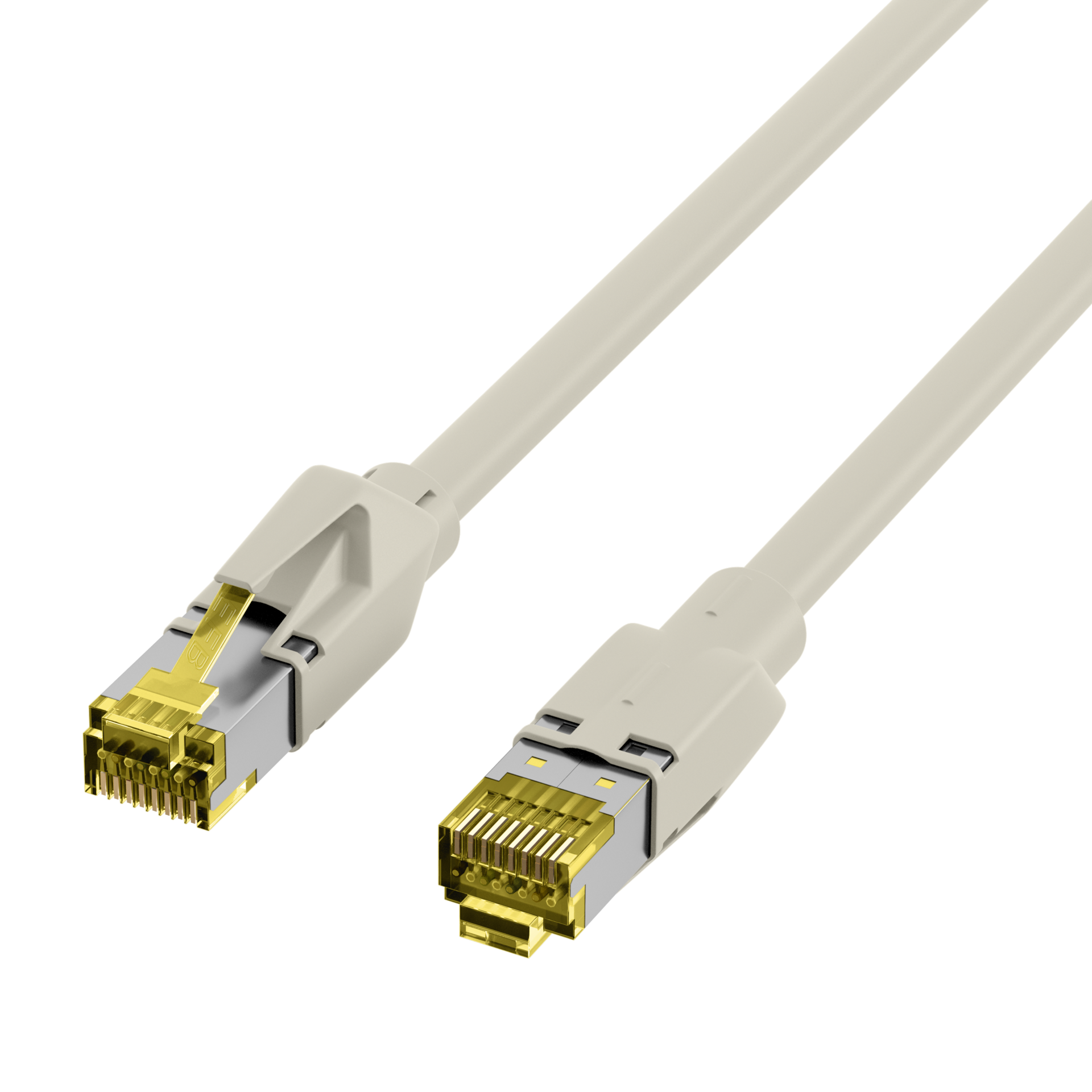

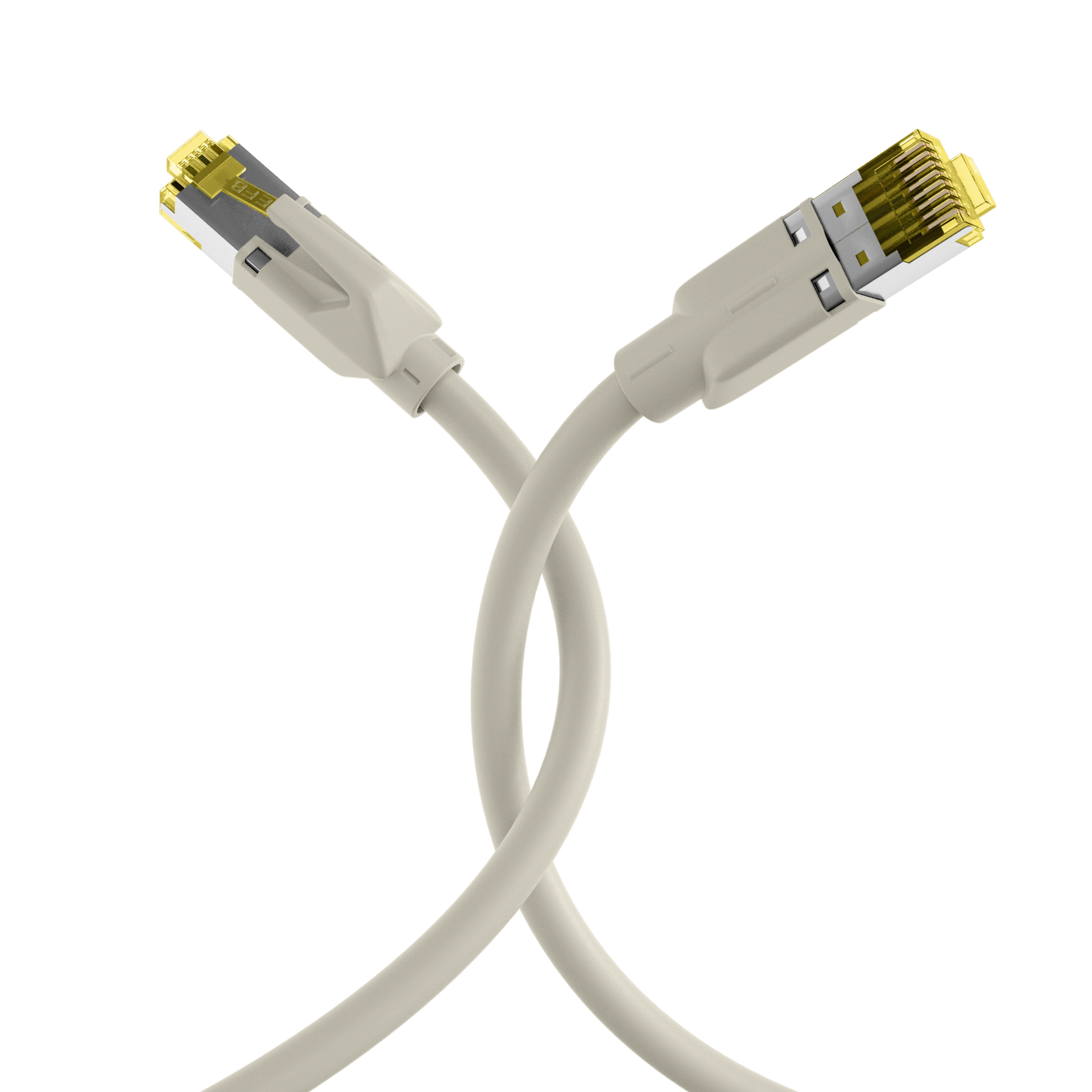

INFRALAN® Patch cord Cat.6A, assembled grommet, grey
INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 0,5m, grey
Varenummer:
IPK-6A-M-HFR-GR-0050
EAN Nr.:
4049759195335
Produktinformation til INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 0,5m, grey
The combination of a raw cable Cat. 7 UC900 and a RJ45 connector TM31 from Hirose, one of the best RJ45 Cat. 6A connectors worldwide, meets the requirements of transmission quality and mechanical reliability in equal measure.
The 360 degree shield contact of the TM31 and the very good coupling attenuation of the S/FTP raw cable even meets requirements in harsh industrial environments with high EMC safety.
Special features
Jacket material: LSZH
Cross section: 4 x 2 x AWG27/7
Cable diameter: 5.9mm
Cable Type: Draka UC900
Connector type: HRS TM31
Type of grommet: Mounted bend relief
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
The 360 degree shield contact of the TM31 and the very good coupling attenuation of the S/FTP raw cable even meets requirements in harsh industrial environments with high EMC safety.
Special features
Jacket material: LSZH
Cross section: 4 x 2 x AWG27/7
Cable diameter: 5.9mm
Cable Type: Draka UC900
Connector type: HRS TM31
Type of grommet: Mounted bend relief
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
Tekniske egenskaber
| AWG-Querschnitt: | 27/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 500MHz |
| Belegung: | nach TIA/EIA 568B |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Euroklasse: | Eca |
| Farbe der Knickschutztülle: | grau |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kabeltyp nach Hersteller: | Draka UC900 SS27 |
| Kategorie: | 6A (TIA) |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | grau |
| Mantel-Material: | LSZH |
| NVP-Wert: | 79 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | nach IEC61034 |
| Rohkabel: | Cat.7 |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Steckertyp: | TM31 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Temperaturbereich: | -20 – 60 °C |
| Temperaturbereich (Betrieb): | -20 – 60 |
| Temperaturbereich (Installation): | 0 – 50 |
| UL approbiert: | Nein |
| UV beständig: | Nein |
| Verriegelungsart: | M25 |
| Ölbeständig: | Nein |
| Übertragung: | 10Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | |
|---|---|---|---|
| IPK-6A-M-HFR-GR-0050 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 0,5m, grey | 0.5 m | |
| IPK-6A-M-HFR-GR-0100 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 1m, grey | 1,0 m | |
| IPK-6A-M-HFR-GR-0150 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 1,5m, grey | 1,5 m | |
| IPK-6A-M-HFR-GR-0200 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 2m, grey | 2,0 m | |
| IPK-6A-M-HFR-GR-0300 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 3m, grey | 3,0 m | |
| IPK-6A-M-HFR-GR-0500 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 5m, grey | 5.0 m | |
| IPK-6A-M-HFR-GR-1000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 10m, grey | 10,0 m | |
| IPK-6A-M-HFR-GR-2000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 20m, grey | 20.0 m |
