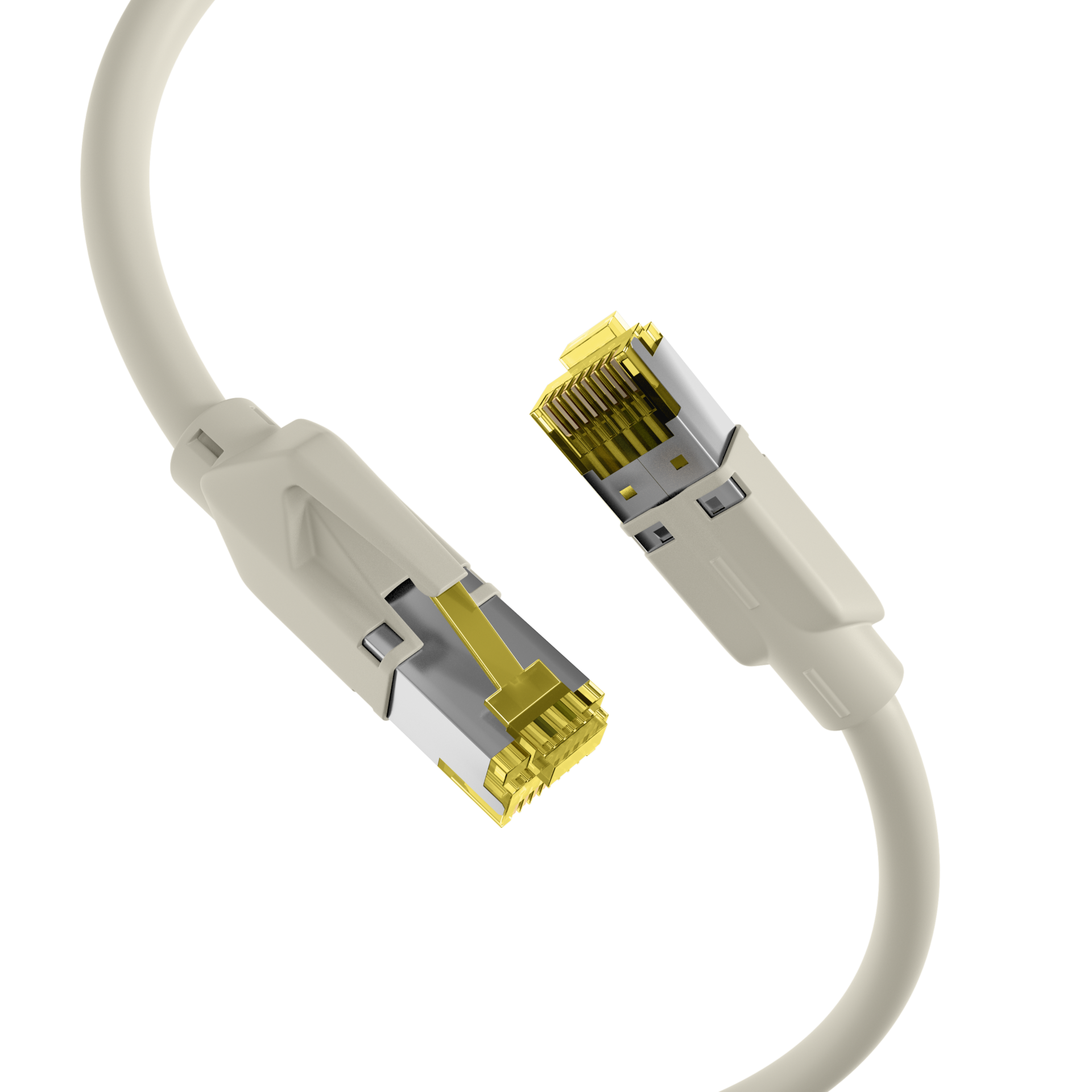

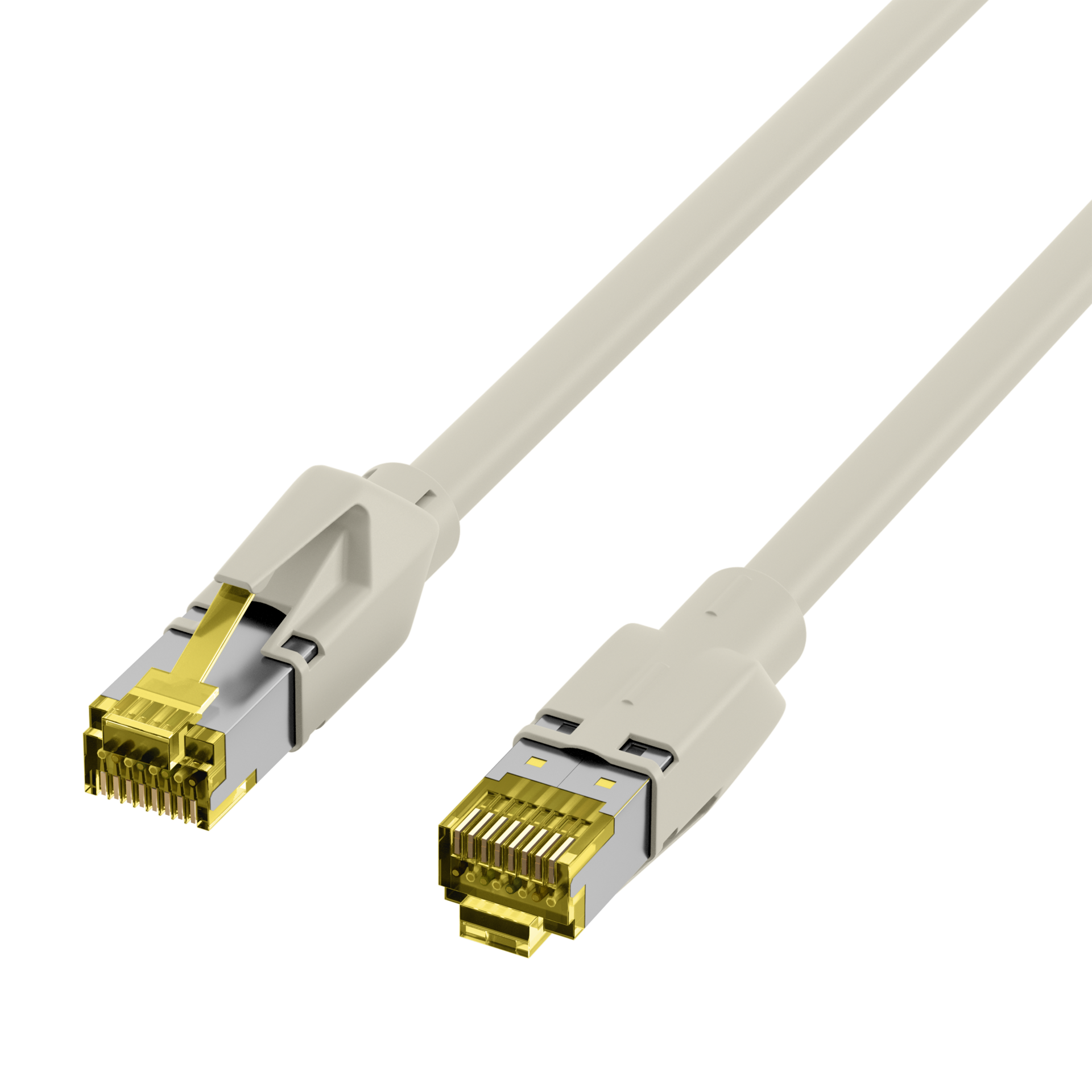

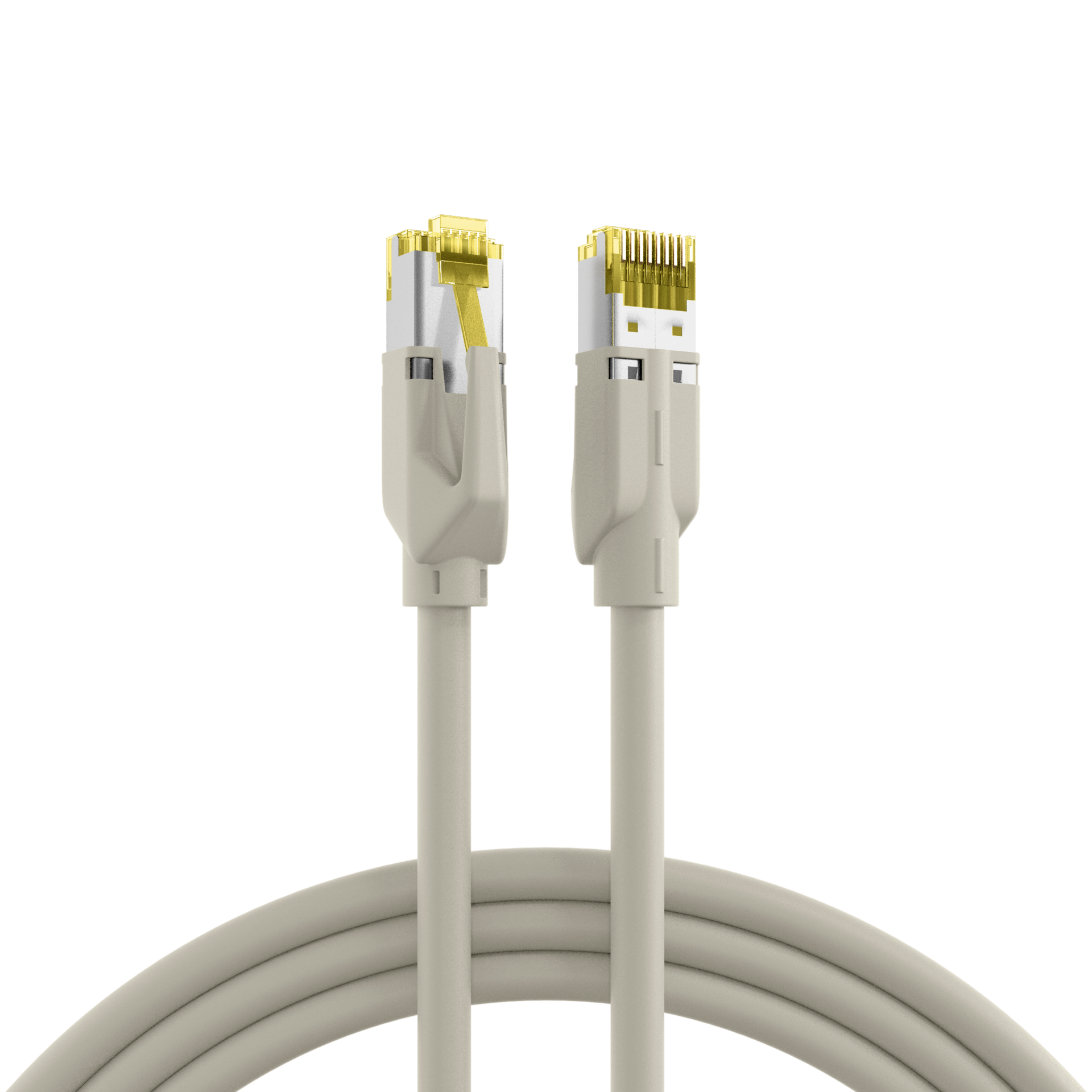

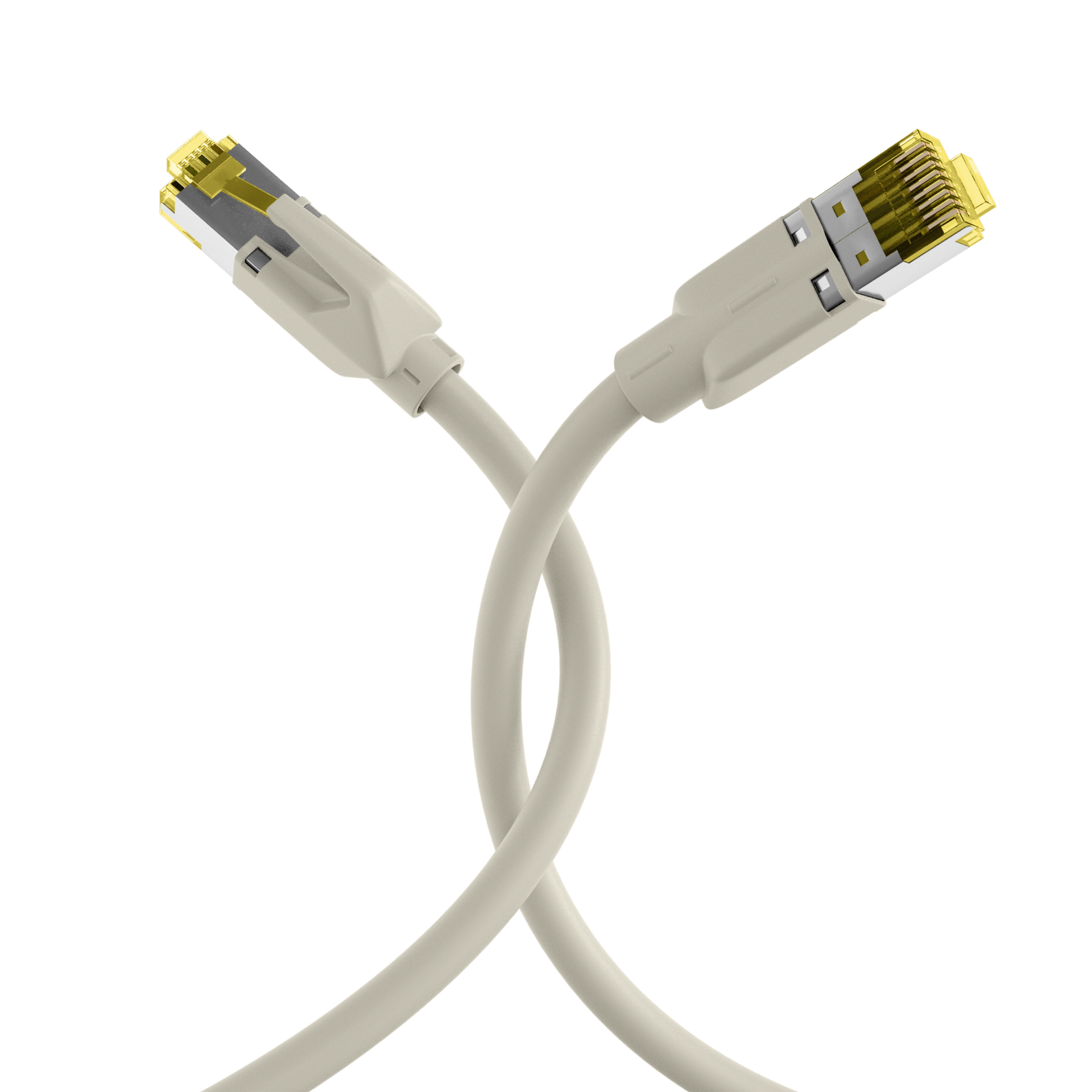

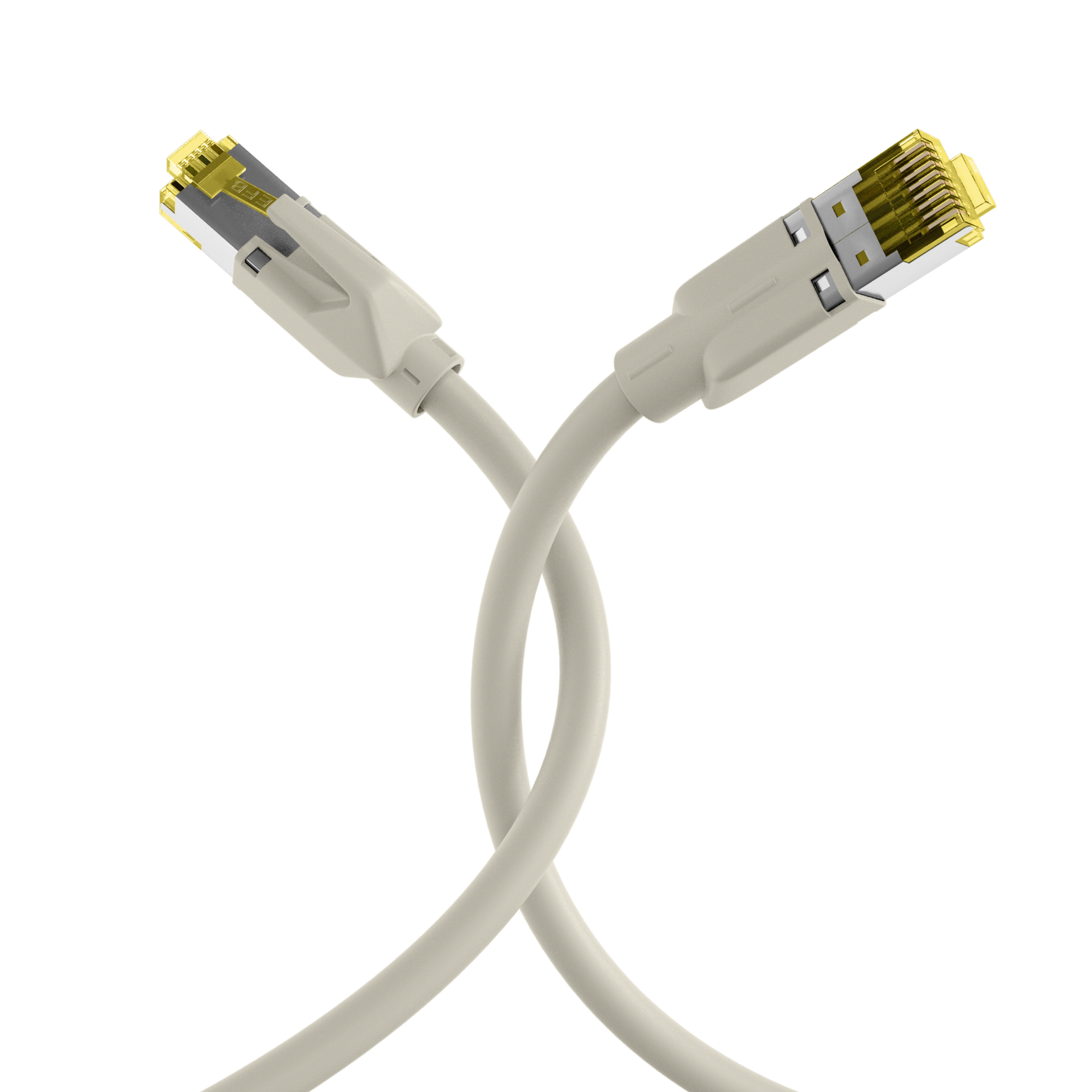

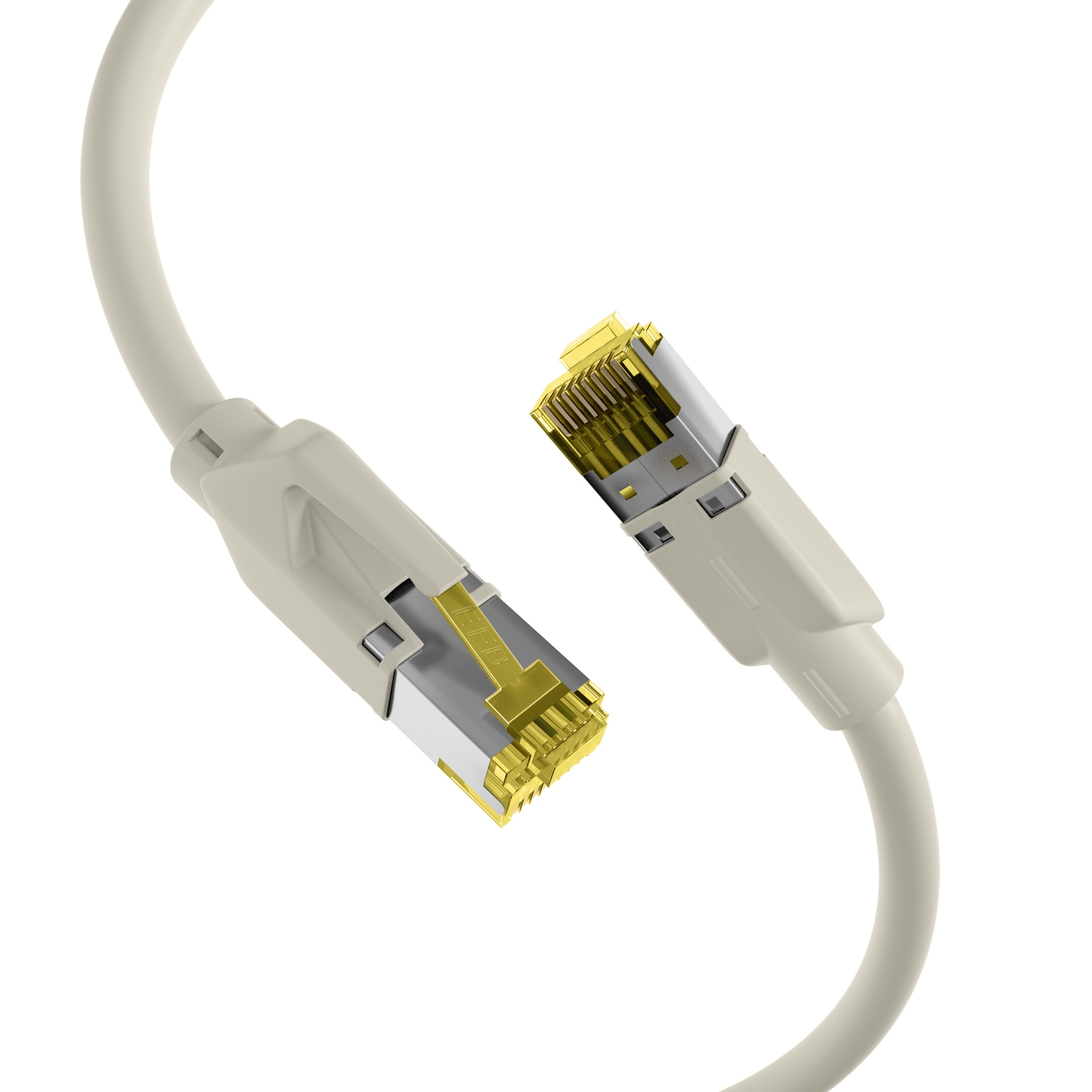

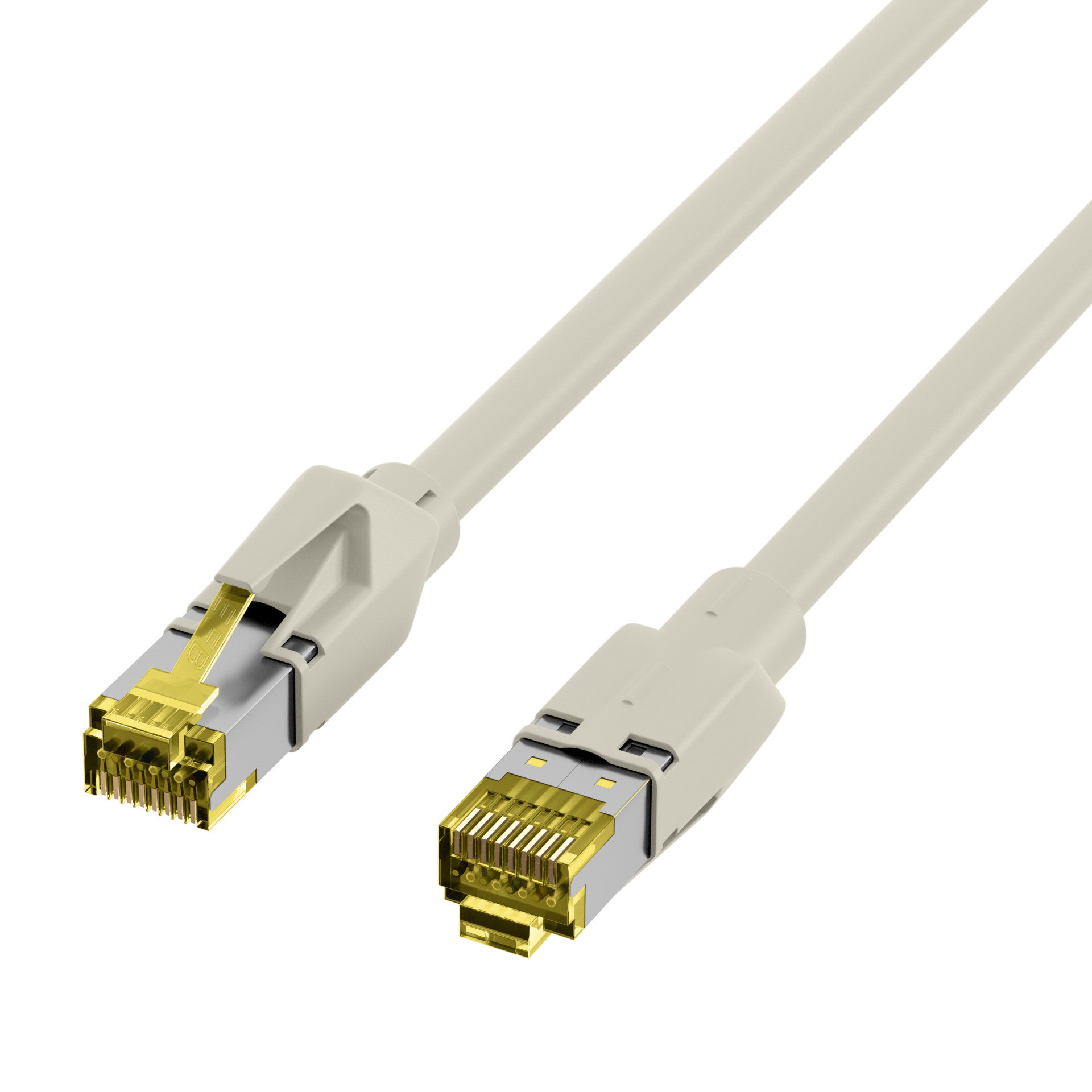

INFRALAN® Patch cord Cat.6A, assembled grommet, grey
INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 20m, grey
Varenummer:
IPK-6A-M-HFR-GR-2000
EAN Nr.:
4049759195427
Produktinformation til INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 20m, grey
The combination of a raw cable Cat. 7 UC900 and a RJ45 connector TM31 from Hirose, one of the best RJ45 Cat. 6A connectors worldwide, meets the requirements of transmission quality and mechanical reliability in equal measure.
The 360 degree shield contact of the TM31 and the very good coupling attenuation of the S/FTP raw cable even meets requirements in harsh industrial environments with high EMC safety.
Special features
Jacket material: LSZH
Cross section: 4 x 2 x AWG27/7
Cable diameter: 5.9mm
Cable Type: Draka UC900
Connector type: HRS TM31
Type of grommet: Mounted bend relief
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
The 360 degree shield contact of the TM31 and the very good coupling attenuation of the S/FTP raw cable even meets requirements in harsh industrial environments with high EMC safety.
Special features
Jacket material: LSZH
Cross section: 4 x 2 x AWG27/7
Cable diameter: 5.9mm
Cable Type: Draka UC900
Connector type: HRS TM31
Type of grommet: Mounted bend relief
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
Tekniske egenskaber
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS27 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Connector type: | TM31 |
| Contacts: | Gold plated |
| Euro class: | Eca |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Jacket material: | LSZH |
| Length imprint: | False |
| Locking lever: | True |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 79 % |
| Oil resistant: | no |
| Operating Temperature: | -20 – 60 °C |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet*** |
| Raw cable: | Cat.7 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Temperature Range (Installation): | 0 – 50 |
| Temperature Range (Operation): | -20 – 60 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| Type of locking: | M25 |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | |
|---|---|---|---|
| IPK-6A-M-HFR-GR-0050 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 0,5m, grey | 0.5 m | |
| IPK-6A-M-HFR-GR-0100 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 1m, grey | 1.0 m | |
| IPK-6A-M-HFR-GR-0150 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 1,5m, grey | 1.5 m | |
| IPK-6A-M-HFR-GR-0200 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 2m, grey | 2.0 m | |
| IPK-6A-M-HFR-GR-0300 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 3m, grey | 3.0 m | |
| IPK-6A-M-HFR-GR-0500 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 5m, grey | 5.0 m | |
| IPK-6A-M-HFR-GR-1000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 10m, grey | 10.0 m | |
| IPK-6A-M-HFR-GR-2000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TM31, UC900, 20m, grey | 20.0 m |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
