U-DQ(ZN)BH 50/125µ OM3 1750N

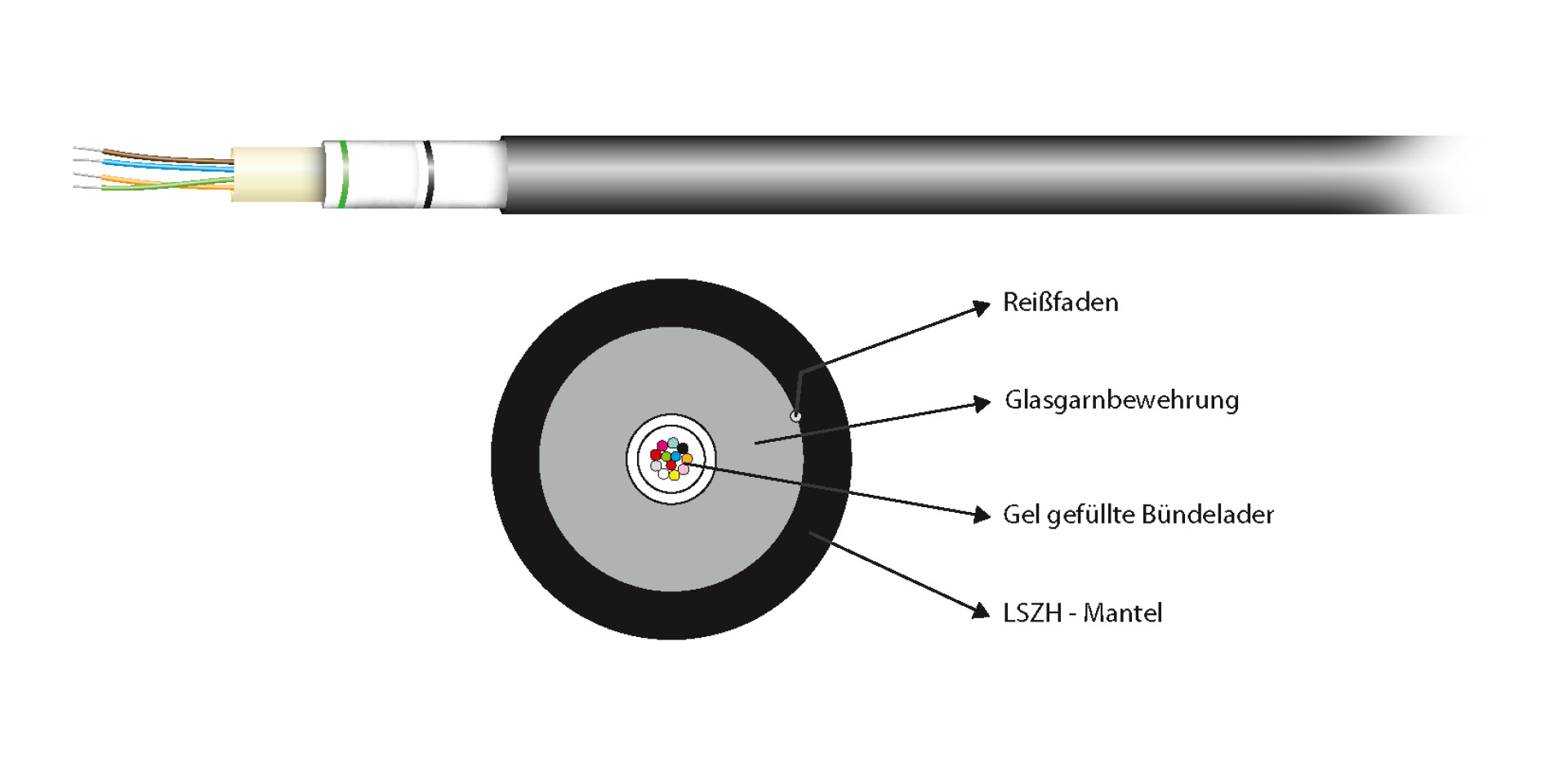

INFRALAN® U-DQ(ZN)BH OM3 4G (1x4) Dca 1750N LSZH black 7.0mm
Varenummer: 54504.1L-CPR
EAN nr.: 4049759180430

Produktinformation für INFRALAN® U-DQ(ZN)BH OM3 4G (1x4) Dca 1750N LSZH black 7.0mm

For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)

Universale cable
Suitable for connector assembly

The cable diameter can vary

Tekniske egenskaber

(Halogenfree): acc. EN 60754-1/2
Application: Inside/outside
Armouring: True
Blow in: False
Cable metal free: True
Circuit integrity: False
Colour outer sheath: black
Crush resistance: 1500 N/dm
Euro Class: Dca
Fiber Colours: black










Fiber marking: Colour
Fibre category: OM3
Fibre type: Multi mode 50/125
Flame-retardant: According to EN 60332-1-2
Halogen free (according to EN 60754-1/2): True
Harmonised Standard: EN 50575
IL max. (dB/km) 850nm: 2.5
IL max. (dB/km) 1300nm: 0.7
Jacket material: LSZH
Longitudinally watertight: 3/24 m/h
Longitudinal water blocking: True
Low smoke: acc. EN 61034-2
Low smoke (acc. EN 61034-2): True
Oil resistant: No
Oil resistant (acc. EN 60811-2-1): False
Radial water blocking: False
Rayleigh Backscatter Coefficient 850nm: 1.483
Rayleigh Backscatter Coefficient 1300nm: 1.478
Resistant to chemicals: False
Temperature Range (Installation): -5 – 50 °C
Temperature Range (Operation): -20 – 60 °C
Temperature Range (Storage): -25 – 70 °C
Transmission standards: IEEE 802.3 10Mbit to 100Gbit
Tube marking: Colour
Tube Ø: Up to 12 fibers: 3.5
Up to 24 fibers: 4.0 mm
Type of tube: Central tube
UV resistance: True
With rodent protection: True
With strain relief: True


Art. Nej. Betegnelse Construct Bending radius VDE-Name Cable Ø Tensile Force Weight
54504.1L-CPR INFRALAN® U-DQ(ZN)BH OM3 4G (1x4) Dca 1750N LSZH black 7.0mm 4G ( 1 x 4 ) Multimode OM3 140 mm U-DQ(ZN)BH 4G50/125 7.0 mm 1750 N 55 kg/km
54508.1L-CPR INFRALAN® U-DQ(ZN)BH OM3 8G (1x8) Dca 1750N LSZH black 7.0mm 8G ( 1 x 8 ) Multimode OM3 140 mm U-DQ(ZN)BH 8G50/125 7.0 mm 1750 N 55 kg/km
54512.1L-CPR INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) Dca 1750N LSZH black 7.0mm 12G ( 1 x 12 ) Multimode OM3 140 mm U-DQ(ZN)BH 12G50/125 7.0 mm 1750 N 55 kg/km
54524.1L-CPR INFRALAN® U-DQ(ZN)BH OM3 24G (1x24) Dca 1750N LSZH black 7.5mm 24G ( 1 x 24 ) Multimode OM3 150 mm U-DQ(ZN)BH 24G50/125 7.5 mm 1750 N 60 kg/km

necessary tools

Kevlar®-Cutting tool KS-1, 140 mm
Miller®Stripping-tool for stripping 250 µm coating
Cable Stripping Tool Miller® RCS-114


Miller® Fiber Cleaning Tapes

sold with

FO marking strips " Vorsicht Glasfaserkabel", PU 50
