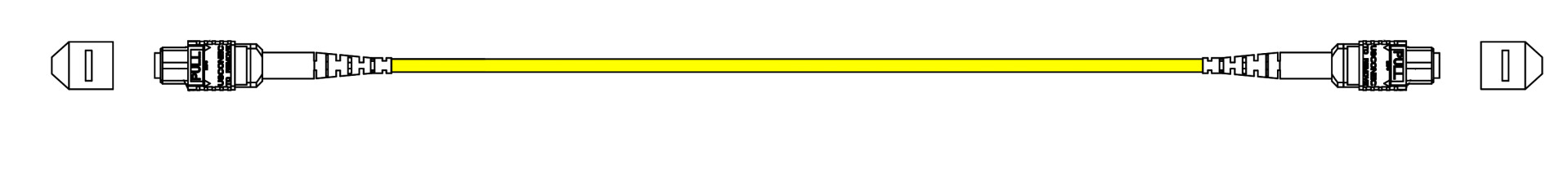

MTP®-F/MTP®-F 12-fiber patch cable OS2, Code B

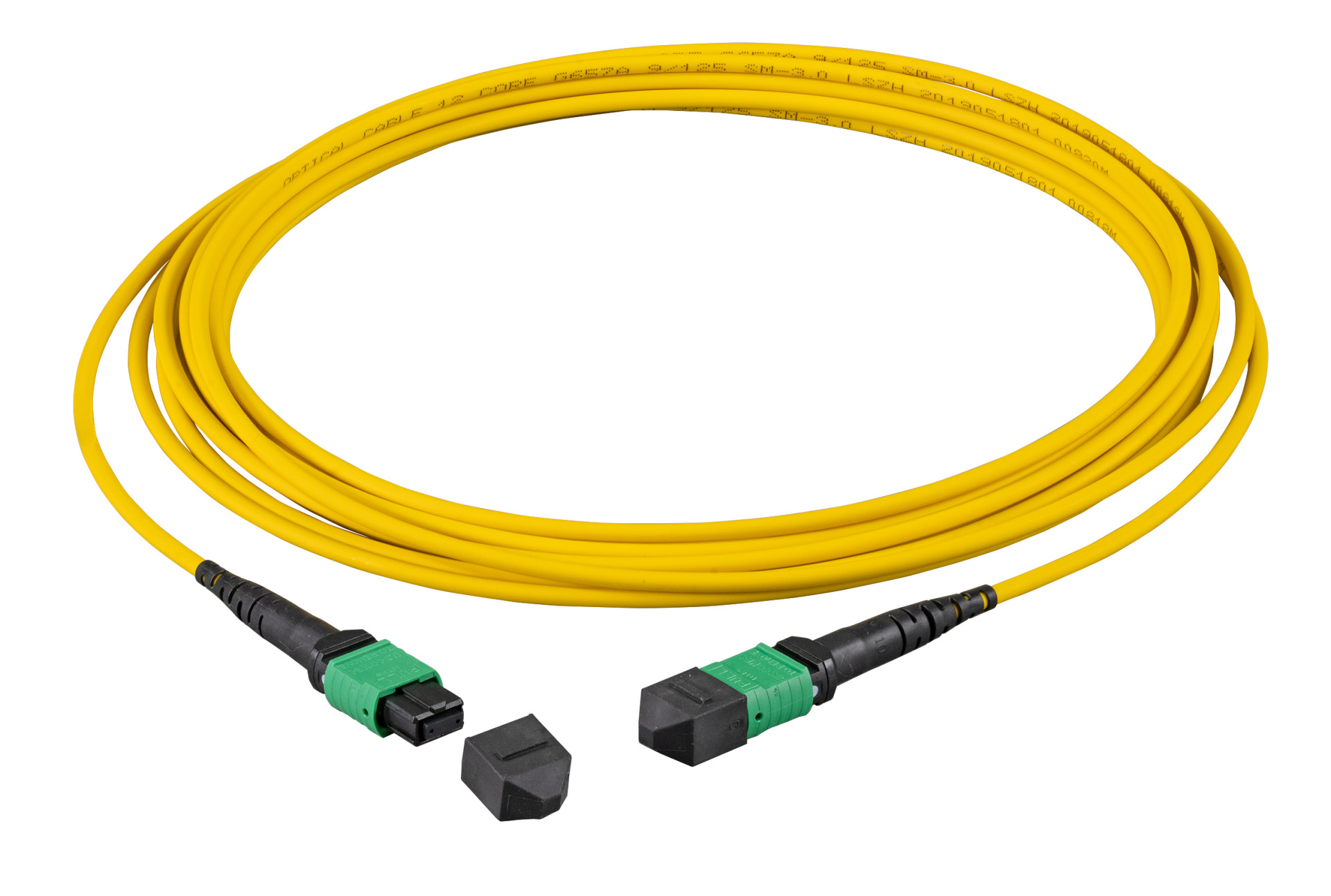

MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m
Varenummer:
MTPF12MTPFOS2-1
EAN nr.:
4049759216115
Produktinformation für MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m
Application: Server to Server- / Switch to Switch connection,
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Suitable for transmission links up to 100 Gigabit
Connector manufacturer: US Conec
Matrix: 12 Fibers
Singlemode variant always as APC version
Colour: OM5 lime green, OM4 erica-violet, OM3 aqua and OS2 yellow
Available lengths: 1m up to 100m
Note: In each MTP® transmission link, a type B (crossed) patch cable is required
MTP Singlemode connectors are in APC version
Tekniske egenskaber
| Cable Diameter: | 3.0 mm |
|---|---|
| Category: | OS2 |
| Coding: | Type B crossed |
| Colour outer sheath: | yellow |
| Connector connection 1: | MTP-F |
| Connector connection 2: | MTP-F |
| Fibre type: | G657A1 9/125 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket material: | LSZH |
| Operating Temperature: | 0 – 50 °C |
| Storage Temperature: | -20 – 70 °C |
| With rodent protection: | False |
Varianter
| Art. Nej. | Betegnelse | Number of connectors connection 1 | Number of fibres | Number of connectors connection 2 | Length | |
|---|---|---|---|---|---|---|
| MTPF12MTPFOS2-1 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 1m | 1 x MTP® female | 12 | 1 x MTP® female | 1.0 m | |
| MTPF12MTPFOS2-2 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 2m | 1 x MTP® female | 12 | 1 x MTP® female | 2.0 m | |
| MTPF12MTPFOS2-3 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 3m | 1 x MTP® female | 12 | 1 x MTP® female | 3.0 m | |
| MTPF12MTPFOS2-5 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 5m | 1 x MTP® female | 12 | 1 x MTP® female | 5.0 m | |
| MTPF12MTPFOS2-7,5 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 7,5m | 1 x MTP® female | 12 | 1 x MTP® female | 7.5 m | |
| MTPF12MTPFOS2-10 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 10m | 1 x MTP® female | 12 | 1 x MTP® female | 10.0 m | |
| MTPF12MTPFOS2-15 | MTP®/APC(F)-MTP®/APC(F) Patch cable OS2 12 fibers Typ B LSZH yellow 15m | 1 x MTP® female | 12 | 1 x MTP® female | 15.0 m |
