Partially Assembled Breakoutbox OM4
Priser kun synlige for indloggede brugere
Partially Assembled Breakoutbox with 10 LC-Duplex adapter OM4
Varenummer:
B65901.10OM4
EAN nr.:
4049759262594
Produktinformation für Partially Assembled Breakoutbox with 10 LC-Duplex adapter OM4

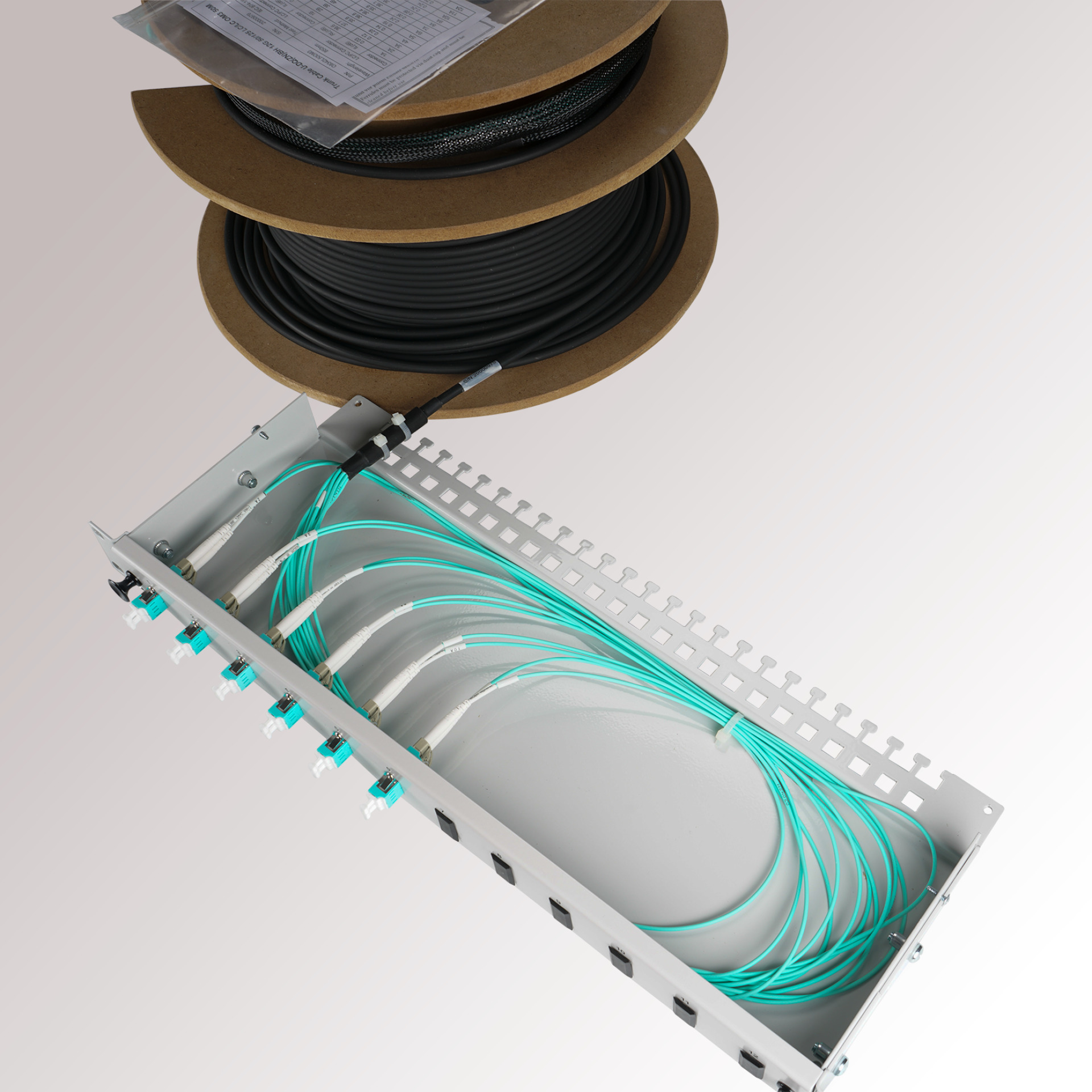

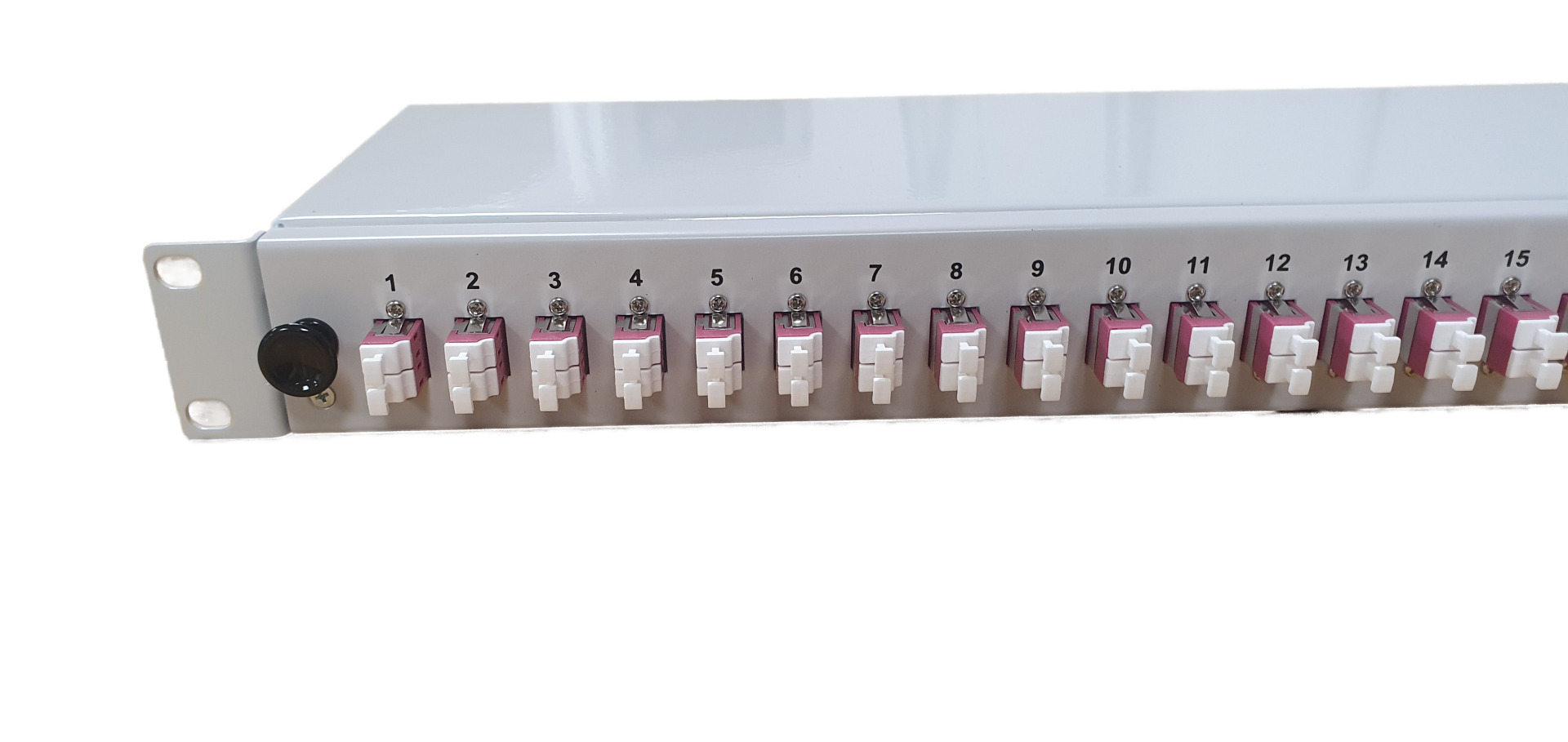

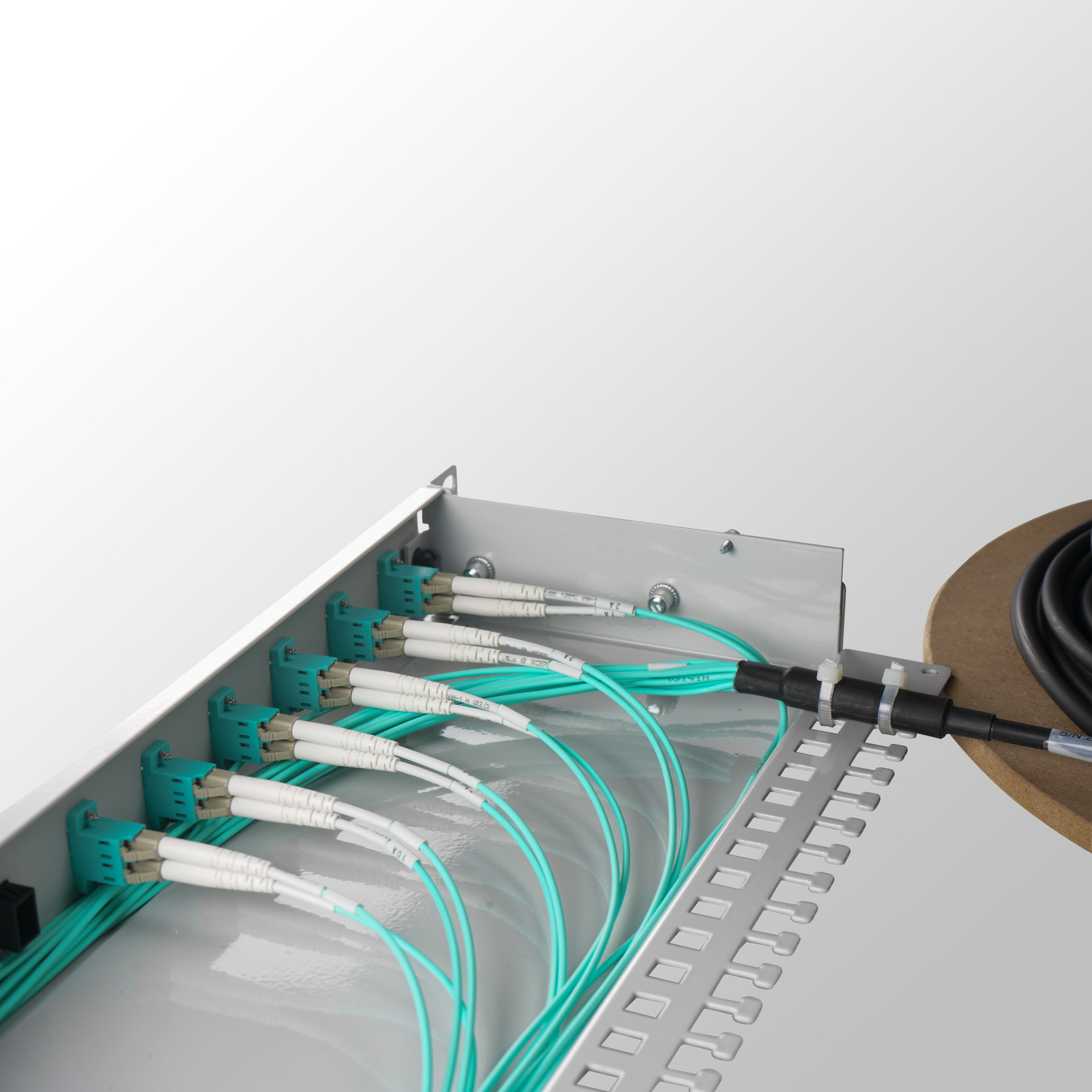

Partially assembled Breakout box equipped with LC duplex adapter
OM4
Front panel screwed and adapters inserted

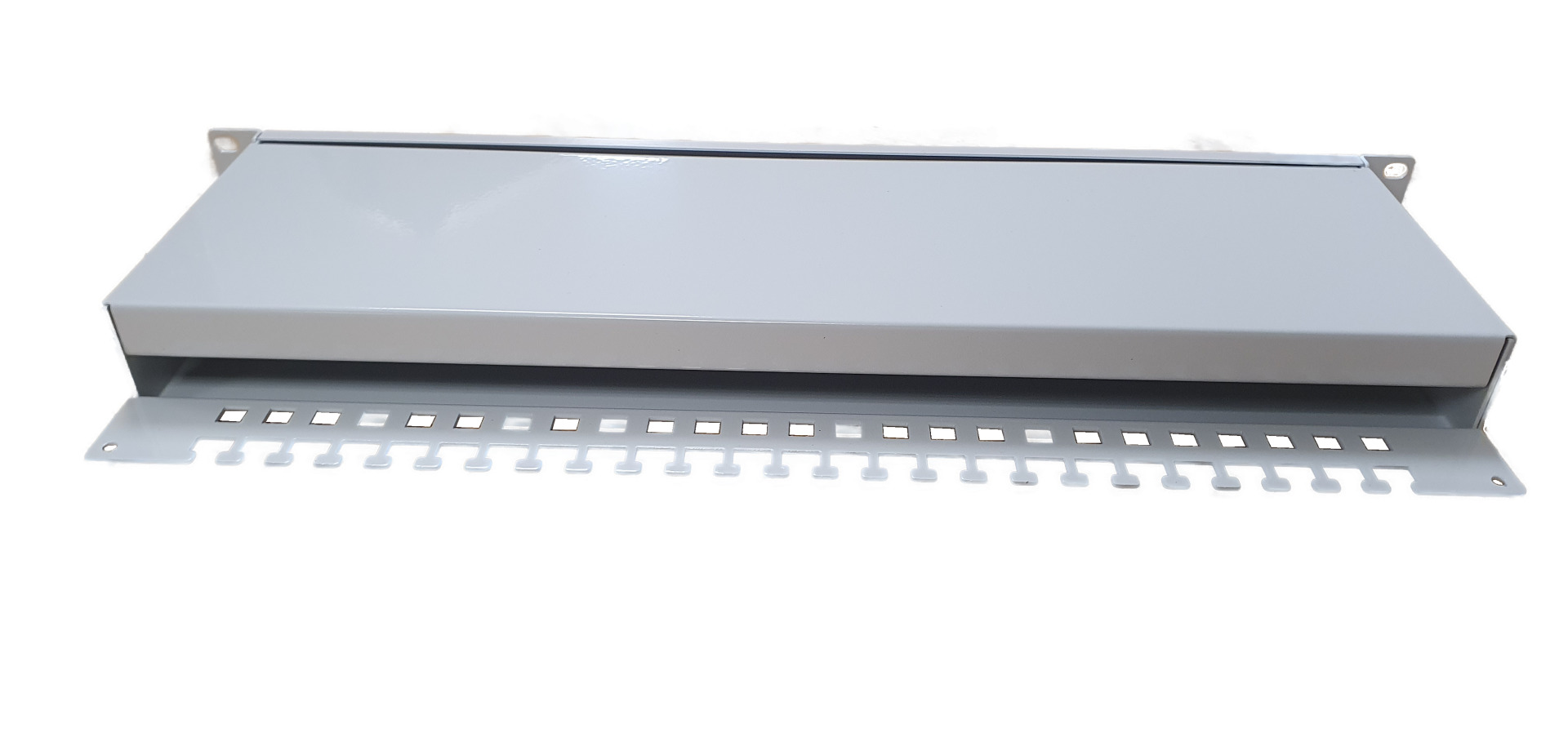

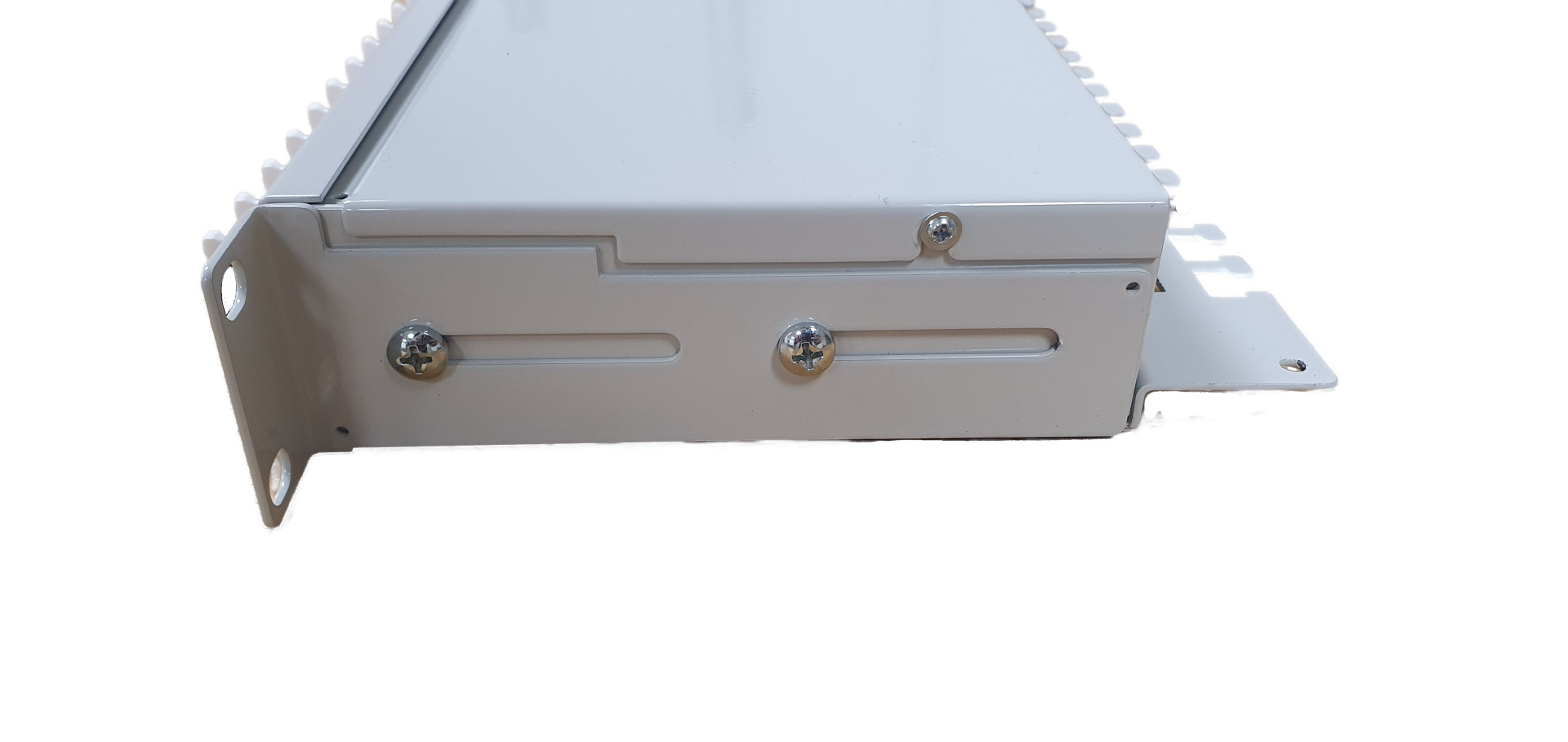

Metal box
OM4
Front panel screwed and adapters inserted
Metal box
Tekniske egenskaber
Adapter material: | Plastic adapter |
---|---|
Depth: | 170 mm |
Fiber type: | Multi mode 50/125 |
Fibre class: | OM4 |
Height: | 44 mm |
Mounting method: | 482.6 mm (19 inch) mounting |
Number of height units: | 1 U |
Sliding: | non sliding version |
Width: | 482 mm |
With Pigtail: | False |
With front plate: | True |
With housing: | True |
Varianter
Art. Nej. | Betegnelse | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
---|---|---|---|---|---|---|---|---|---|
B65901.2OM4 | Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM4 | LC-Duplex | grey | 2 | 2 | 7035 | LC-Duplex | erica-violet | |
B65901.3OM4 | Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM4 | LC-Duplex | grey | 3 | 3 | 7035 | LC-Duplex | erica-violet | |
B65901.4OM4 | Partially Assembled Breakoutbox with 4 LC-Duplex adapter OM4 | LC-Duplex | grey | 4 | 4 | 7035 | LC-Duplex | erica-violet | |
B65901.6OM4 | Partially Assembled Breakoutbox with 6 LC-Duplex adapter OM4 | LC-Duplex | grey | 6 | 6 | 7035 | LC-Duplex | erica-violet | |
B65901.8OM4 | Partially Assembled Breakoutbox with 8 LC-Duplex adapter OM4 | LC-Duplex | grey | 8 | 8 | 7035 | LC-Duplex | erica-violet | |
B65901.10OM4 | Partially Assembled Breakoutbox with 10 LC-Duplex adapter OM4 | LC-Duplex | grey | 10 | 10 | 7035 | LC-Duplex | erica-violet | |
B65901.12OM4 | Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM4 | LC-Duplex | grey | 12 | 12 | 7035 | LC-Duplex | erica-violet | |
B65901.16OM4 | Partially Assembled Breakoutbox with 16 LC-Duplex adapter OM4 | LC-Duplex | grey | 16 | 16 | 7035 | LC-Duplex | erica-violet | |
B65901.18OM4 | Partially Assembled Breakoutbox with 18 LC-Duplex adapter OM4 | LC-Duplex | grey | 18 | 18 | 7035 | LC-Duplex | erica-violet | |
B65901.24OM4 | Partially Assembled Breakoutbox with 24 LC-Duplex adapter OM4 | LC-Duplex | grey | 24 | 24 | 7035 | LC-Duplex | erica-violet |
