Partially Assembled Breakoutbox OM4
Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM4
Varenummer:
B65901.2OM4
EAN Nr.:
4049759262266
Produktinformationen für Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM4

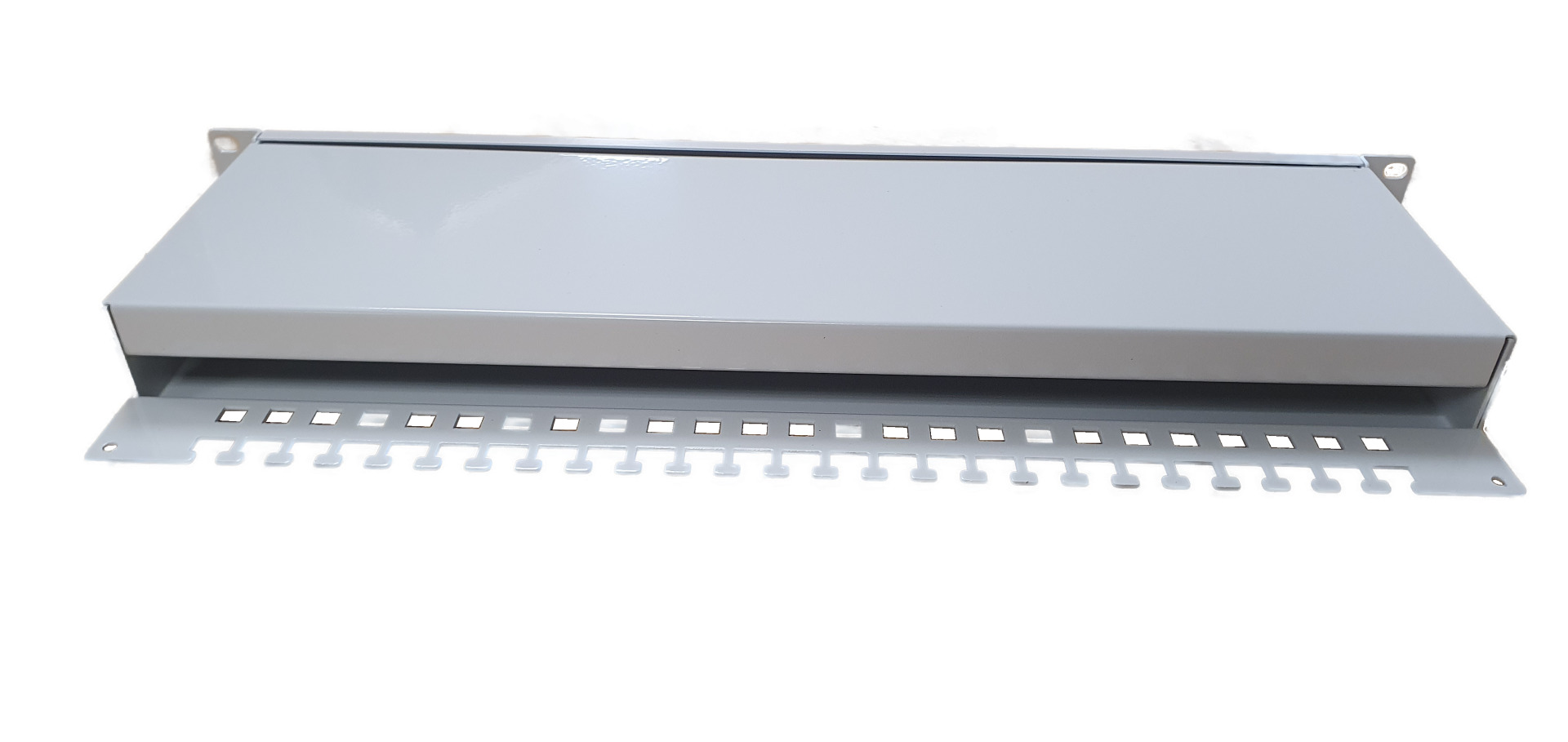

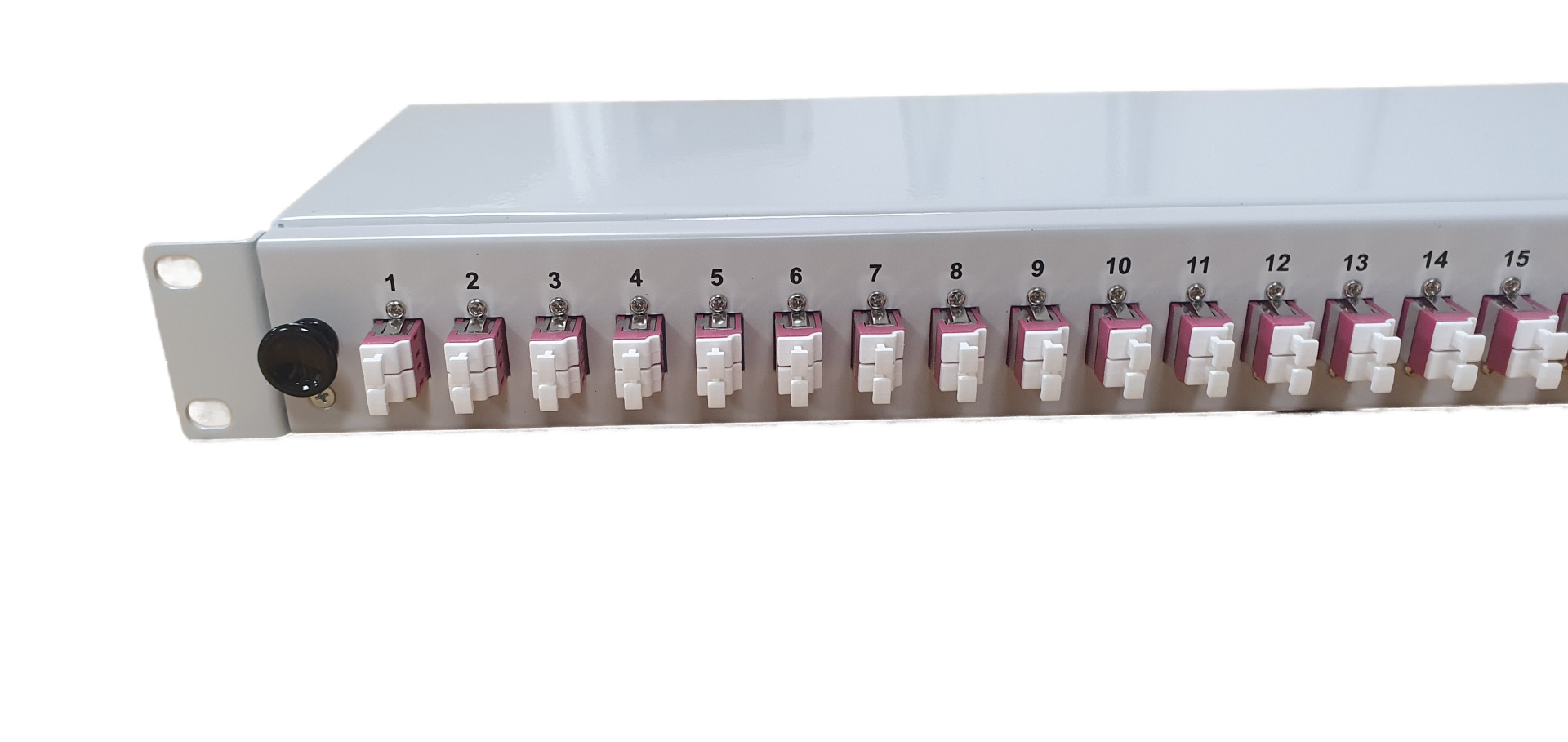

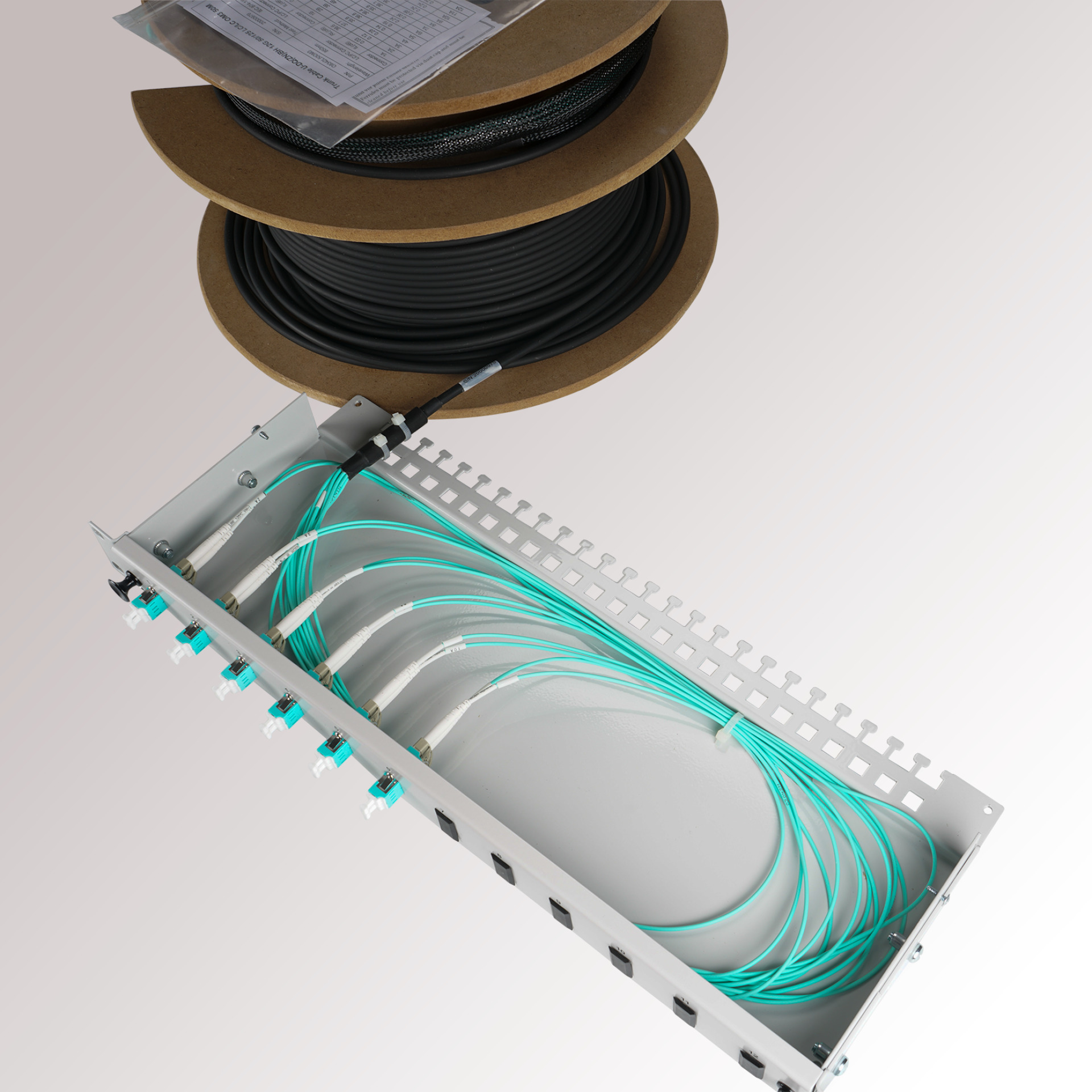

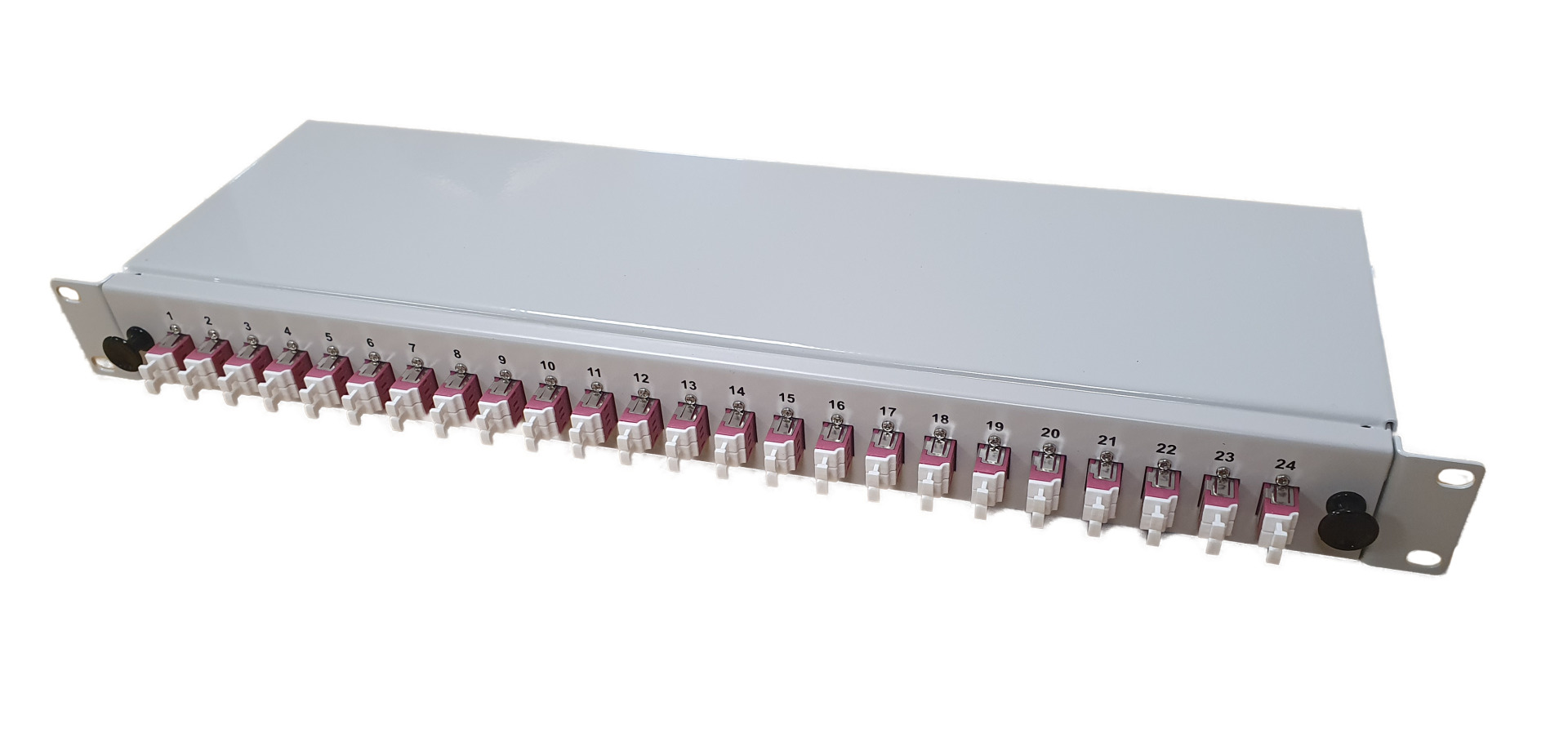

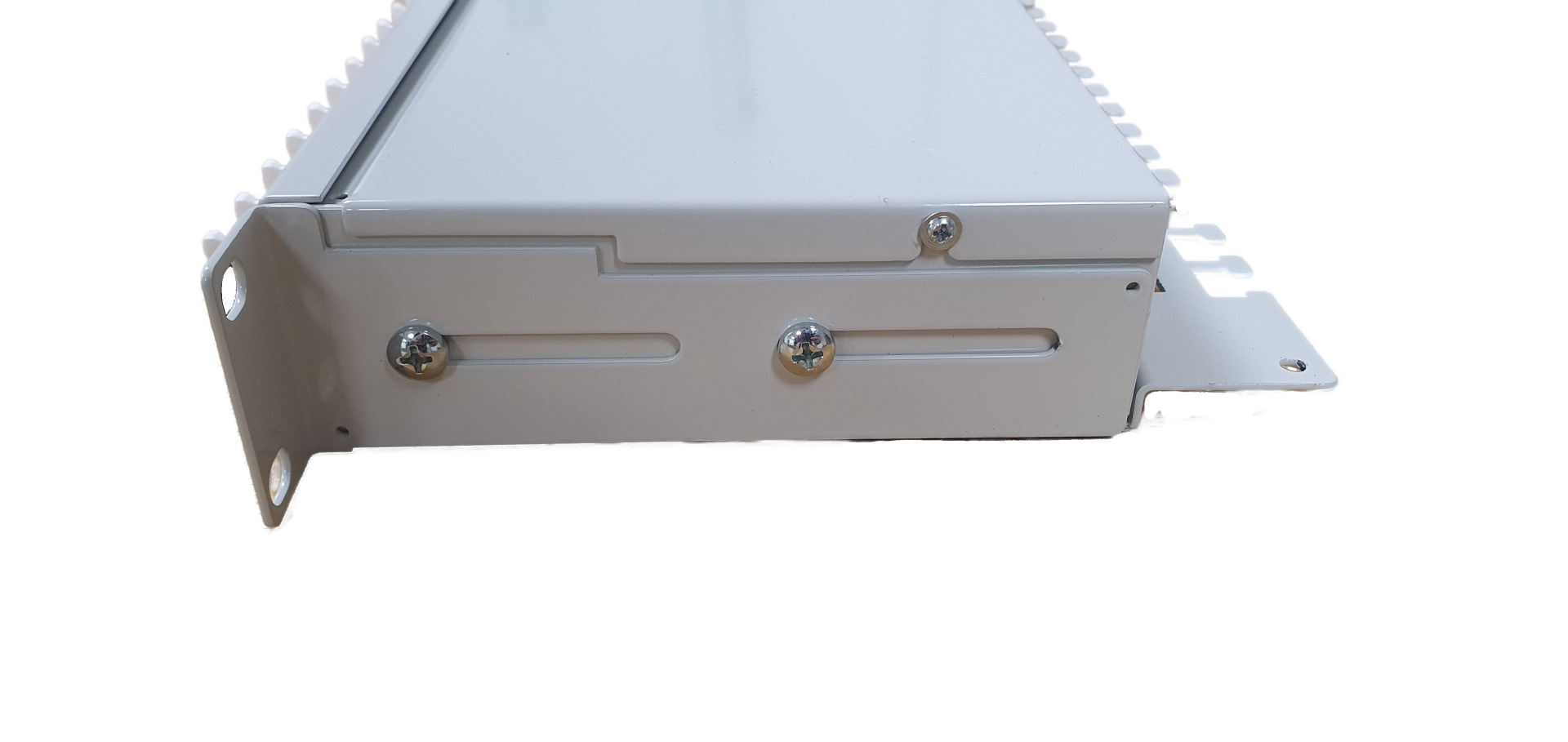

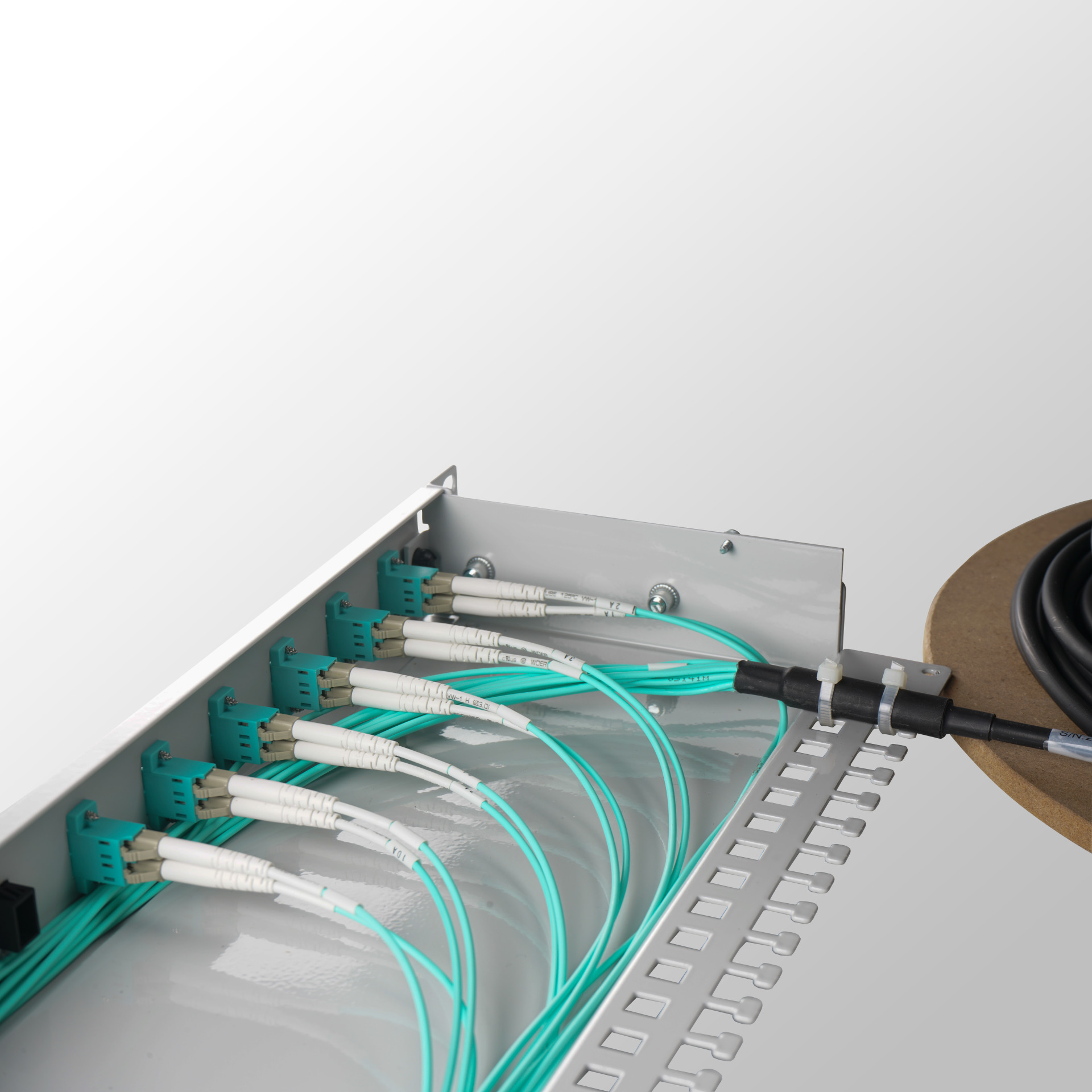

Partially assembled Breakout box equipped with LC duplex adapter
OM4
Front panel screwed and adapters inserted
Metal box
OM4
Front panel screwed and adapters inserted
Metal box
Technische Eigenschaften
| Adapter material: | Plastic adapter |
|---|---|
| Depth: | 170 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Sliding: | non sliding version |
| Width: | 482 mm |
| With Pigtail: | False |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Type of connector external | Colour | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|
| B65901.2OM4 | Partially Assembled Breakoutbox with 2 LC-Duplex adapter OM4 | LC-Duplex | grey | 2 | 2 | 7035 | LC-Duplex | erica-violet | |
| B65901.3OM4 | Partially Assembled Breakoutbox with 3 LC-Duplex adapter OM4 | LC-Duplex | grey | 3 | 3 | 7035 | LC-Duplex | erica-violet | |
| B65901.4OM4 | Partially Assembled Breakoutbox with 4 LC-Duplex adapter OM4 | LC-Duplex | grey | 4 | 4 | 7035 | LC-Duplex | erica-violet | |
| B65901.6OM4 | Partially Assembled Breakoutbox with 6 LC-Duplex adapter OM4 | LC-Duplex | grey | 6 | 6 | 7035 | LC-Duplex | erica-violet | |
| B65901.8OM4 | Partially Assembled Breakoutbox with 8 LC-Duplex adapter OM4 | LC-Duplex | grey | 8 | 8 | 7035 | LC-Duplex | erica-violet | |
| B65901.10OM4 | Partially Assembled Breakoutbox with 10 LC-Duplex adapter OM4 | LC-Duplex | grey | 10 | 10 | 7035 | LC-Duplex | erica-violet | |
| B65901.12OM4 | Partially Assembled Breakoutbox with 12 LC-Duplex adapter OM4 | LC-Duplex | grey | 12 | 12 | 7035 | LC-Duplex | erica-violet | |
| B65901.16OM4 | Partially Assembled Breakoutbox with 16 LC-Duplex adapter OM4 | LC-Duplex | grey | 16 | 16 | 7035 | LC-Duplex | erica-violet | |
| B65901.18OM4 | Partially Assembled Breakoutbox with 18 LC-Duplex adapter OM4 | LC-Duplex | grey | 18 | 18 | 7035 | LC-Duplex | erica-violet | |
| B65901.24OM4 | Partially Assembled Breakoutbox with 24 LC-Duplex adapter OM4 | LC-Duplex | grey | 24 | 24 | 7035 | LC-Duplex | erica-violet |
