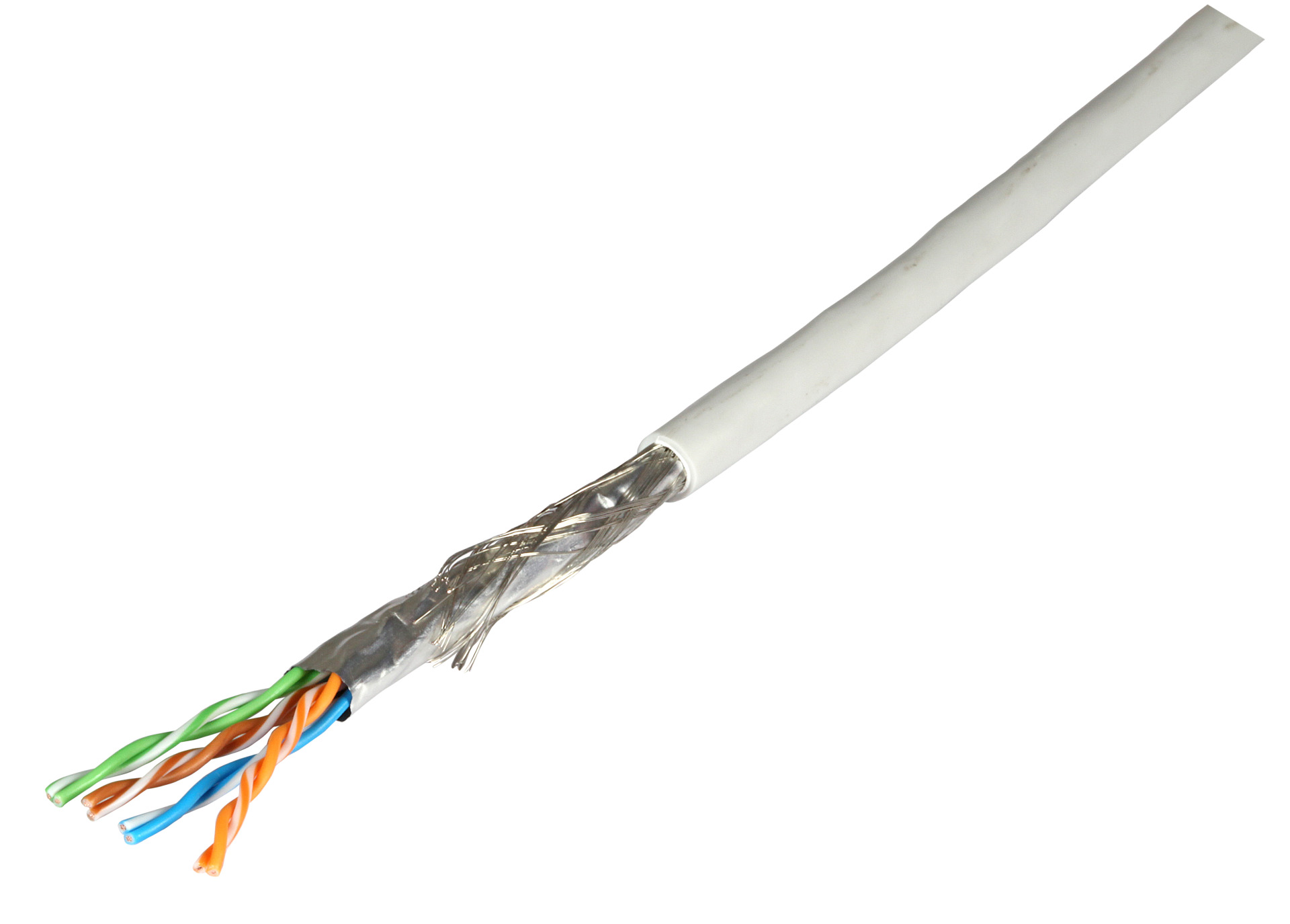

Cat.5e Draka UC300 MHz SF/UTP
Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, grey
Varenummer:
99258.1
EAN Nr.:
8717511147996
Produktinformation til Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, grey
DRAKA Patch cable UC300 HS26. Electrically and mechanically high-quality 300 MHz patch cable. Especially for application of class D.
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Bending radius (dynamic): | 50 mm |
| Bending radius (static): | 25 mm |
| Cable: |
EN 50288-2 IEC 61156-6 |
| Cable Construction: | SF/UTP |
| Cable type: | Draka UC300 HS26 |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 5E |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | PVC |
| Coupling attenuation: | 75 dB |
| Delay skew: | 20 ns/100m |
| Diameter conductor: | 0.48 mm |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Impedance: | 100 ± 15 Ohm |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket Material: | FRNC-B |
| Loop resistance: | 260 Ohm/km |
| Low smoke (acc. EN 61034-2): | False |
| Max. Freuqency: | 300 MHz |
| NVP value: | 67 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | C |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | 30 mOhm/m |
| Transfer impedance at 10MHz: | 30 mOhm/m |
| Transfer impedance at 30MHz: | 50 mOhm/m |
| UV resistance: | no |

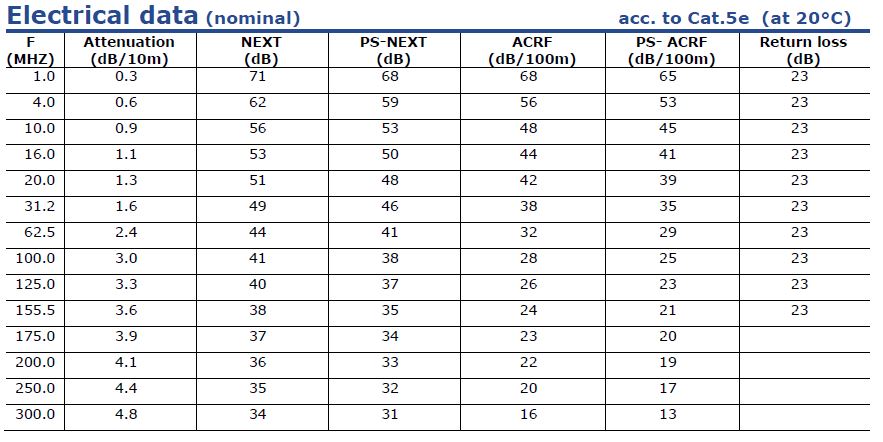

Varianten
| Art. Nr. | Bezeichnung | Number of cores | Type | Length | Colour outer sheath | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99258.1 | Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, grey | 8 | simplex | 1.0 m | grey | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99253.1 | Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, green | 8 | simplex | 1.0 m | green | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99254.100 | Patch C. Cat.5E Draka SF/UTP AWG26 300MHz, blue 100M | 8 | simplex | 100.0 m | blue | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99255.100 | Patch C. Cat.5E Draka SF/UTP AWG26 300MHz, yellow 100M | 8 | simplex | 100.0 m | yellow | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99256.100 | Patch C. Cat.5E Draka SF/UTP AWG26 300MHz, red 100M | 8 | simplex | 100.0 m | red | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99254.1 | Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, blue | 8 | simplex | 1.0 m | blue | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99255.1 | Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz,yellow | 8 | simplex | 1.0 m | yellow | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km | |
| 99256.1 | Patch C. Cat.5E Draka SF/UTP AWG26, 300MHz, red | 8 | simplex | 1.0 m | red | 22.5 kg/km | 37 kg/km | 100 N | 5.7 mm | 369 MJ/km |

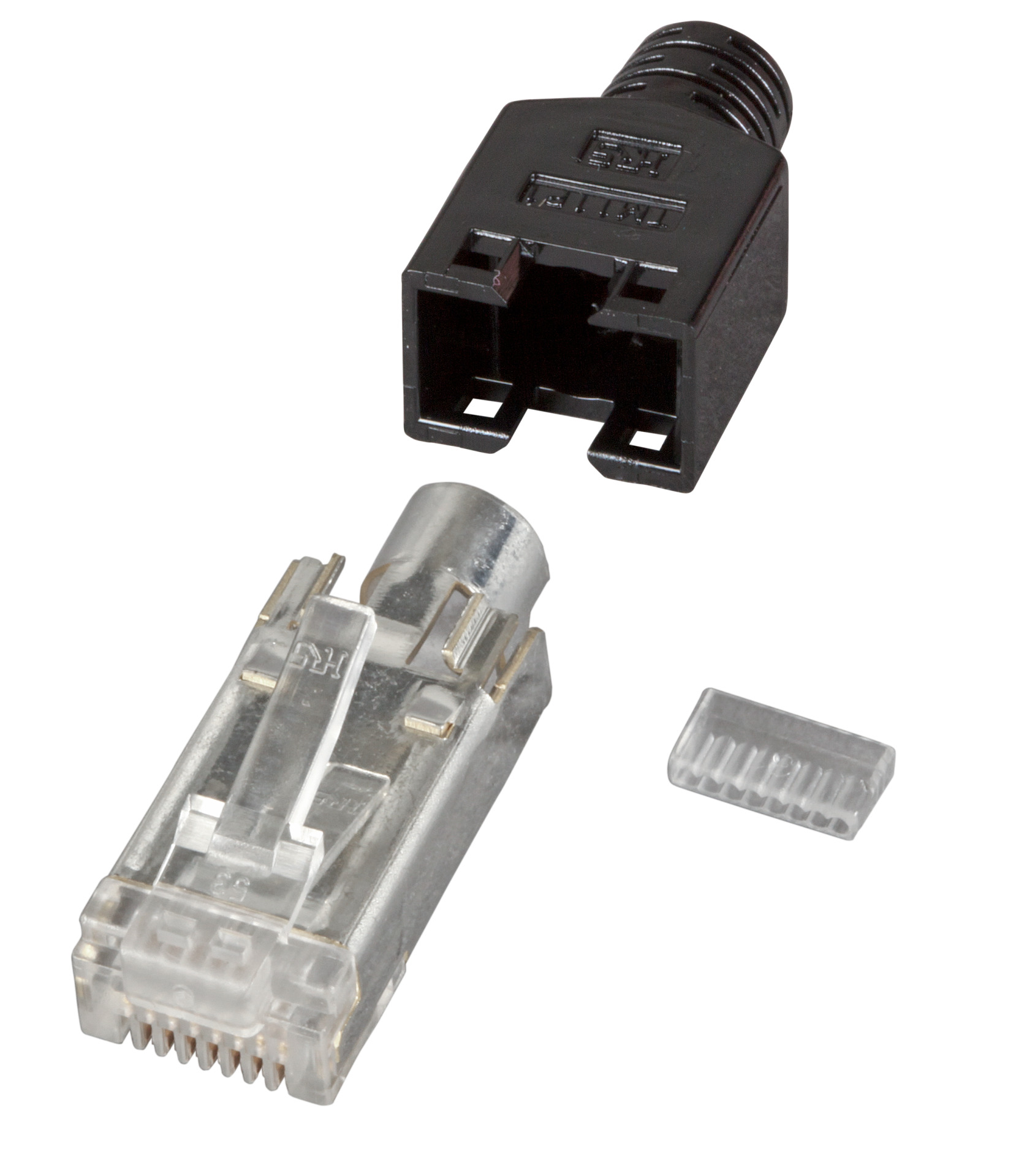

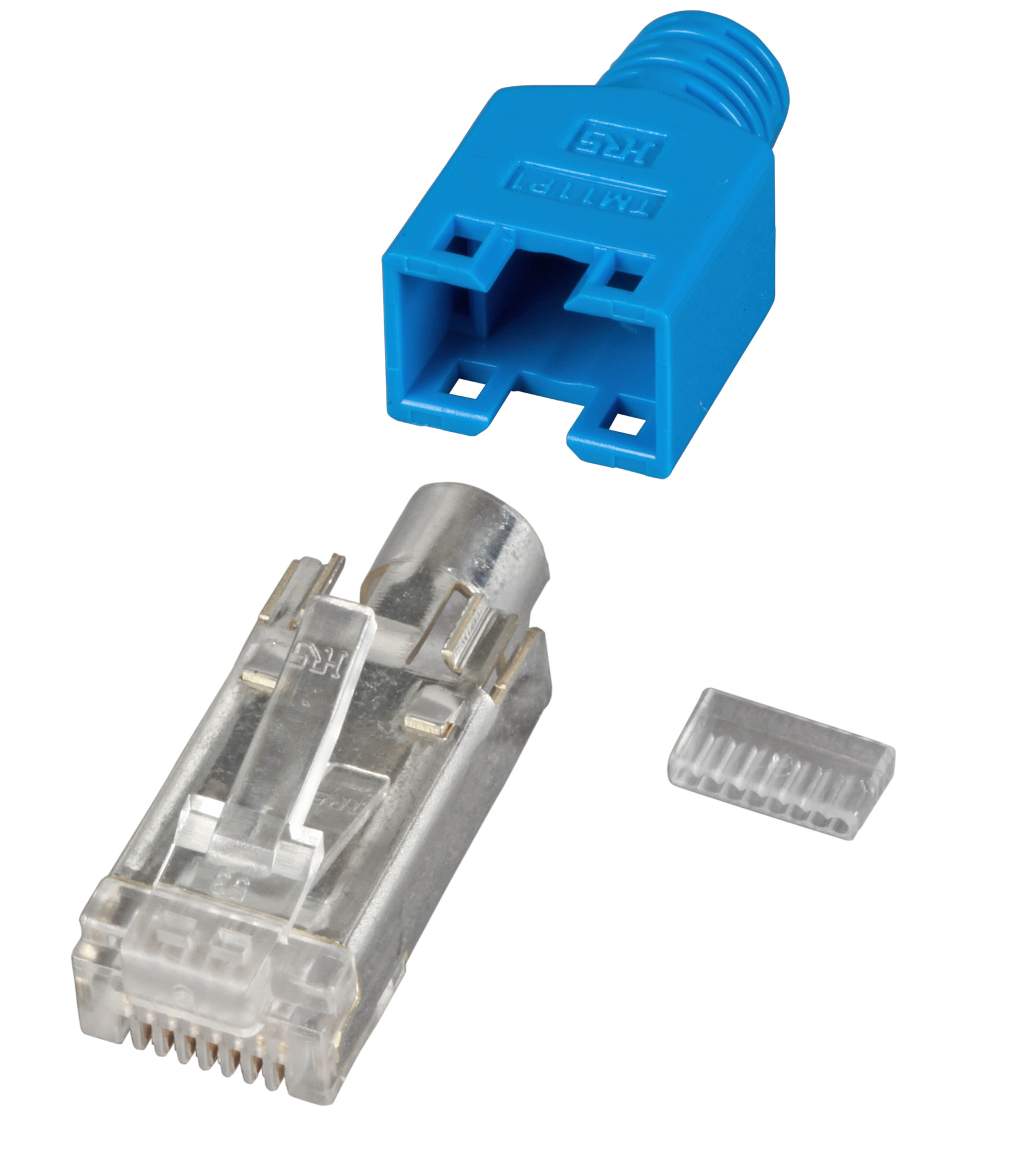

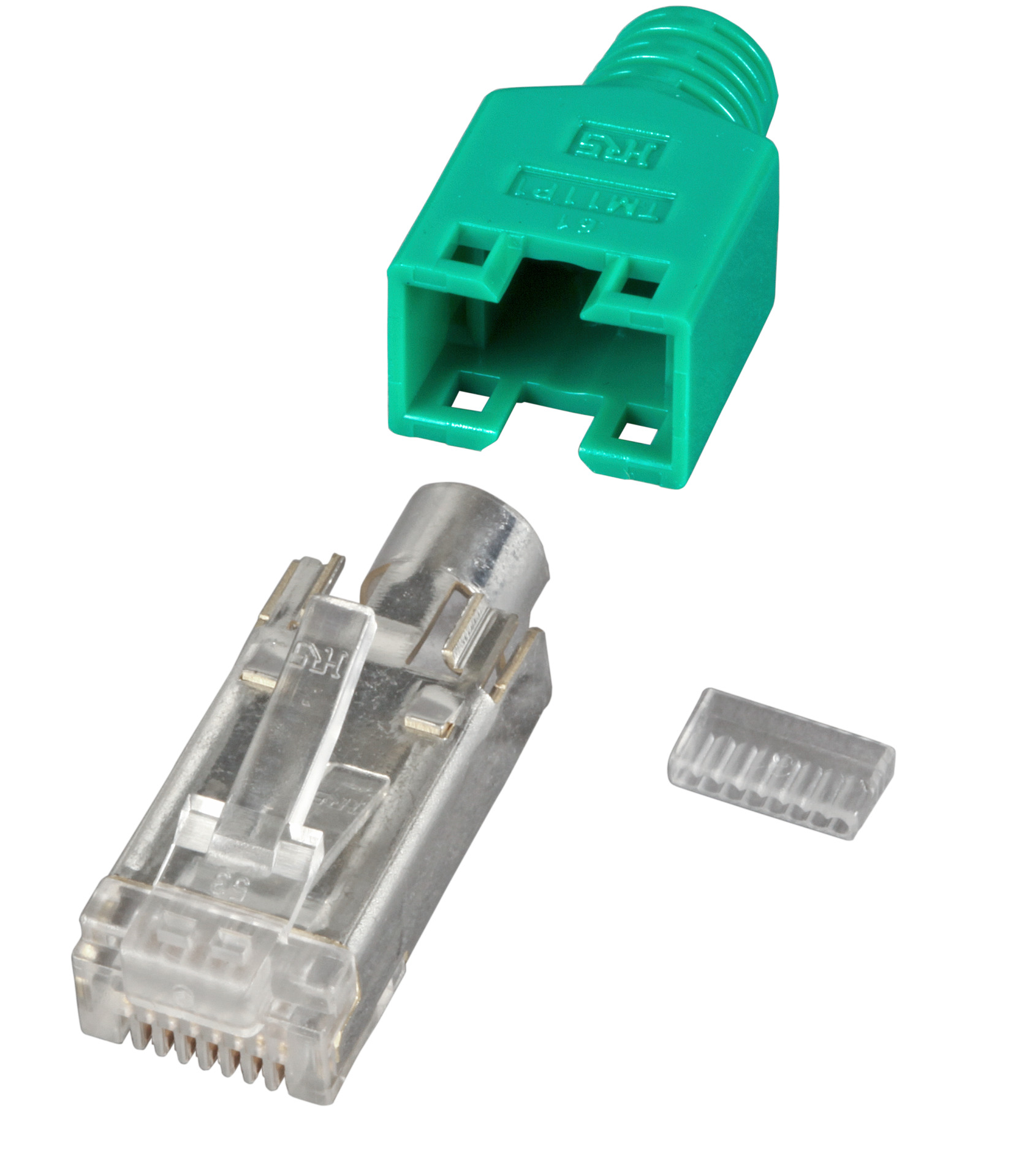

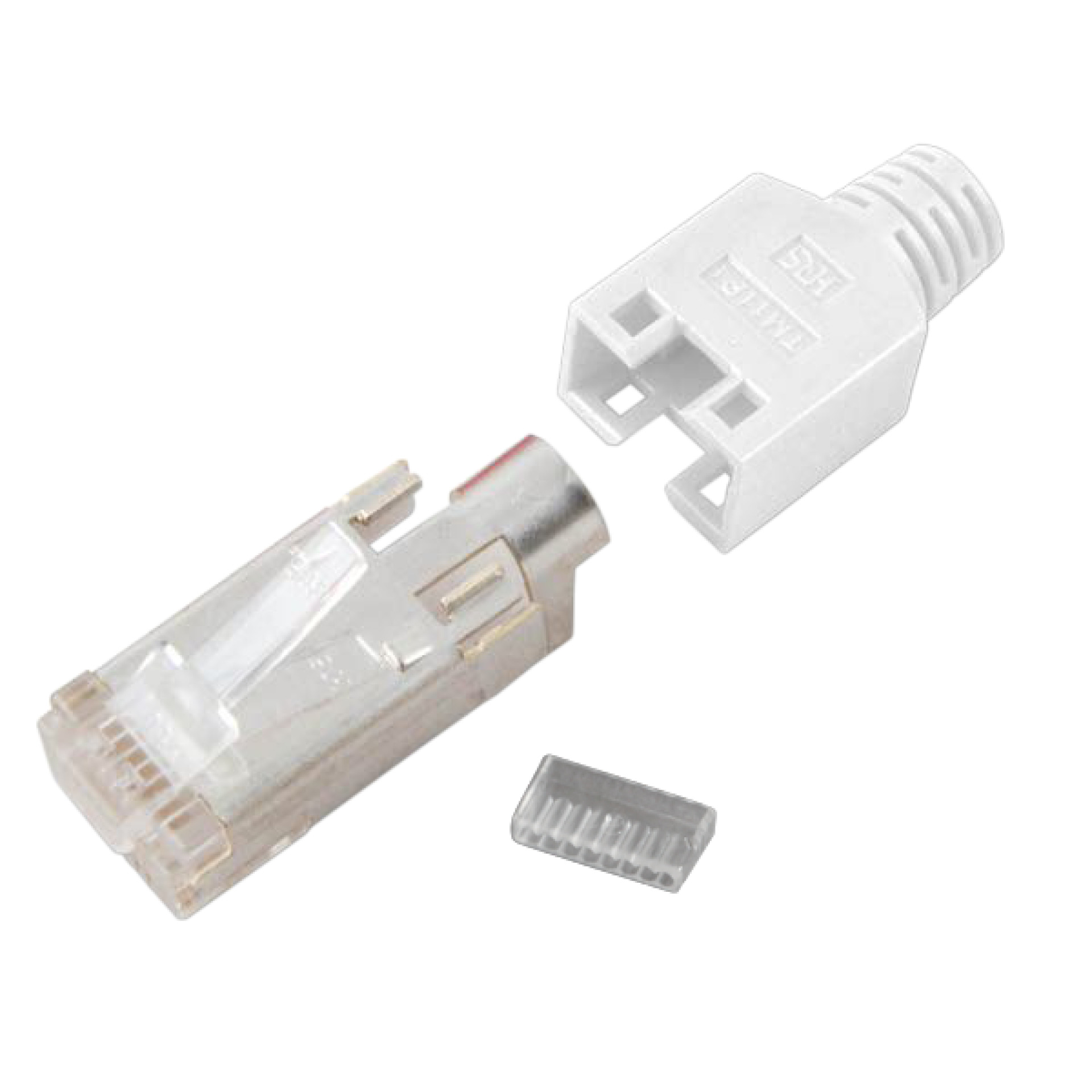

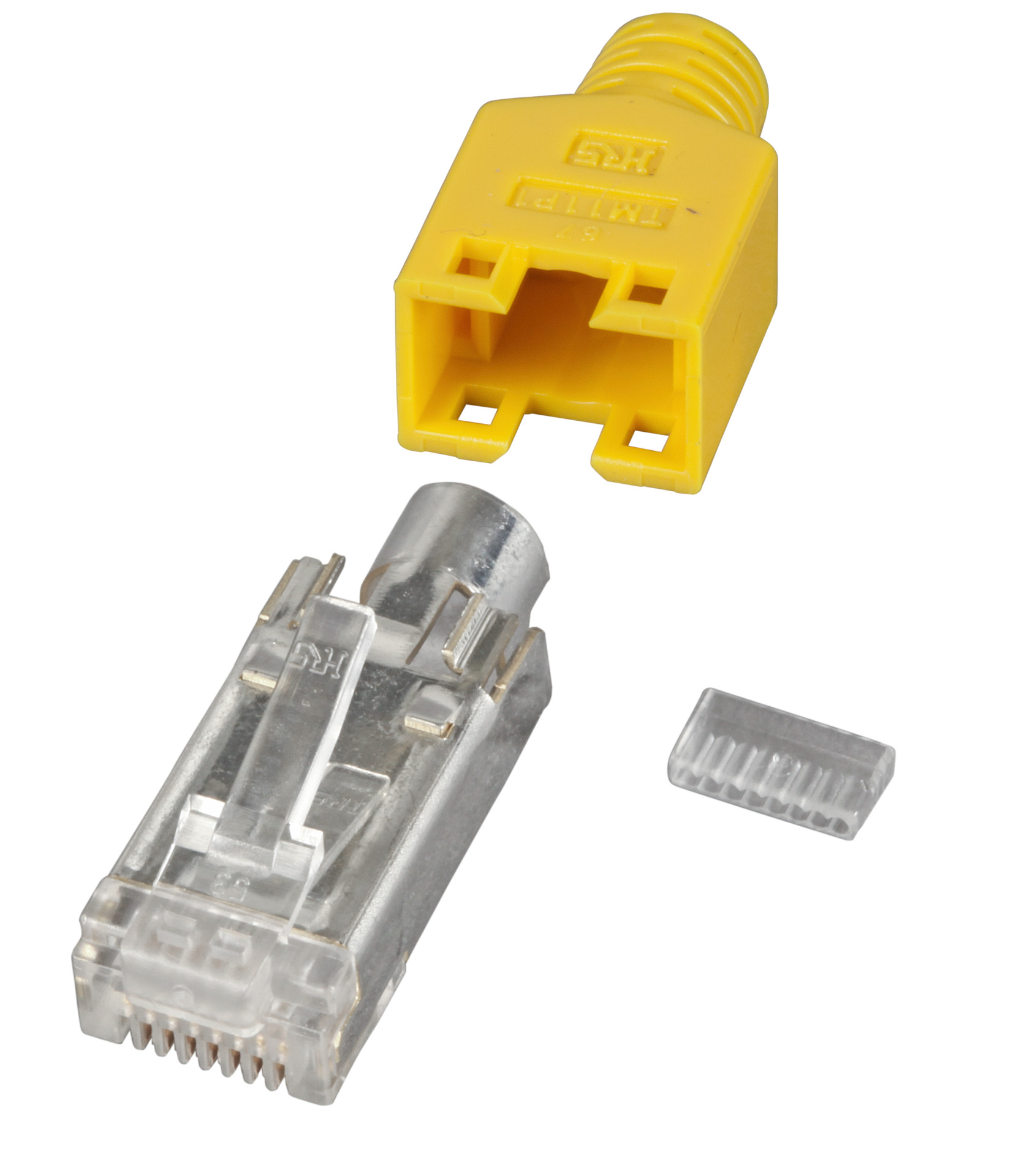

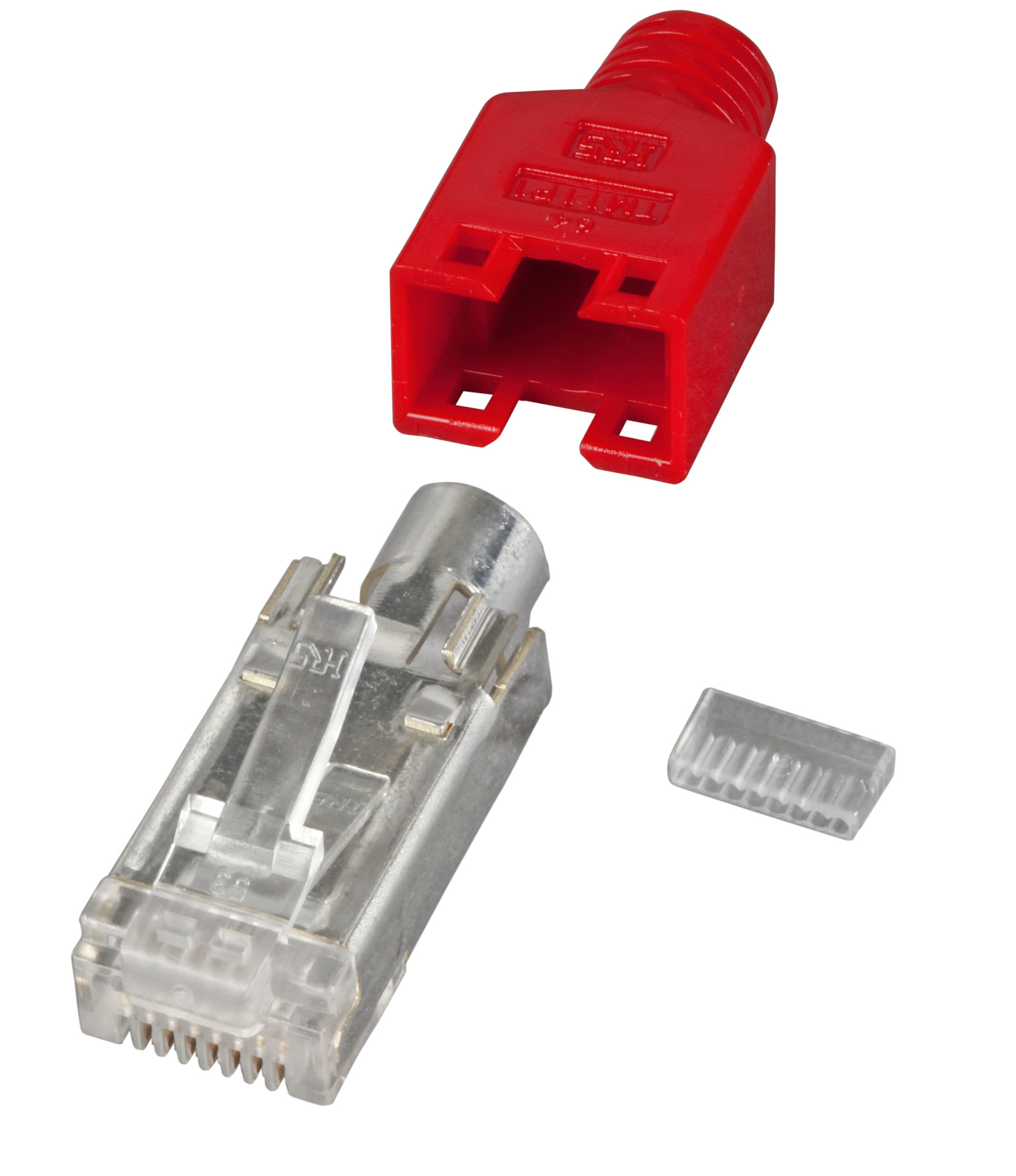

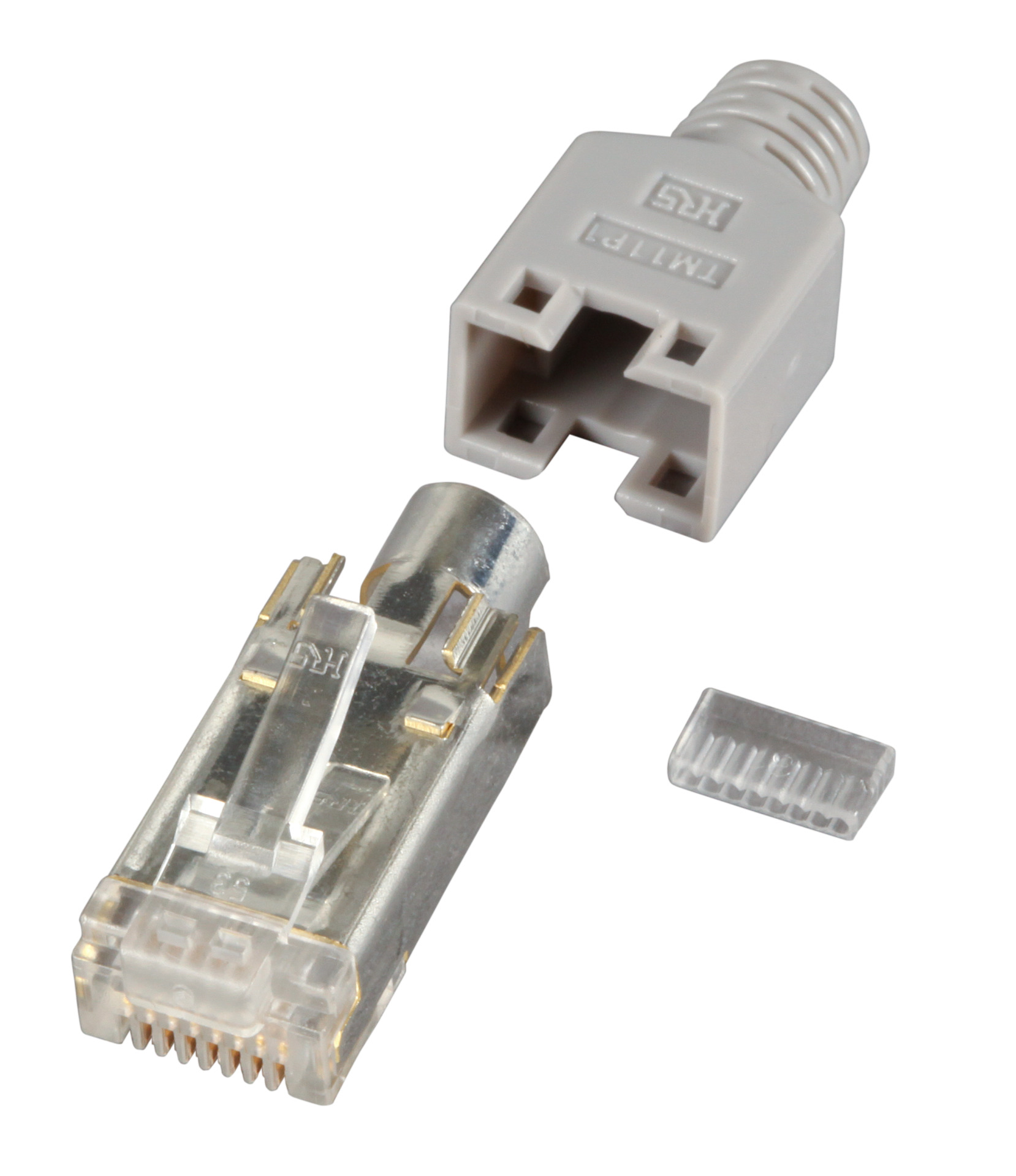

accessory
