Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U
Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U
Varenummer:
37666.1M
EAN Nr.:
4049759180089
Produktinformation til Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U
The high quality of the shielded Cat.6A RJ45 patch panel ensures excellent performance for 10 Gigabit Ethernet applications.
19" mounting, 1U
24 Ports

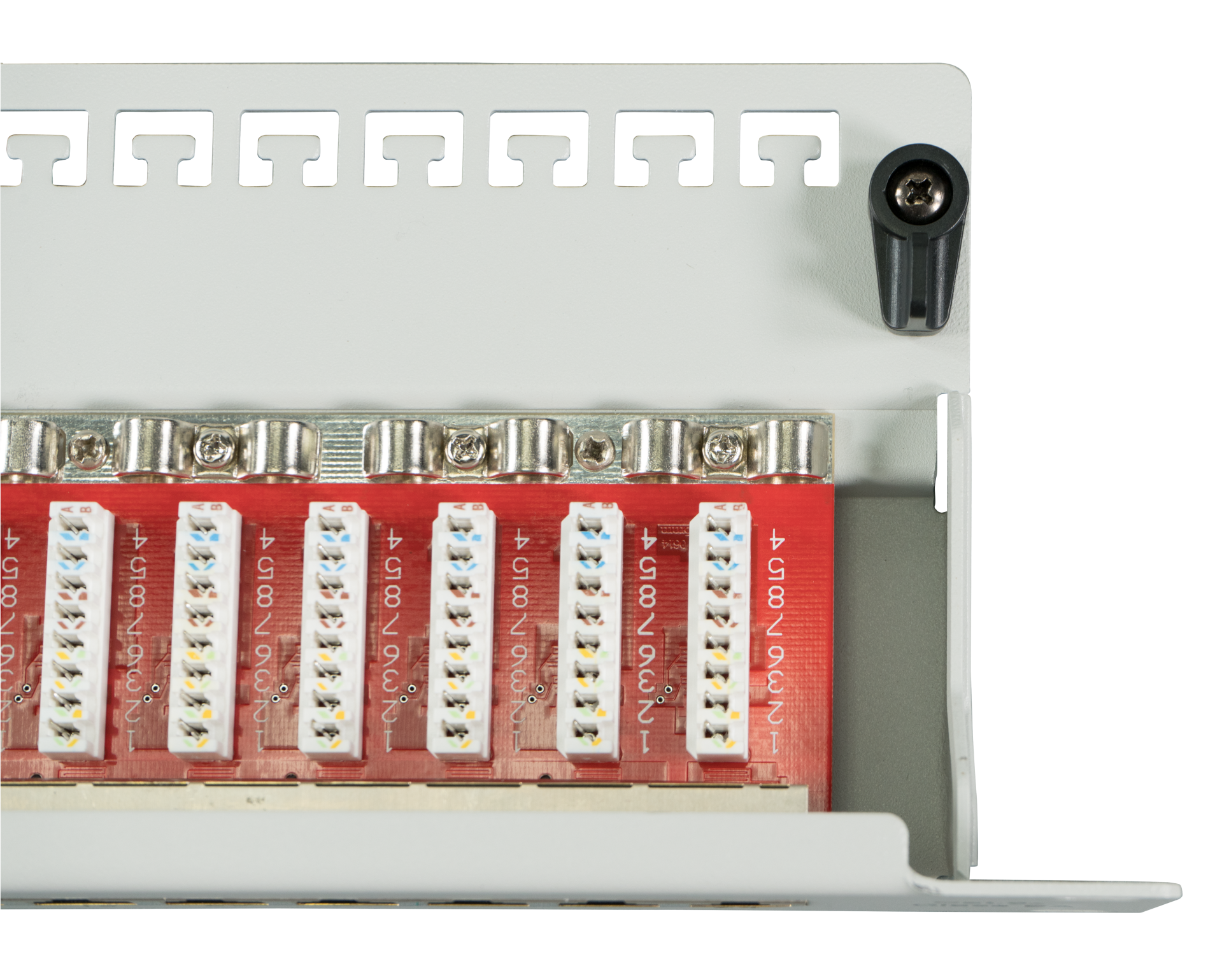

LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Conform to PoE according to IEEE 802.3af, PoE+ according to IEEE 802.3at, 4PPoE according to IEEE 802.3bt
Lid with quick release
With earthing terminal
Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
19" mounting, 1U
24 Ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Conform to PoE according to IEEE 802.3af, PoE+ according to IEEE 802.3at, 4PPoE according to IEEE 802.3bt
Lid with quick release
With earthing terminal
Scope of delivery:
24 cable ties, Instruction manual, 4 screw M6x18mm with nuts
Tekniske egenskaber
| Anschlussart: | LSA |
|---|---|
| Anzahl der Höheneinheiten (HE): | 1 HE |
| Bandbreite: | 500 MHz |
| Breite: | 482,6 mm |
| Farbcode: | nach TIA/EIA 568A/B |
| Geeignet für Anzahl Buchsen/Kupplungen: | 24 |
| Gehäusematerial LSA-Anschlussleiste: | PC |
| Gehäusematerial Panelrahmen: | Stahl, 1,5mm |
| Gehäusematerial RJ45-Buchse: | PBT |
| Geschirmt: | Ja |
| Höhe: | 44,5 mm |
| Isolationswiderstand: | 1000 MΩ |
| Kategorie: | 6A (TIA) |
| Konform zu UL94: | V-0 |
| Kontaktbeschichtung: | 3 µ" vergoldet |
| Kontaktierungen LSA Leiste: | 200 |
| Kontaktwiderstand: | 100 mΩ |
| Material LSA Klemmen: | Phosphor Bronze, verzinnt |
| Montageart: | 482,6 mm (19 Zoll)-Einbau |
| POE Standard: | POE |
| POE Standard: | 4PPoE |
| POE Standard: | POE+ |
| Prüfspannung Dieelektrikum: | 750 V AC 60Hz |
| Querschnitt: | AWG 24 - AWG 22 |
| Spannungsfestigkeit: | 125 V AC RMS |
| Steckkraft: | ≤ 30 N |
| Steckverbindertyp: | RJ45 8(8) |
| Steckzyklen RJ45 Buchse: | 750 |
| Strombelastbarkeit: | 1.5 A |
| Temperaturbereich (Betrieb): | 0 – 70 °C |
| Temperaturbereich (Lagerung): | -40 – 85 °C |
| Tiefe: | 108,2 mm |
| Übertragung: | 10 Gbit |
Varianten
| Art. Nr. | Bezeichnung | Colour | RAL-number | Number of buses/couplings | RAL-Nummer | Farbe | Anzahl der Buchsen/Kupplungen | |
|---|---|---|---|---|---|---|---|---|
| 37666SW.1M | Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U, RAL9005 black | black | 9005 | 24 | - | - | - | |
| 37666.1M | Patchpanel STP 24xRJ45 Cat.6A, 19“ 1U | - | - | - | 7035 | grau | 24 |
