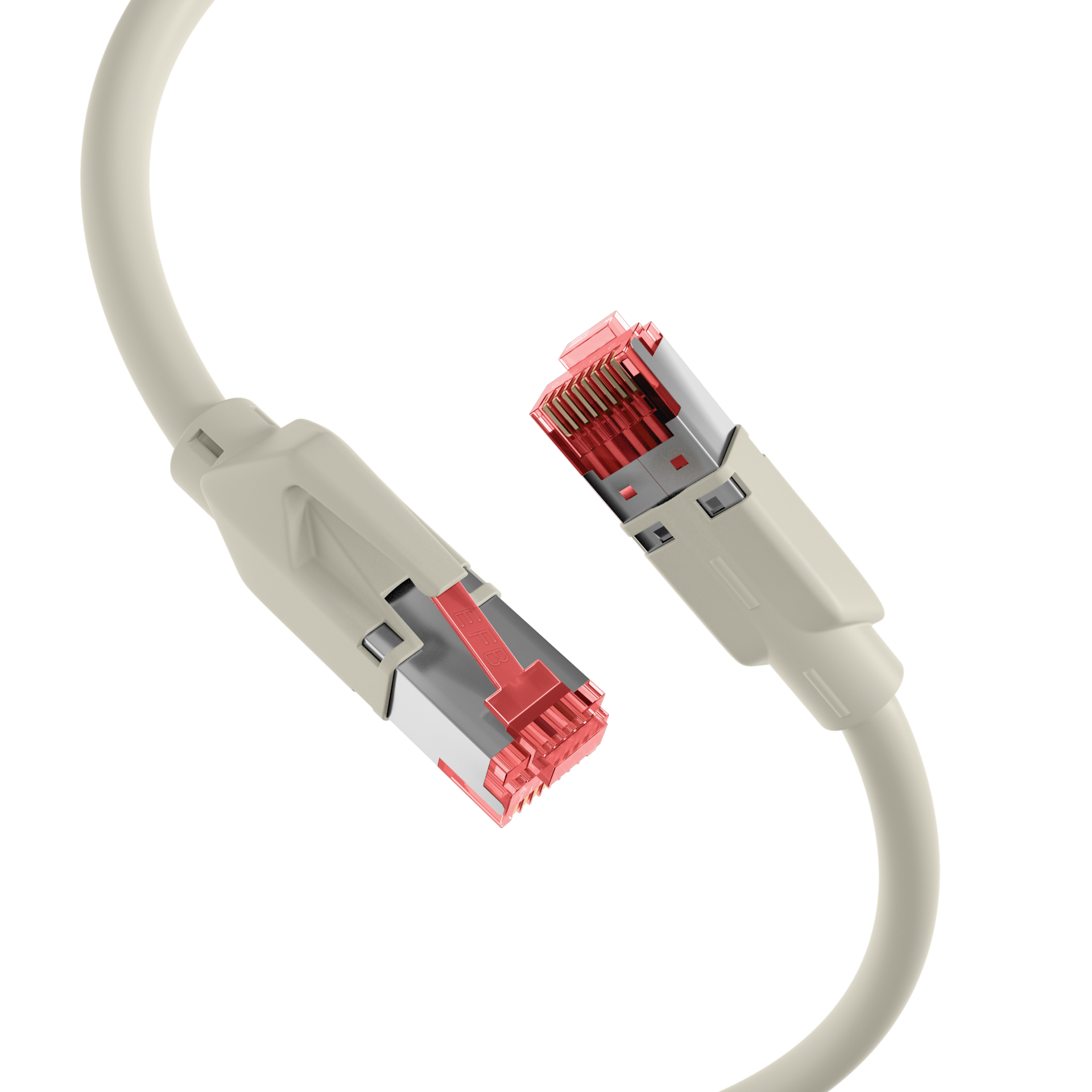

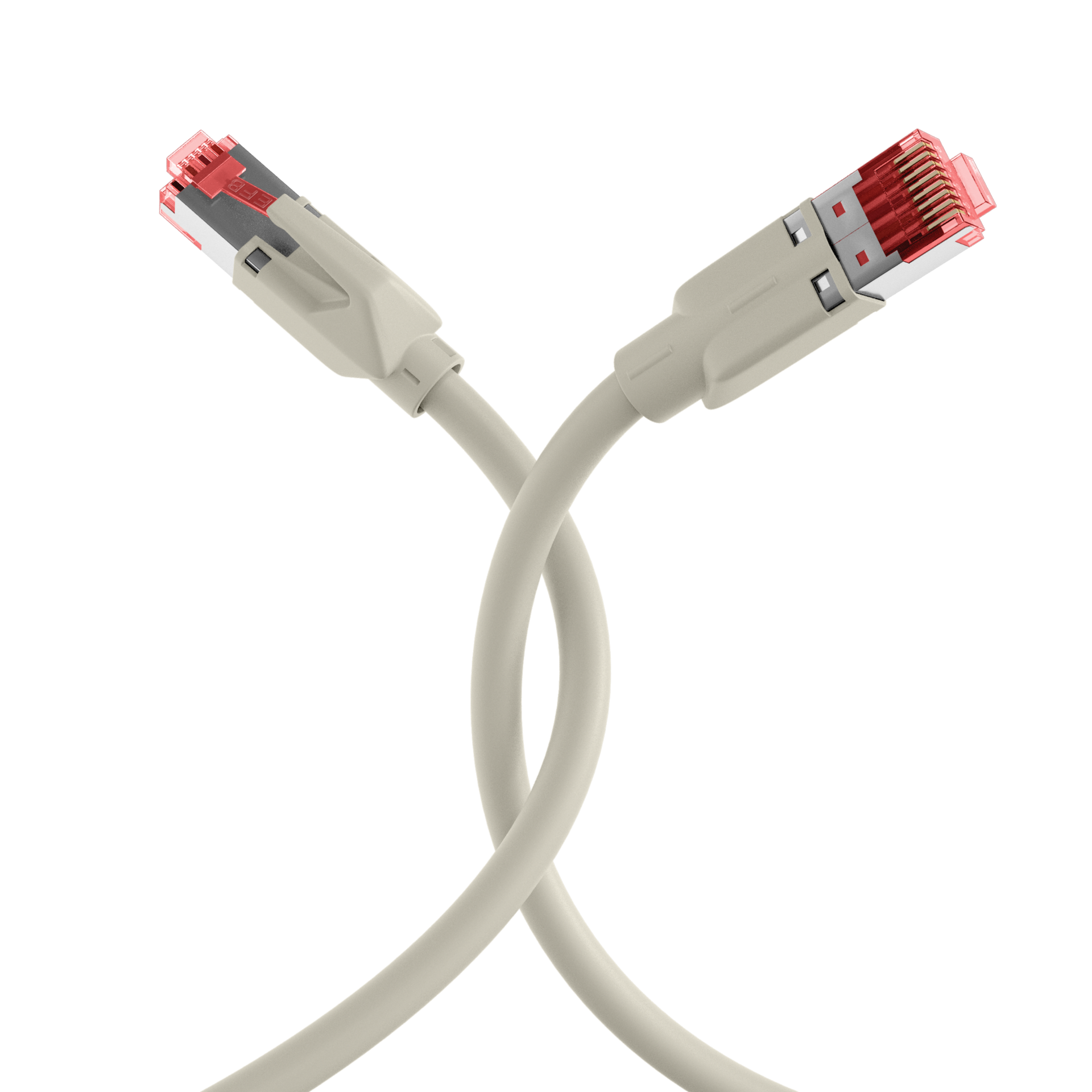

RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey
RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey
Varenummer:
K8066.15
EAN Nr.:
4049759031824
Produktinformation til RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey
RJ45 patch cable Cat.6 S/FTP LSZH Draka UC900 TM21 red crossed
The Cat.6 patch cable has gold-plated contacts and enables 1Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6
• S/FTP cable with AWG27
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is the classic crossover for Gigabit Ethernet: 1- 3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
This enables a frequency range of 250 MHz.
The Cat.6 patch cable has gold-plated contacts and enables 1Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6
• S/FTP cable with AWG27
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the red TM21 plugs is the classic crossover for Gigabit Ethernet: 1- 3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
This enables a frequency range of 250 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | nach IEC60332-1 |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 250MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Euroklasse: | Eca |
| Farbe der Knickschutztülle: | rot |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | nach IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 6 |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet |
| Leitermaterial: | Kupfer |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | grau |
| Mantel-Material: | LSZH |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | gekreuzt |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Steckertyp: | TM21 |
| Steckverbinder: | IEC 60603-7-5 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | 0 – 60 °C |
| UL approbiert: | False |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Length tolerance | |
|---|---|---|---|---|---|
| K8066.2 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8066.5 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8066.10 | RJ45 Patch Cord Cat.6 S/FTP LSZH Draka UC900 TM21red crossed grey 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8066.0,50 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, 0,5m, grey | 0.5 m | - | ±5 % | |
| K8066.1 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey | 1,0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8066.15 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey | 15,0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at | ±5 % | |
| K8066.20 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, grey | 20.0 m | PoE nach IEEE802.3af;PoE nach IEEE802.3at | ±5 % | |
| K8066.3 | RJ45 Crossover Patch cable S/FTP, Cat.6, TM21, UC900, 3m, grey | 3,0 m | - | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
