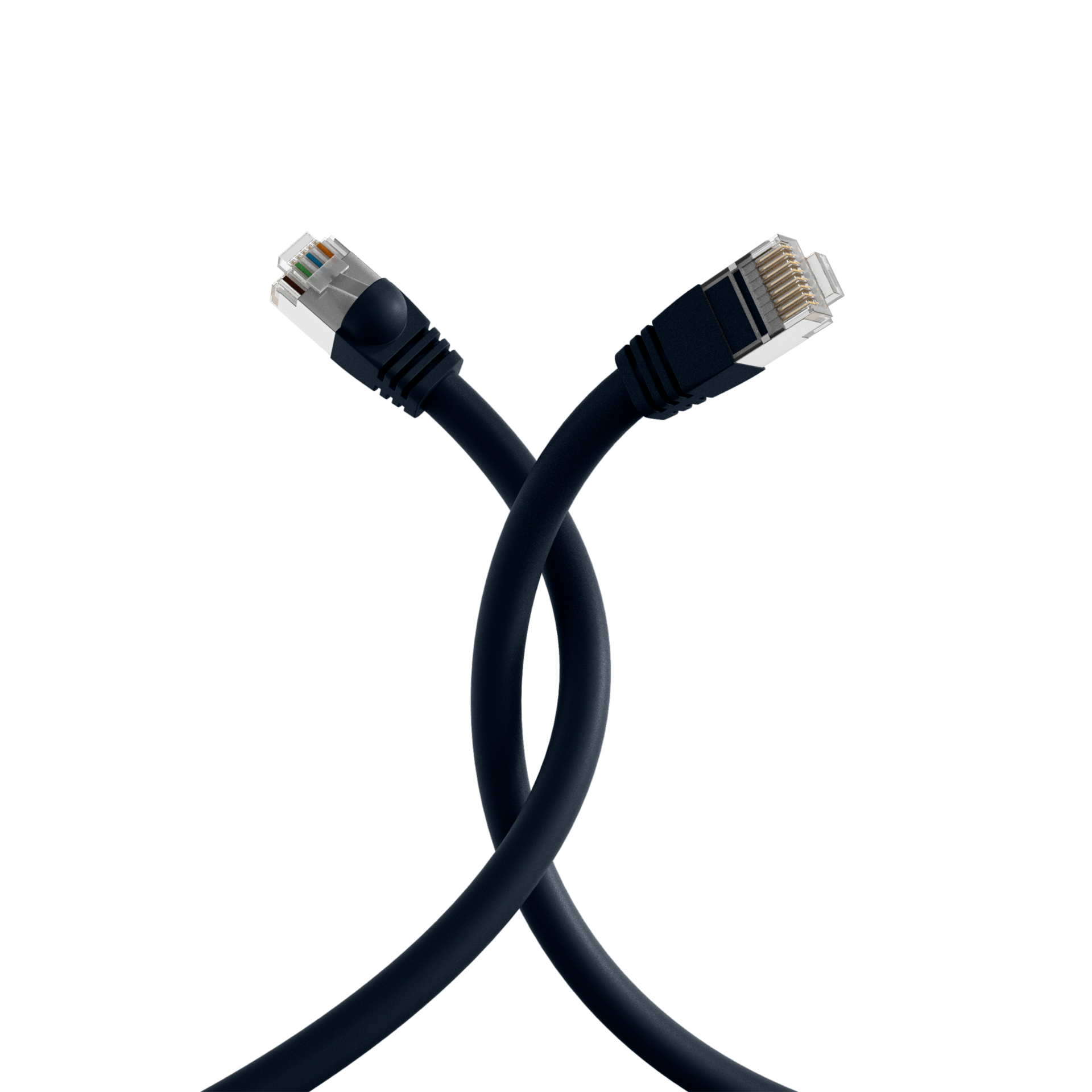

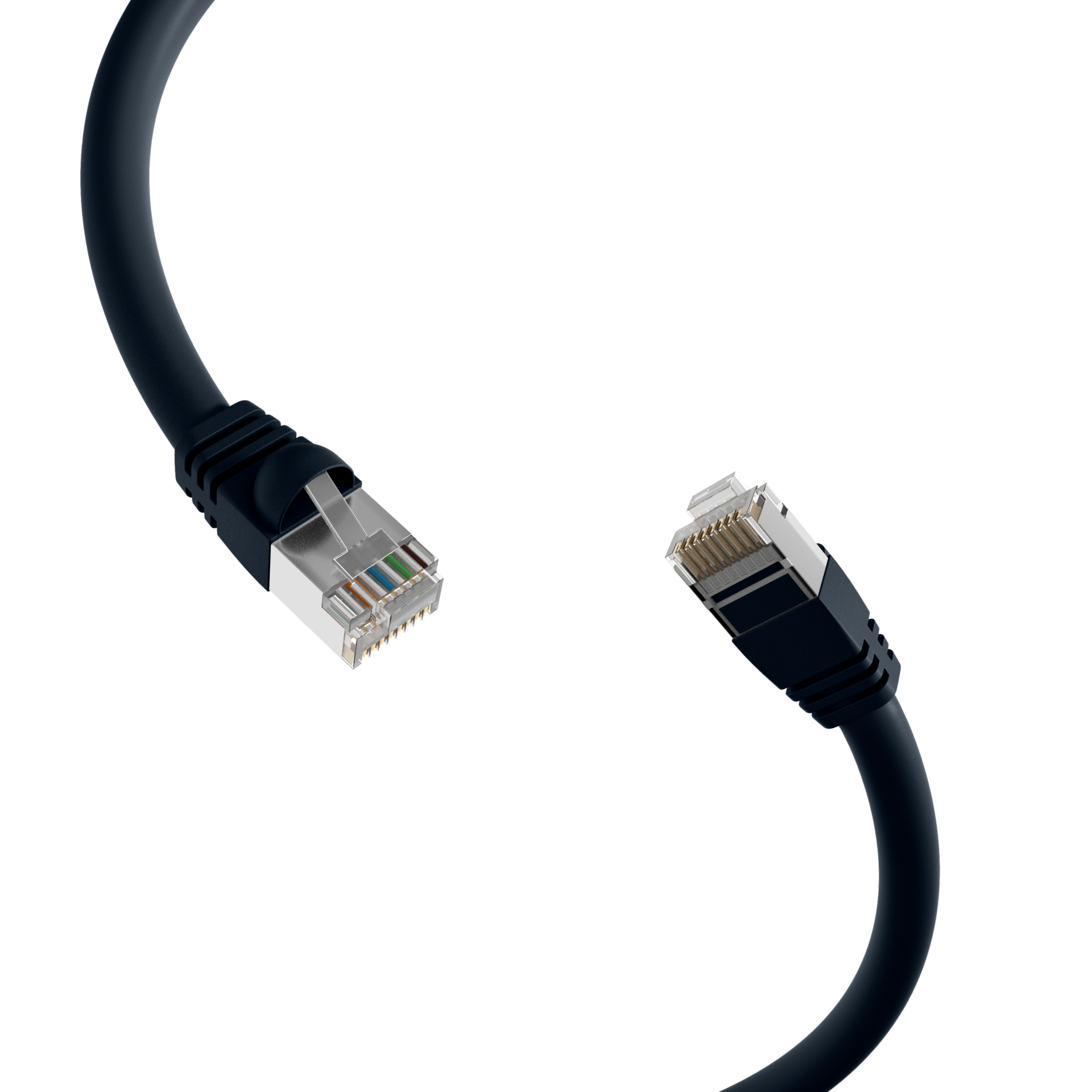

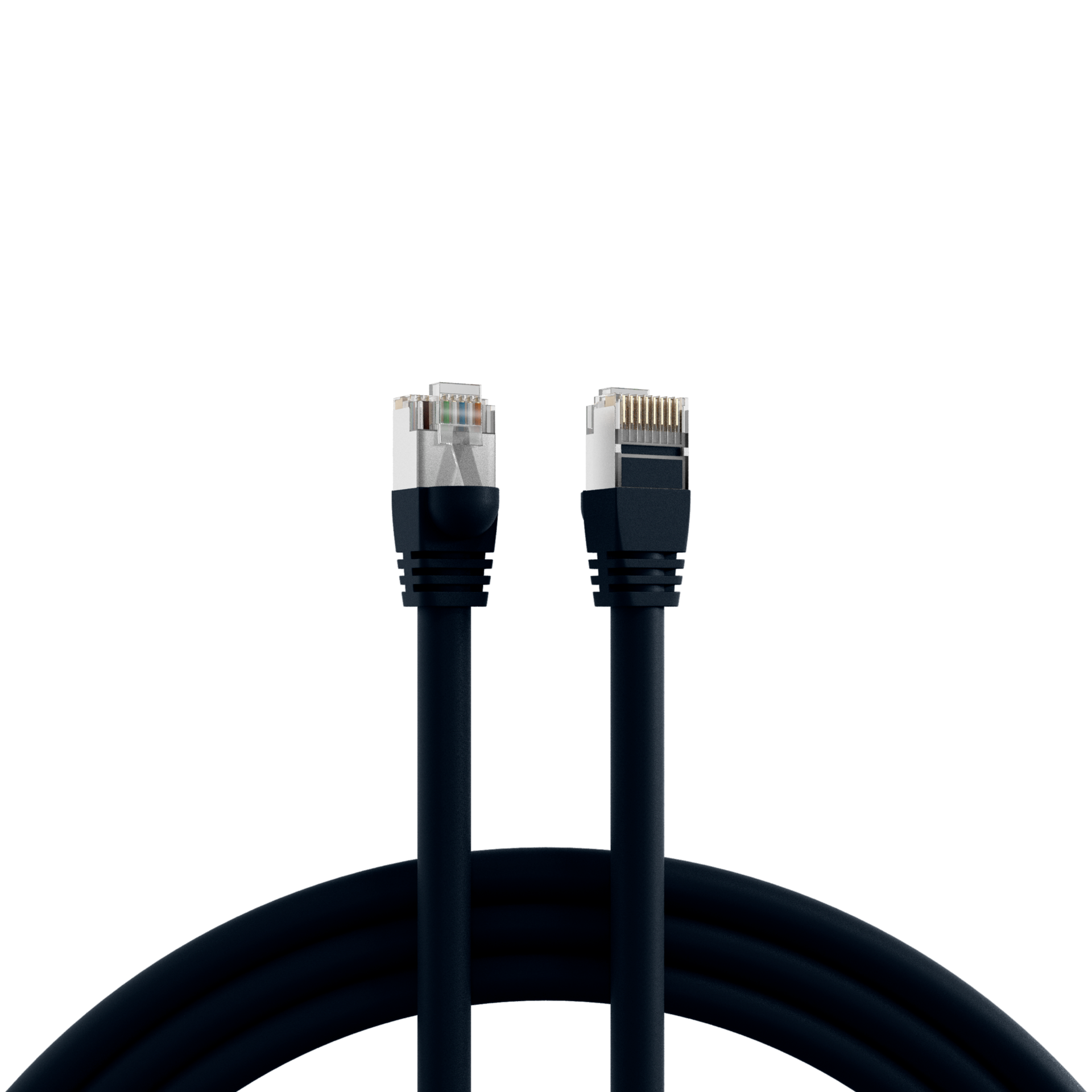

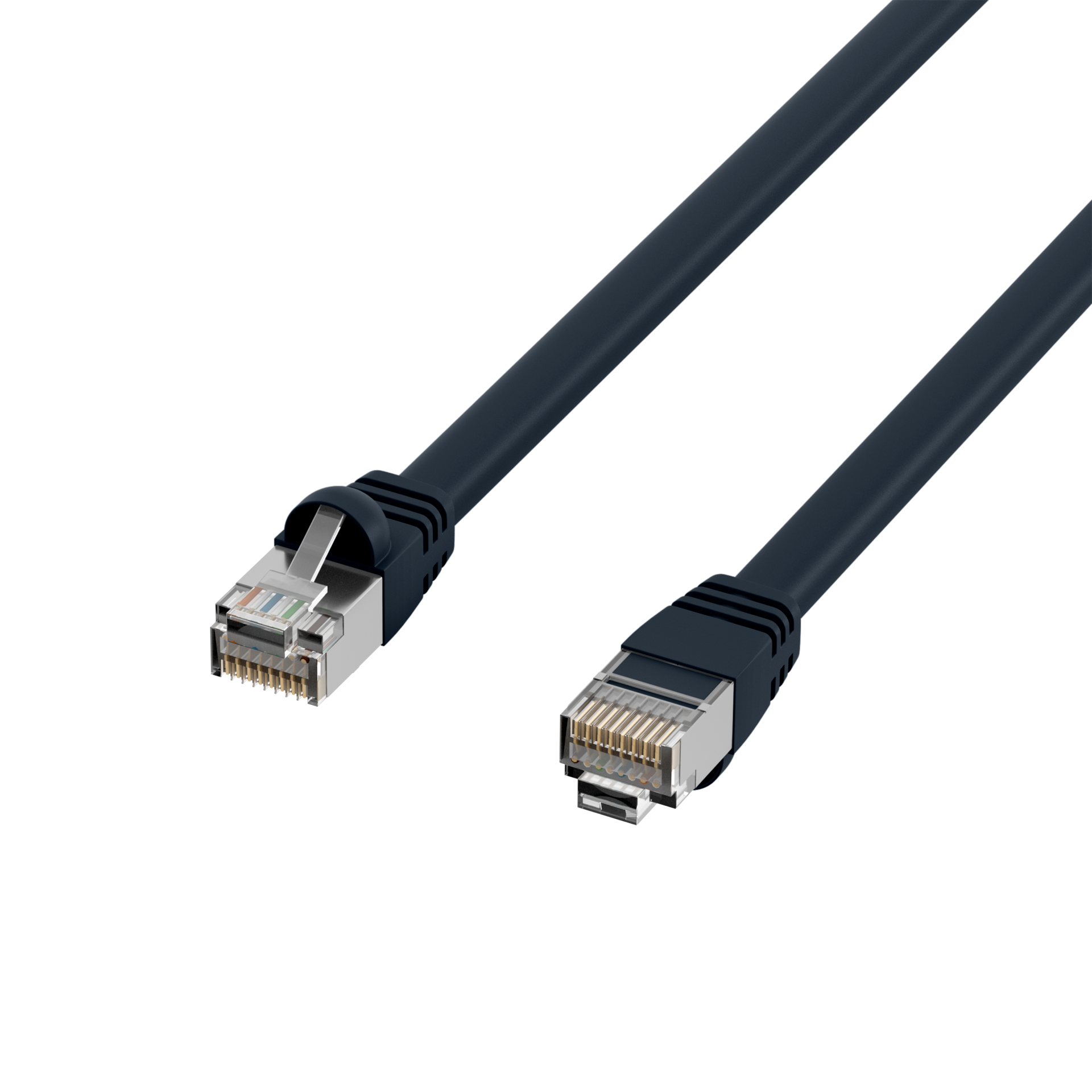

RJ45 Patch Cord Cat.6A S/FTP PVC short boot UL black
RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 1m, black
Varenummer:
K2460.1
EAN Nr.:
4049759055707
Produktinformation til RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 1m, black
RJ45 patch cable S/FTP Cat.6 PVC short sleeve UL
The Cat.6 patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 plugs are assigned 1:1 and according to TIA/EIA 568B. Suitable for the temperature range -5 – 75 °C.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. A bandwidth of 250 MHz is achieved.
The Cat.6 patch cable enables 2.5Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product features
• Cat.6
• S/FTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
• UL number of the assembly E337615
The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The RJ45 plugs are assigned 1:1 and according to TIA/EIA 568B. Suitable for the temperature range -5 – 75 °C.
The data cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. A bandwidth of 250 MHz is achieved.
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | 27.5 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-5 |
| Connector type: | RJ45 Standard |
| Contact Resistance: | < 20 mΩ |
| Contacts: | 50 µ" gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | yes |
| Halogen-free: | No |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 500 MΩ |
| Jacket Material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |

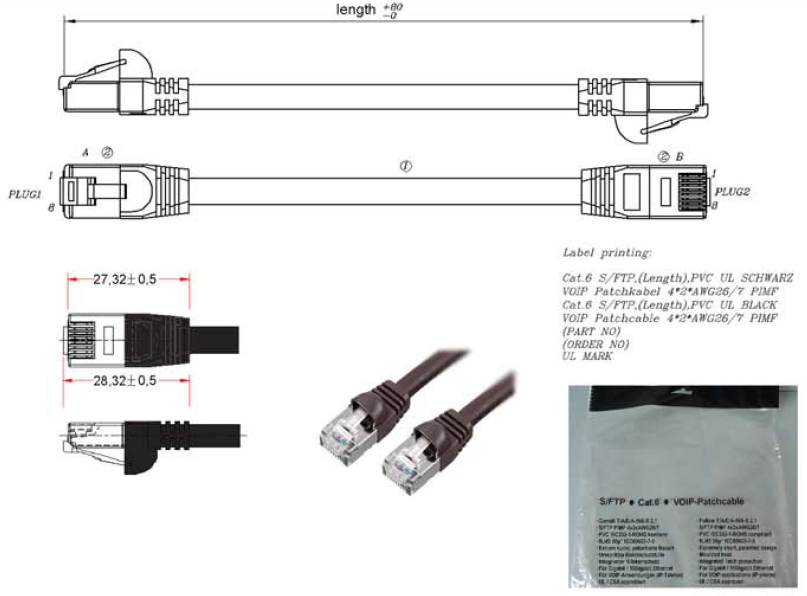

| Printing: | VOIP Cat.6 Patchkabel S/FTP AWG26/7 UL E132276-C CM 75°C 4PR PVC IEC332-1 ISO/IEC11801 TIA/EIA-568-B.2.1 *** VOICE OVER IP *** www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -5 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K2460.1 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 1m, black | 1.0 m | ±5 % | |
| K2460.2 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 2m, black | 2.0 m | ±5 % | |
| K2460.3 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 3m, black | 3.0 m | ±5 % | |
| K2460.6 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 6m, black | 6.0 m | ±5 % | |
| K2460.15 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 15m, black | 15.0 m | ±5 % | |
| K2460.20 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 20m, black | 20.0 m | ±5 % |
