RJ45 Patch Cord Cat.6A S/FTP PVC short boot UL black
Priser kun synlige for indloggede brugere

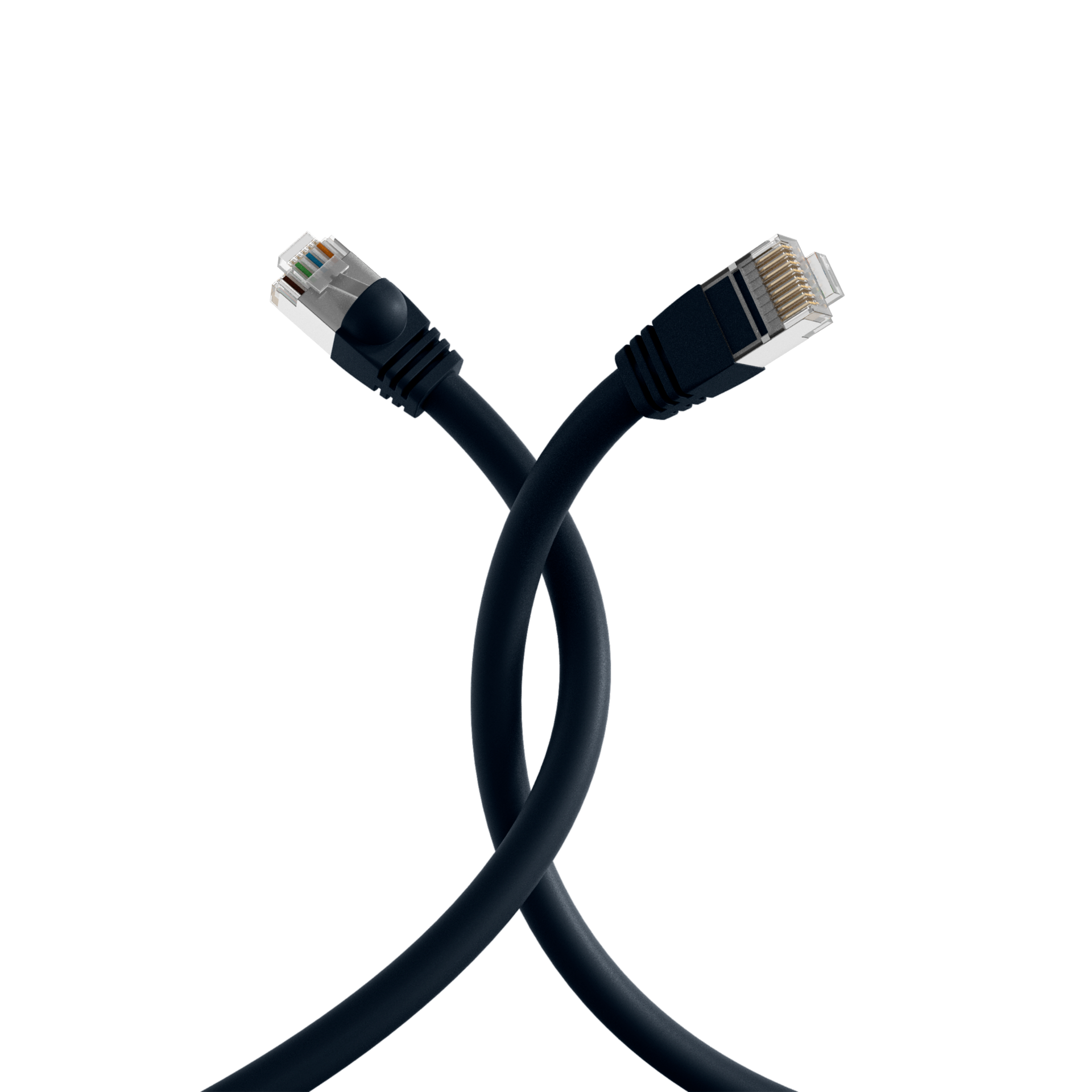

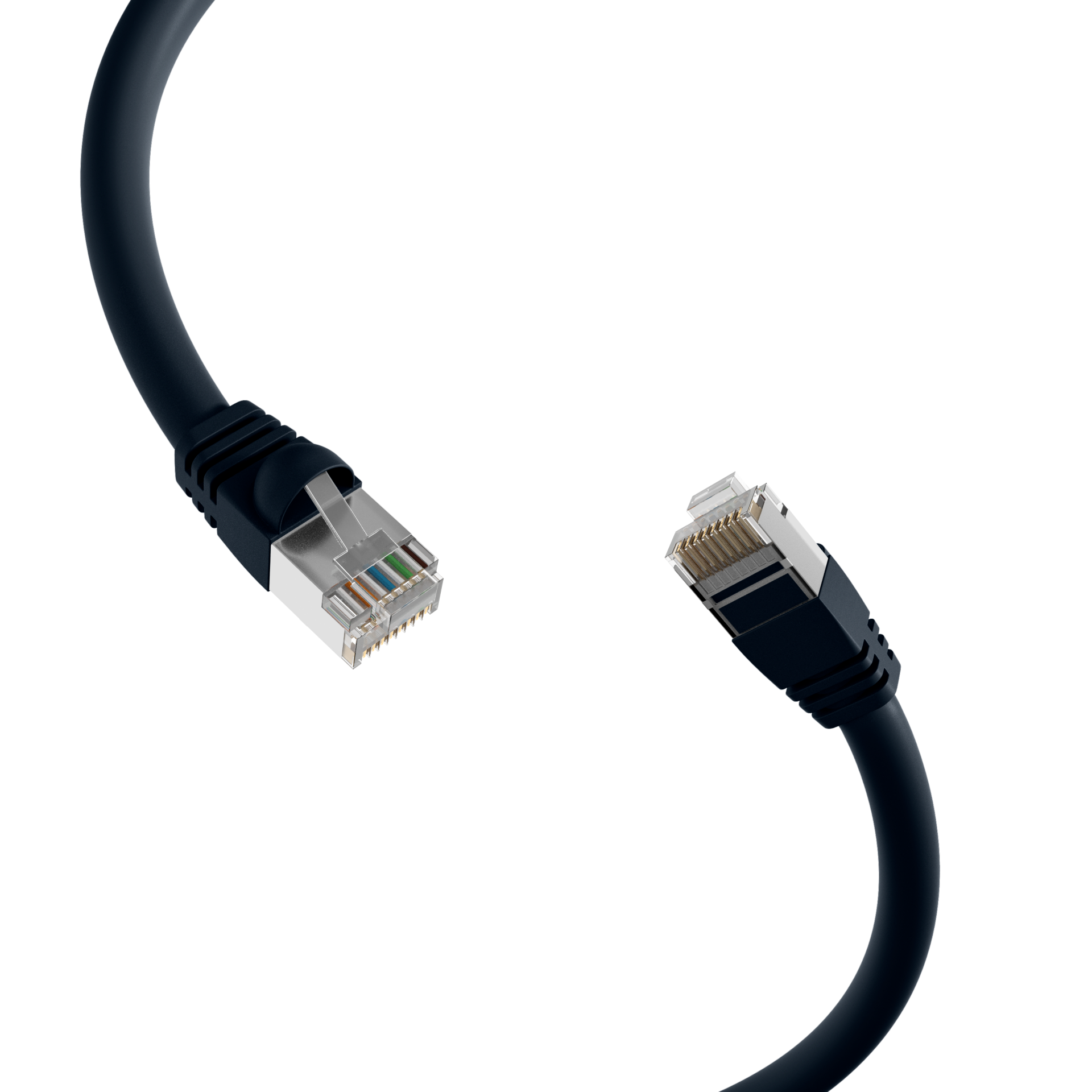

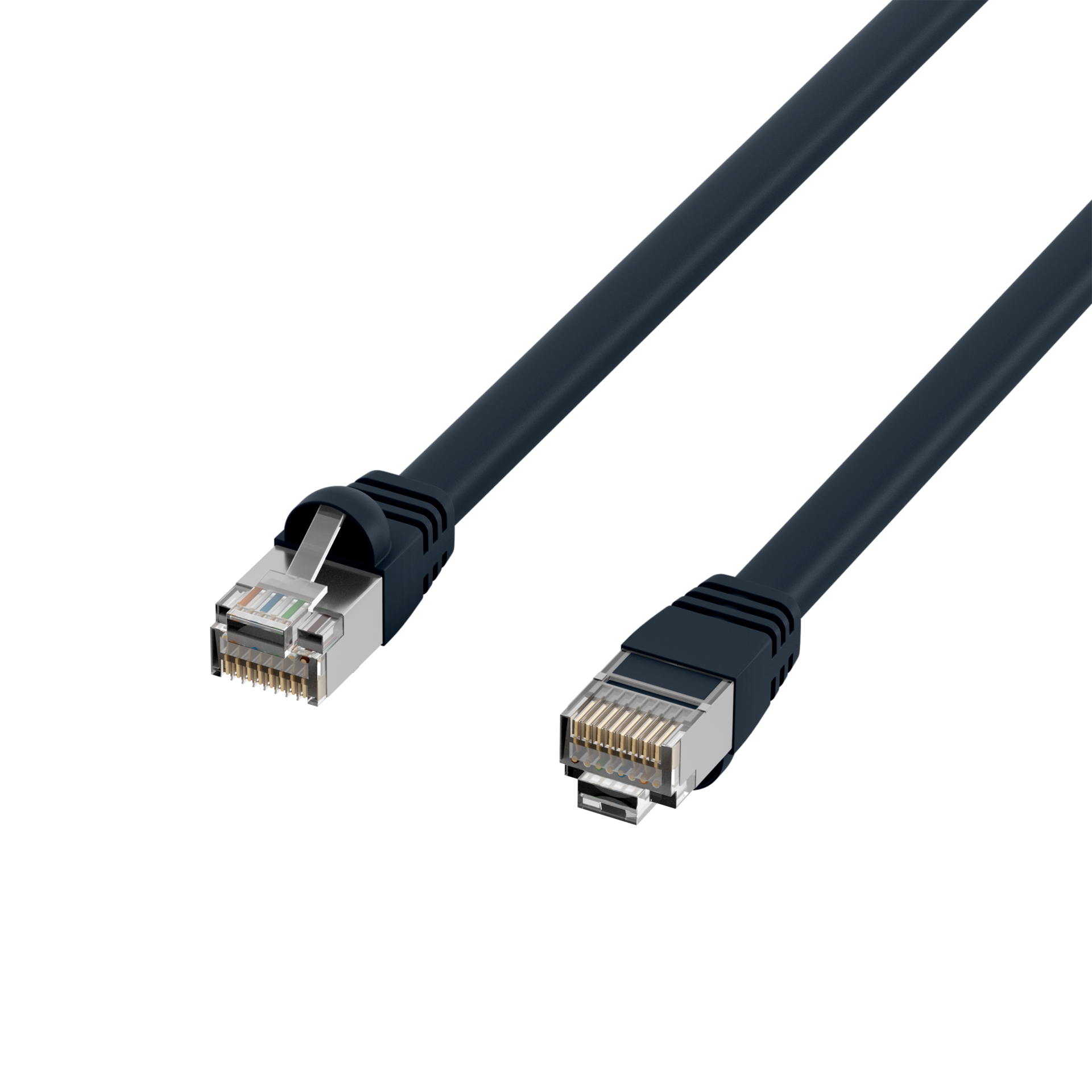

RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 2m, black
Varenummer:
K2460.2
EAN nr.:
4049759055738
Produktinformation für RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 2m, black
The UL approved and shielded Cat.6 RJ45 patch cable ensures very good characteristics for 5 Gigabit Ethernet and VOIP applications. The connector is extremely short with its 27.3 mm including bend protection. The cast grommet impresses with its slim design and simplifies the plugging process in confined spaces.
Cross section 4 x 2 x AWG26/7
Jacket material PVC
Plug extremely short (27.3 mm incl. bend protection)
Cast anti-kink grommet, slim design
Cross section 4 x 2 x AWG26/7
Jacket material PVC
Plug extremely short (27.3 mm incl. bend protection)
Cast anti-kink grommet, slim design
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 250MHz |
| Bending radius: | 27.5 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6 |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-5 |
| Connector type: | RJ45 Standard |
| Contact resistance: | < 20 mΩ |
| Contacts: | 50 µ" gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | yes |
| Halogen-free: | No |
| Impedance: | 100 ±15 Ω |
| Insulation resistance: | 500 MΩ |
| Jacket material: | Polyvinylchlorid (PVC) |
| Length imprint: | False |
| Locking lever: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | - % |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.5 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | VOIP Cat.6 Patchkabel S/FTP AWG26/7 UL E132276-C CM 75°C 4PR PVC IEC332-1 ISO/IEC11801 TIA/EIA-568-B.2.1 *** VOICE OVER IP *** www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -5 – 75 °C |
| Test voltage: | 1000 V DC, 1min |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| K2460.1 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 1m, black | 1.0 m | ±5 % | |
| K2460.2 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 2m, black | 2.0 m | ±5 % | |
| K2460.3 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 3m, black | 3.0 m | ±5 % | |
| K2460.6 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 6m, black | 6.0 m | ±5 % | |
| K2460.15 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 15m, black | 15.0 m | ±5 % | |
| K2460.20 | RJ45 Patch cable S/FTP, Cat.6, PVC, short boot, UL, 20m, black | 20.0 m | ±5 % |
