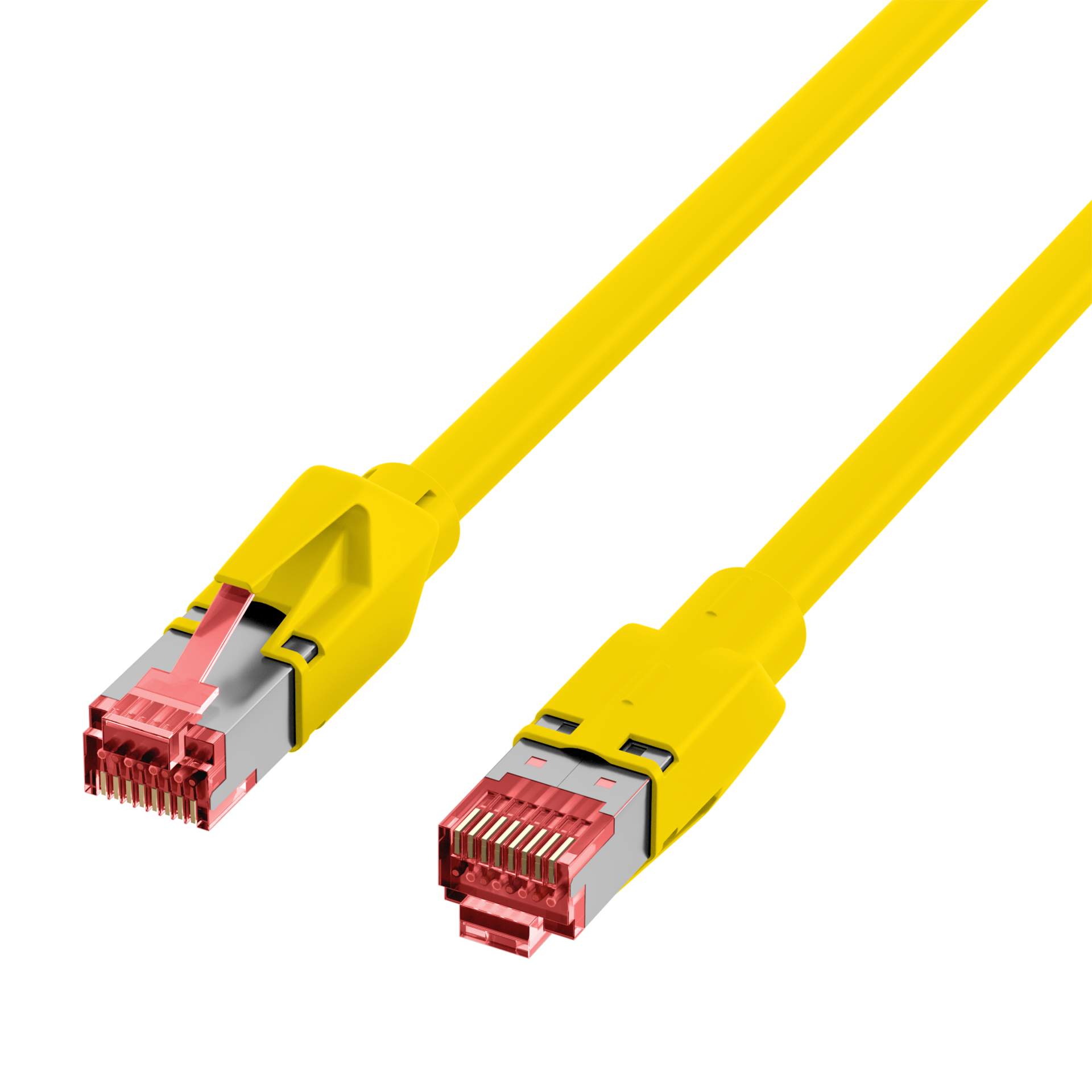

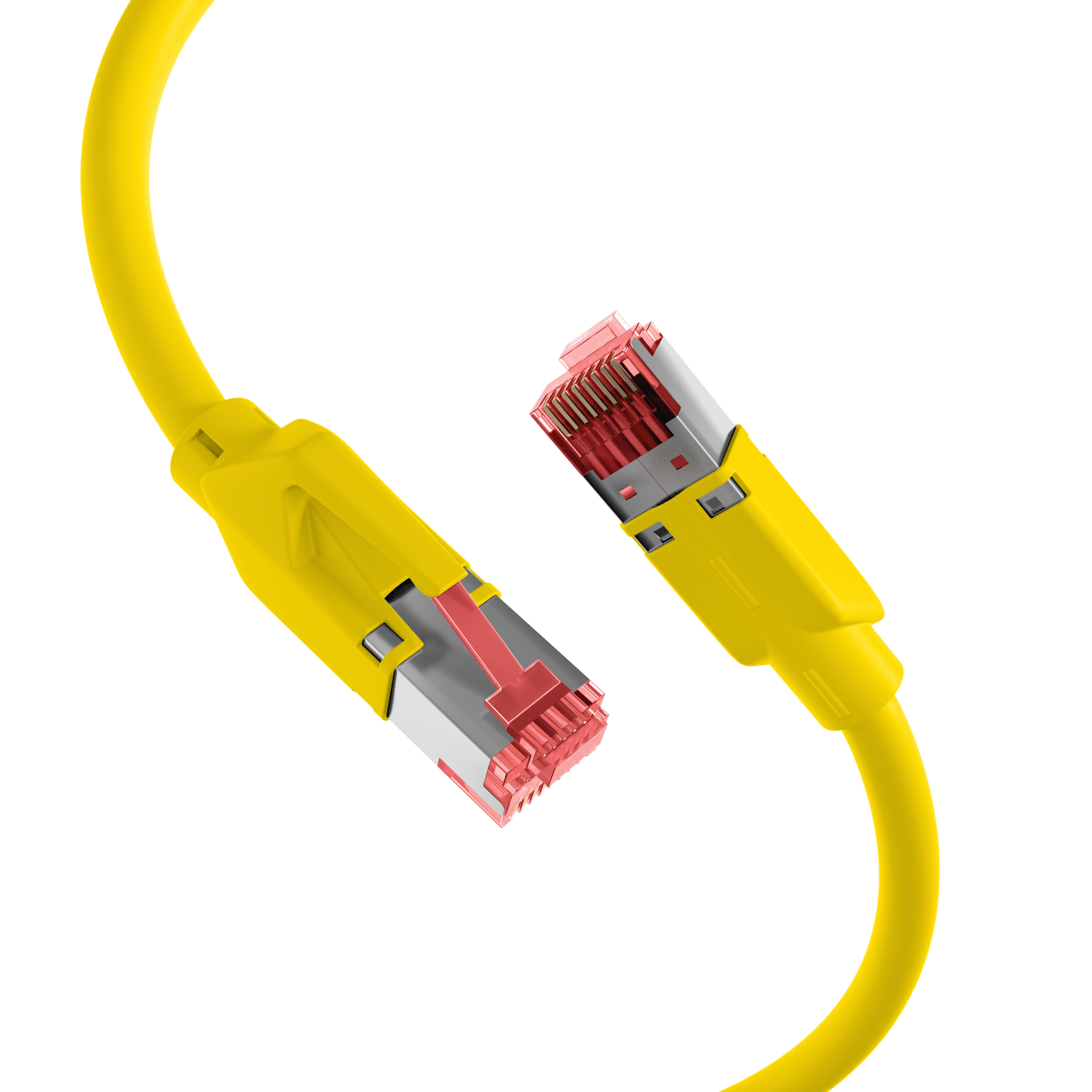

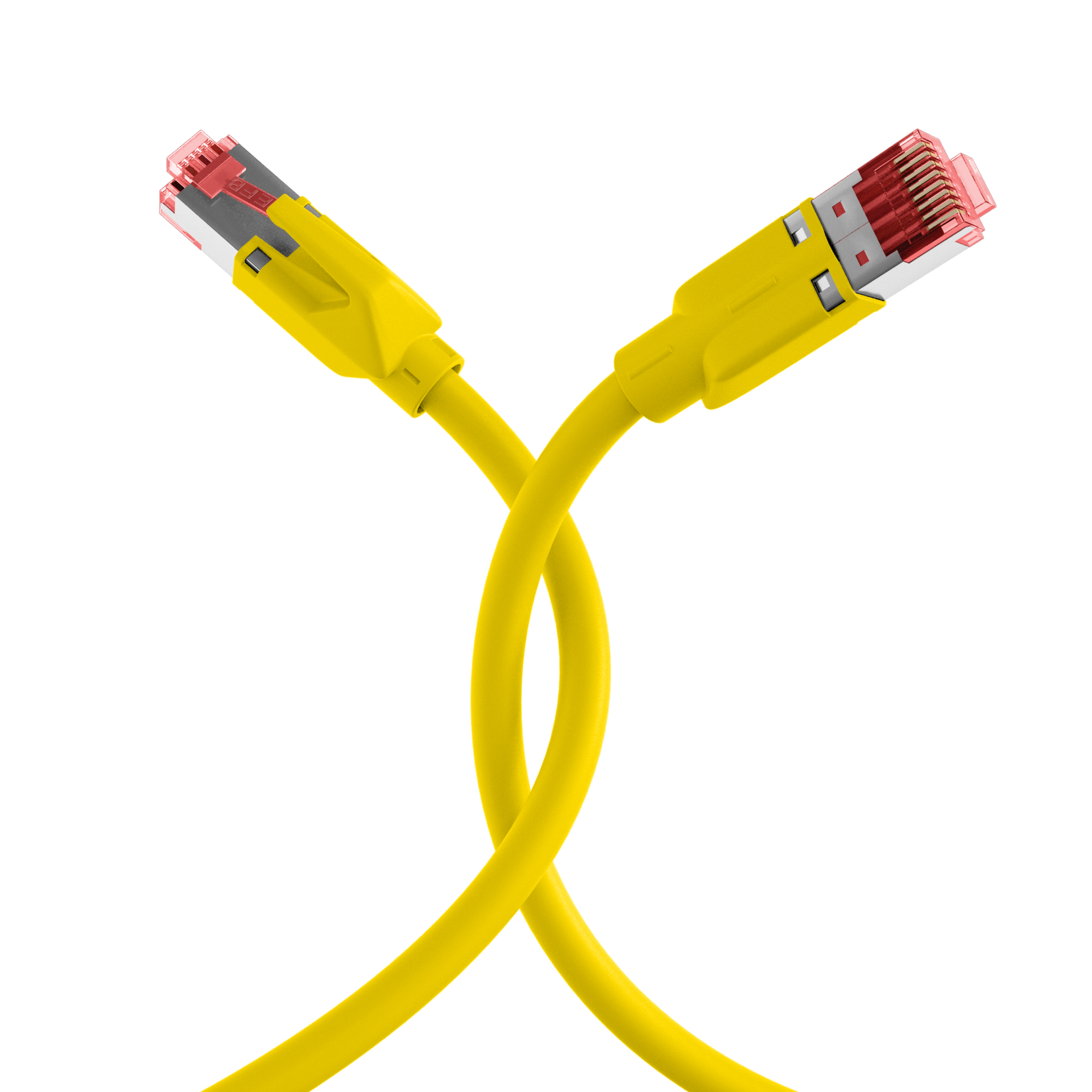

RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow
RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 1m
Varenummer:
K8032.1
EAN Nr.:
4049759089467
Produktinformation til RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 1m
RJ45 patch cable Cat.5e S/UTP PUR TM21 draggable
The Cat.5e patch cable meets the requirements for 2.5Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat.5e
• S/UTP cable with AWG26/19
• Jacket material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Jacket properties: oil-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of polyurethane (PUR) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The data cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 100 MHz.
The Cat.5e patch cable meets the requirements for 2.5Gbit Ethernet and has gold-plated contacts.
Technical product properties
• Cat.5e
• S/UTP cable with AWG26/19
• Jacket material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Jacket properties: oil-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of polyurethane (PUR) material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned 1:1 and are in accordance with TIA/EIA 568B.
The data cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is up to 100 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 26/19 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 6,9 mm |
| Bandbreite: | 100MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >34 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | gelb |
| Geeignet für Schutzart (IP): | IP20 |
| Gesamtabschirmung: | 90 % |
| Halogenfrei: | Ja |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±5 Ω |
| Isolationswiderstand: | ≥ 500 MΩ |
| Kabelaufdruck: | E132276-C(UL) CM 75°C 4PR AWG24/7 CSA LL64151-C CMG 75°C FT4 Cat.6(A) S/FTP PATCH CORD |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/UTP |
| Kabeltyp nach Hersteller: | Leoni-Kerpen MegaLine superflex |
| Kategorie: | 5E |
| Knickschutztülle: | aufgesteckt |
| Kontakte: | Vergoldet µ" Vergoldet |
| Kontaktwiderstand: | ≤ 20 mΩ |
| Leitermaterial: | Kupfer |
| Leiterwiderstand DC: | 125 Ω/km |
| Längenaufdruck: | Nein |
| Mantel-Farbe: | gelb |
| Mantel-Material: | Polyurethan (PUR) |
| NVP-Wert: | 68 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | Ja |
| Schirmkontaktierung: | 360° Schirmbefestigung |
| Schleifenwiderstand: | 250 Ω/km |
| Steckertyp: | TM21 rot |
| Steckverbinder: | IEC 60603-7-3 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | -40 – 85 °C |
| Temperaturbereich (Betrieb): | -40 – 85 °C |
| Temperaturbereich (Installation): | 0 – 50 °C |
| UL approbiert: | False |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | nach EN 60811-2-1 |
| Übertragung: | 2,5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE Klasse | Längentoleranz | |
|---|---|---|---|---|---|
| K8032.1 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8032.2 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8032.3 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8032.5 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8032.15 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow 15m | 15,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8032.1,5 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 1,5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8032.10 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 10,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8032.20 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 20.0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % | |
| K8032.25 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 25.0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
| K8032.30 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 30,0 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at | ±5 % | |
| K8032.40 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 40.0 m | PoE nach IEEE802.3af | ±5 % | |
| K8032.50 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 50.0 m | Nein | ±5 % | |
| K8032.7,5 | RJ45 Patch Cord Cat.5e S/UTP PUR TM21 for drag chains yellow | 7.5 m | PoE nach IEEE802.3af;PoE+ nach IEEE802.3at;4PPoE nach IEEE802.3bt | ±5 % |
