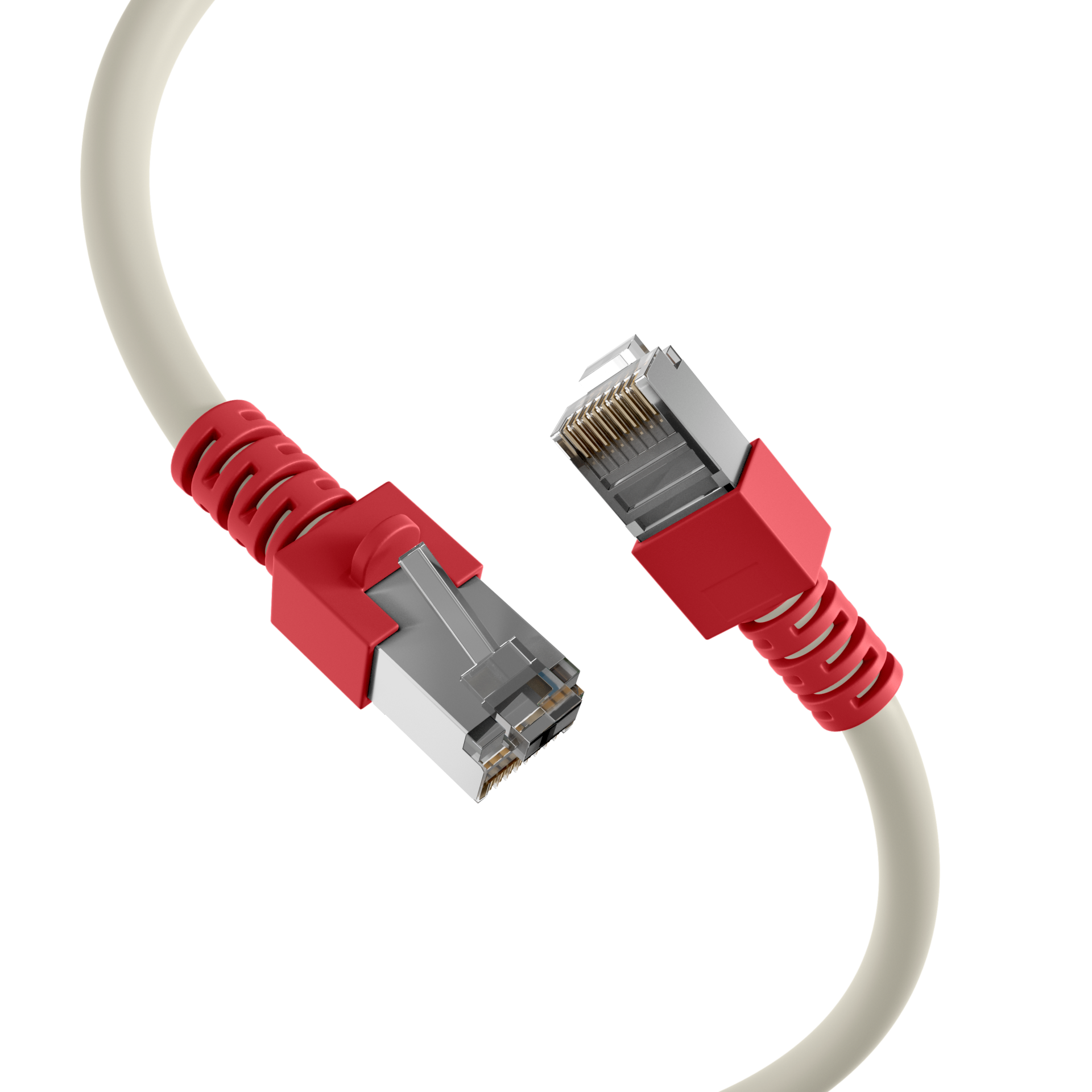

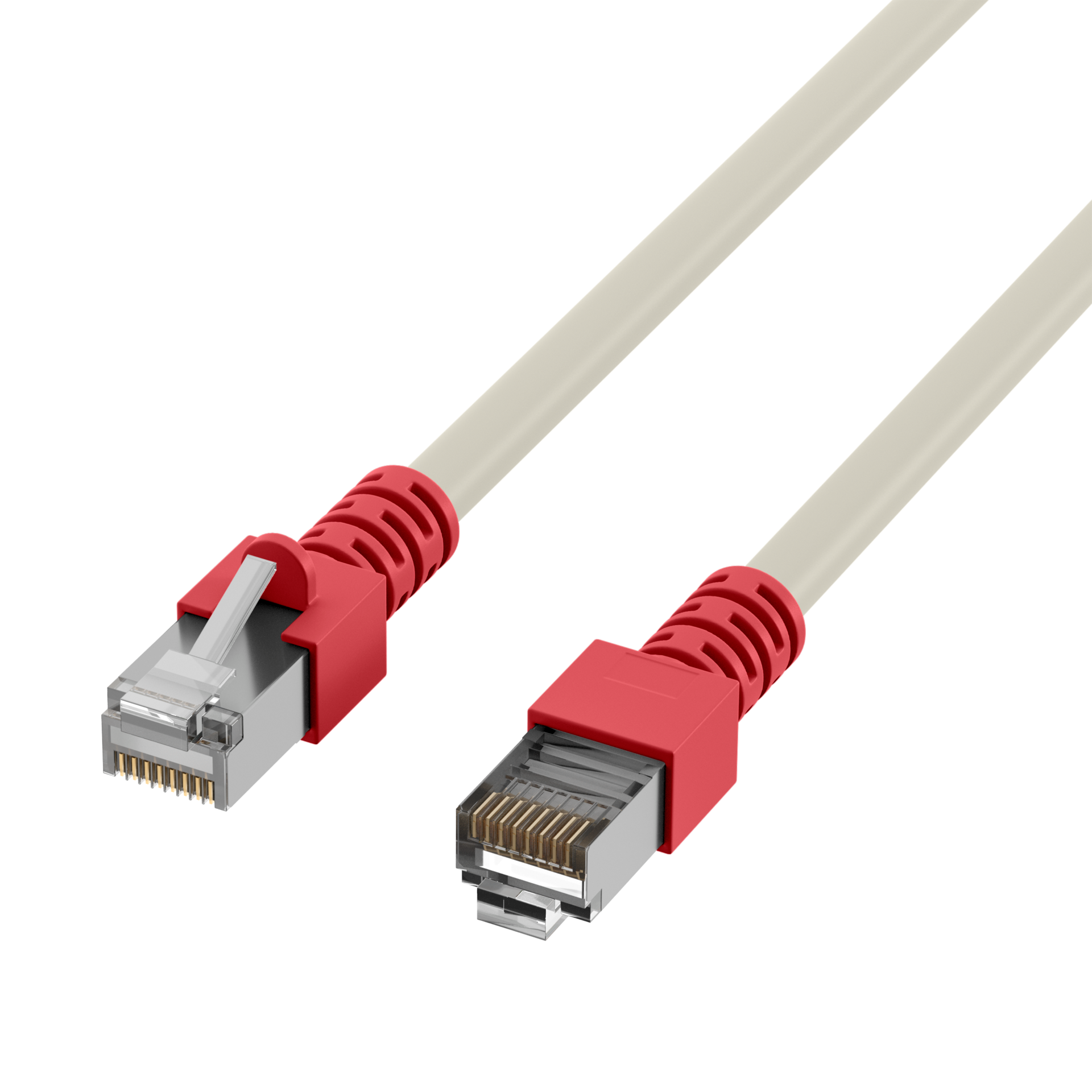

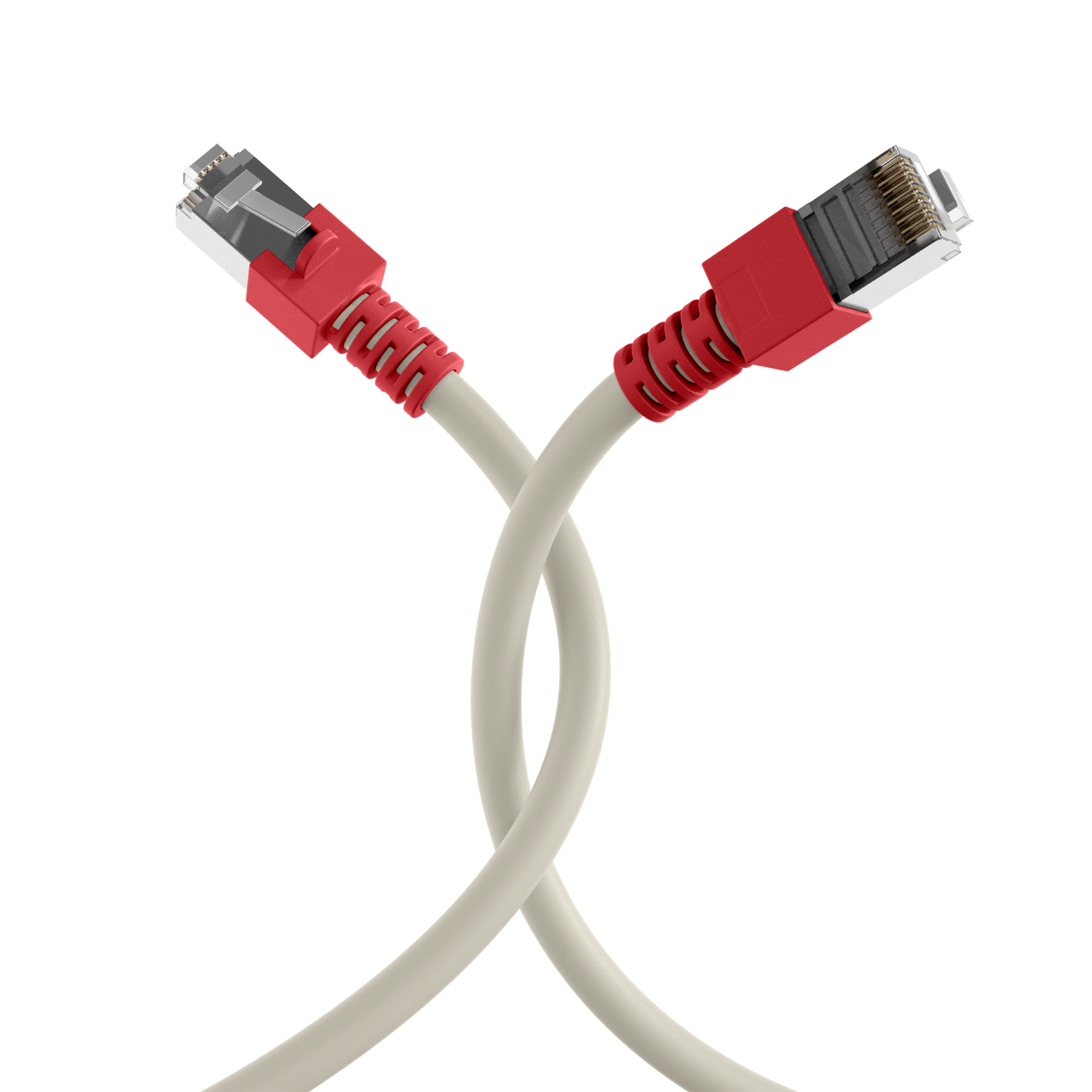

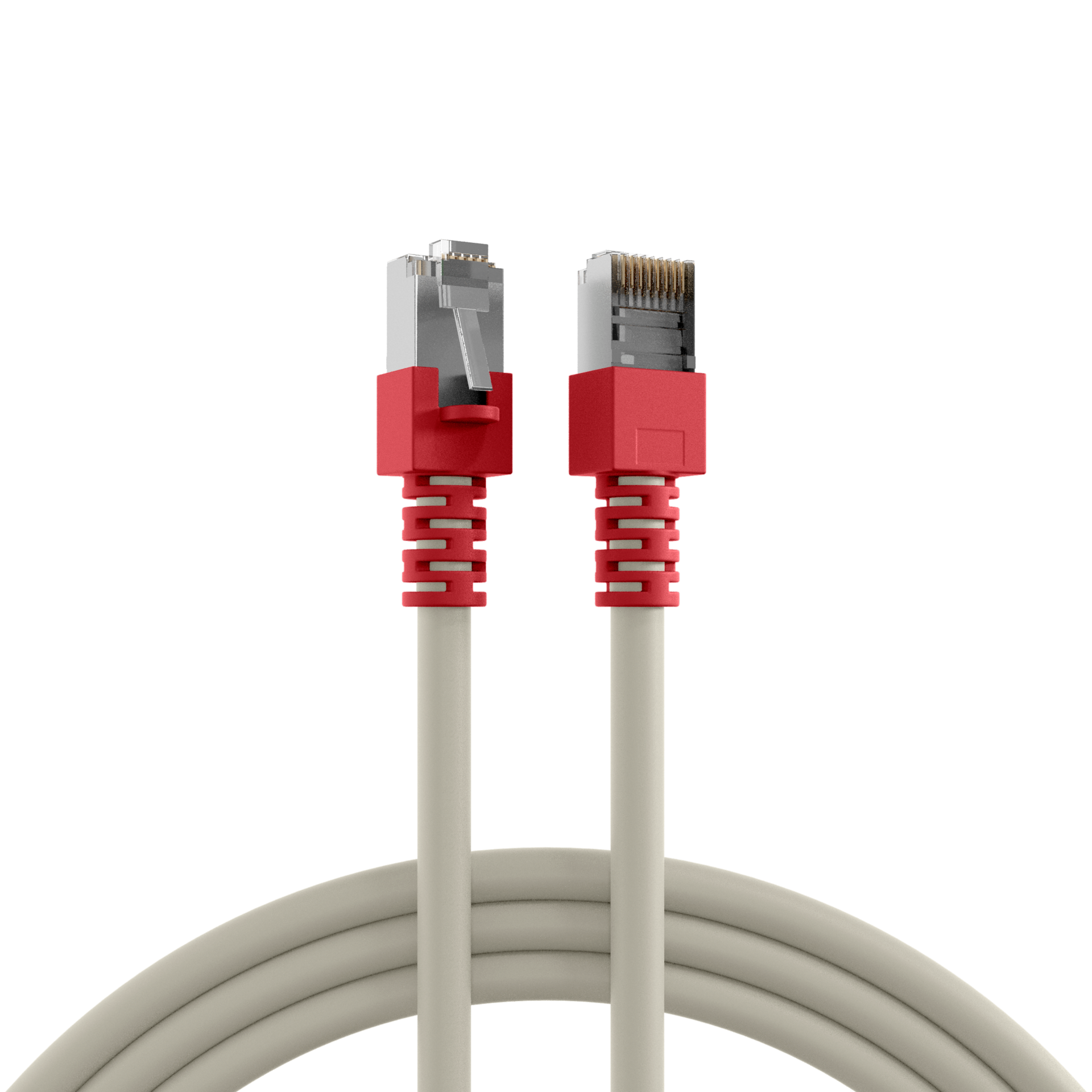

RJ45 Crossover Patch cable SF/UTP, Cat.5e, CCA, grey (red boot)
RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 0,5m
Varenummer:
K5450.0,5
EAN Nr.:
4049759029845
Produktinformation til RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 0,5m
RJ45 patch cable Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| (Halogenfrei): | Ja |
|---|---|
| AWG-Querschnitt: | 26/7 |
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 5.7 mm |
| Bandbreite: | 100MHz |
| Belegung: | 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5 |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >25 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | rot |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Halogen frei: | Nein |
| Impedanz: | 100 |
| Kabelaufdruck: | Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | SF/UTP |
| Kategorie: | 5E |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Leitermaterial: | CCA |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | grau |
| Mantel-Material: | Polyvinylchlorid (PVC) |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | gekreuzt |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-3 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich (Betrieb): | 0 – 60 °C |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 2,5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5450.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 0,5m | 0.5 m | No | ±5 % | |
| K5450.1 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 1m | 1,0 m | No | ±5 % | |
| K5450.2 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 2m | 2,0 m | No | ±5 % | |
| K5450.3 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 3m | 3,0 m | No | ±5 % | |
| K5450.5 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 5m | 5.0 m | No | ±5 % | |
| K5450.10 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 10m | 10,0 m | No | ±5 % |
