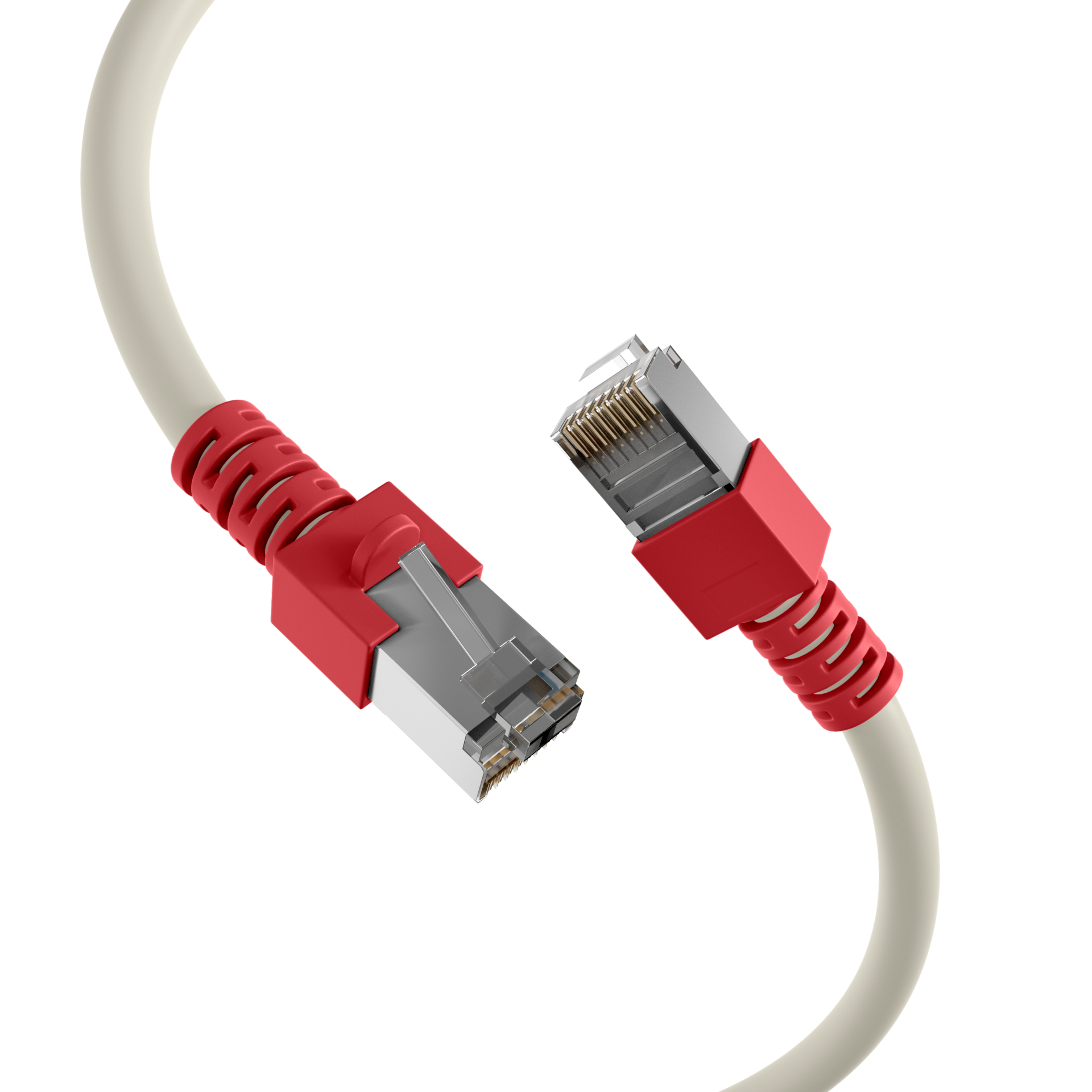

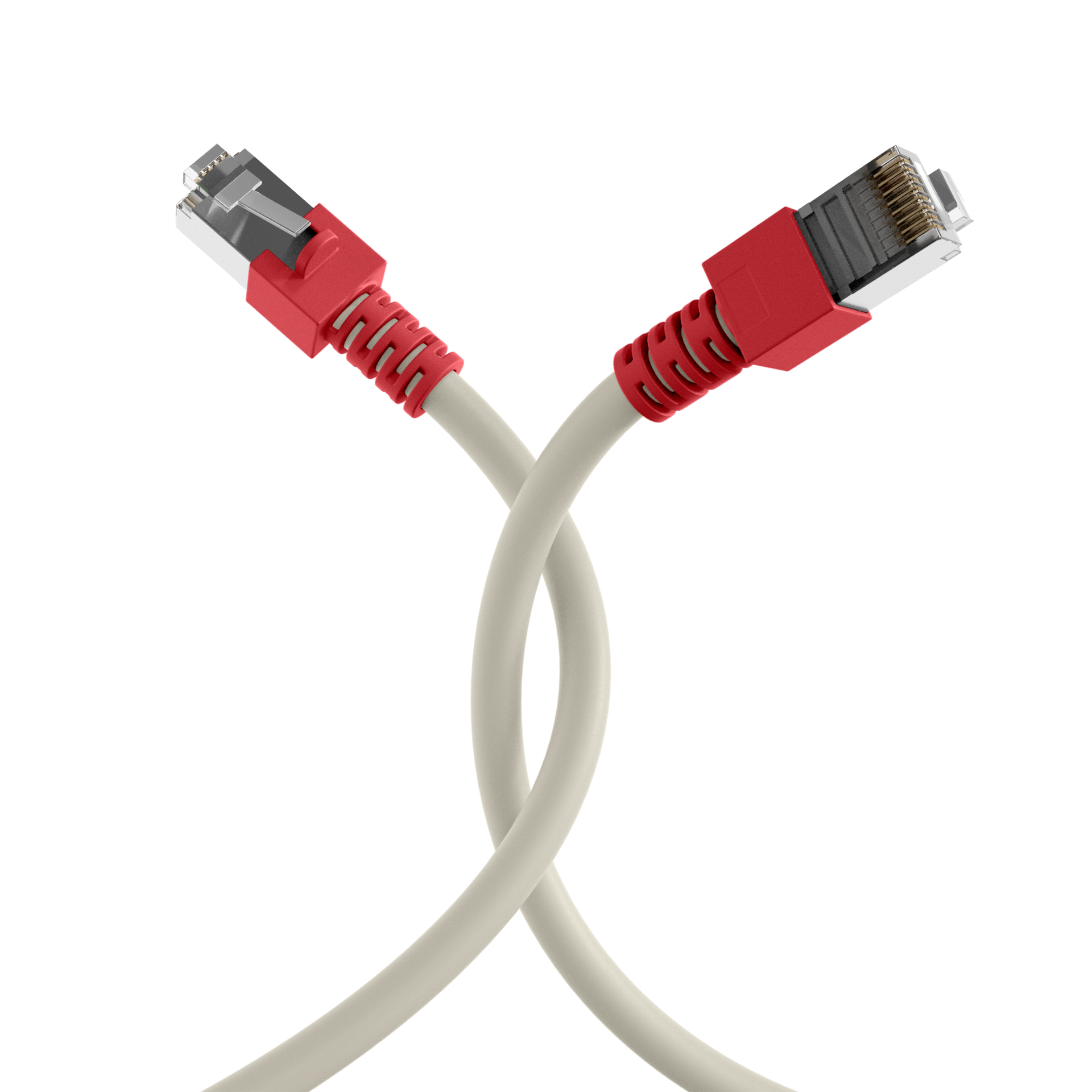

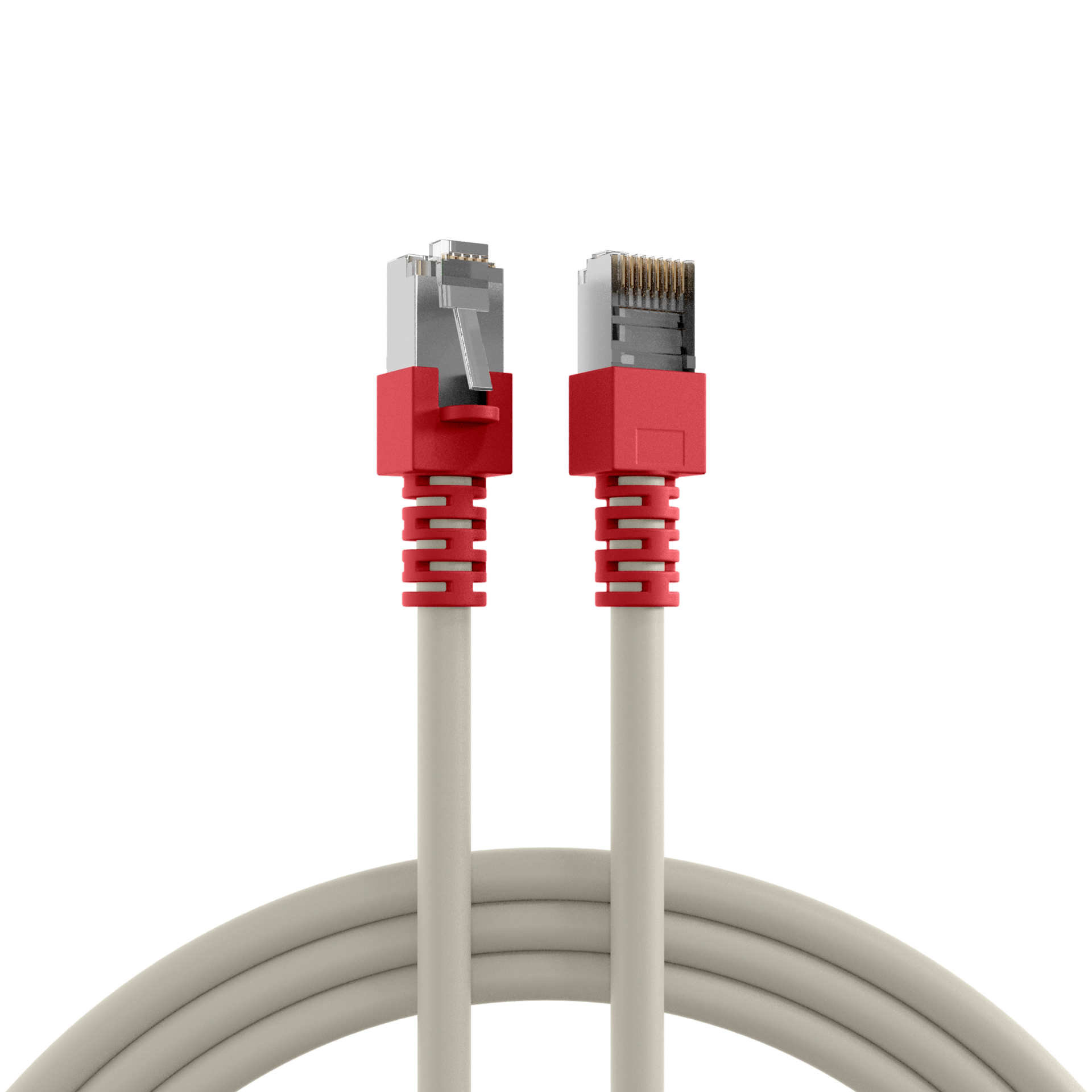

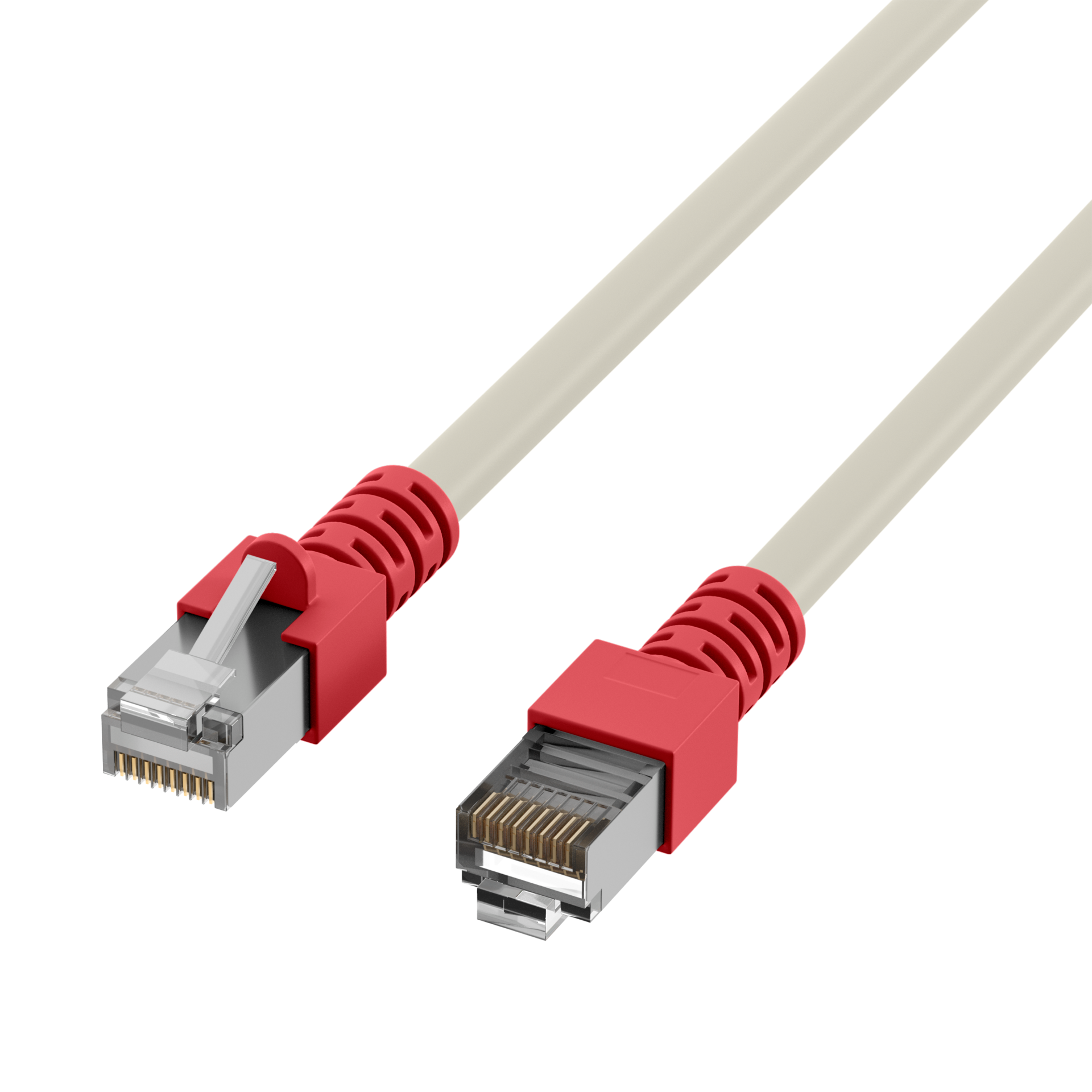

RJ45 Crossover Patch cable SF/UTP, Cat.5e, CCA, grey (red boot)
RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 3m
Varenummer:
K5450.3
EAN Nr.:
4049759029906
Produktinformation til RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 3m
RJ45 patch cable Cat.5e SF/UTP LSZH Draka UC300 TM11 crossed
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
The Cat.5e patch cable has gold-plated contacts and meets the requirements for 2.5Gbit Ethernet.
Technical product properties< br>• Cat .5e
• SF/UTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts< br>
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is the classic crossover for Gigabit Ethernet: 1-3 , 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The bandwidth is up to 100 MHz.
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5 |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | SF/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 5e |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-3 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | No |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 |
| Jacket material: | Polyvinylchlorid (PVC) |
| Length imprint: | True |
| Locking lever: | True |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 5.7 mm |
| Ozone resistance: | No |
| Pin assignment: | crossed |
| Printing: | SF/UTP 300 CAT.5E 26AWG×4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED ***2,5 GIGABIT*** www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 100MHz |
| Temperature Range (Operation): | 0 – 60 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 2.5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5450.0,5 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 0,5m | 0.5 m | No | ±5 % | |
| K5450.1 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 1m | 1.0 m | No | ±5 % | |
| K5450.2 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 2m | 2.0 m | No | ±5 % | |
| K5450.3 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 3m | 3.0 m | No | ±5 % | |
| K5450.5 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 5m | 5.0 m | No | ±5 % | |
| K5450.10 | RJ45 Patch Cord Cat.5e SF/UTP PVCred boot CCA crossed grey 10m | 10.0 m | No | ±5 % |
