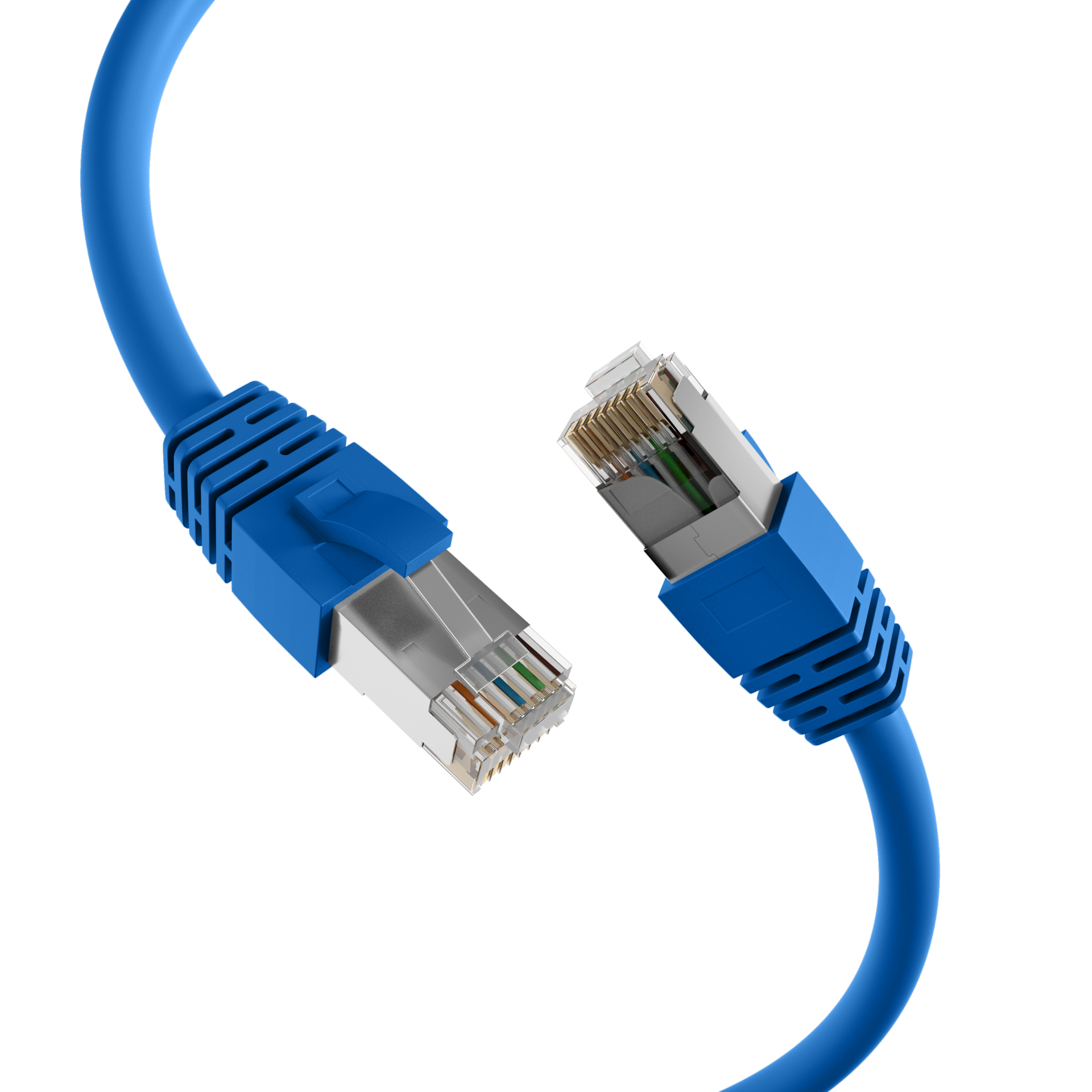

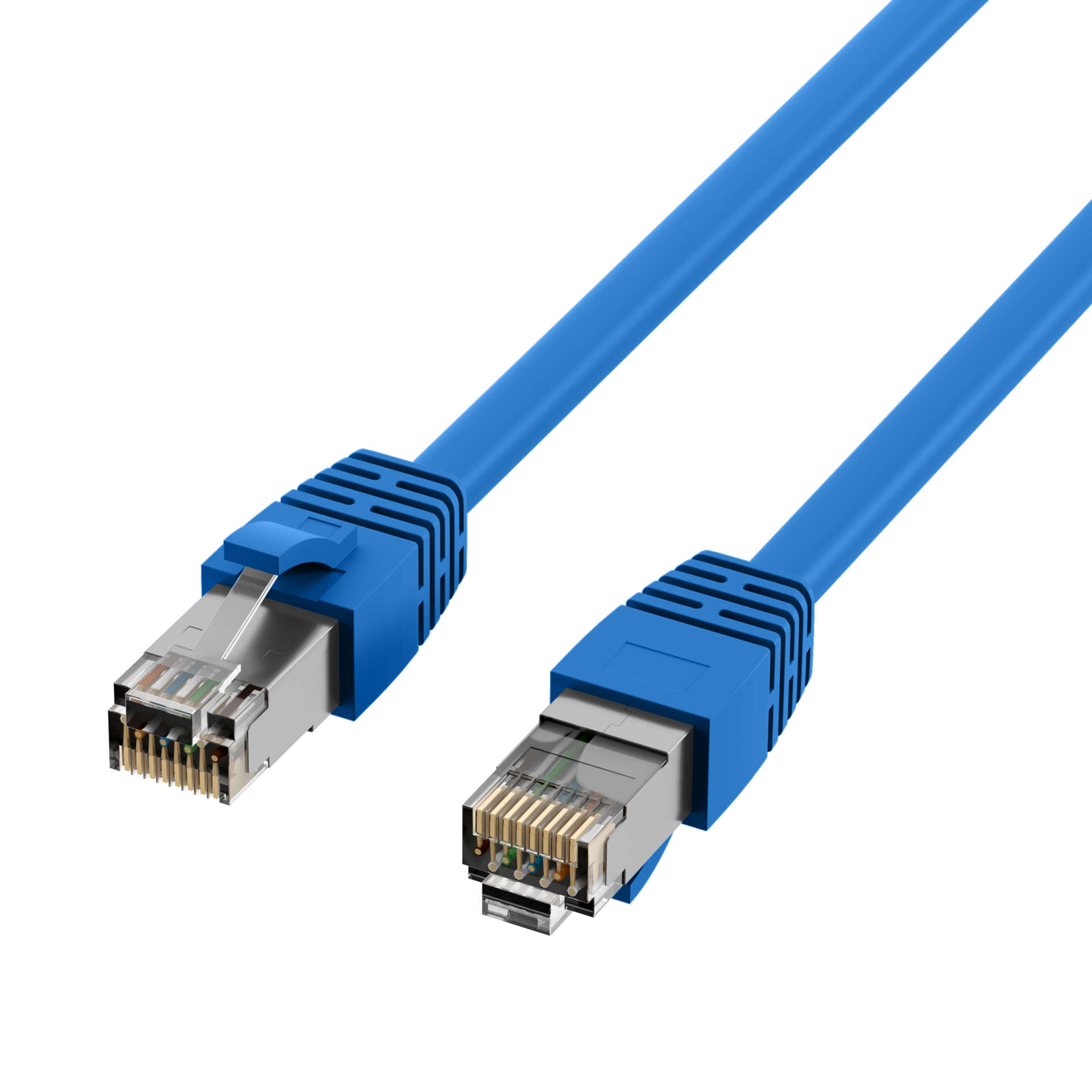

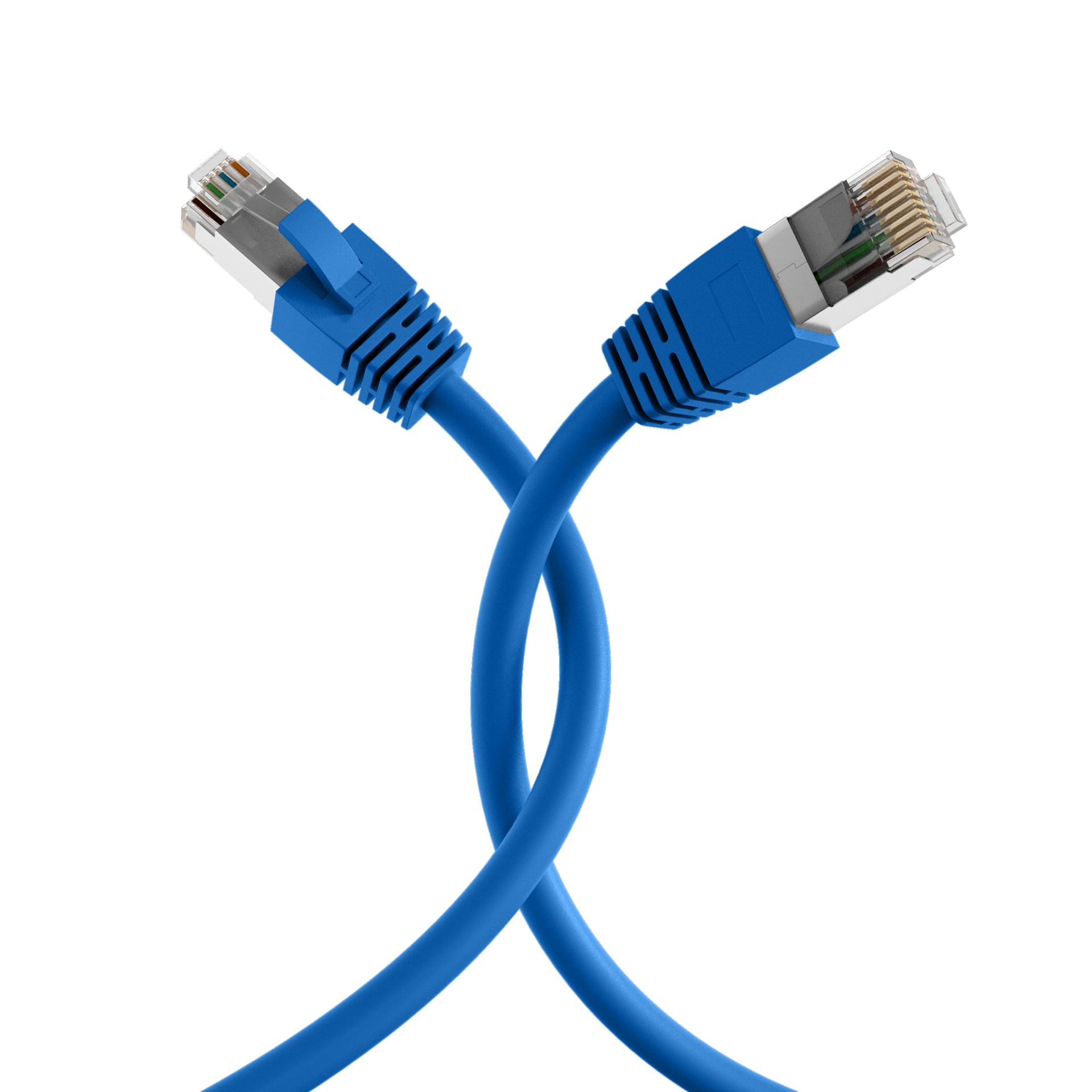

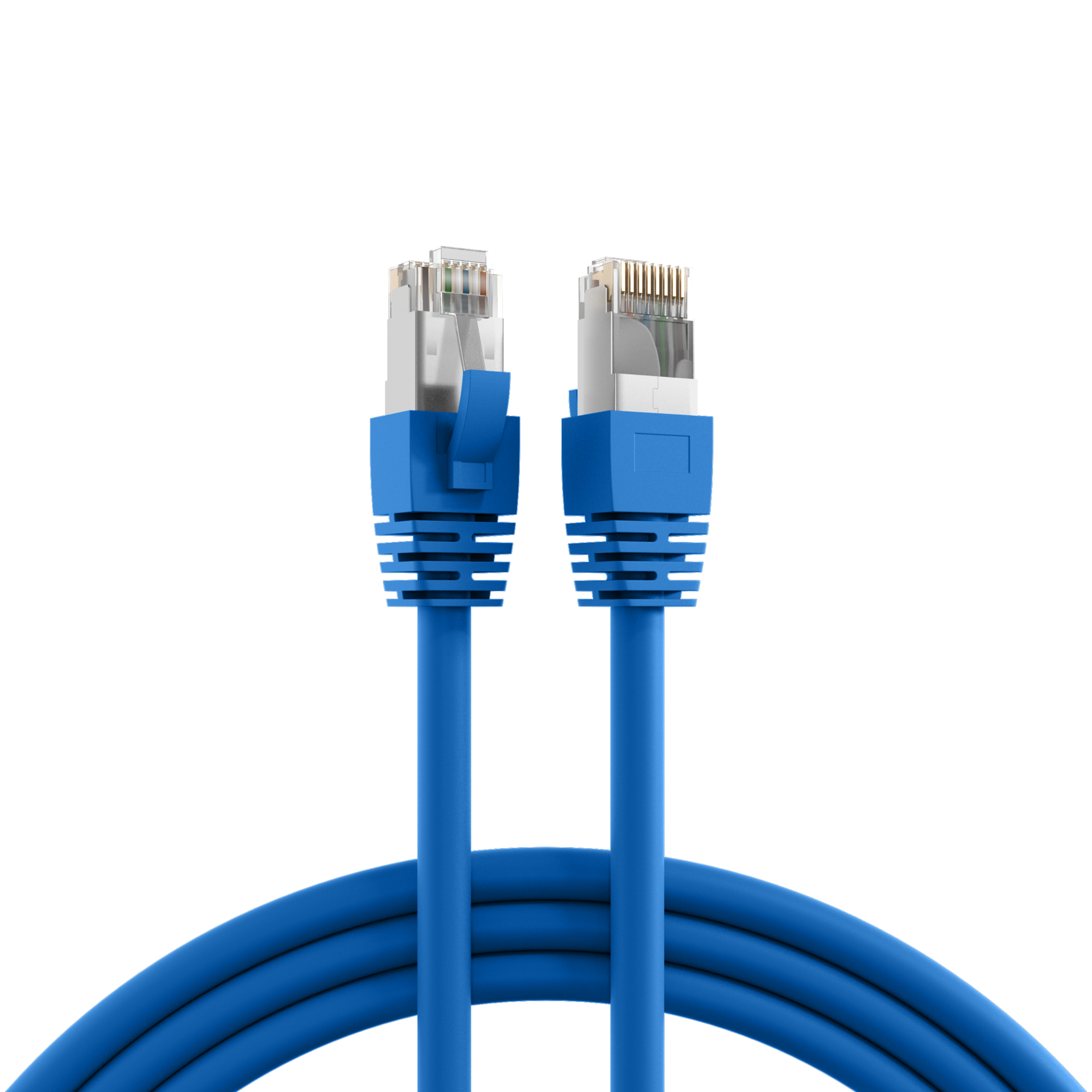

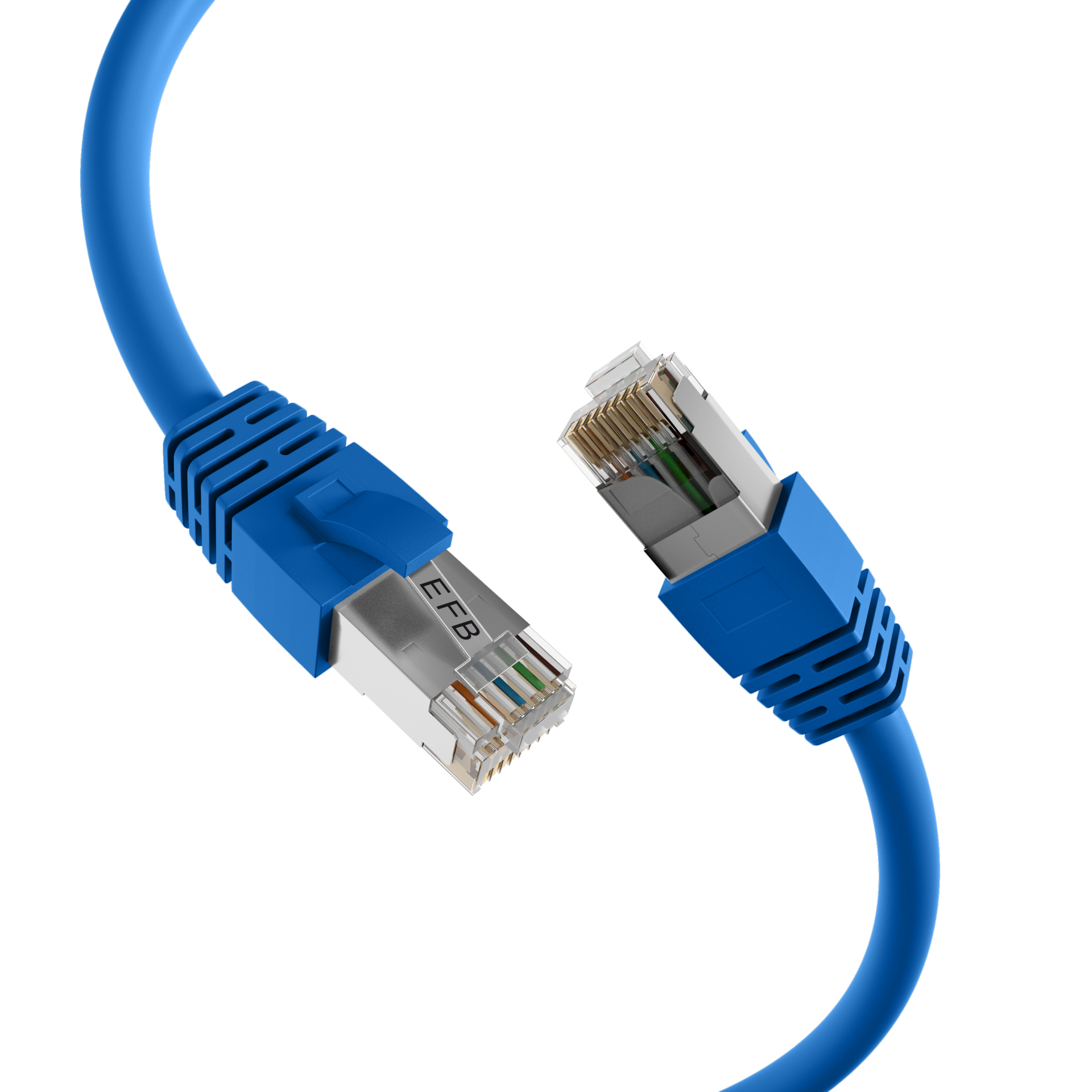

RJ45 Patch Cord Cat.8.1 S/FTP BC blue
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m
Varenummer:
K5528BL.0,5
EAN Nr.:
4049759215200
Produktinformation til RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m
RJ45 patch cable Cat.8.1 S/FTP LSZH BC
The Cat.8.1 patch cable has gold-plated contacts and meets the requirements for 25Gbit and 40Gbit Ethernet.
Technical product features
• Cat.8.1< br>• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the The shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 2000 MHz.
The Cat.8.1 patch cable has gold-plated contacts and meets the requirements for 25Gbit and 40Gbit Ethernet.
Technical product features
• Cat.8.1< br>• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the The shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 2000 MHz.
Tekniske egenskaber
| AWG-Querschnitt: | 24/7 |
|---|---|
| Ausführung: | Geschirmt |
| Ausführung flammwidrig: | acc. IEC60332-1 |
| Außendurchmesser des Kabels: | 8 mm |
| Bandbreite: | 2000MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >40 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Einsatzort: | Rechenzentrum |
| Farbe der Knickschutztülle: | blau |
| Geeignet für Schutzart (IP): | IP20 |
| Halogenfrei: | acc. IEC60754-2 |
| Harmonisierte Norm: | EN 50575 |
| Impedanz: | 100 ±15 Ω |
| Isolationswiderstand: | 10 MΩ |
| Kabelaufdruck: | Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit*** www.efb-elektronik.de |
| Kabelform: | rund |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | S/FTP |
| Kategorie: | 8.1 |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet |
| Kontaktwiderstand: | 5 mΩ |
| Leitermaterial: | Kupfer |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | blau |
| Mantel-Material: | LSZH |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Schirmkontaktierung: | Punktueller Schirmkontakt |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-81 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Temperaturbereich: | 0 – 60 °C |
| UL approbiert: | False |
| UV beständig: | Nein |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Übertragung: | 40Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5528BL.0,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.1 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 1m | 1,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.2 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 2m | 2,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.3 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 3m | 3,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.7,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.10 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 10m | 10,0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
