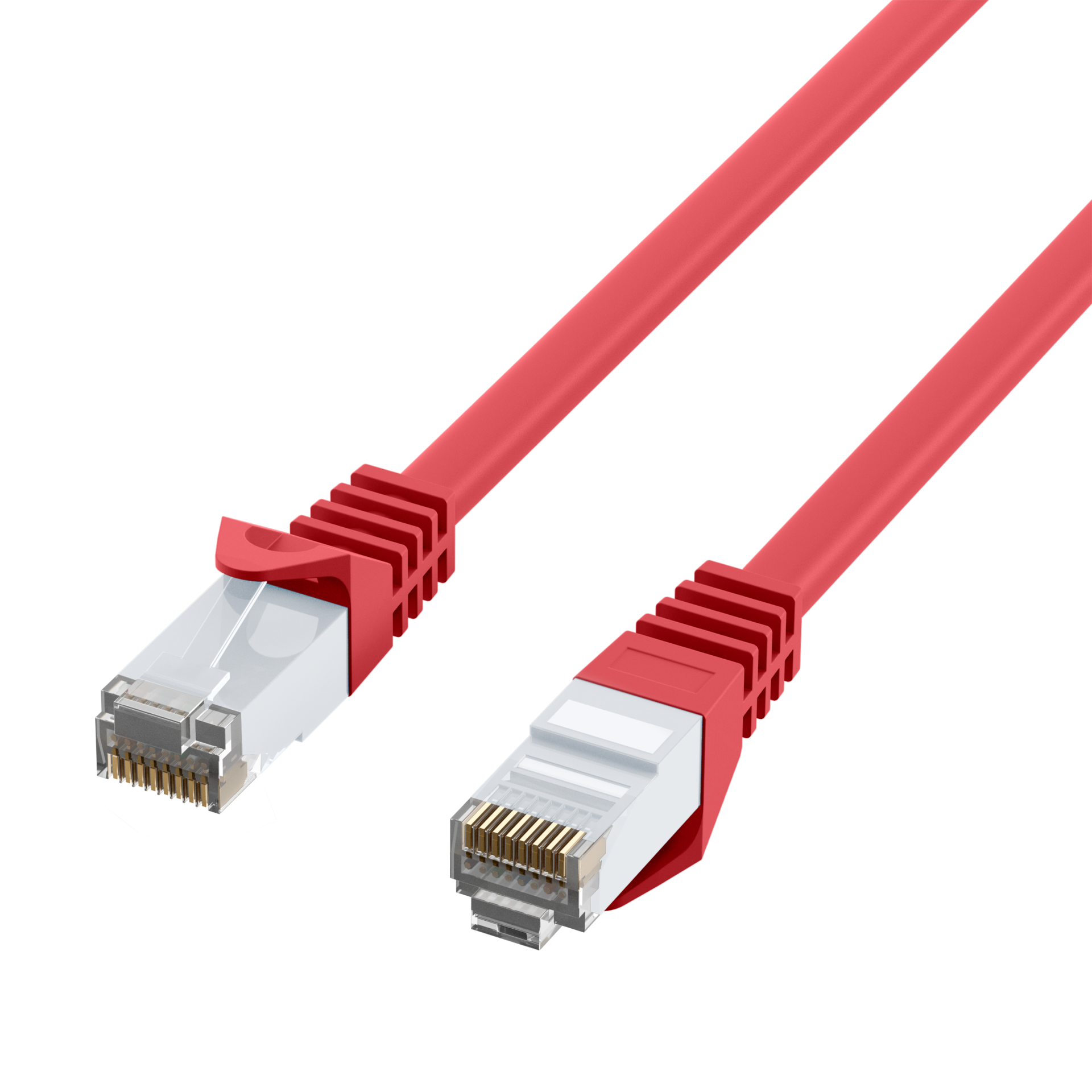

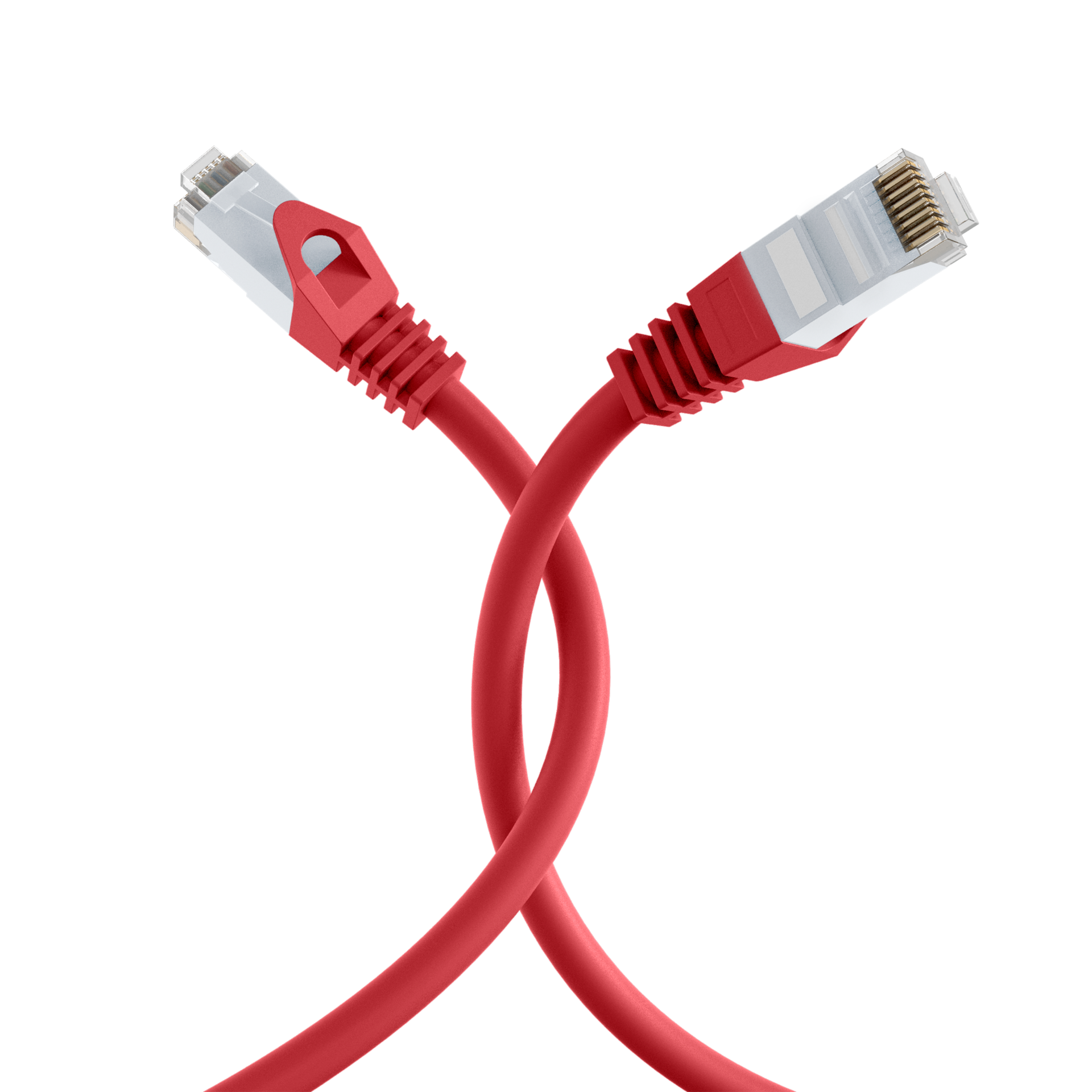

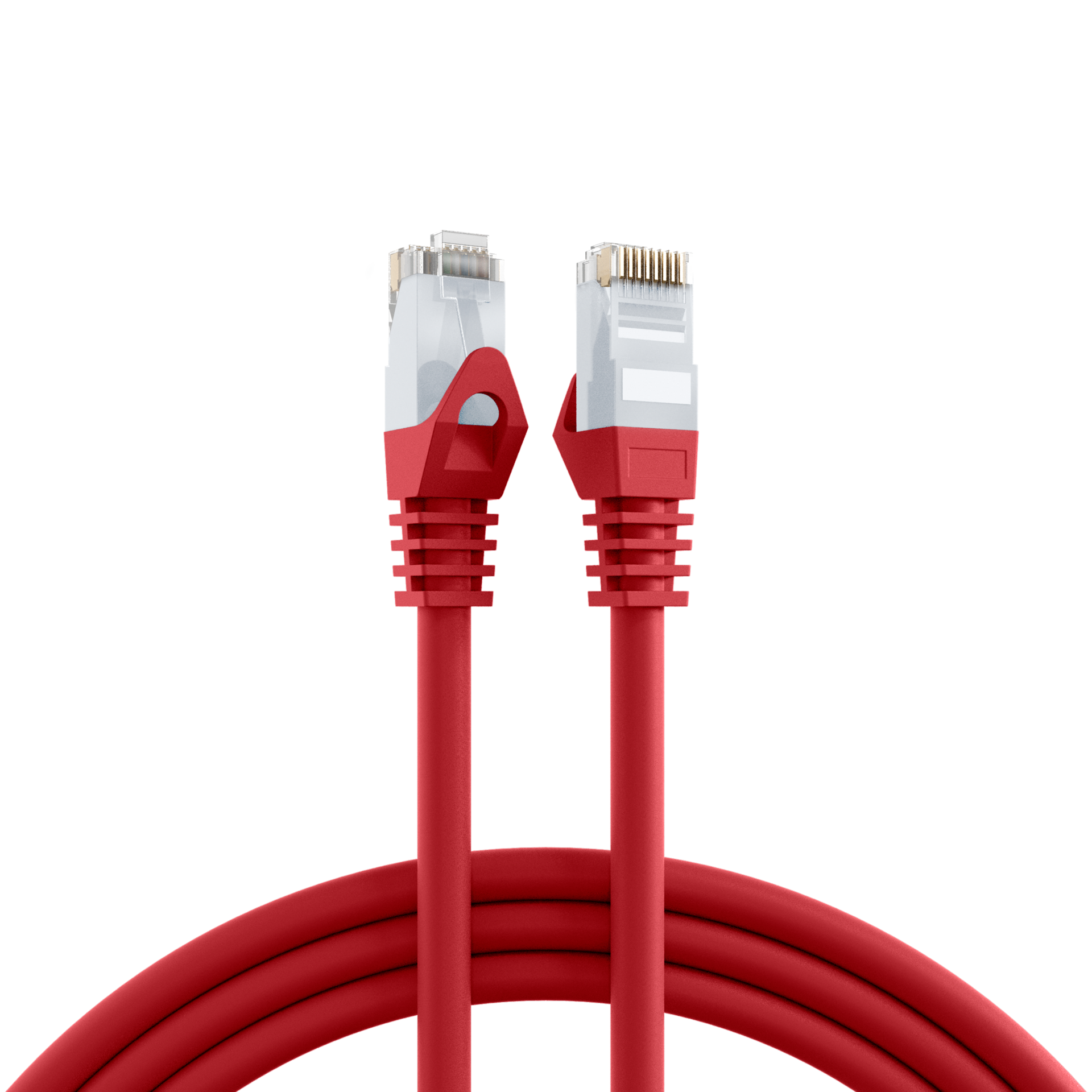

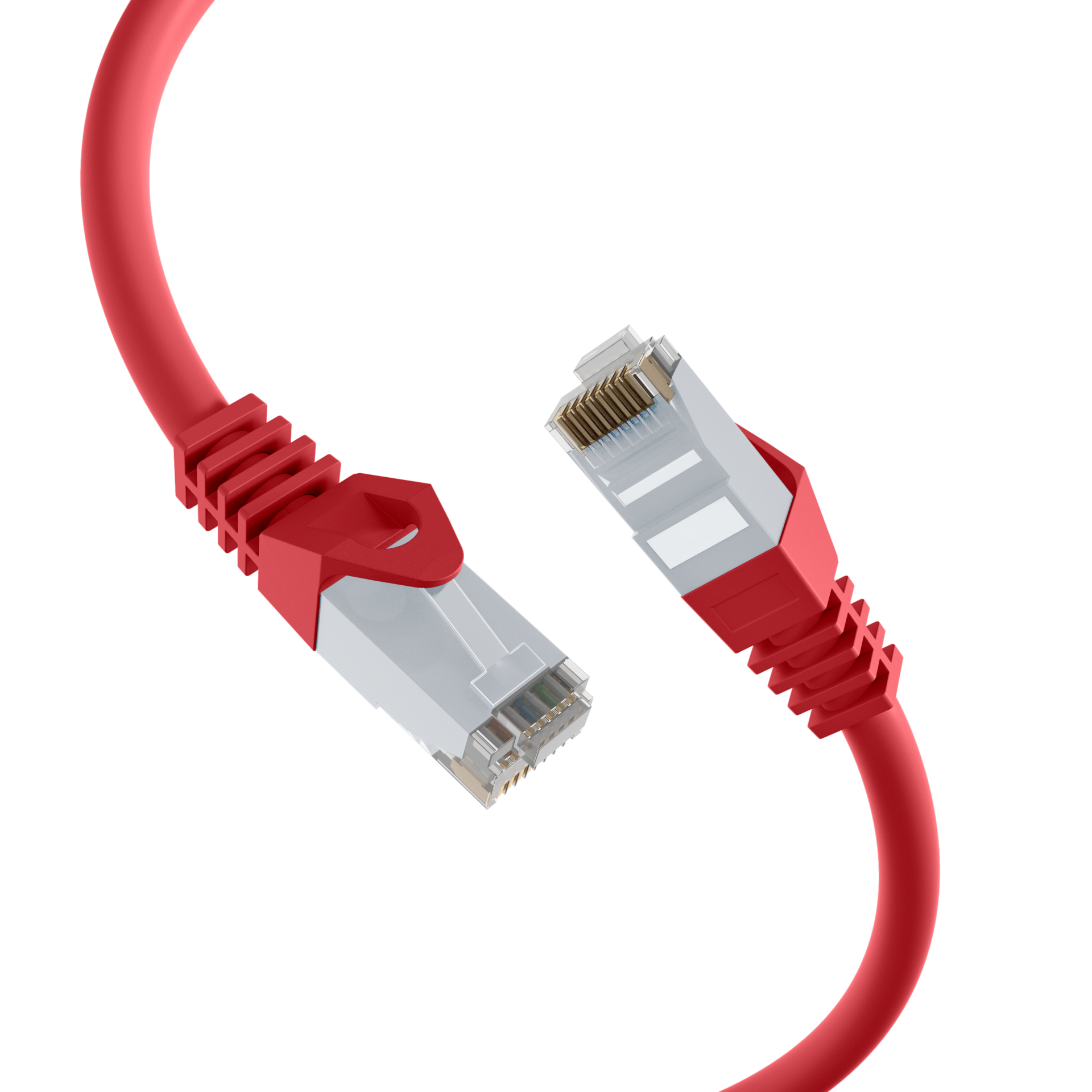

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red
RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,25m
Varenummer:
K8104RT.0,25
EAN Nr.:
4049759206031
Produktinformation til RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,25m
RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
Tekniske egenskaber
| (Halogenfrei): | Ja |
|---|---|
| AWG-Querschnitt: | 24/7 |
| Ausführung: | ungeschirmt |
| Ausführung flammwidrig: | Ja |
| Außendurchmesser des Kabels: | 5,9 mm |
| Bandbreite: | 250MHz |
| Belegung: | nach TIA/EIA 568B |
| Betriebs-/Bemessungsspannung: | max. 50 V DC |
| Biegeradius: | >30 mm |
| Chemisch beständig: | Nein |
| Einsatzort: | Industrial Ethernet |
| Einsatzort: | Strukturierte Gebäudeverkabelung |
| Farbe der Knickschutztülle: | rot |
| Flammwidrig: | nach IEC60332-1 |
| Geeignet für Schutzart (IP): | IP20 |
| Halogen frei: | nach IEC60754-2 |
| Impedanz: | 100 |
| Kabelaufdruck: | UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 & EN 50173 verified www.efb-elektronik.de |
| Kabelkonstruktion: | 4x2 |
| Kabeltyp: | U/UTP |
| Kategorie: | 6 |
| Knickschutztülle: | angespritzt |
| Kontakte: | Vergoldet µ" Vergoldet |
| Leitermaterial: | CCA |
| Längenaufdruck: | Ja |
| Mantel-Farbe: | rot |
| Mantel-Material: | LSZH |
| NVP-Wert: | 0 % |
| Ozon beständig: | Nein |
| Pinbelegung: | 1:1 |
| Prüfspannung: | 1000 (V DC, 1min) Ader/Ader und Ader/Schirm |
| Rasthebelschutz: | Ja |
| Raucharm: | Ja |
| Schirmkontaktierung: | Nein |
| Silikonfrei: | Ja |
| Steckertyp: | RJ45 standard |
| Steckverbinder: | IEC 60603-7-4 |
| Steckverbindertyp Anschluss 1: | RJ45 8(8) |
| Steckverbindertyp Anschluss 2: | RJ45 8(8) |
| Steckzyklen: | >750 |
| Strombelastbarkeit: | max. 1 A |
| Verkabelungsstandard: | EN50173 |
| Verkabelungsstandard: | ISO/IEC 11801 |
| Verkabelungsstandard: | ANSI/TIA-568 |
| Ölbeständig: | Nein |
| Ölbeständig nach EN 60811-2-1: | Nein |
| Ölbeständig nach EN 60811-404: | Nein |
| Übertragung: | 5Gbit |
Varianten
| Art. Nr. | Bezeichnung | Länge | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K8104RT.0,25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,25m | 0.25 m | No | ±5 % | |
| K8104RT.0,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,5m | 0.5 m | No | ±5 % | |
| K8104RT.1 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1m | 1,0 m | No | ±5 % | |
| K8104RT.1,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1,5m | 1,5 m | No | ±5 % | |
| K8104RT.2 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 2m | 2,0 m | No | ±5 % | |
| K8104RT.3 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 3m | 3,0 m | No | ±5 % | |
| K8104RT.5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 5m | 5.0 m | No | ±5 % | |
| K8104RT.7,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 7,5m | 7.5 m | No | ±5 % | |
| K8104RT.10 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 10m | 10,0 m | No | ±5 % | |
| K8104RT.15 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 15m | 15,0 m | No | ±5 % | |
| K8104RT.20 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 20m | 20.0 m | No | ±5 % |
