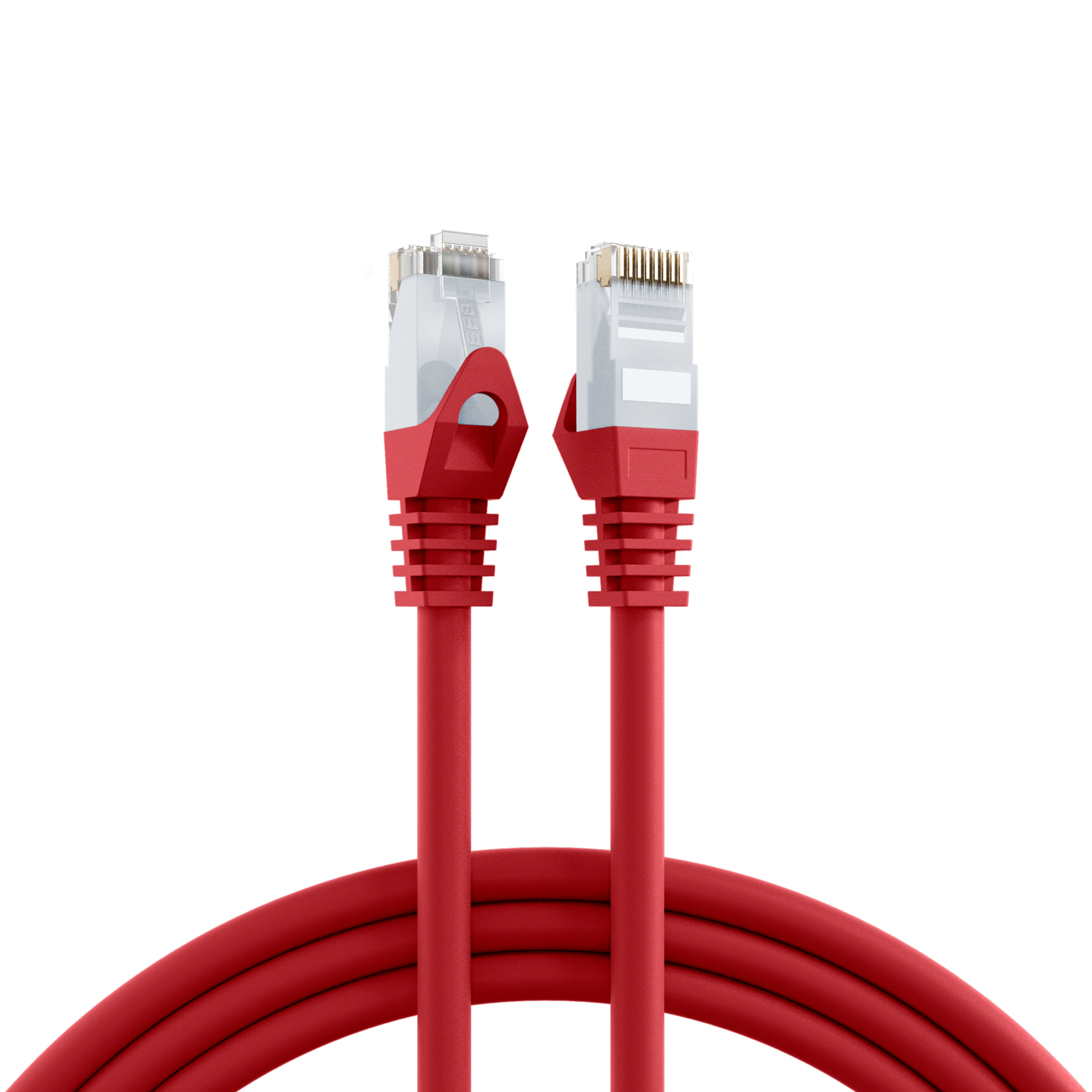

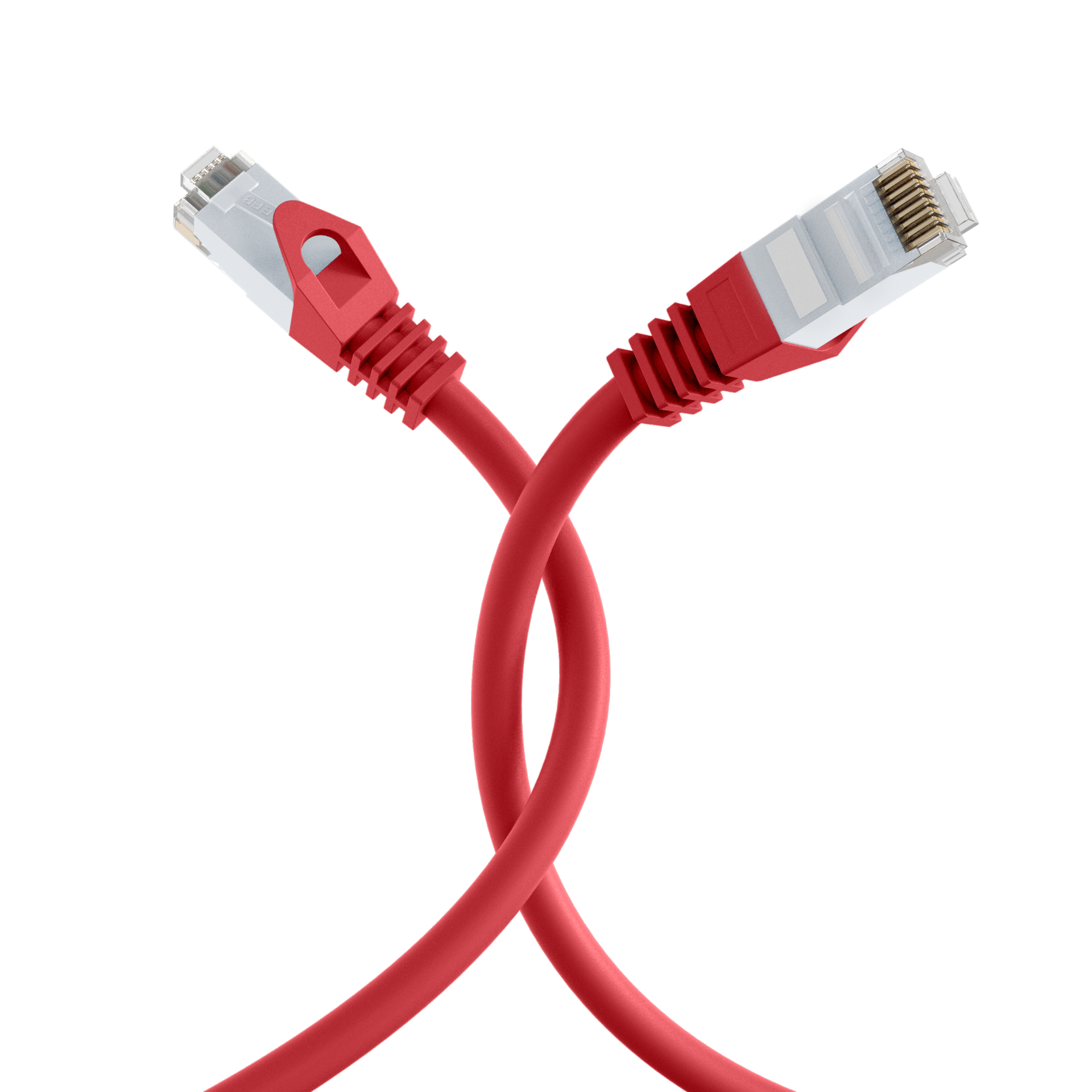

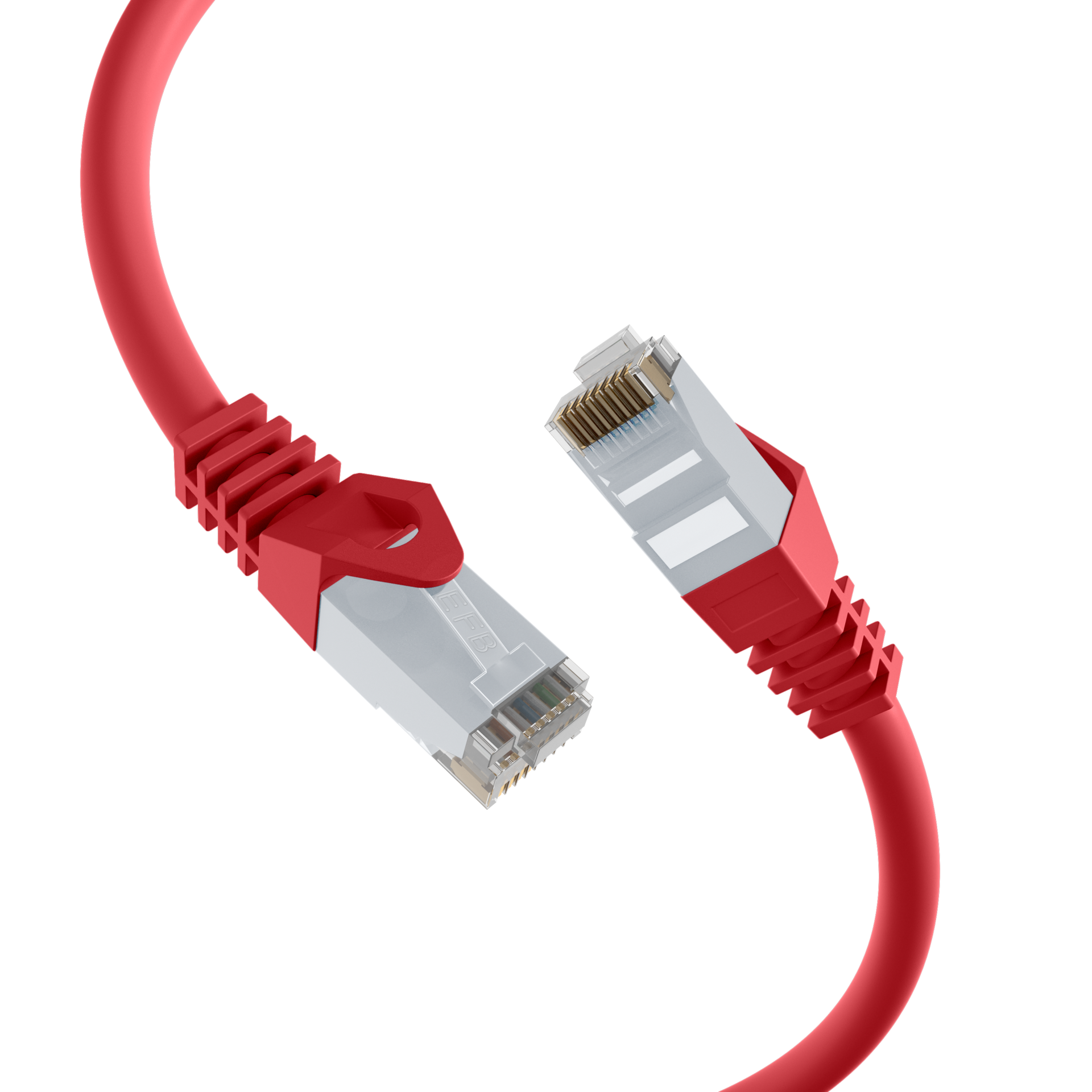

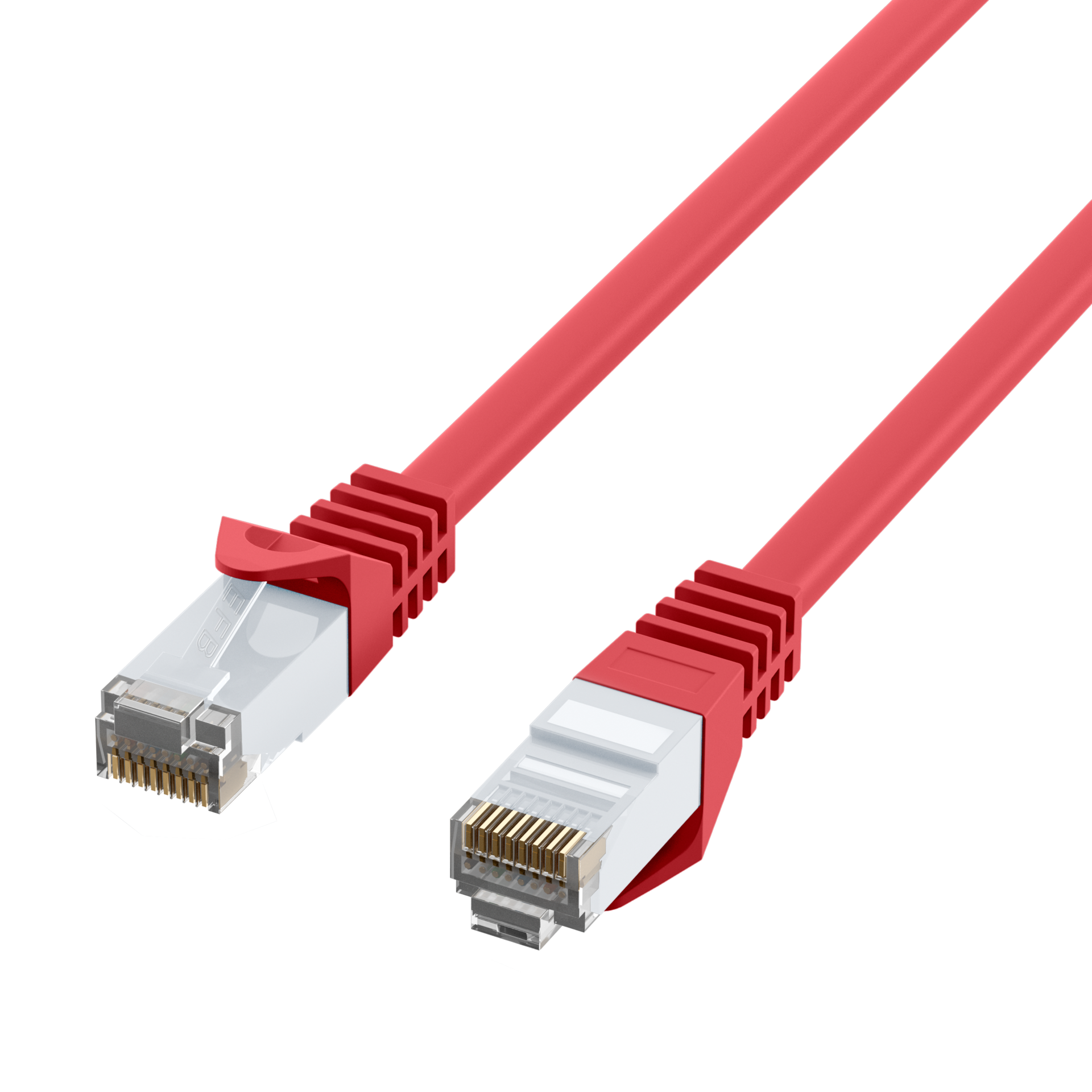

RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red
RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 15m
Varenummer:
K8104RT.15
EAN Nr.:
4049759115579
Produktinformation til RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 15m
RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
Tekniske egenskaber
| AWG-size: | 24/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | U/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6 |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | red |
| Conductive shield: | No |
| Conductor Material: | CCA |
| Connector: | IEC 60603-7-4 |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | unshielded |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | CAT.6 U/UTP AWG24 stranded × 4pairs LSZH cable ***5 GIGABIT*** www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 250MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 5Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K8104RT.0,25 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,25m | 0.25 m | No | ±5 % | |
| K8104RT.0,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 0,5m | 0.5 m | No | ±5 % | |
| K8104RT.1 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1m | 1.0 m | No | ±5 % | |
| K8104RT.1,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 1,5m | 1.5 m | No | ±5 % | |
| K8104RT.2 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 2m | 2.0 m | No | ±5 % | |
| K8104RT.3 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 3m | 3.0 m | No | ±5 % | |
| K8104RT.5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 5m | 5.0 m | No | ±5 % | |
| K8104RT.7,5 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 7,5m | 7.5 m | No | ±5 % | |
| K8104RT.10 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 10m | 10.0 m | No | ±5 % | |
| K8104RT.15 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 15m | 15.0 m | No | ±5 % | |
| K8104RT.20 | RJ45 Patch Cord Cat.6 U/UTP LSZH CCA red 20m | 20.0 m | No | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
