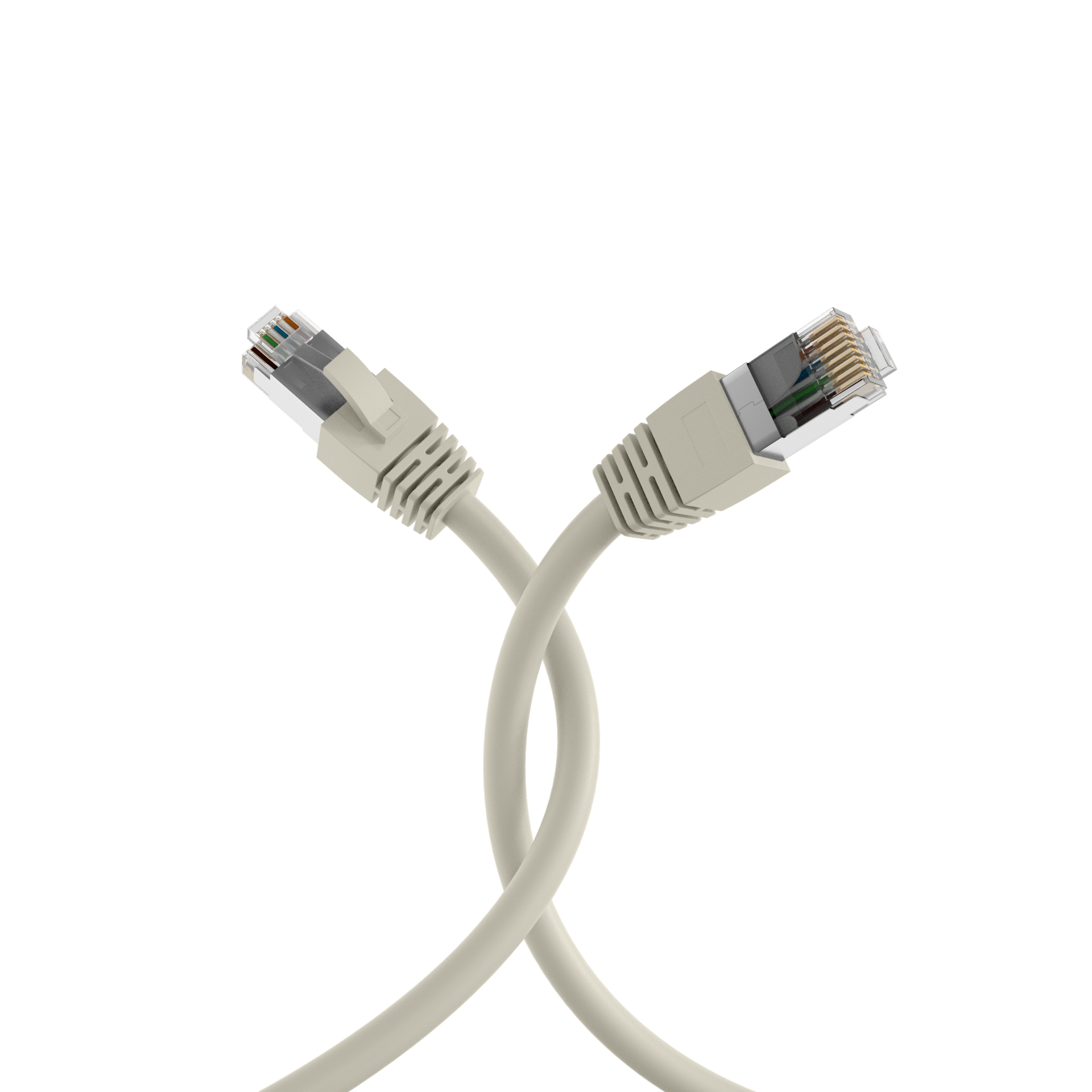

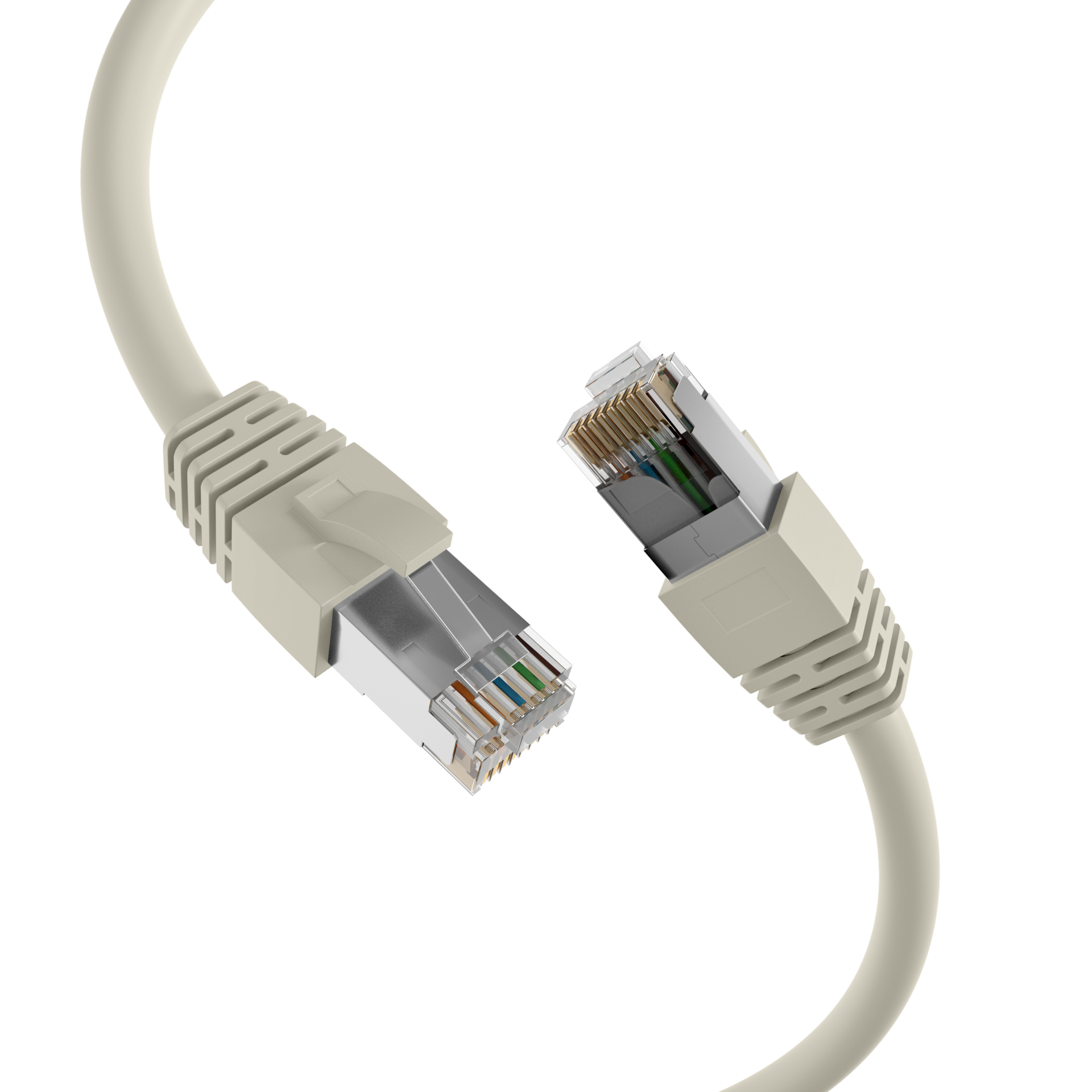

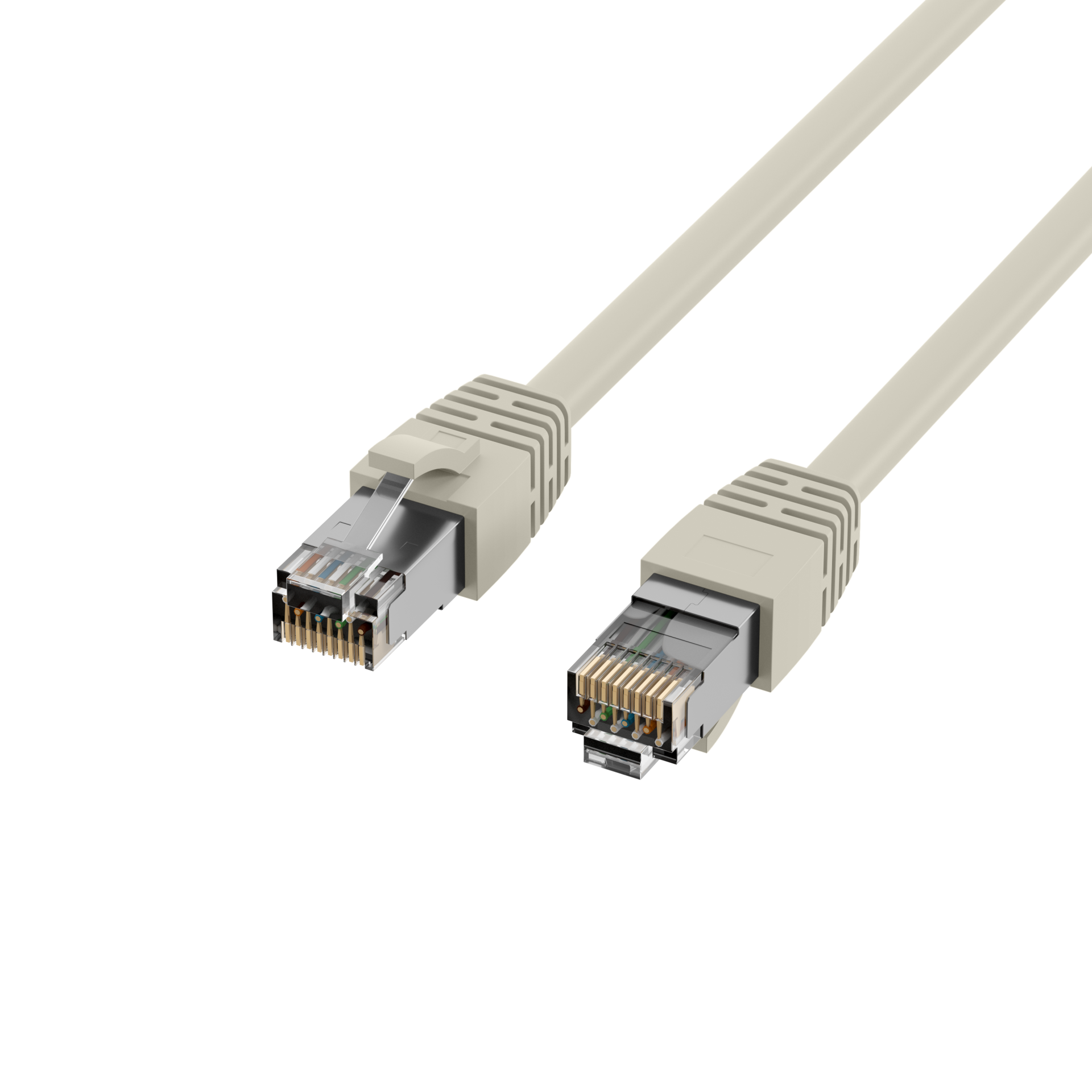

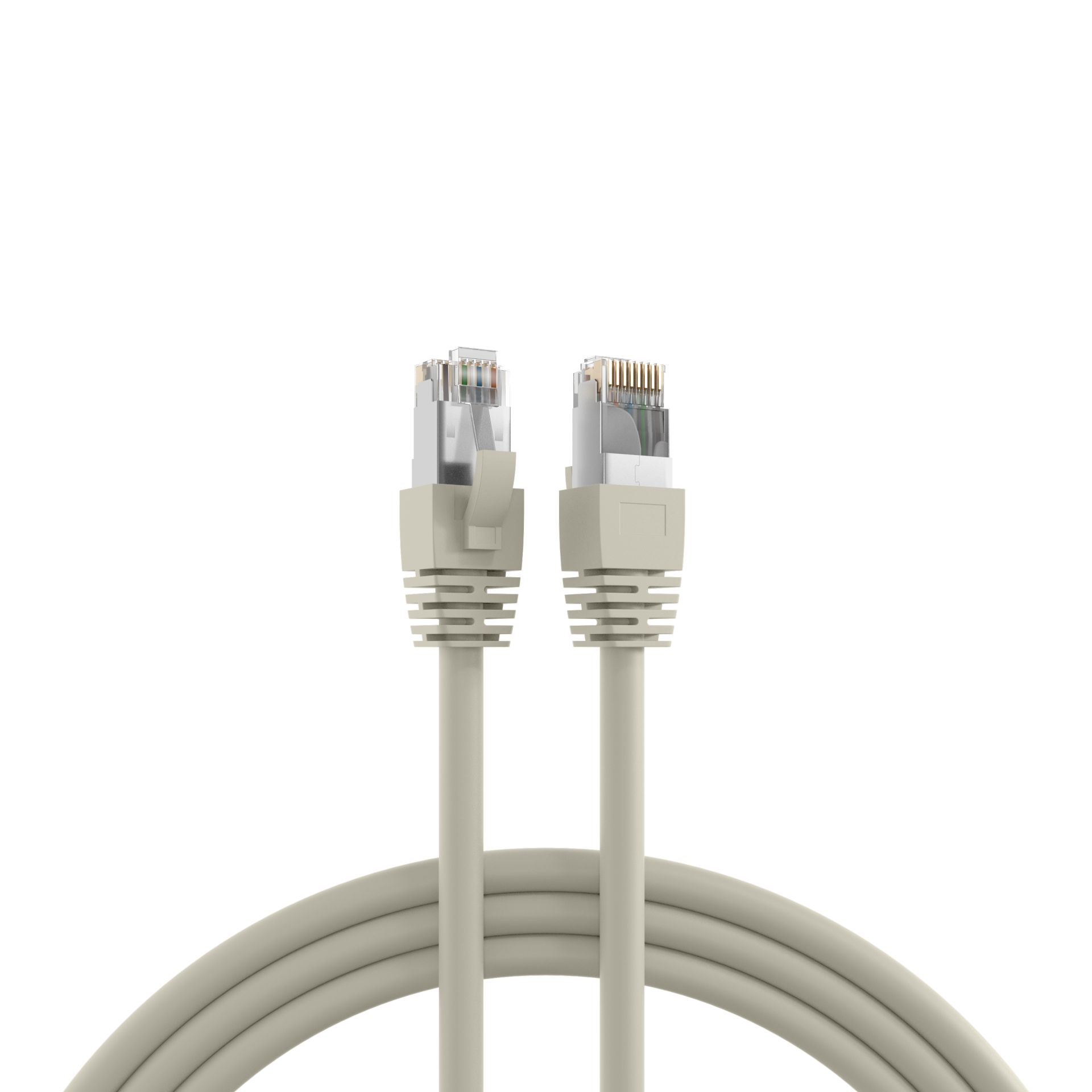

RJ45 Patch Cord Cat.8.1 S/FTP BC grey
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 0,5m
Varenummer:
K5528GR.0,5
EAN Nr.:
4049759215415
Produktinformation til RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 0,5m
RJ45 patch cable Cat.8.1 S/FTP LSZH BC
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
Tekniske egenskaber
AWG-size: | 24/7 |
---|---|
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | moulded-on |
Area of Application: |
Data center Industrial Ethernet Structured cabling |
Bandwidth: | 2000MHz |
Bending radius: | >40 mm |
Cable construction: | 4x2 |
Cable type: | S/FTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 8.1 |
Colour anti-kink sleeve: | grey |
Colour outer sheath: | grey |
Conductive shield: | Selected shield contact |
Conductor Material: | Copper |
Connector: | IEC 60603-7-81 |
Connector type: | RJ45 Standard |
Contact Resistance: | 5 mΩ |
Contacts: | Gold plated |
Current Rating: | max. 1 A |
Impedance: | 100 ±15 Ω |
Insulation Resistance: | 10 MΩ |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Mating cycles: | ≥750 |
Model: | Shielded |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 8 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801 |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | 0 – 60 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
K5528GR.0,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 0,5m | 0.5 m | ±5 % | |
K5528GR.1 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 1m | 1.0 m | ±5 % | |
K5528GR.2 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 2m | 2.0 m | ±5 % | |
K5528GR.3 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 3m | 3.0 m | ±5 % | |
K5528GR.5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 5m | 5.0 m | ±5 % | |
K5528GR.7,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 7,5m | 7.5 m | ±5 % | |
K5528GR.10 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 10m | 10.0 m | ±5 % |
