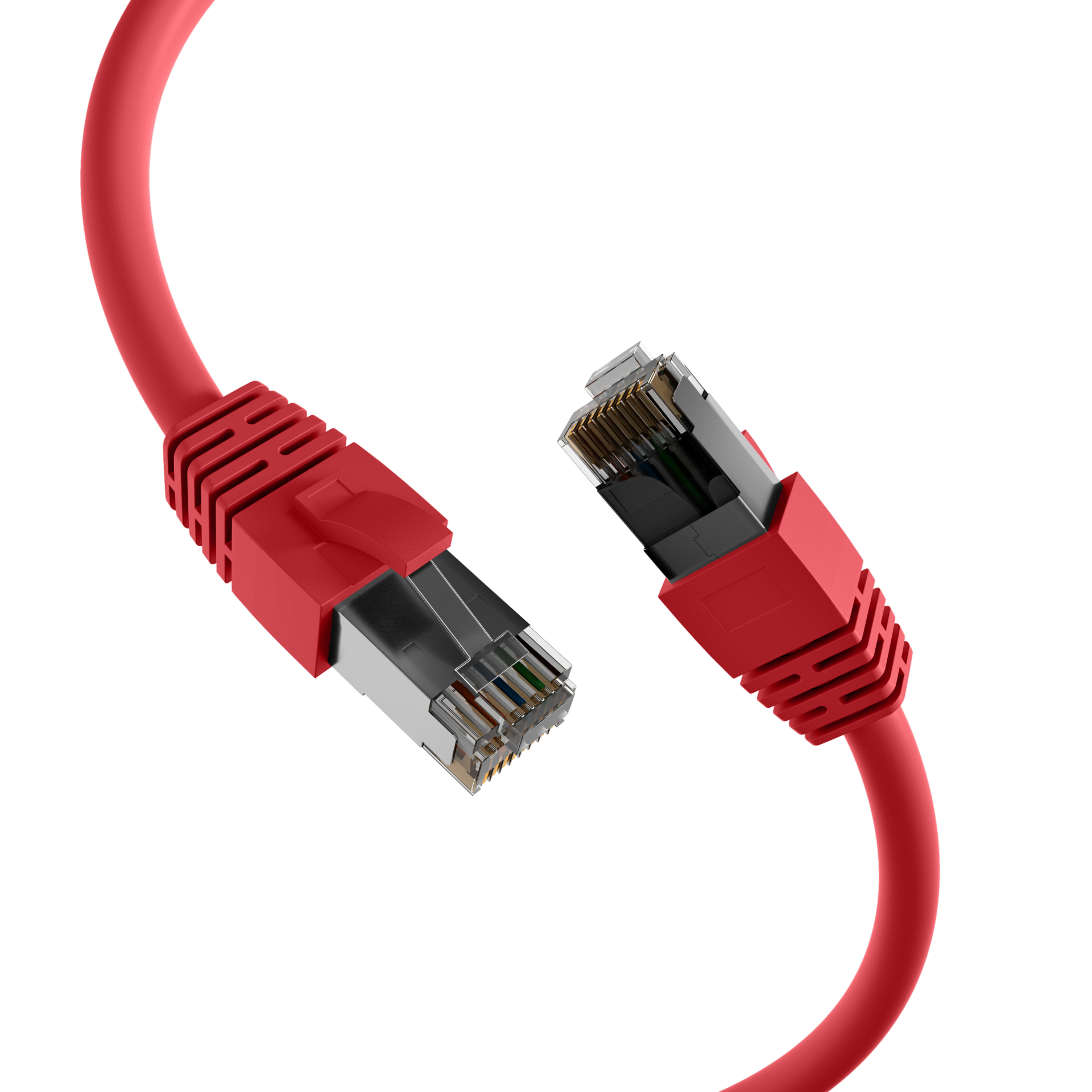

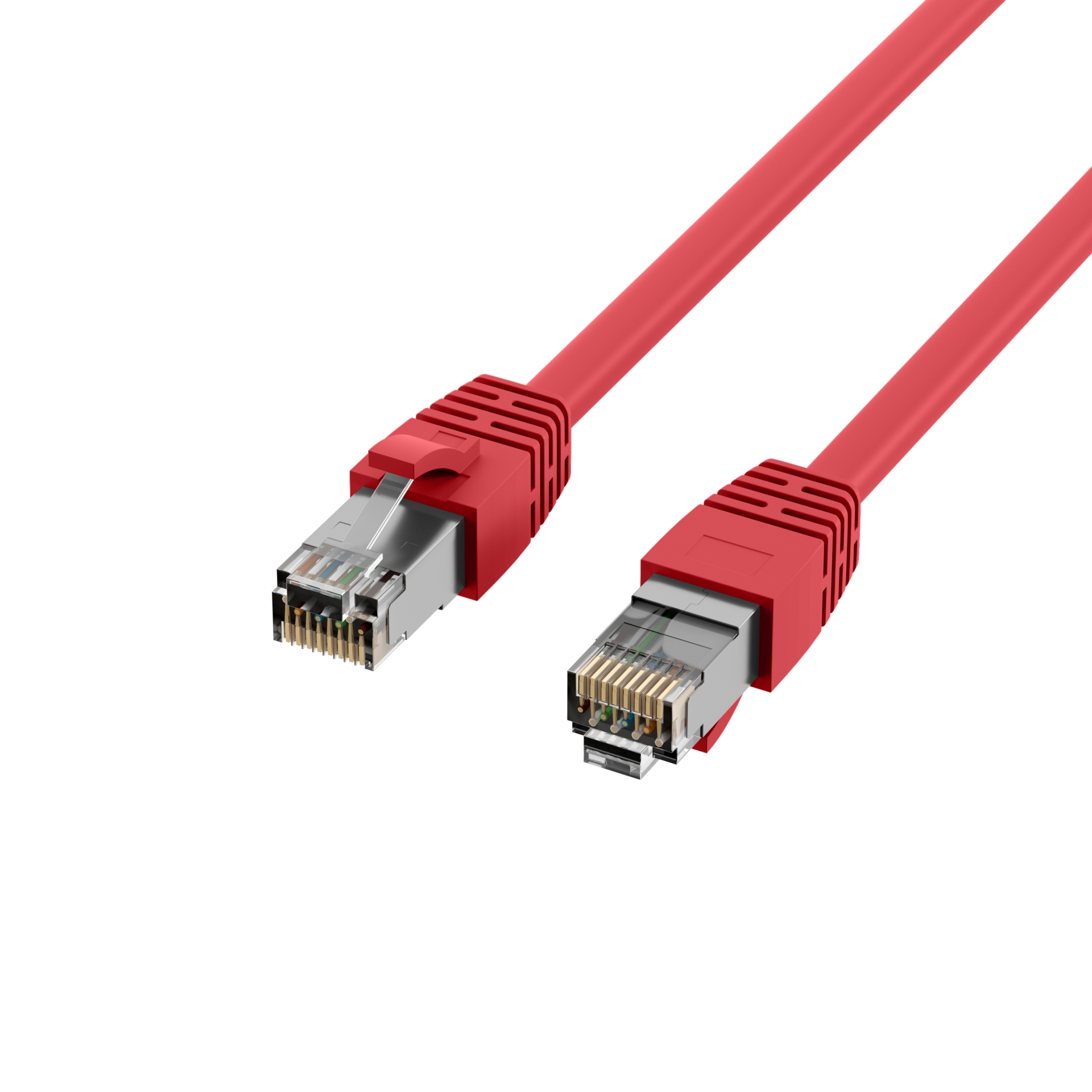

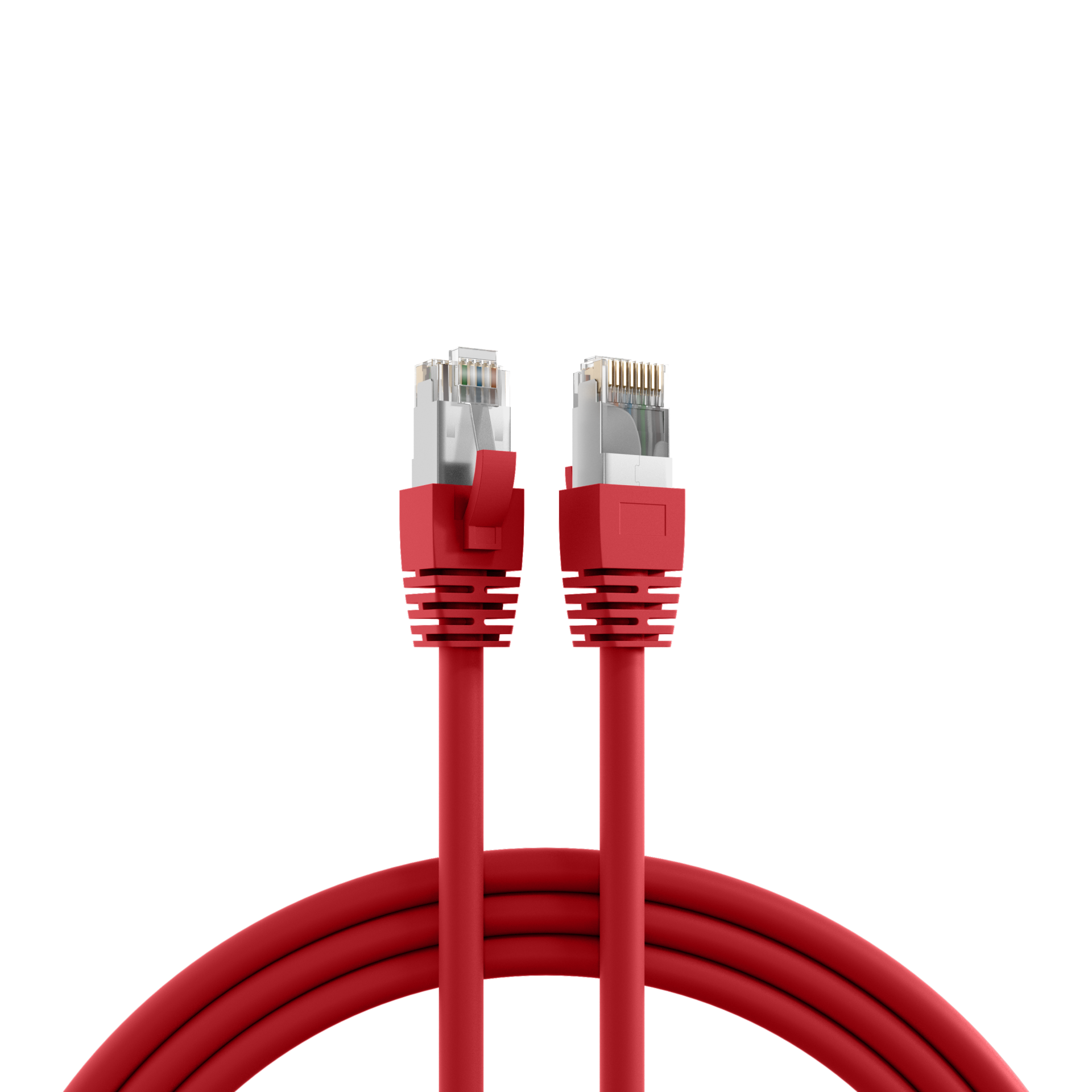

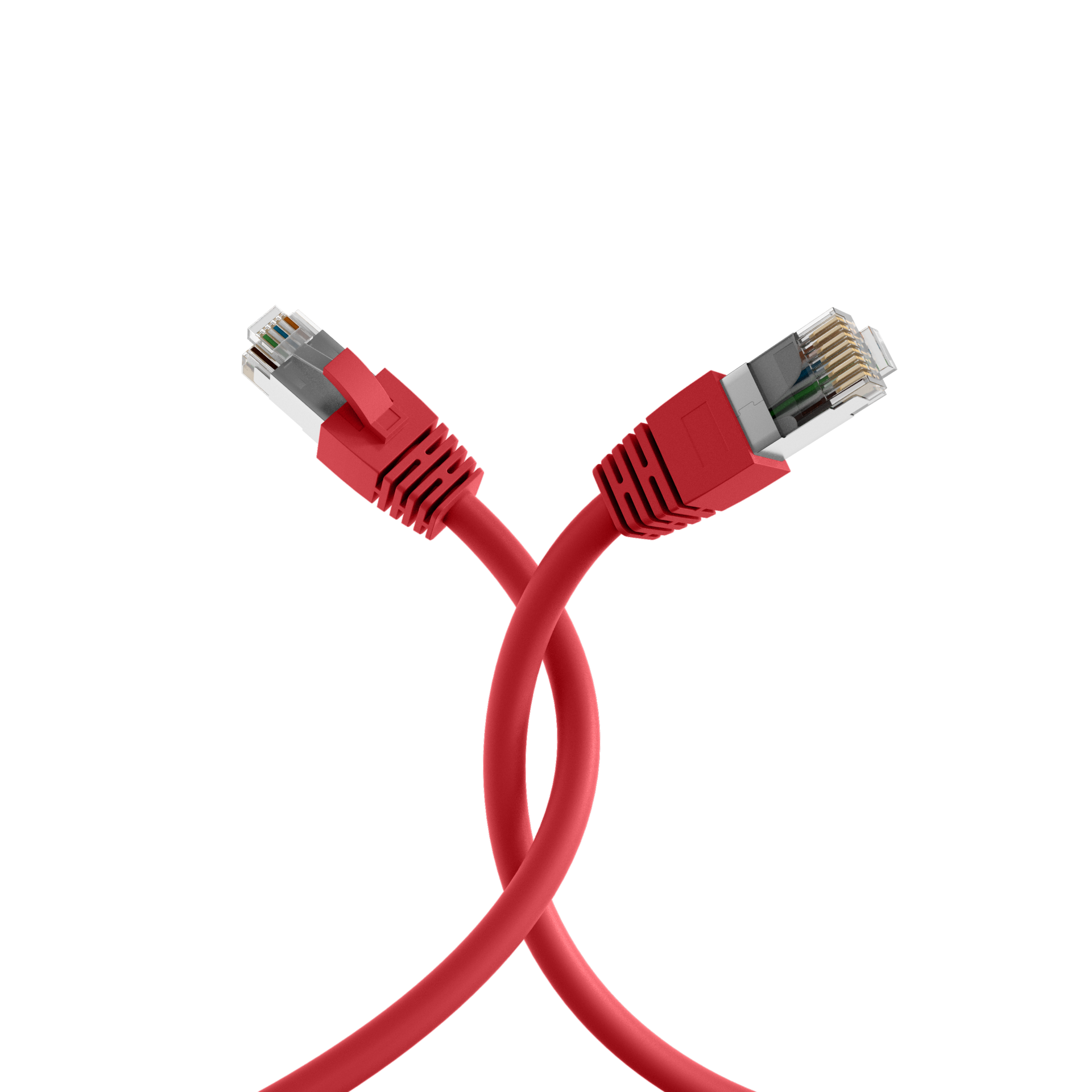

RJ45 Patch Cord Cat.8.1 S/FTP BC red

Priser kun synlige for indloggede brugere

RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 0,5m
Varenummer: K5528RT.0,5
EAN nr.: 4049759215484
Piece

Produktinformation für RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 0,5m

The Cat.8.1 patch cable is suitable for 25GBASE-T and 40GBASE-T applications based on RJ45. The Cat.8.1 has a frequency range of up to 2000MHz and a maximum transmission distance of currently 30m.

Cable: S/FTP 4x2xAWG24/7
Jacket material: LSZH
Outer diameter: 8mm
Transmission standards: 25Gbit, 40Gbit
Length imprint on grommet

Tekniske egenskaber

AWG-size: 24/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: moulded-on
Area of Application: Data center
Industrial Ethernet

Structured cabling
Bandwidth: 2000MHz
Bending radius: >40 mm
Cable construction: 4x2
Cable type: S/FTP
Cabling Standard: ANSI/TIA-568-C.2
EN50173

ISO/IEC 11801
Category: 8.1
Colour anti-kink sleeve: red
Colour outer sheath: red
Conductive shield: Selected shield contact
Conductor Material: Copper
Connector: IEC 60603-7-81
Connector type: RJ45 Standard
Contact resistance: 5 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Impedance: 100 ±15 Ω
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Mating cycles: ≥750
Model: Shielded
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 8 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at

PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801
Suitable for degree of protection (IP): IP20
Temperature range: 0 – 60 °C
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5528RT.0,5 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 0,5m 0.5 m ±5 %
K5528RT.1 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 1m 1.0 m ±5 %
K5528RT.2 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 2m 2.0 m ±5 %
K5528RT.3 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 3m 3.0 m ±5 %
K5528RT.5 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 5m 5.0 m ±5 %
K5528RT.7,5 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 7,5m 7.5 m ±5 %
K5528RT.10 RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC red 10m 10.0 m ±5 %

similar product

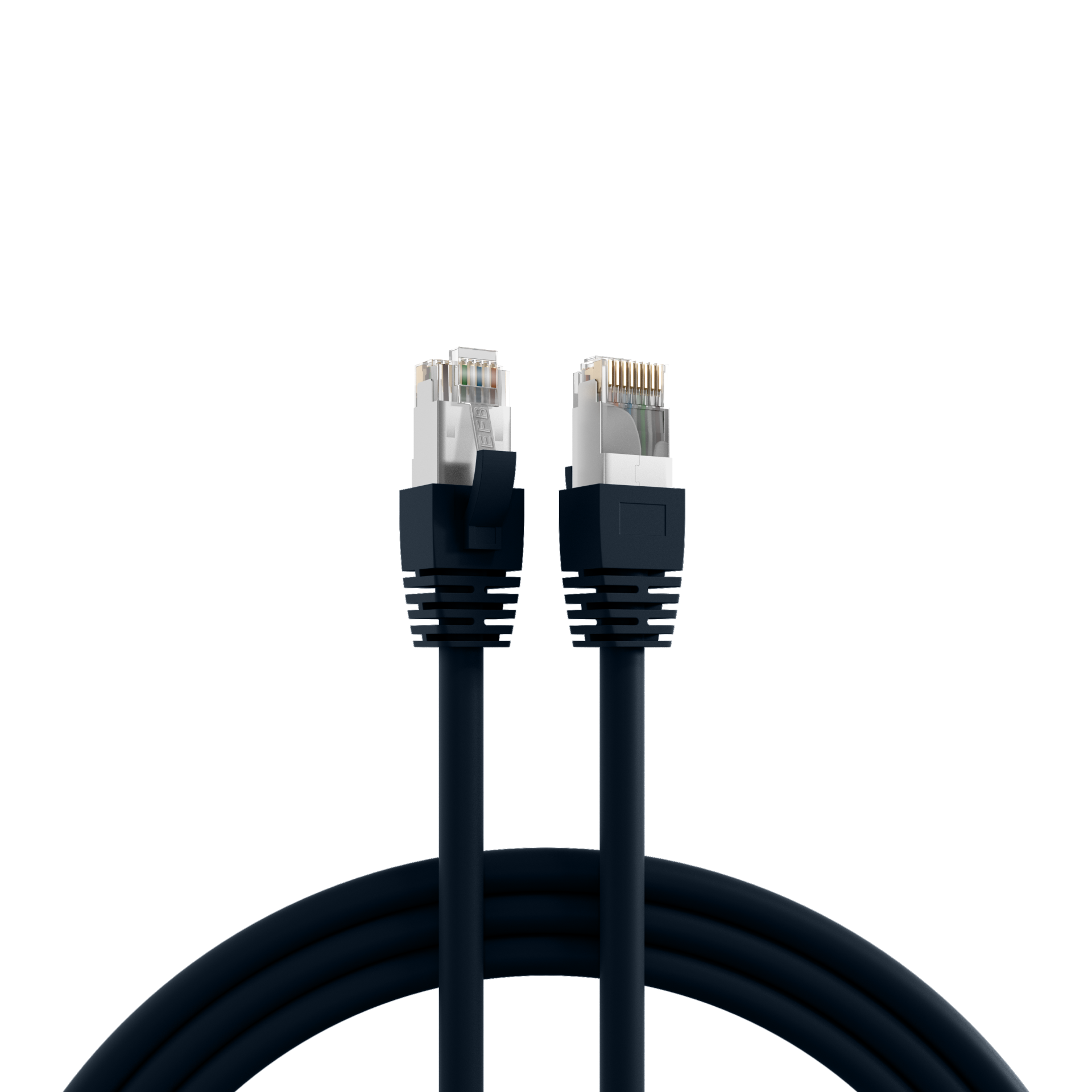

RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 1m
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 1m

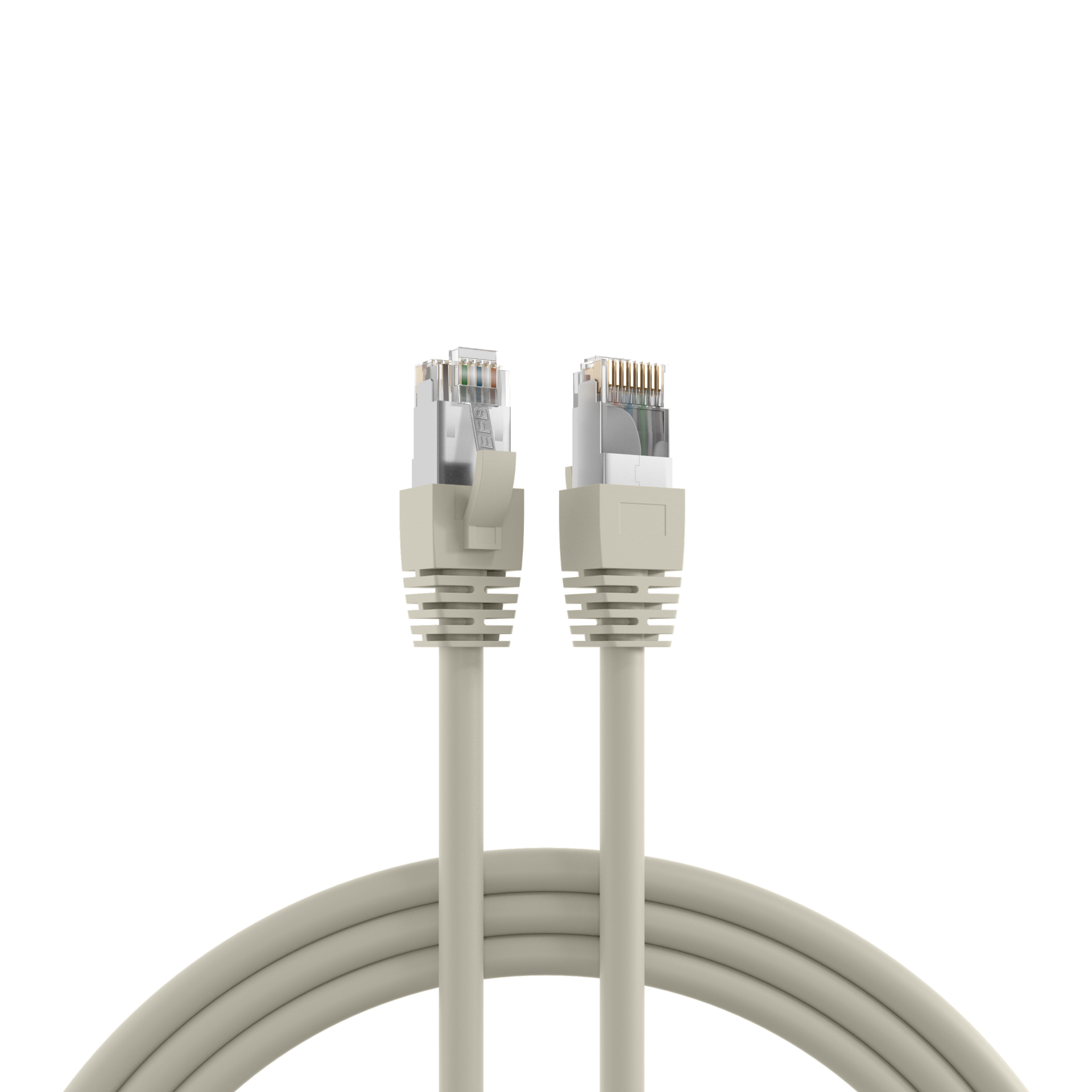

RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC grey 1m
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC yellow 1m

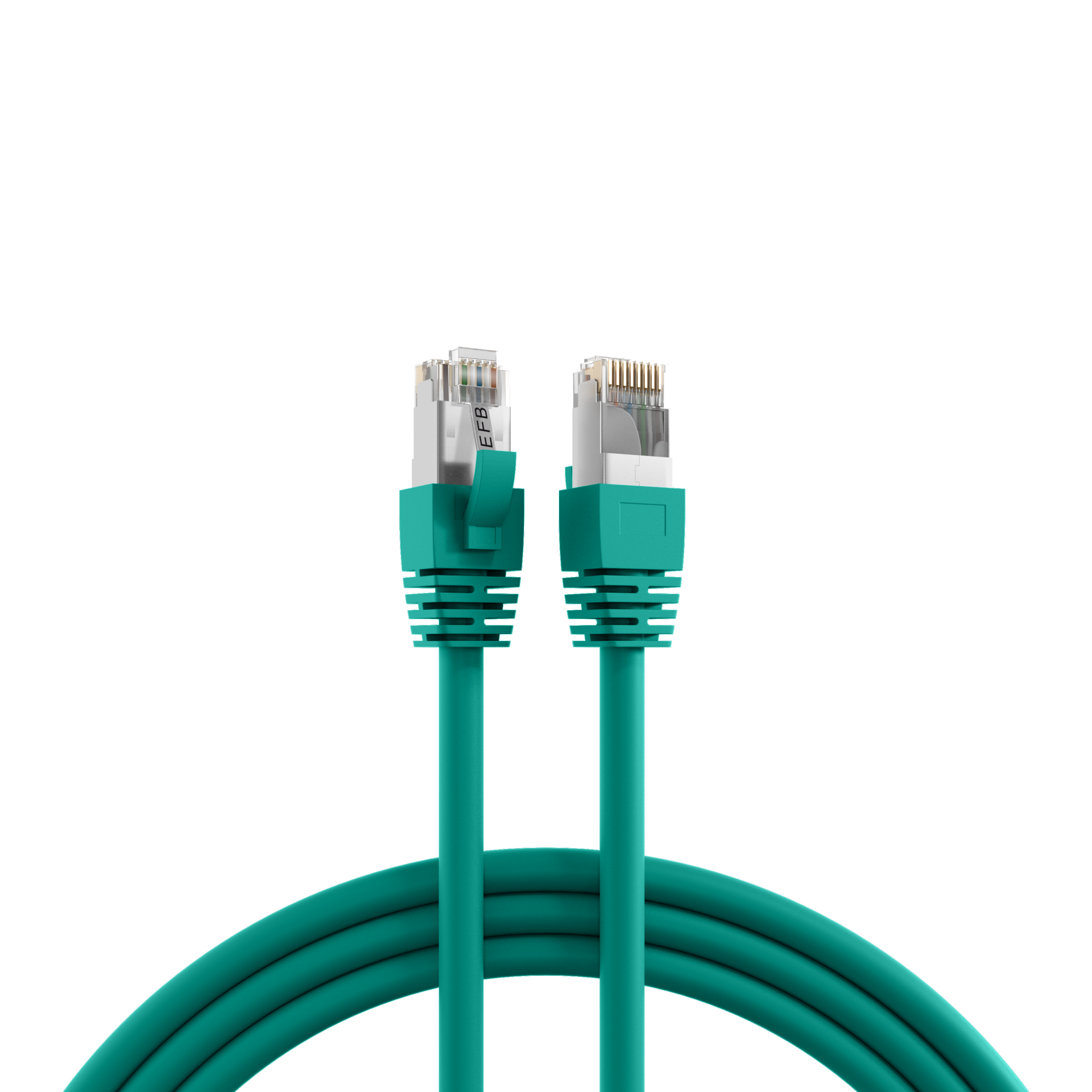

RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC green 1m
