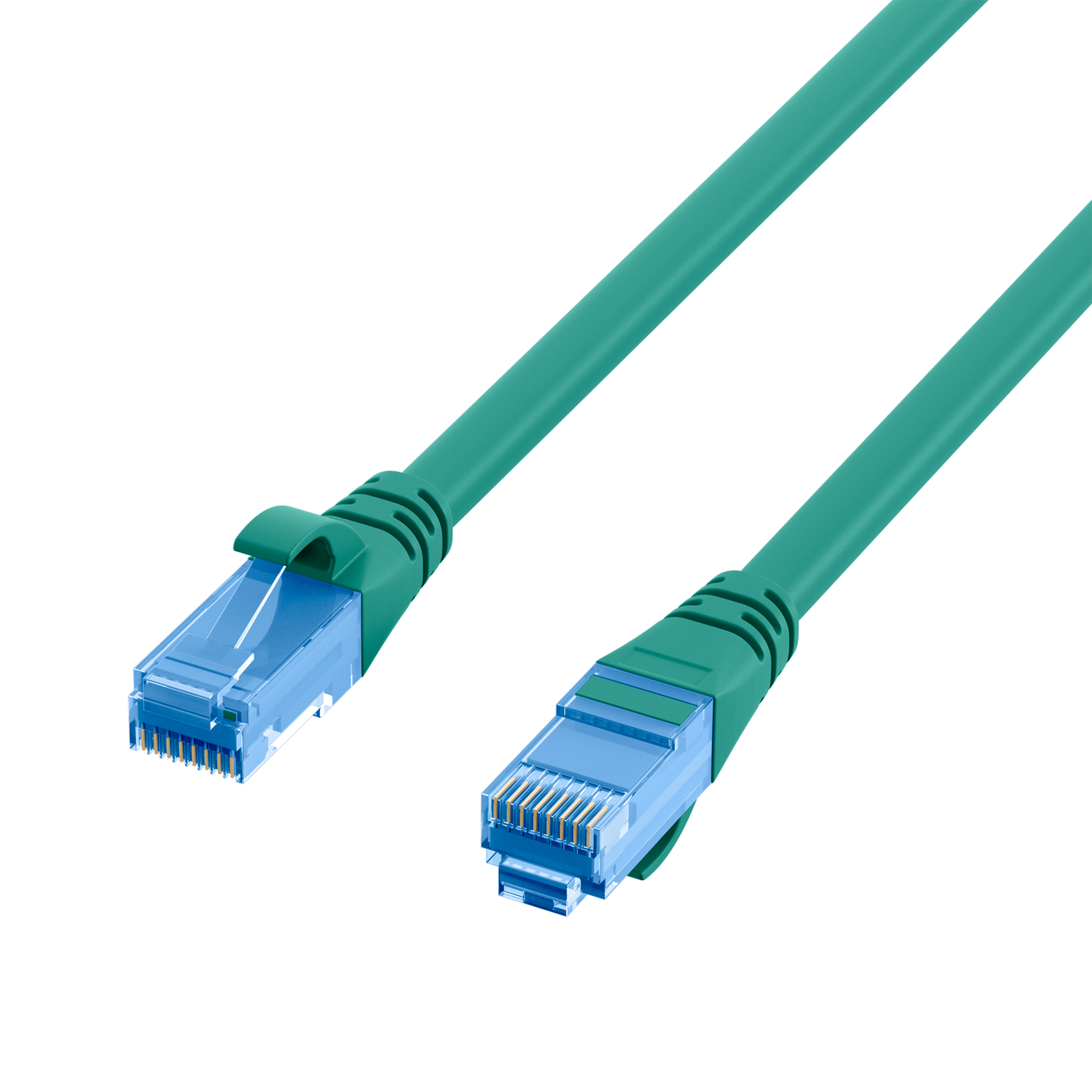

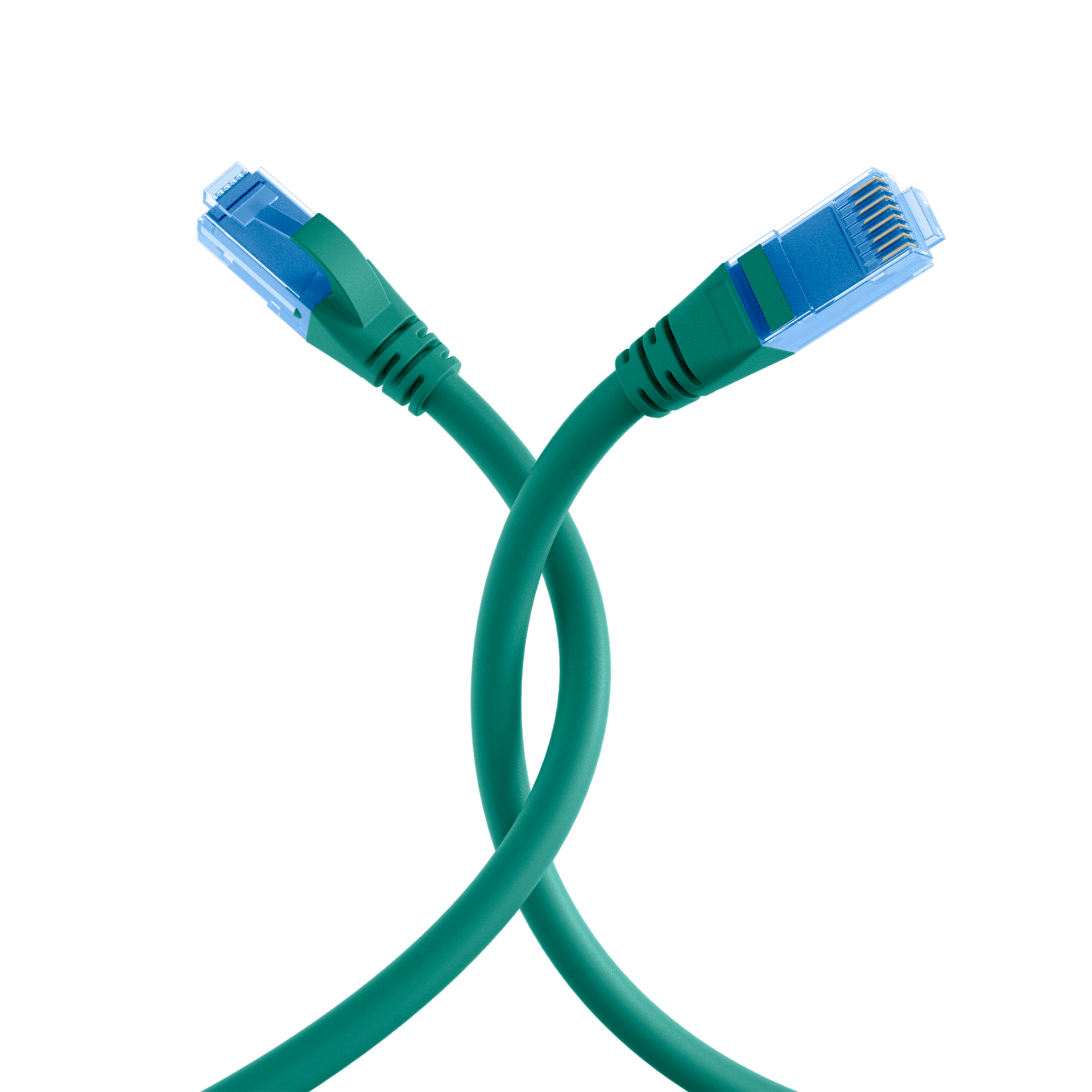

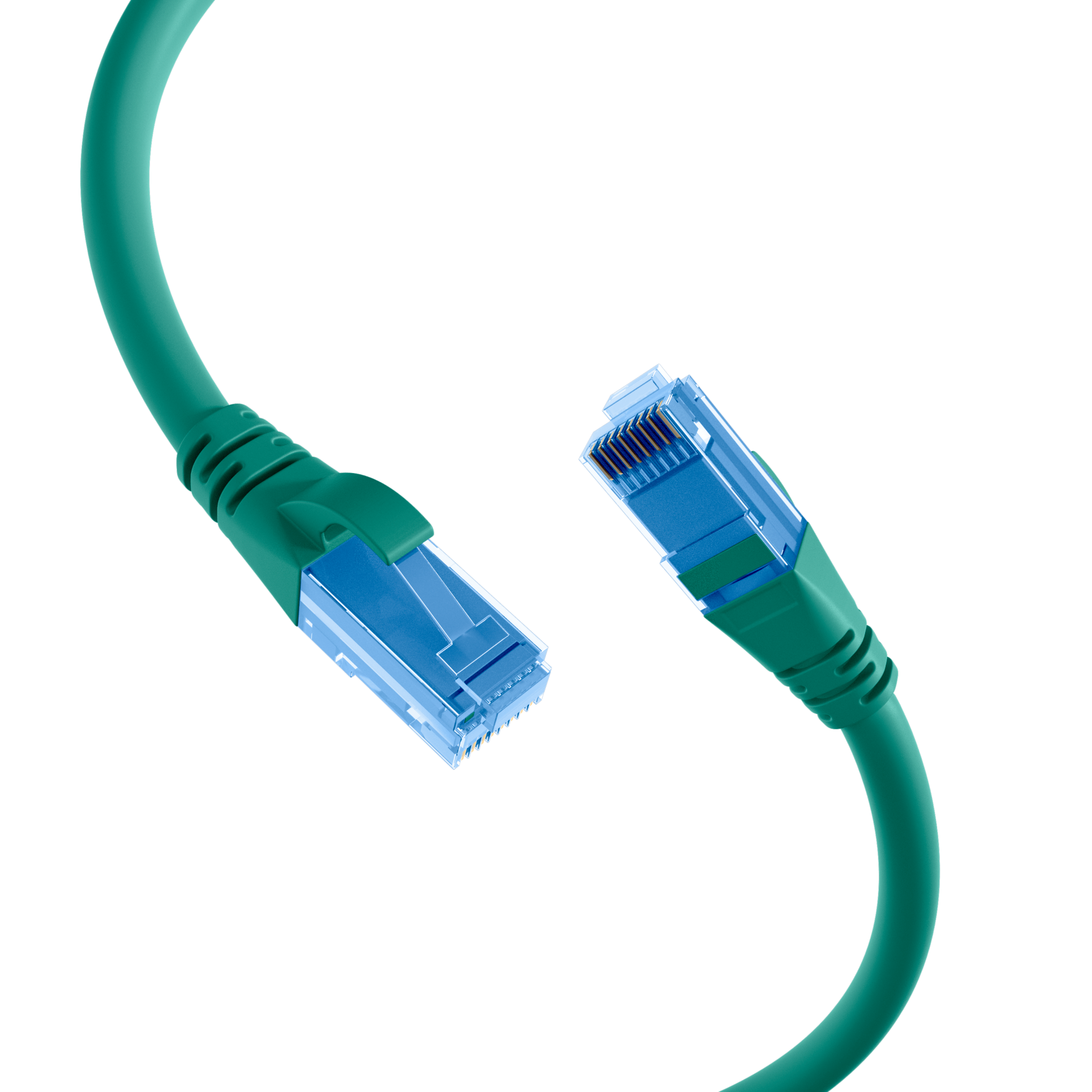

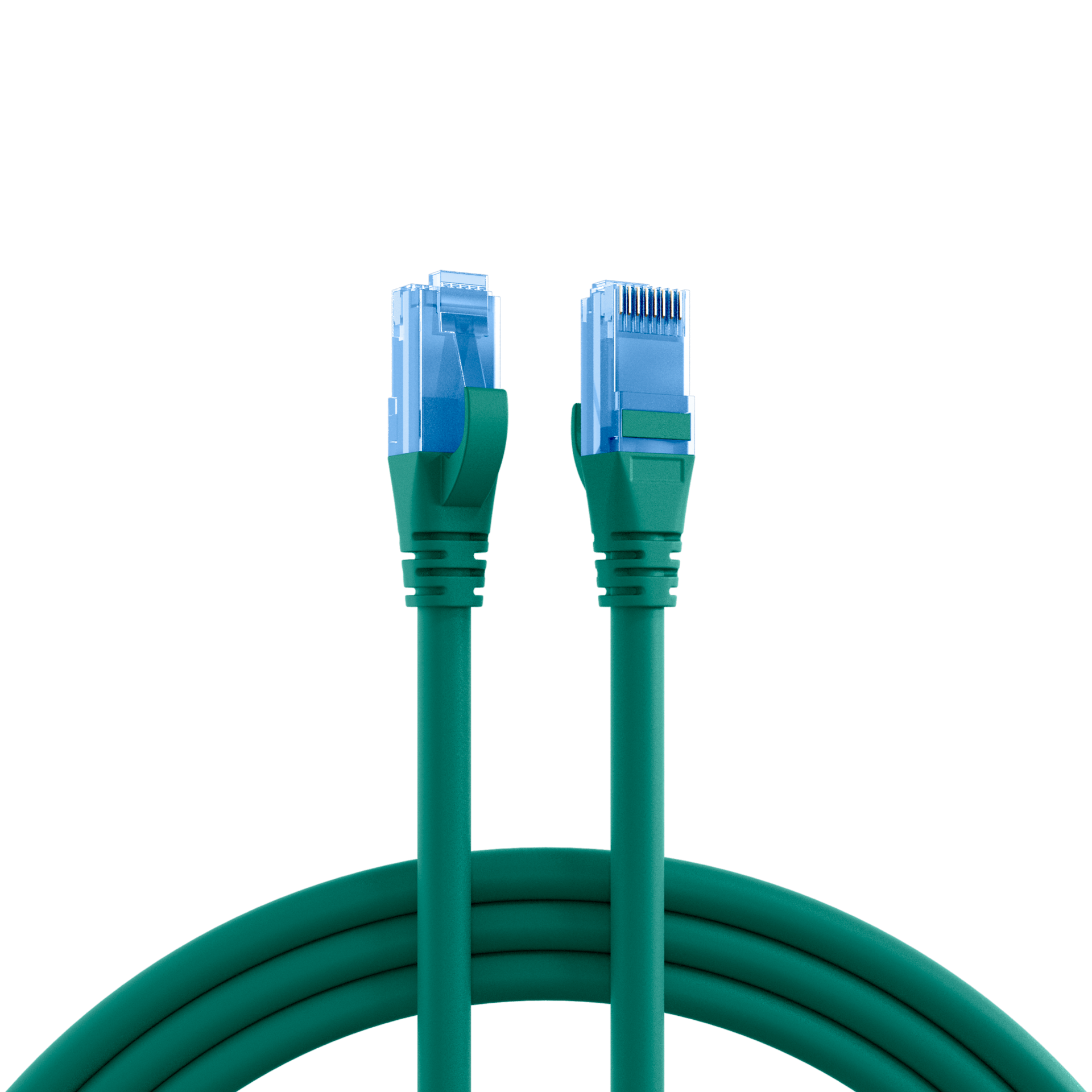

RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün




RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 0,15m
Varenummer:
K8109GN.0,15
EAN Nr.:
4049759247058
Produktinformation til RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 0,15m
RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz
Das Cat.6A (TIA) Patchkabel ermöglicht als Übertragungsstandard 10Gbit Ethernet und hat vergoldete Kontakte.
Technische Produkteigenschaften
• Cat.6A (TIA)
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Zusätzlich bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der blauen RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich 0 – 60 °C.
Das LAN Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für Anwendungen in der strukturierten Gebäudeverkabelung und in Rechenzentren. Eine Bandbreite von bis zu 500 MHz wird dabei ermöglicht.
Das Cat.6A (TIA) Patchkabel ermöglicht als Übertragungsstandard 10Gbit Ethernet und hat vergoldete Kontakte.
Technische Produkteigenschaften
• Cat.6A (TIA)
• U/UTP Kabel mit AWG24/7
• Mantelmaterial aus halogenfreiem LSZH
• Brandschutz: flammwidrig, halogenfrei, raucharm
• Steckverbindung: RJ45 auf RJ45
• Mit Rasthebelschutz
• Besitzt vergoldete Kontakte
Der Mantel des Patchkabels besteht aus halogenfreiem LSZH Material. Zusätzlich bietet das Kabel die Möglichkeit zur Stromversorgung durch PoE nach IEEE802.3af, PoE+ nach IEEE802.3at und 4PPoE nach IEEE802.3bt.
Die Belegung der blauen RJ45-Stecker erfolgt nach TIA/EIA 568B und ist 1:1. Passend für den Temperaturbereich 0 – 60 °C.
Das LAN Kabel verfügt über ein Leitermaterial aus Kupfer und eignet sich ideal für Anwendungen in der strukturierten Gebäudeverkabelung und in Rechenzentren. Eine Bandbreite von bis zu 500 MHz wird dabei ermöglicht.
Tekniske egenskaber
(Halogenfree): | True |
---|---|
AWG-size: | 24/7 |
Allocation: | acc. TIA/EIA 568B |
Anti-kink sleeve: | plugged in |
Area of Application: |
Data center Structured cabling |
Bandwidth: | 500MHz |
Bending radius: | 30 mm |
Cable construction: | 4x2 |
Cable type: | U/UTP |
Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
Category: | 6A (TIA) |
Colour anti-kink sleeve: | green |
Colour outer sheath: | green |
Conductor Material: | Copper |
Connector: | IEC 60603-7-41 |
Connector type: | RJ45 Standard blue |
Contacts: | 50 µ" gold plated |
Current Rating: | max. 1 A |
Fire retardant version: | True |
Flame-retardant: | acc. IEC60332-1 |
Halogen-free: | True |
Jacket Material: | LSZH |
Length imprint: | True |
Locking lever: | True |
Low smoke: | True |
Mating cycles: | 2000 |
Model: | Unshielded |
NVP value: | - % |
Oil resistant (acc. EN 60811-2-1): | False |
Oil resistant (according to EN 60811-404): | False |
Operating-/ tempering voltage: | max. 50 V DC |
Outer diameter of the cable: | 6.0 mm |
POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
Pin assignment: | 1:1 |
Printing: | Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet*** |
Suitable for degree of protection (IP): | IP20 |
Temperature range: | 0 – 60 °C |
Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
Transmission: | 10Gbit |
Type of connector connection 1: | RJ45 8(8) |
Type of connector connection 2: | RJ45 8(8) |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
K8109GN.0,15 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 0,15m | 0.15 m | ±5 % | |
K8109GN.0,25 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 0,25m | 0.25 m | ±5 % | |
K8109GN.0,5 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 0,5m | 0.5 m | ±5 % | |
K8109GN.1,5 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 1,5m | 1.5 m | ±5 % | |
K8109GN.10 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 10m | 10.0 m | ±5 % | |
K8109GN.15 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 15m | 15.0 m | ±5 % | |
K8109GN.2 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 2m | 2.0 m | ±5 % | |
K8109GN.5 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 5m | 5.0 m | ±5 % | |
K8109GN.7,5 | RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz grün 7,5m | 7.5 m | ±5 % |
