RJ45 Patchkabel Cat.6A U/UTP LSZH

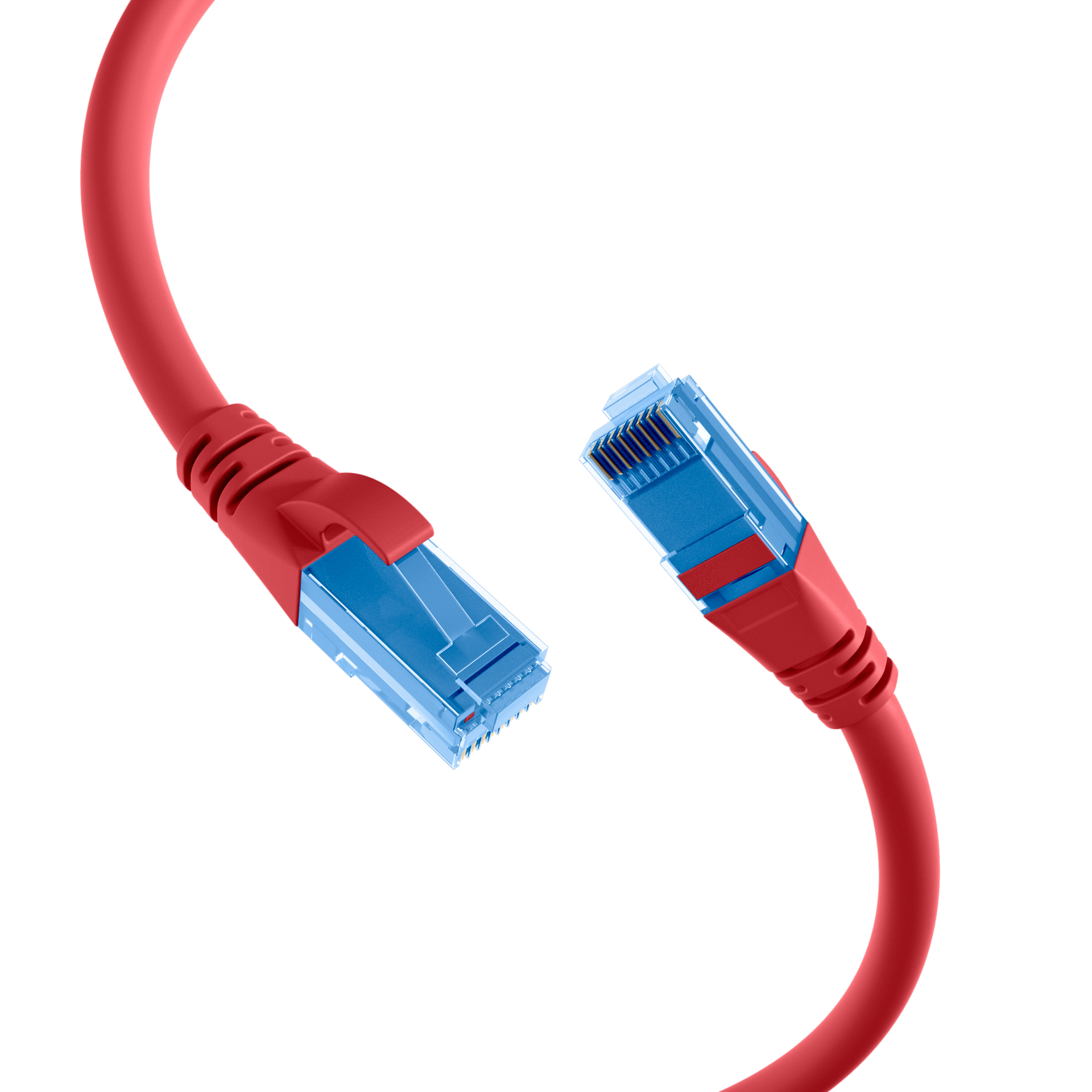

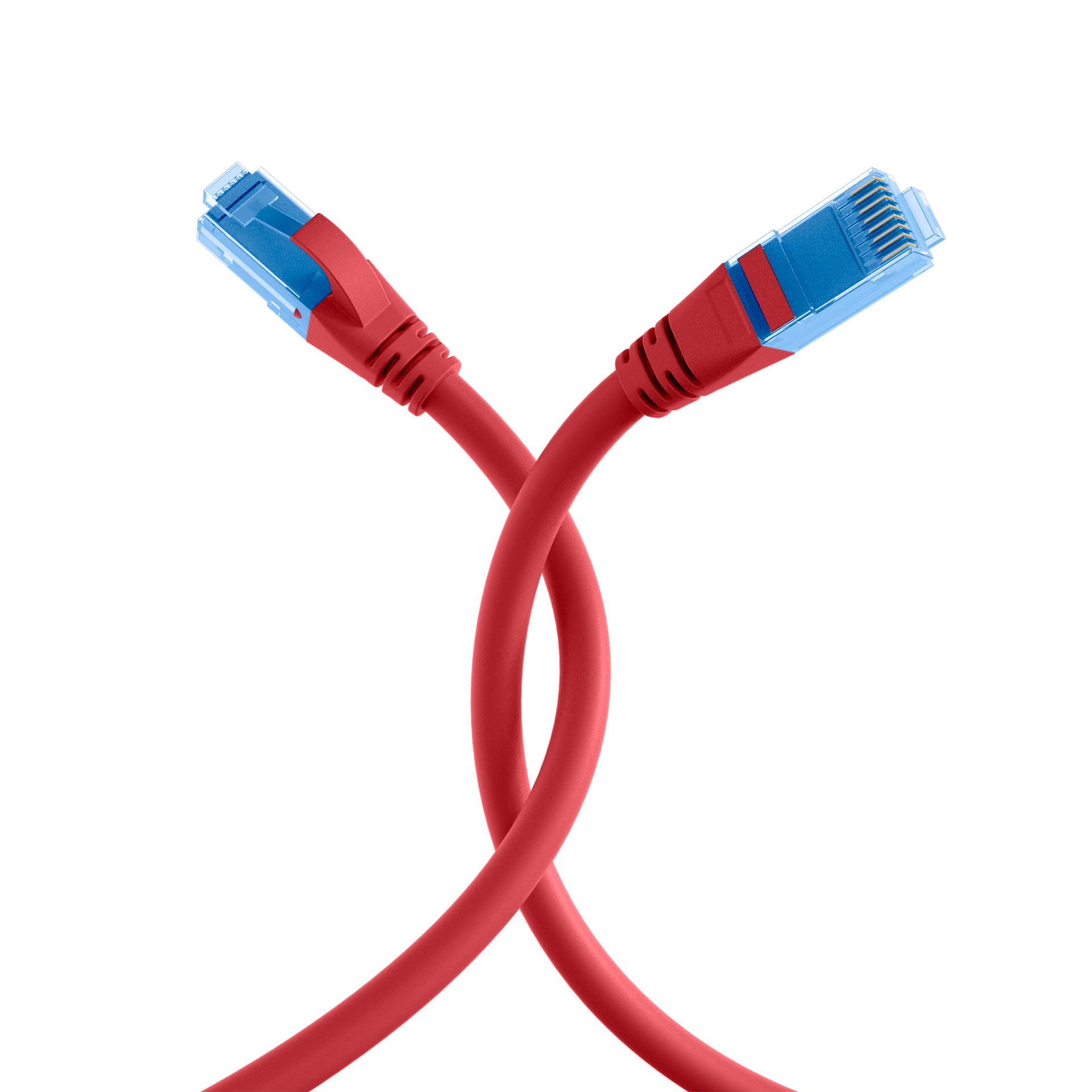

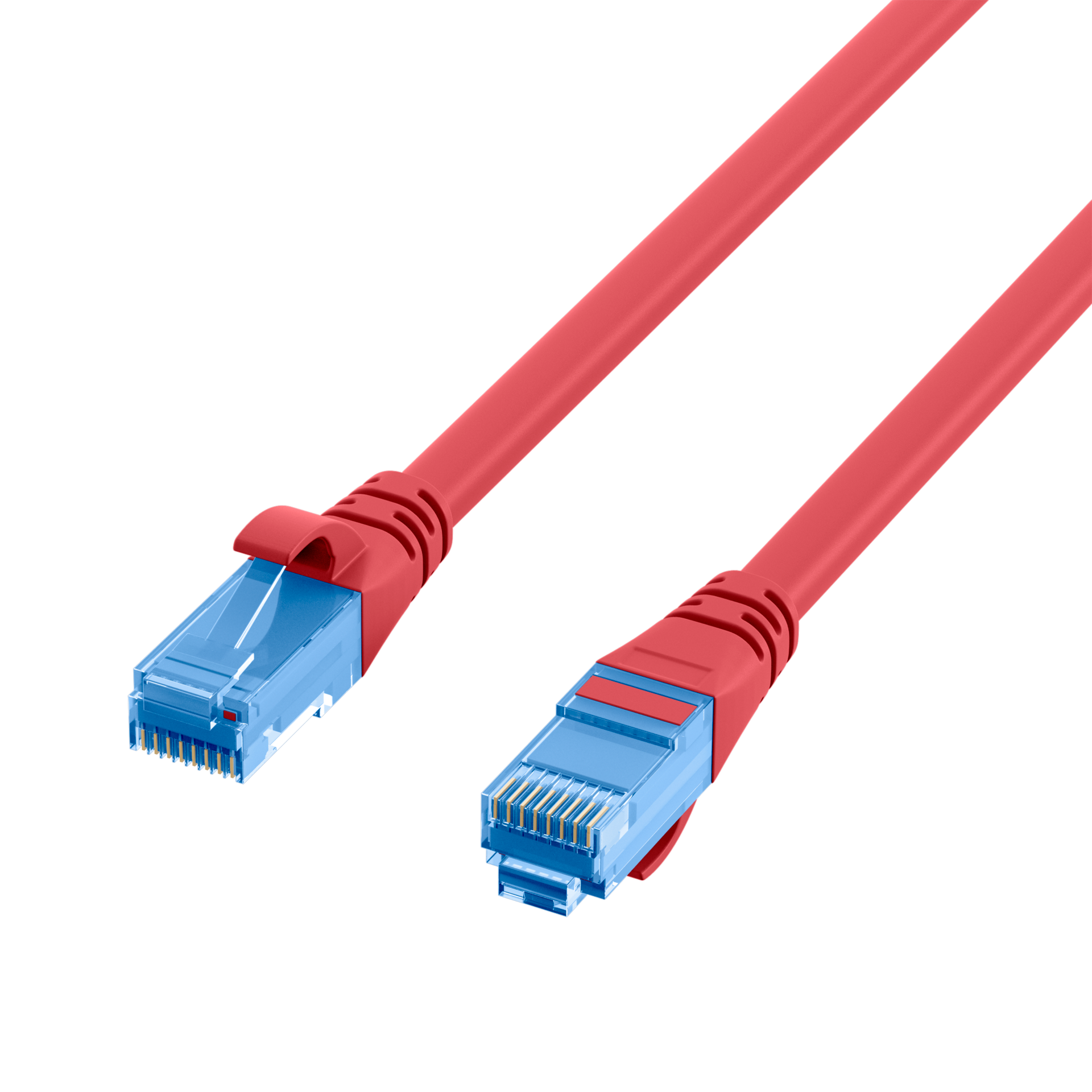

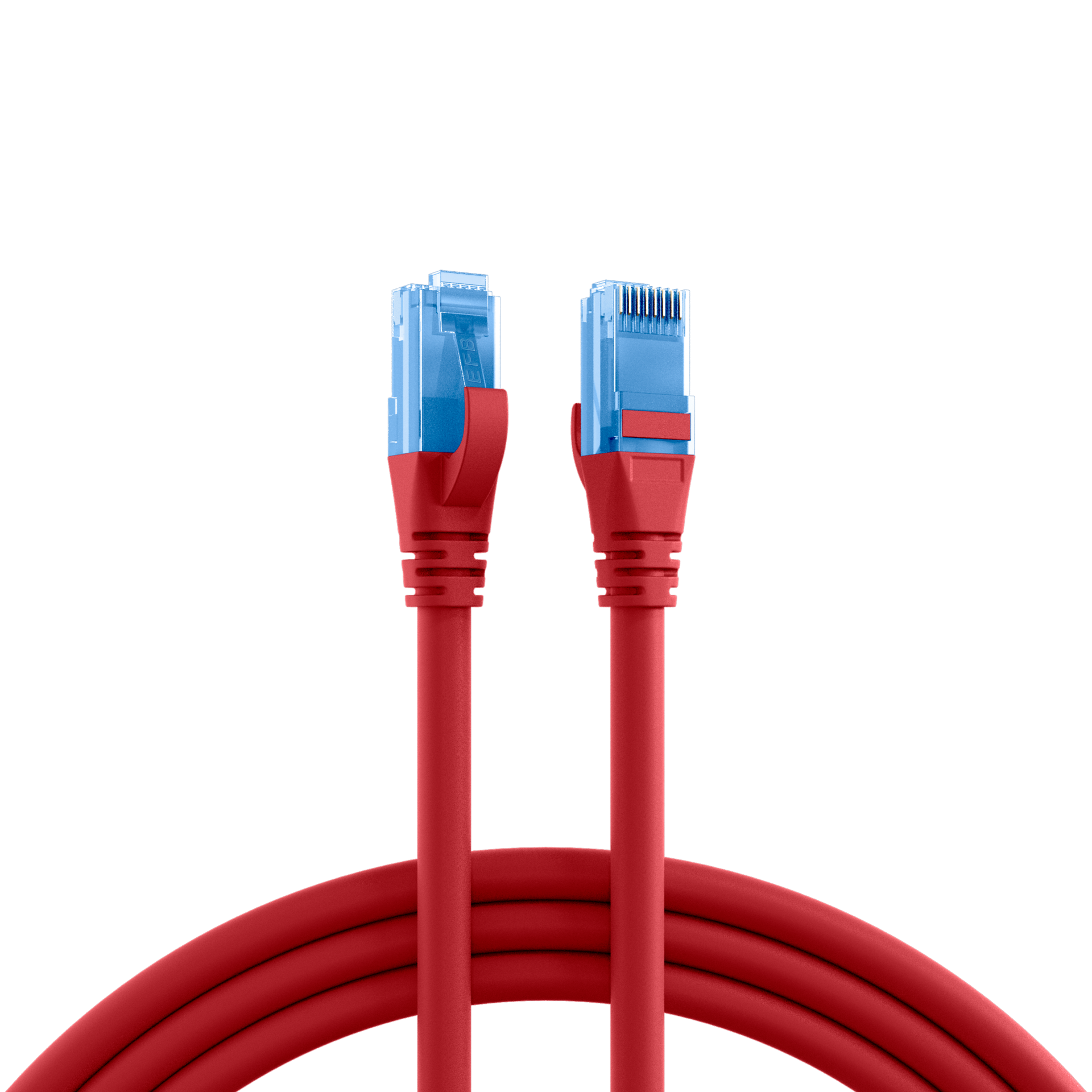

RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz rot 5m
Varenummer:
K8109RT.5
EAN-nr.:
4049759247362
Produktinformation til RJ45 Patchkabel Cat.6A U/UTP LSZH Premium 500MHz rot 5m
RJ45 patch cable Cat.6A U/UTP LSZH Premium 500MHz
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat. 6A (TIA)
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling and in data centers. This enables a bandwidth of 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat. 6A (TIA)
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling and in data centers. This enables a bandwidth of 500 MHz.
Tekniske egenskaber
| AWG-size: | 24/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | U/UTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Conductive shield: | No |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-41 |
| Connector type: | RJ45 standard blue |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Impedance: | 100 |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | unshielded |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 6.0 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | True |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
