Side Walls for ESV 42U, D=1000 mm, Type A/B/C/D/E, RAL7035

Priser kun synlige for indloggede brugere

Side Wall for ESV 42U, D=1000 mm, Type B, RAL7035
Varenummer: ESV-W420B.GR
EAN nr.: 4049759244927
Piece

Produktinformation für Side Wall for ESV 42U, D=1000 mm, Type B, RAL7035

Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:

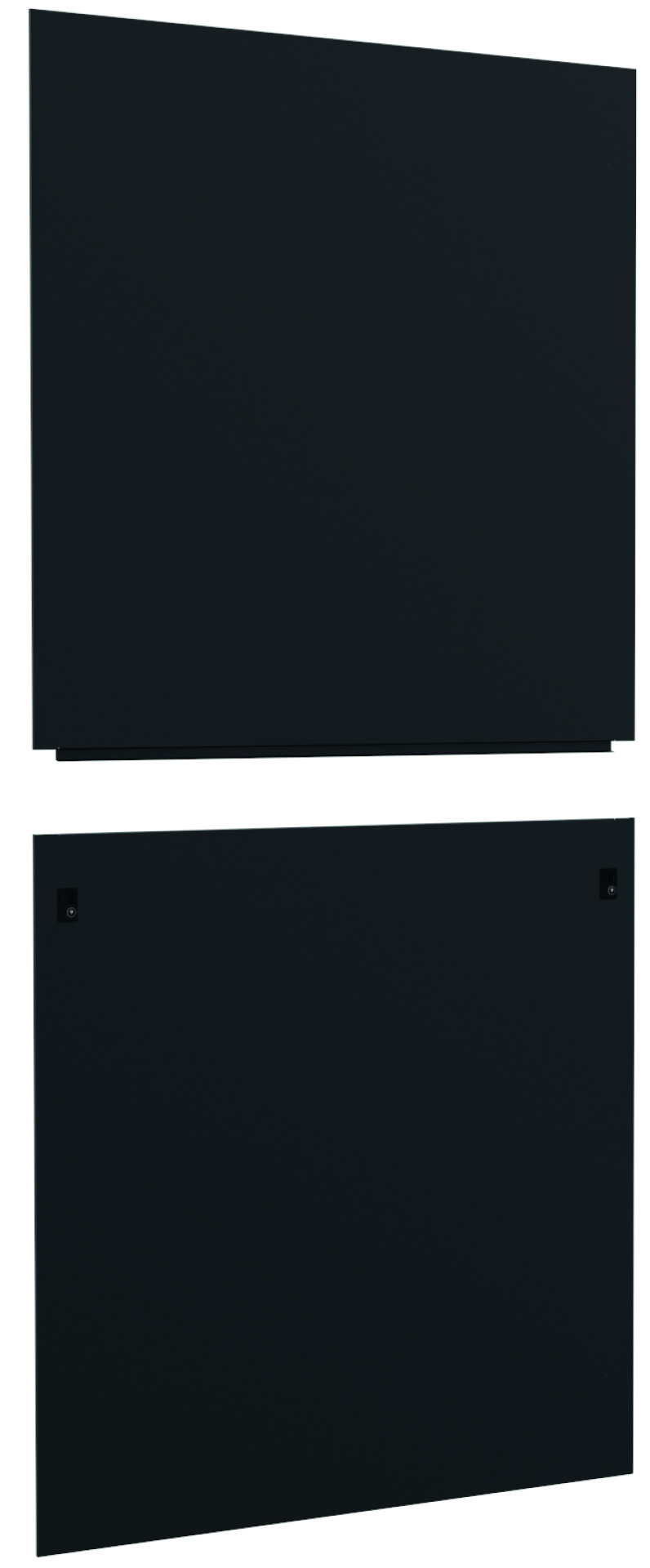

Side wall type A:
- horizontally divided
- enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
- not suitable for use with line-up connectorsSide wall type B:
- horizontally divided
- enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- cabinet width increases by 3 mm per side

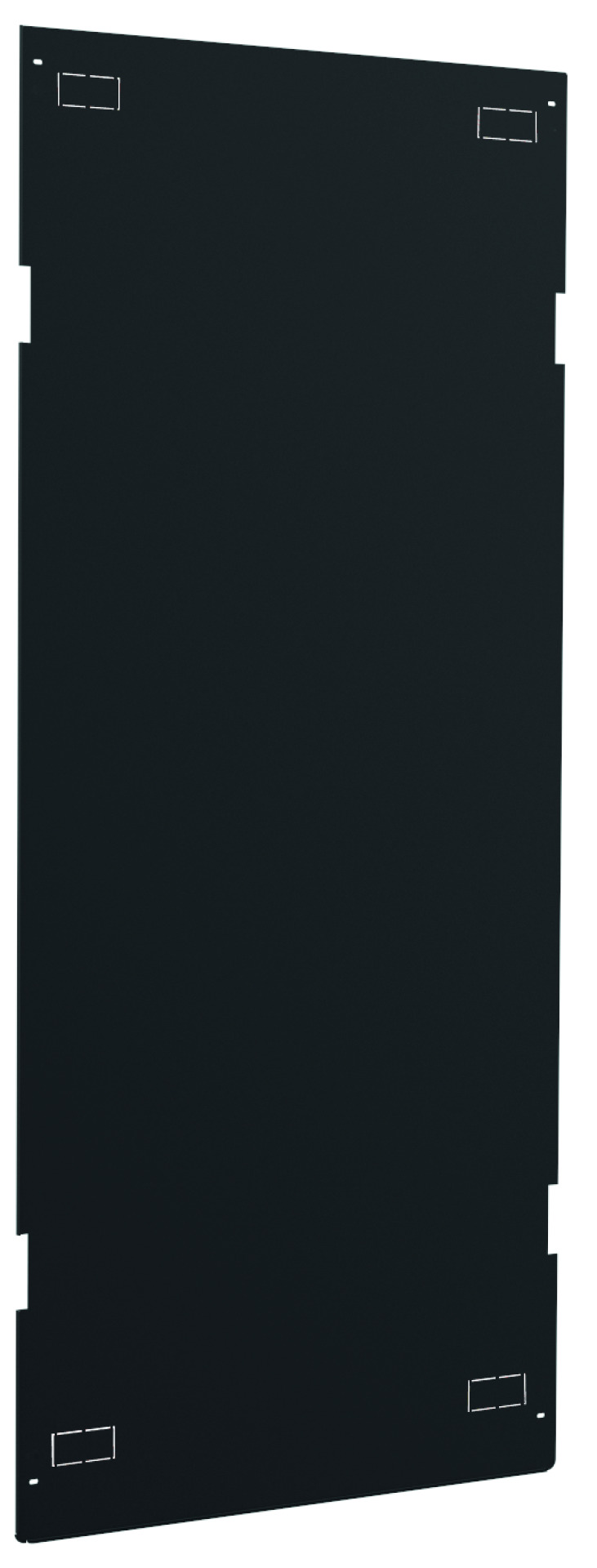

- not suitable for use with line-up connectorsPartition typ C/D:
- 1-part partition for mounting between lined-up cabinets
- suitable for use with line-up connectors ESV-ANR01
- with 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
- front and bottom bends for easy installation
- necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with leveling feet
Partition type D: for use at cabinets without levelling feet
Partition type E:- for mounting inside of the cabinet frame
- suitable for use with line-up connectors ESV-ANR02

Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x side wall/partition incl. mounting acessories

Tekniske egenskaber

Cabinet Series: EFB-Server
Material: Steel
Suitable as rear panel: False
Suitable as side panel: True
Surface finishing: Powder coating

Varianter

Art. Nej. Betegnelse Type Number of height units Colour Suitable for enclosure building depth RAL-number With cable entry With lock
ESV-W420A.GR Side Wall for ESV 42U, D=1000 mm, Type A, RAL7035 Door opening 270° 42 U grey 1000 mm 7035 False True
ESV-W420B.GR Side Wall for ESV 42U, D=1000 mm, Type B, RAL7035 PDU in W=600 mm 42 U grey 1000 mm 7035 False True
ESV-W420C.GR Side Wall for ESV 42U, D=1000 mm, Type C, RAL7035 Partition w/o feet 42 U grey 1000 mm 7035 True False
ESV-W420D.GR Side Wall for ESV 42U, D=1000 mm, Type D, RAL7035 Partition with feet 42 U grey 1000 mm 7035 True False
