Partially Assembled Splice Boxes LC-Duplex plastic adapter, sliding version, OM3

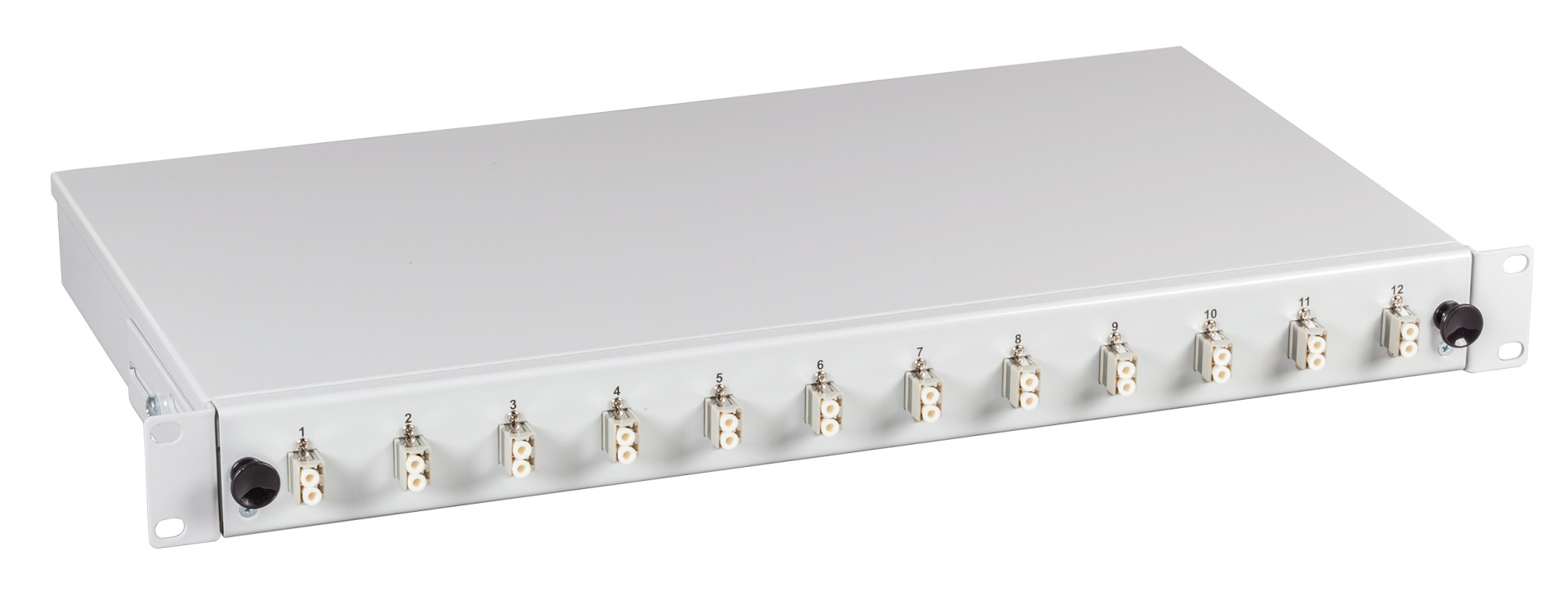

Splicebox partially assembled LC OM3 extendable 24 Adapter
Varenummer:
B61901.24OM3
EAN-nr.:
4049759173142
Produktinformation til Splicebox partially assembled LC OM3 extendable 24 Adapter
Partly assembled splice box with adapters
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing sliding unit
front panel screwed
plastic adapters
cable entries at the rear
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing sliding unit
front panel screwed
plastic adapters
cable entries at the rear
Tekniske egenskaber
| Adapters: | LC-Duplex |
|---|---|
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Width: | 483.0 mm |
| With Pigtail: | False |
| With front plate: | True |
| With housing: | True |
Variants
| ON | Label | Type of connector external | Color | Suitable for number of couplings/adapters | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|
| B61901.4OM3 | Splicebox partially assembled LC OM3 extendable 4 Adapter | LC-Duplex | grey | 12 | 4 | 7035 | LC-Duplex | aqua | |
| B61901.6OM3 | Splicebox partially assembled LC OM3 extendable 6 Adapter | LC-Duplex | grey | 12 | 6 | 7035 | LC-Duplex | aqua | |
| B61901.12OM3 | Splicebox partially assembled LC OM3 extendable 12 Adapter | LC-Duplex | grey | 12 | 12 | 7035 | LC-Duplex | aqua | |
| B61901.24OM3 | Splicebox partially assembled LC OM3 extendable 24 Adapter | LC-Duplex | grey | 24 | 24 | 7035 | LC-Duplex | aqua | |
| B61901TS.6OM3 | Splicebox bk partially assembled LC OM3 extendable 6 Adapter | LC-Duplex | black | 12 | 6 | 9005 | LC-Duplex | aqua | |
| B61901TS.12OM3 | Splicebox bk partially assembled LC OM3 extendable 12 Adapter | LC-Duplex | black | 12 | 12 | 9005 | LC-Duplex | aqua | |
| B61901TS.24OM3 | Splicebox bk partially assembled LC OM3 extendable 24 Adapter | LC-Duplex | black | 24 | 24 | 9005 | LC-Duplex | aqua |
