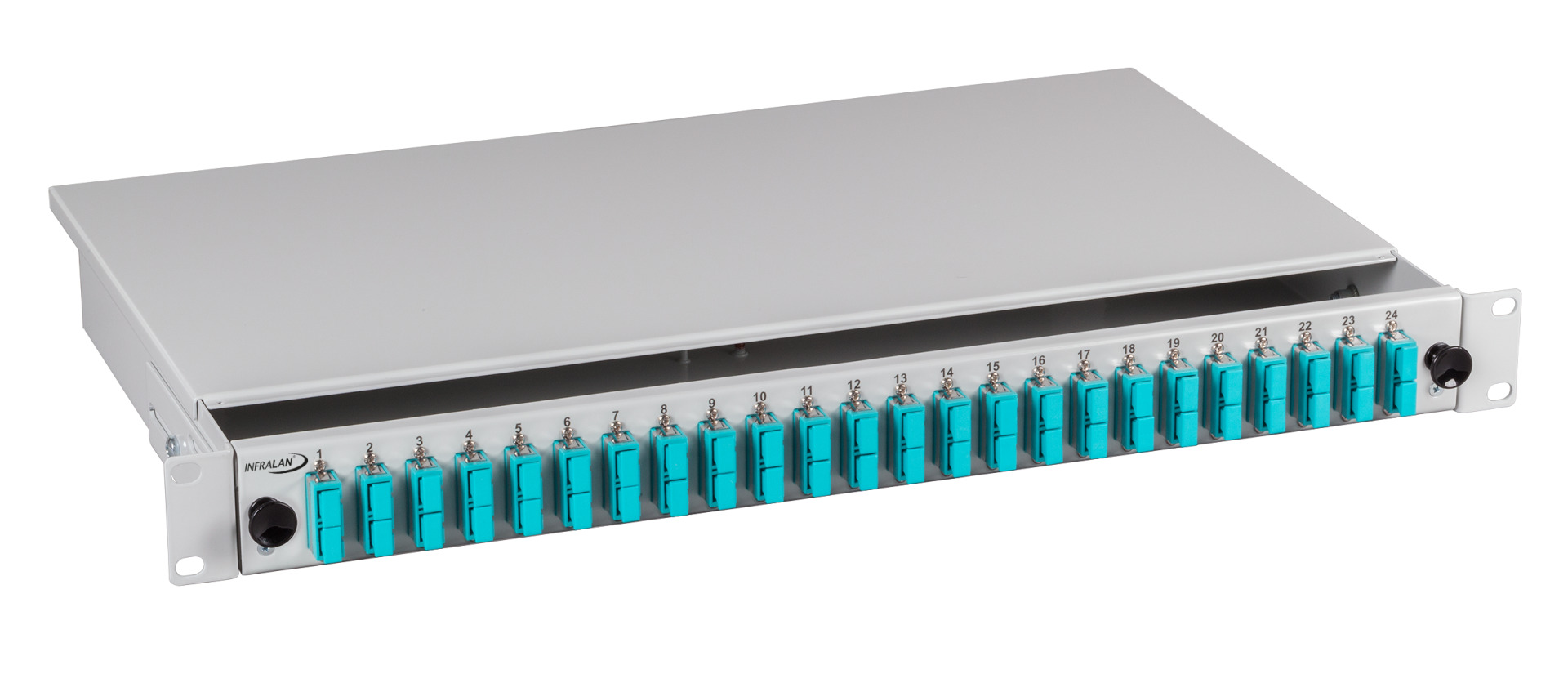

Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3
Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3
Varenummer:
B71203.48OM3
EAN-nr.:
4049759042196
Produktinformation til Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Variants
| ON | Label | Type of connector external | Color | With number of couplings/adapters | Suitable for number of couplings/adapters | Pigtail | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203.48OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | grey | 24 | 24 | 48 x SC | 7035 | SC-duplex | aqua | |
| B71203.12OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | grey | 6 | 12 | 12 x SC | 7035 | SC-duplex | aqua | |
| B71203.24OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | grey | 12 | 12 | 24 x SC | 7035 | SC-duplex | aqua | |
| B71203TS.12OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | black | 6 | 12 | 12 x SC | 9005 | SC-duplex | aqua | |
| B71203TS.24OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | black | 12 | 12 | 24 x SC | 9005 | SC-duplex | aqua | |
| B71203TS.48OM3 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM3 | SC-Duplex | black | 24 | 24 | 48 x SC | 9005 | SC-duplex | aqua |
