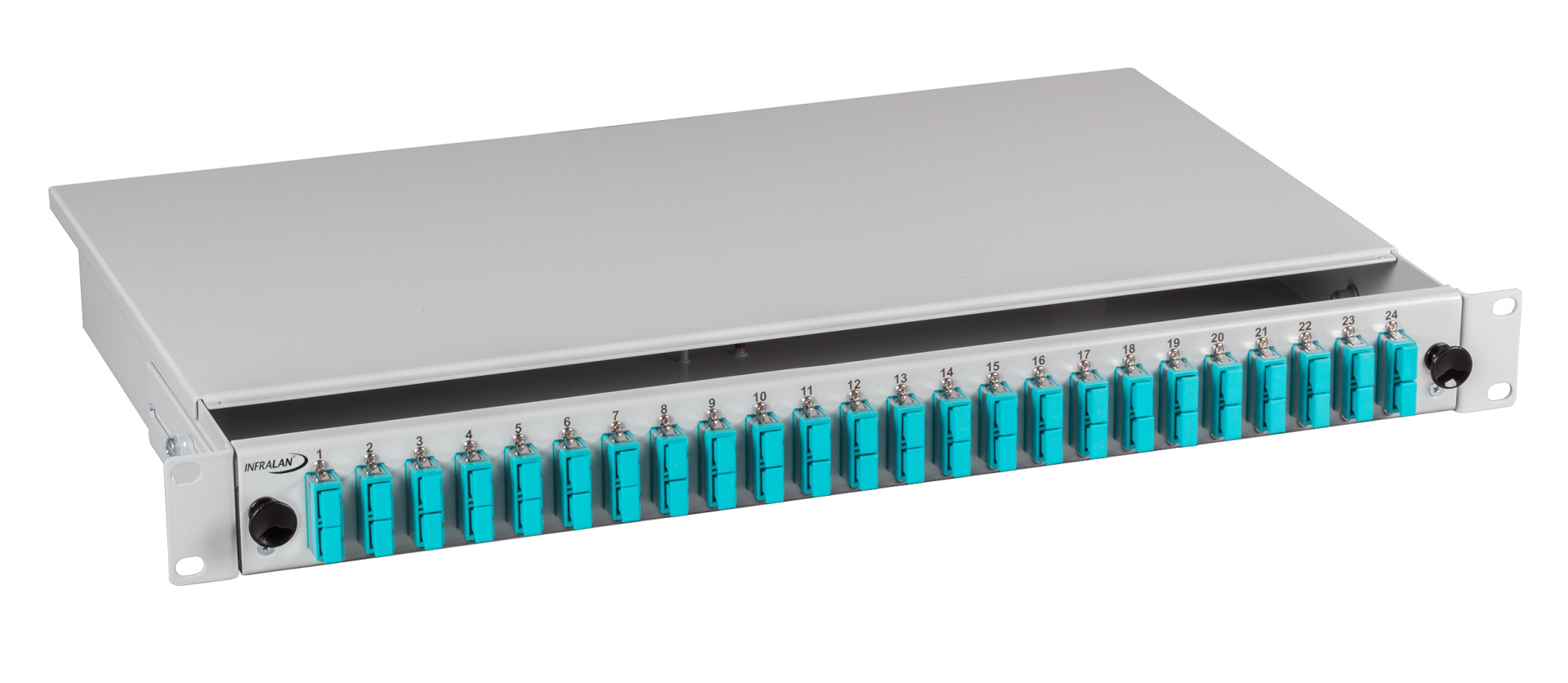

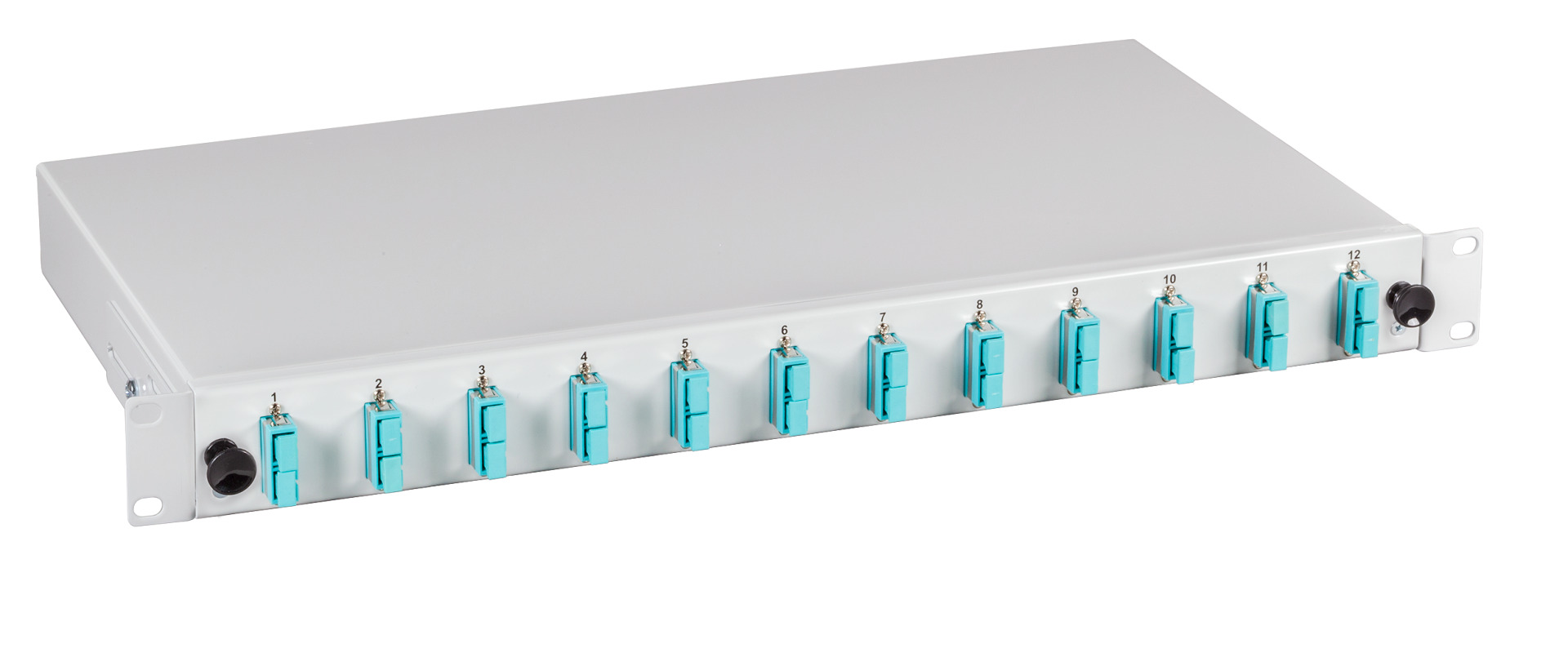

Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4
Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4
Varenummer:
B71203.12OM4
EAN nr.:
4049759075057
Produktinformation til Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM4 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM4 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | Suitable for number of couplings/adapters | Type of connector external | With number of couplings/adapters | Color | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203.24OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 24 x SC | 12 | SC-Duplex | 12 | grey | 7035 | SC-duplex | Violet | |
| B71203.48OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 48 x SC | 24 | SC-Duplex | 24 | grey | 7035 | SC-duplex | Violet | |
| B71203.12OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 12 x SC | 12 | SC-Duplex | 6 | grey | 7035 | SC-duplex | Violet | |
| B71203TS.12OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 12 x SC | 12 | SC-Duplex | 6 | black | 9005 | SC-duplex | violet | |
| B71203TS.24OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 24 x SC | 12 | SC-Duplex | 12 | black | 9005 | SC-duplex | violet | |
| B71203TS.48OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 48 x SC | 24 | SC-Duplex | 24 | black | 9005 | SC-duplex | violet |
Produktinformation til Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustablecable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM4 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC-Duplex |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM4 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Pigtail | Suitable for number of couplings/adapters | Type of connector external | With number of couplings/adapters | Color | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203.24OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 24 x SC | 12 | SC-Duplex | 12 | grey | 7035 | SC-duplex | Violet | |
| B71203.48OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 48 x SC | 24 | SC-Duplex | 24 | grey | 7035 | SC-duplex | Violet | |
| B71203.12OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 12 x SC | 12 | SC-Duplex | 6 | grey | 7035 | SC-duplex | Violet | |
| B71203TS.12OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 12 x SC | 12 | SC-Duplex | 6 | black | 9005 | SC-duplex | violet | |
| B71203TS.24OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 24 x SC | 12 | SC-Duplex | 12 | black | 9005 | SC-duplex | violet | |
| B71203TS.48OM4 | Splicebox sliding unit, with SC-Duplex plastic adapter and pigtails, OM4 | 48 x SC | 24 | SC-Duplex | 24 | black | 9005 | SC-duplex | violet |
