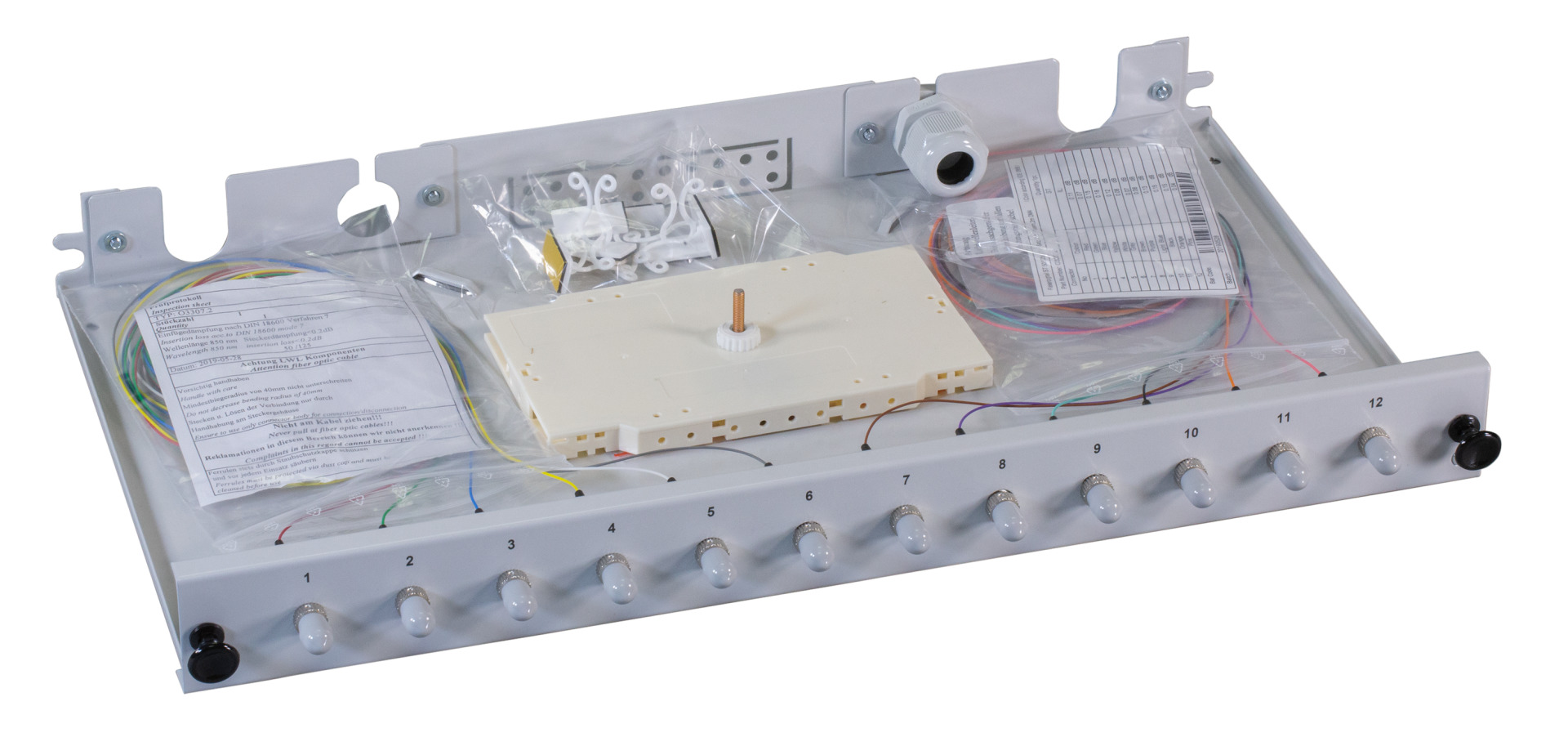

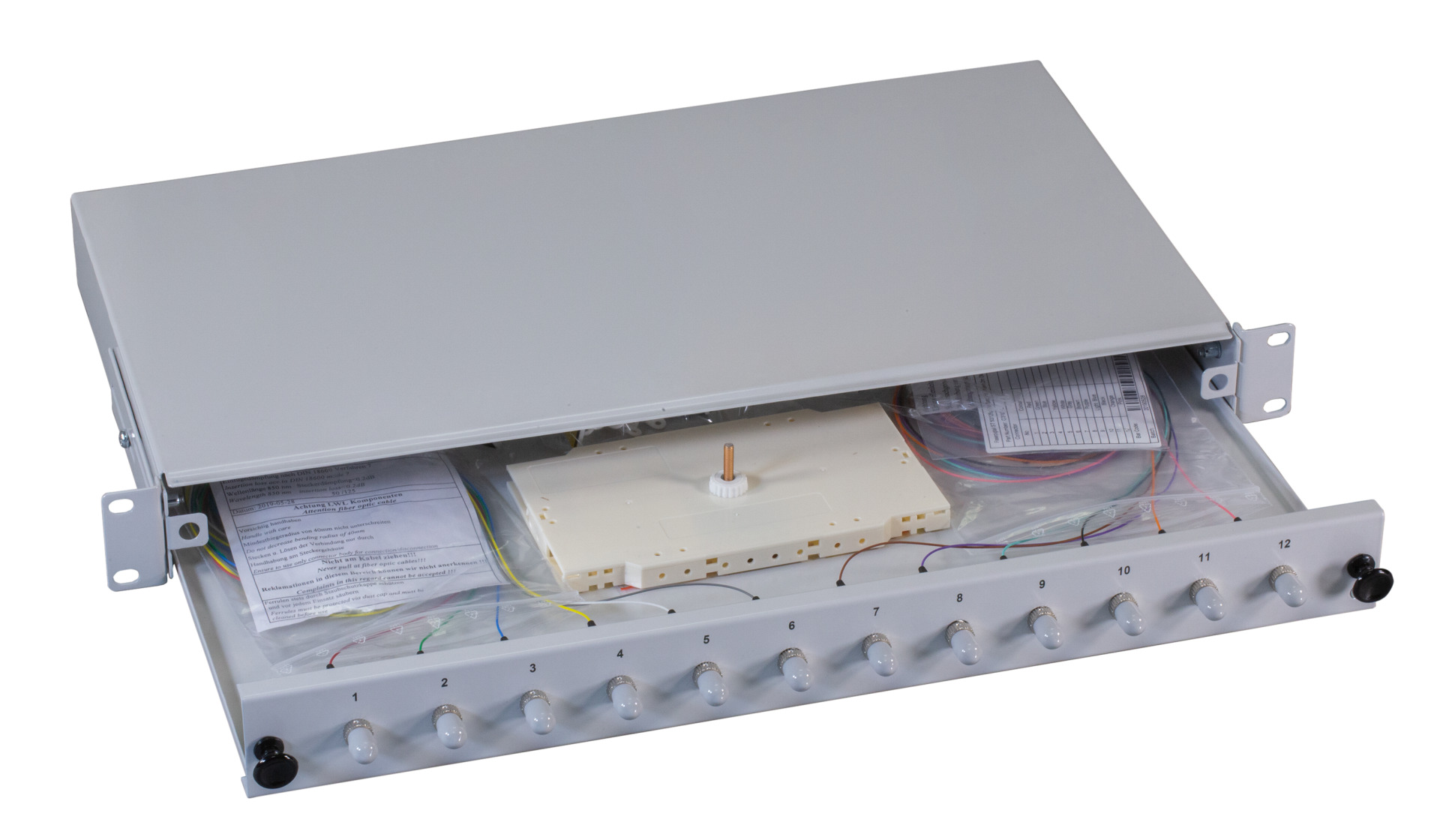

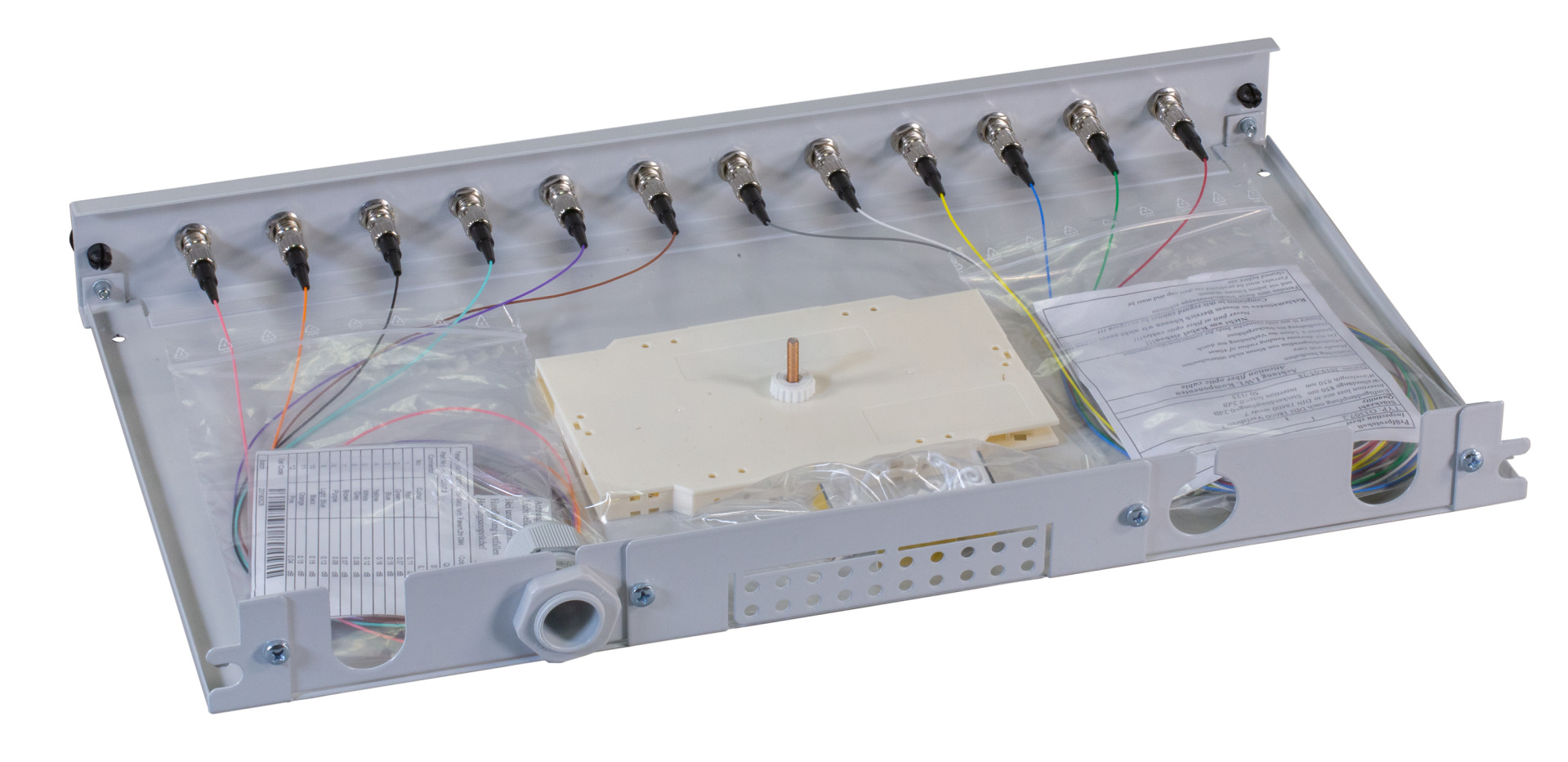

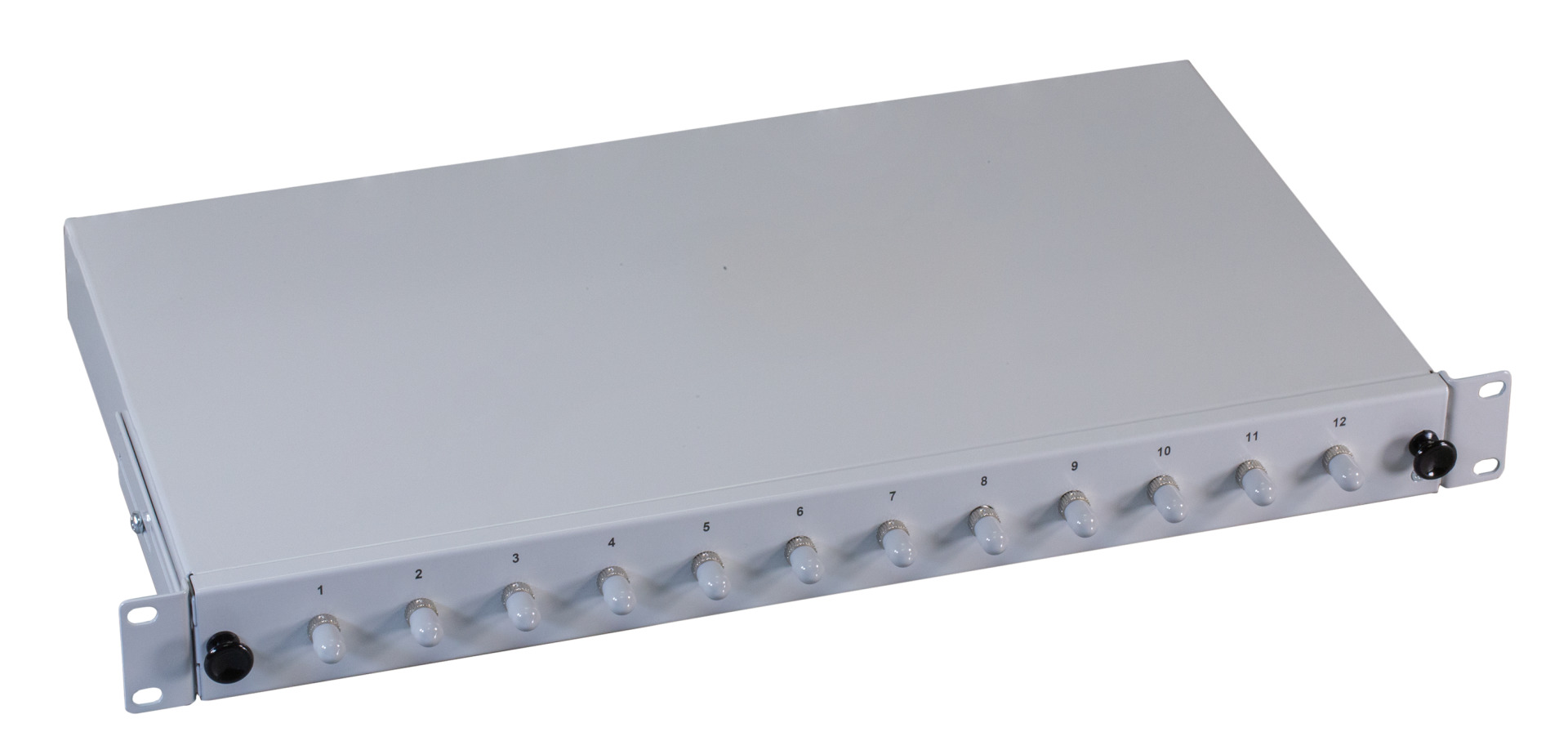

Splicebox sliding unit, with ST metal adapter and pigtails, OM3
Splicebox sliding unit, with ST metal adapter and pigtails, OM3
Varenummer:
B71006.6OM3
EAN nr.:
4049759173654
Produktinformation til Splicebox sliding unit, with ST metal adapter and pigtails, OM3
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Tekniske egenskaber
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Type of connector external | Color | Suitable for number of couplings/adapters | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71006.12OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 12 | 12 x ST | 12 | 7035 | ST | metal | |
| B71006.24OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 24 | 24 x ST | 24 | 7035 | ST | metal | |
| B71006.6OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 12 | 6 x ST | 6 | 7035 | ST | metal | |
| B71006TS.6OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | black | 12 | 6 x ST | 6 | 9005 | ST | metal |
Produktinformation til Splicebox sliding unit, with ST metal adapter and pigtails, OM3
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Extendable: | sliding |
| Fibre class: | OM3 |
| Fibre type: | Multimode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianter
| Art. Nej. | Betegnelse | Type of connector external | Color | Suitable for number of couplings/adapters | Pigtail | With number of couplings/adapters | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71006.12OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 12 | 12 x ST | 12 | 7035 | ST | metal | |
| B71006.24OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 24 | 24 x ST | 24 | 7035 | ST | metal | |
| B71006.6OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | grey | 12 | 6 x ST | 6 | 7035 | ST | metal | |
| B71006TS.6OM3 | Splicebox sliding unit, with ST metal adapter and pigtails, OM3 | ST | black | 12 | 6 x ST | 6 | 9005 | ST | metal |
