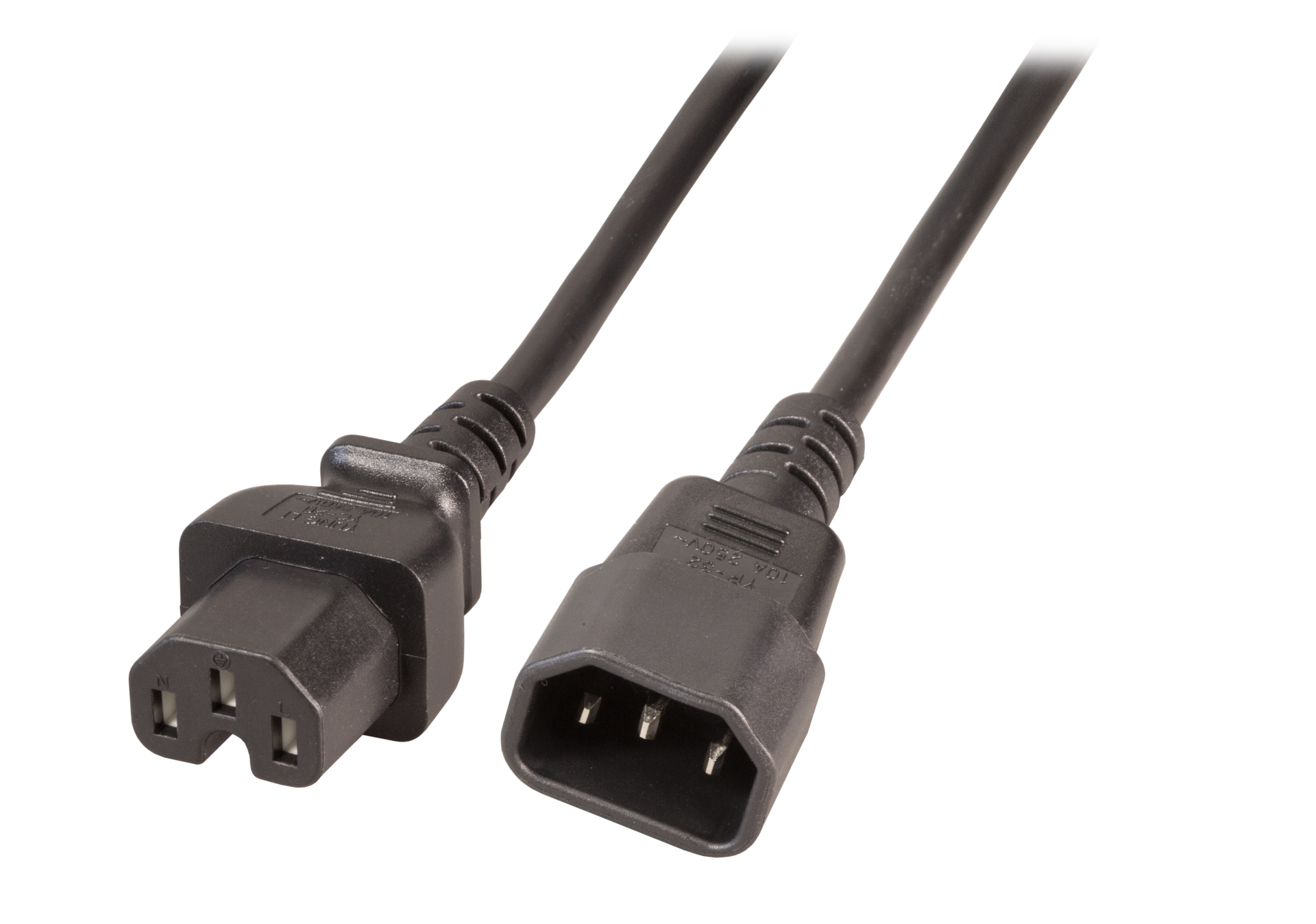

Warm Device Extension C14 180° - C15 180°

Warm Device Extension C14 180° - C15 180°, Black, 1 m, 3 x 1.00 mm²
Warm Device Extension C14 180° - C15 180°, Black, 1 m, 3 x 1.00 mm²
Varenummer: EK585.1V2
EAN Nr.: 4049759295189
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece
Log ind som kunde
Giv mig besked, når produktet er på lager igen.
Beskrivelse

Produktinformation til Warm Device Extension C14 180° - C15 180°, Black, 1 m, 3 x 1.00 mm²

Plug IEC60320/C14 to jack IEC60320/C15
10 A / 250 V VDE tested
Cable H50RN-F 3G(rubber cable)
Colour black
Tekniske egenskaber

Tekniske egenskaber

Colour outer sheath: black
Connection 1: Cold device plug (IEC 60320)
Connection 2: Hot device plug, female
Halogen free: No
Jacket material: rubber
Nominal voltage: 250 V
Number of cores: 3
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Protective conductor: Ja
Spiralized cable: False
Temperature resistance: -35 – 70 °C
With cord switch: False
Varianten

Varianten

Art. Nr. Bezeichnung Colour outer sheath Nominal current With protective conductor Degree of protection Nominal voltage Length Nominal cross section conductor Outer diameter approx.
EK585.1V2 Warm Device Extension C14 180° - C15 180°, Black, 1 m, 3 x 1.00 mm² black 10 A True IP20 – 250 V 1.0 m 1.00 mm² 7.3 mm
Vælg varianter
EK585.2V2 Warm Device Extension C14 180° - C15 180°, Black, 2 m, 3 x 1.00 mm² black 10 A True IP20 – 250 V 2.0 m 1.00 mm² 7.3 mm
Vælg varianter
EK585.3V2 Warm Device Extension C14 180° - C15 180°, Black, 3 m, 3 x 1.00 mm² black 10 A True IP20 – 250 V 3.0 m 1.00 mm² 7.3 mm
Vælg varianter
Downloads

Downloads

Sikkerhedsanvisninger

Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
