19" Network Cabinets PRO-Modular, 600x600 mm

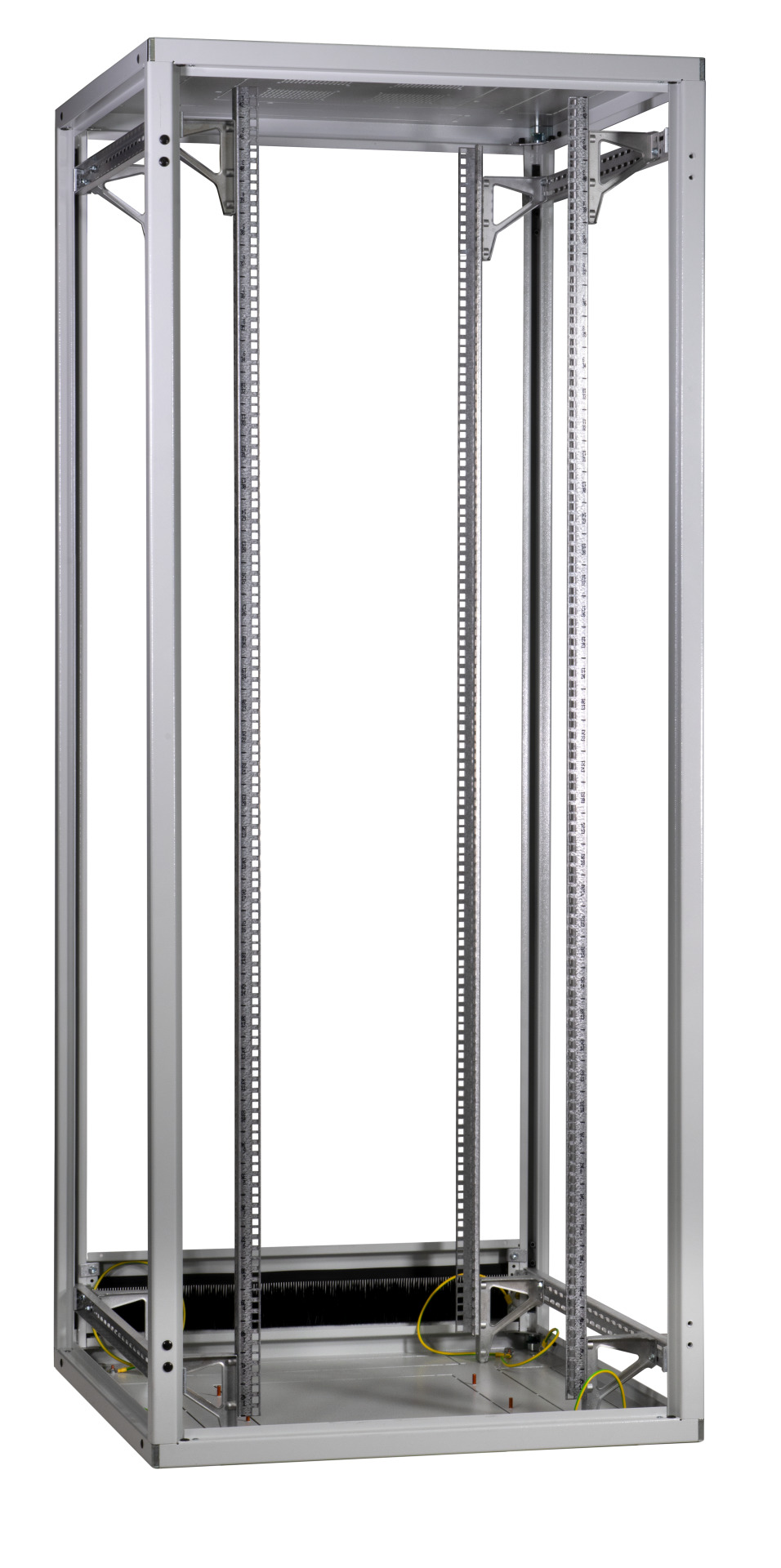

19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL7035
Varenummer:
PRO-4266GR.0D
EAN Nr.:
4049759218256
Produktinformation til 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL7035
19" rack frame according to DIN41494
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Without |
| Type of front door: | Without |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | False |
| With earthing: | True |
| With front door: | False |
| With roof plate: | True |
| With sidewall: | False |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Width | Number of height units | Depth | Colour | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|
| PRO-4266GR.0D | 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL7035 | 600 mm | 42 U | 600 mm | grey | 1963 mm | 7035 | - | |
| PRO-4266TS.0D | 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL9005 | 600 mm | 42 U | 600 mm | black | 1963 mm | 9005 | - |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt

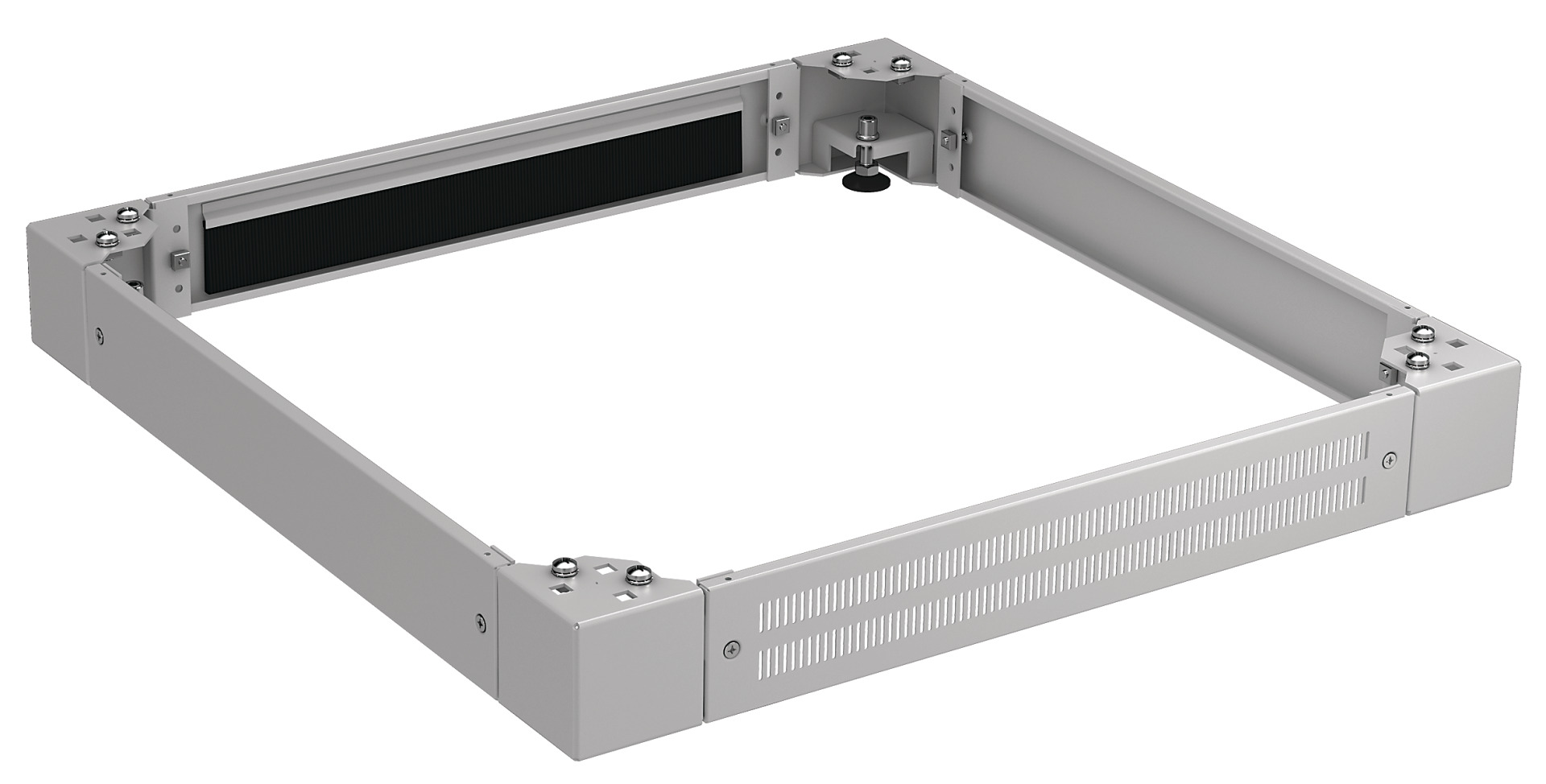

accessory
