19" Network Cabinets PRO-Modular, 600x600 mm
19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL9005
Varenummer:
PRO-4266TS.0D
EAN Nr.:
4049759218270
Produktinformation til 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL9005
19" rack frame according to DIN41494

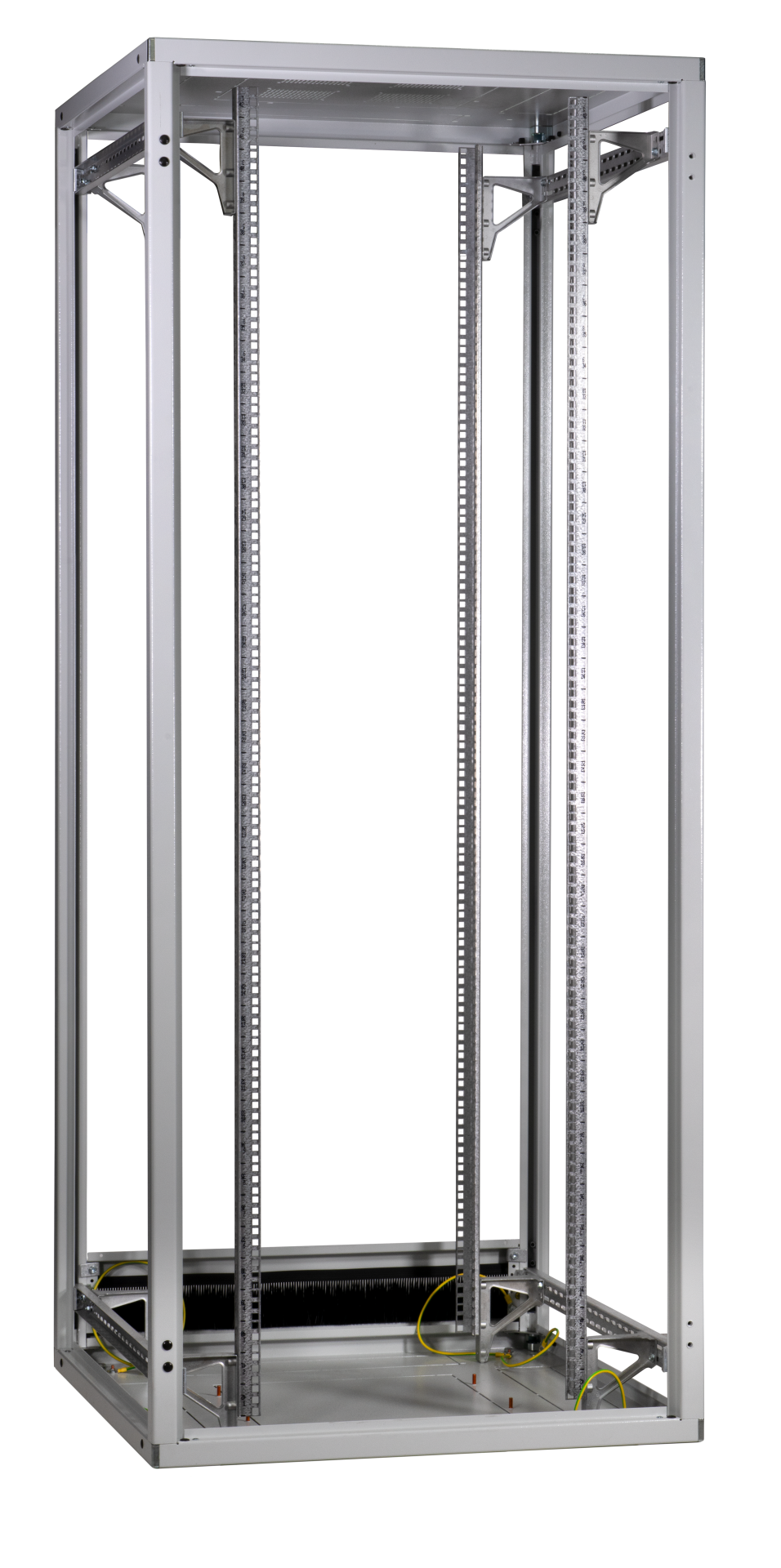

Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

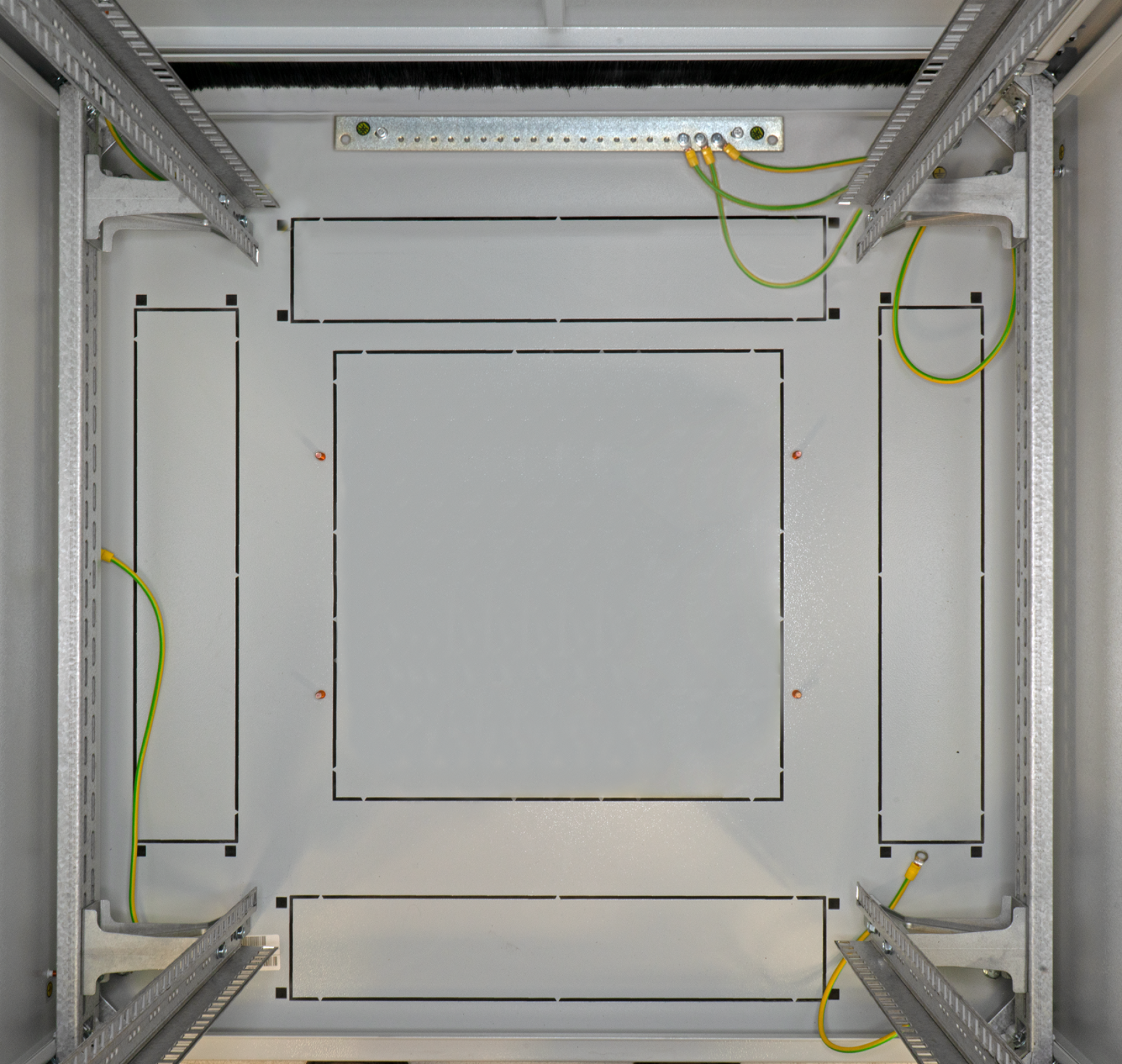

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

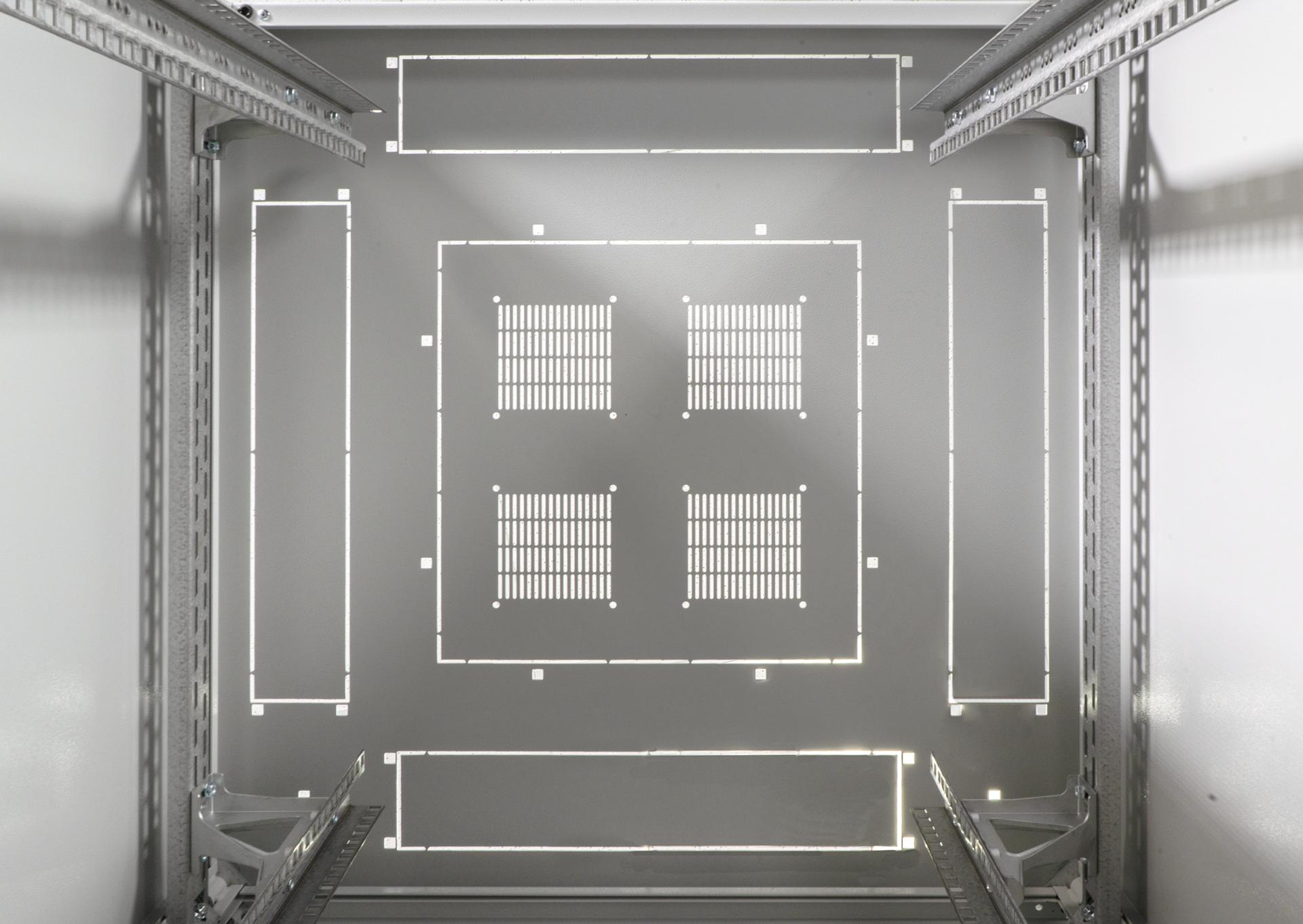

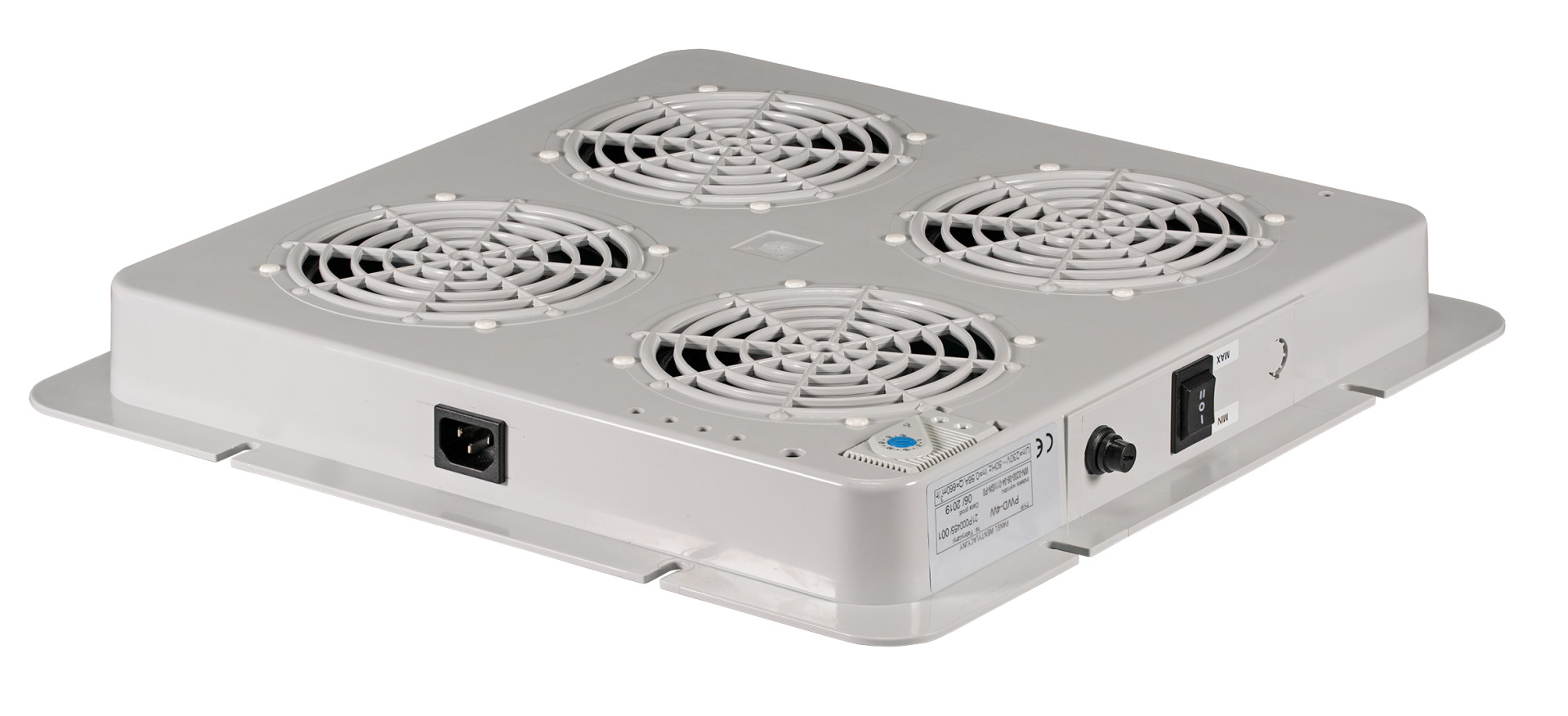

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Screwed steel sheet frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Delivery without front/rear door and side walls for modular, individual configuration
For installed front and rear door, door stop left or right-sided possible
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, earthing bar pre-installed, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Without |
| Type of front door: | Without |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | False |
| With earthing: | True |
| With front door: | False |
| With roof plate: | True |
| With sidewall: | False |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Number of height units | Depth | Color | Width | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|
| PRO-4266GR.0D | 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL7035 | 42 U | 600 mm | grey | 600 mm | 1963 mm | 7035 | - | |
| PRO-4266TS.0D | 19" Network Cabinet PRO-Modular 42U, 600x600 mm, RAL9005 | 42 U | 600 mm | black | 600 mm | 1963 mm | 9005 | - |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
