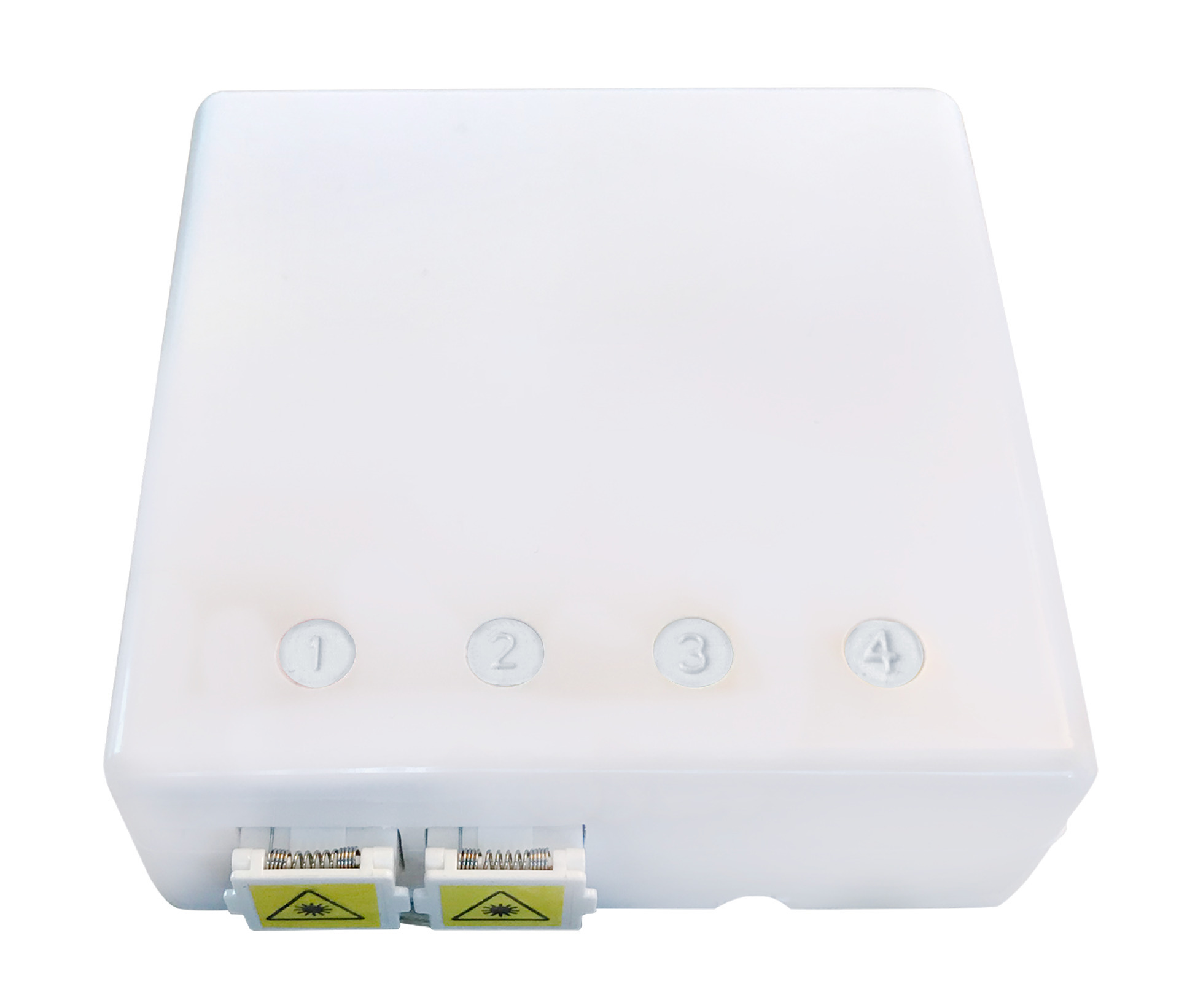

FTTH Box for 4 adapters SC-S or LC-D 80x80 with cable guide
FTTH Box for 4 adapters SC-S or LC-D 80x80 with cable guide, crimpversion
Varenummer:
FTTH-BOX-IN-6
EAN Nr.:
4049759256616
Produktinformation til FTTH Box for 4 adapters SC-S or LC-D 80x80 with cable guide, crimpversion

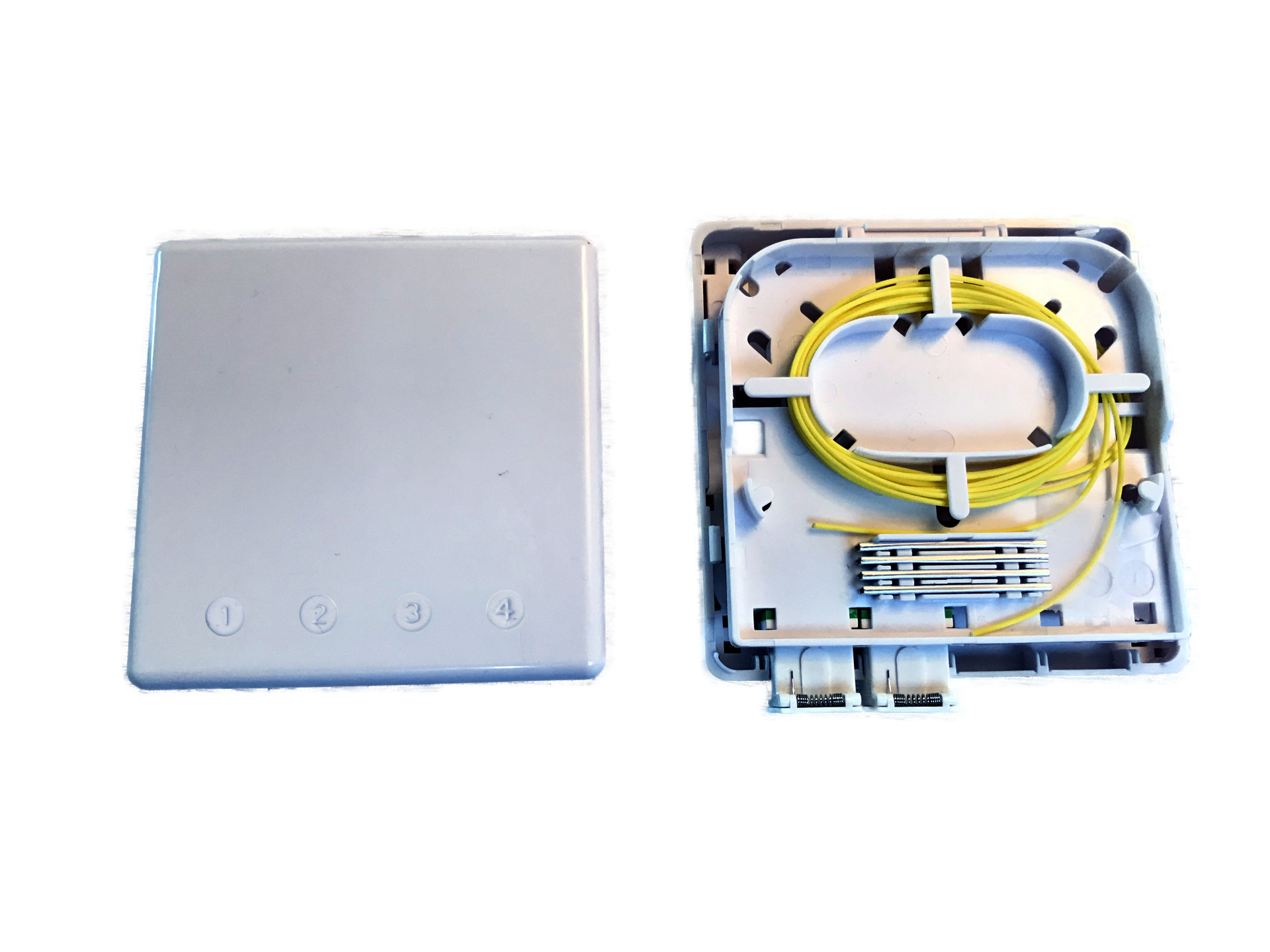

• Suitable for drop cable to splice inside the box with pigtail inside

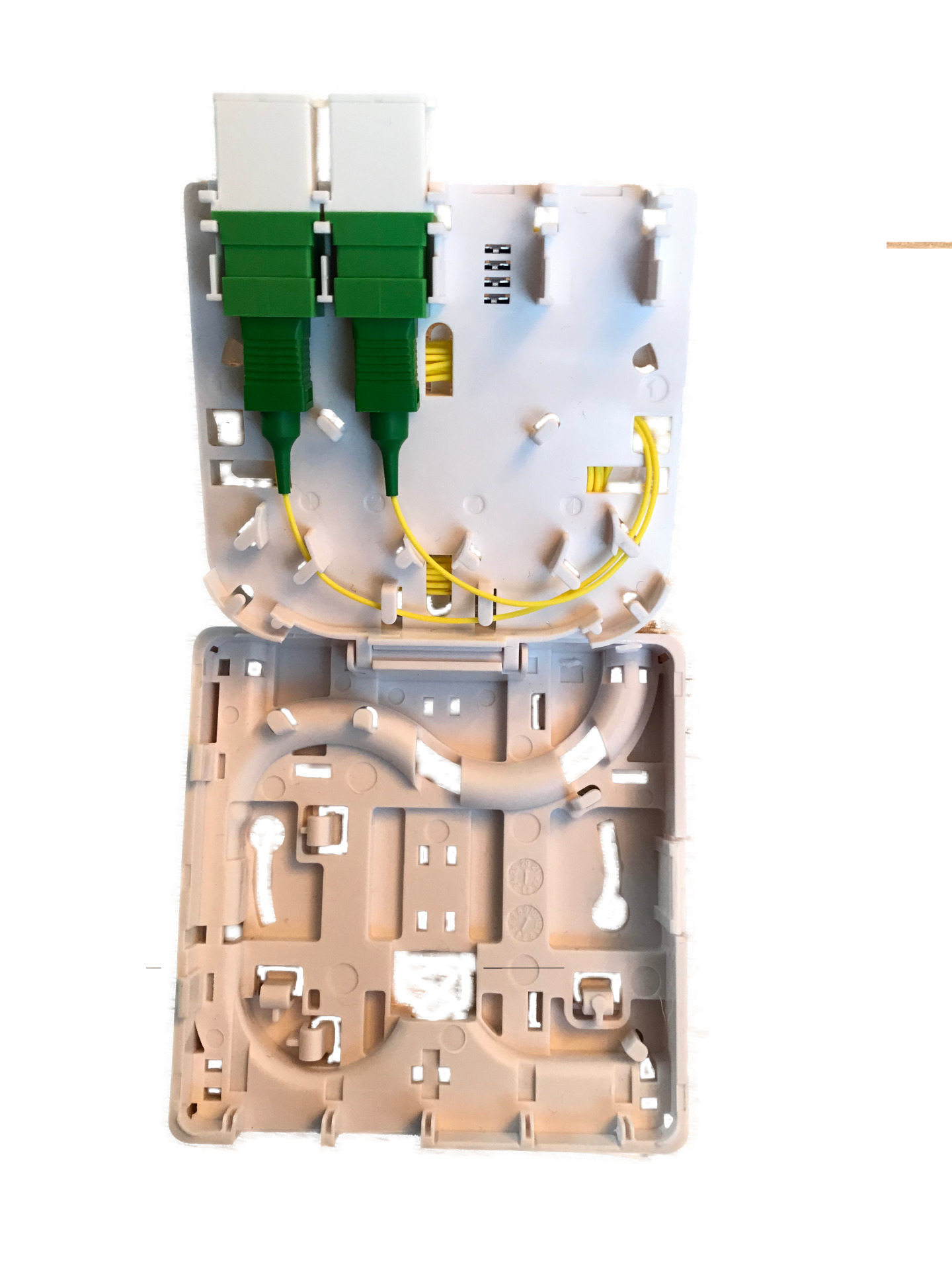

• Capable for the installation of different length of pre-terminated drop cable with LC and SC connectors, no splice process will be needed in this application
• The box is capable for 1/2/4F SC connections or 2/4F LC connections

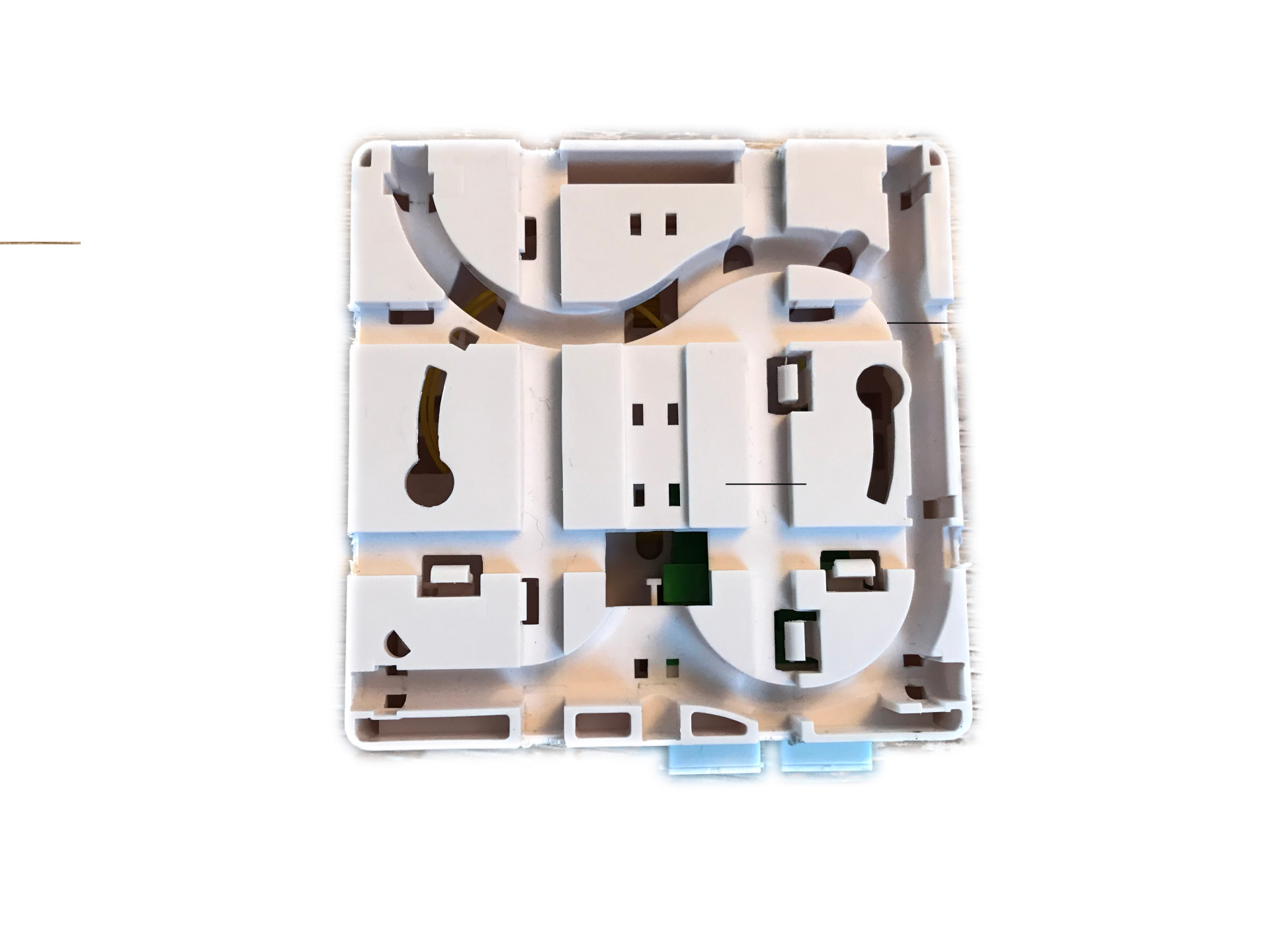

• It can be Din rail mounted or wall mounted with screw

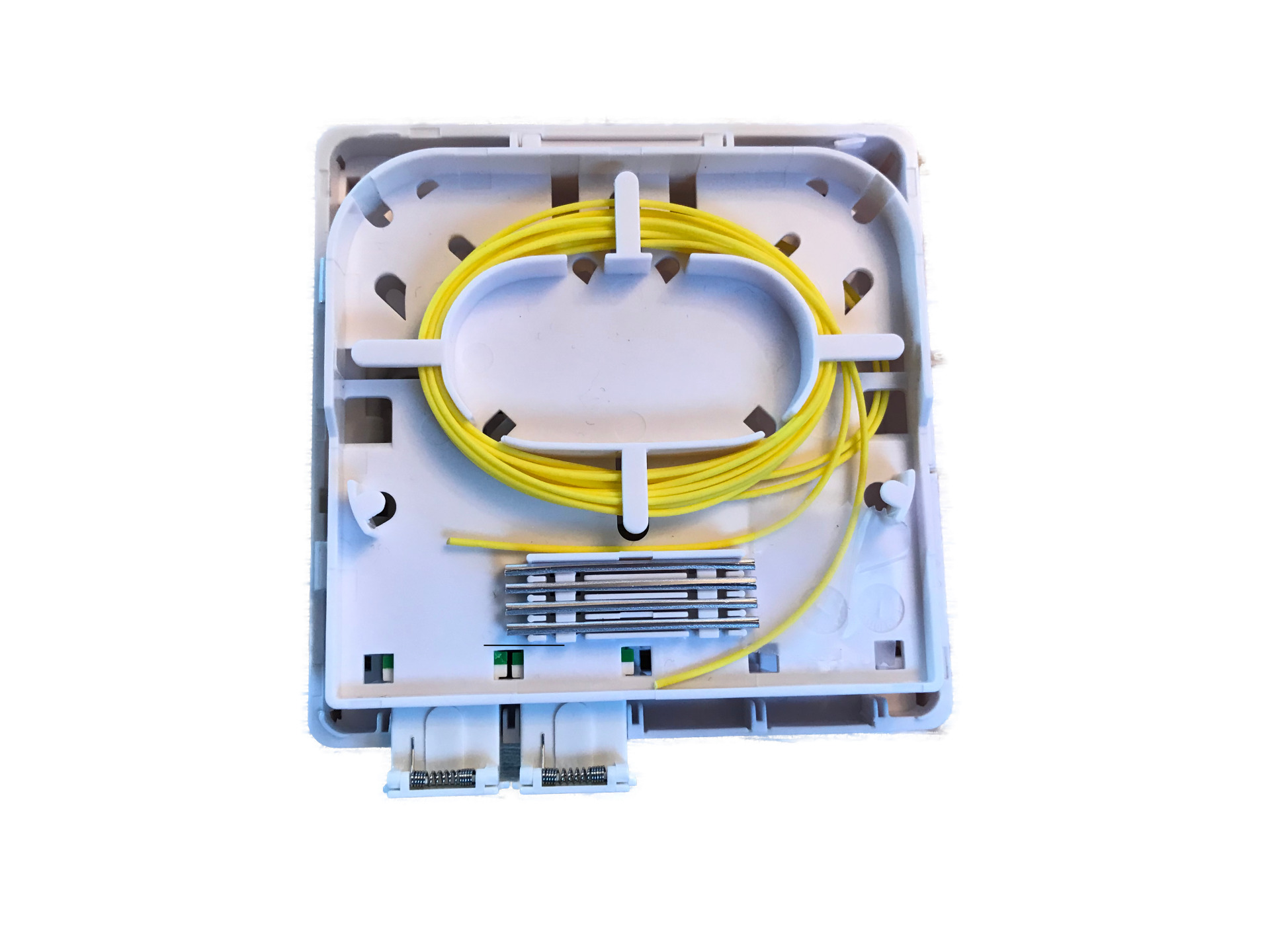

• The splice cassette is designed for 0.9mm buffer splice(40*1.2mm
• sleeves), bare fiber splice (40*0.5mm sleeves) or crimp splice

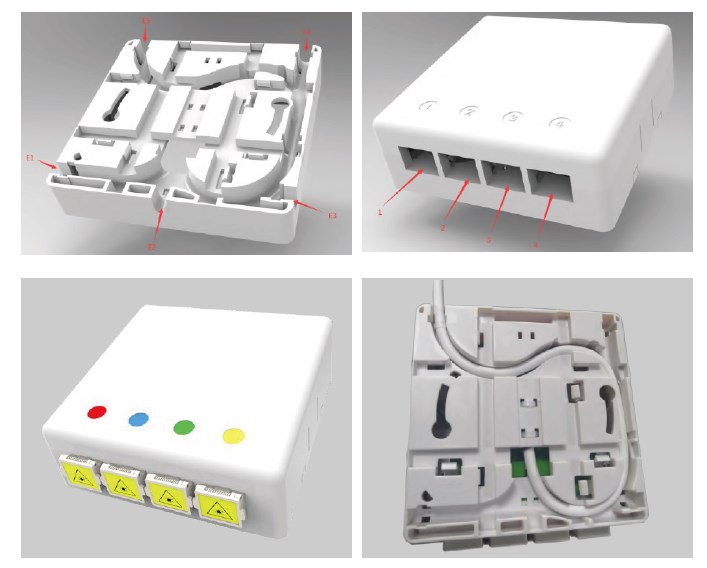

• It’s capable for drop cable between 2.0mm~5.0mm
• Capable for the installation of different length of pre-terminated drop cable with LC and SC connectors, no splice process will be needed in this application
• The box is capable for 1/2/4F SC connections or 2/4F LC connections
• It can be Din rail mounted or wall mounted with screw
• The splice cassette is designed for 0.9mm buffer splice(40*1.2mm
• sleeves), bare fiber splice (40*0.5mm sleeves) or crimp splice
• It’s capable for drop cable between 2.0mm~5.0mm
Tekniske egenskaber
| Cable entry without cable gland: | 5 x 5 mm |
|---|---|
| Cable sheath support: | True |
| Color: | white |

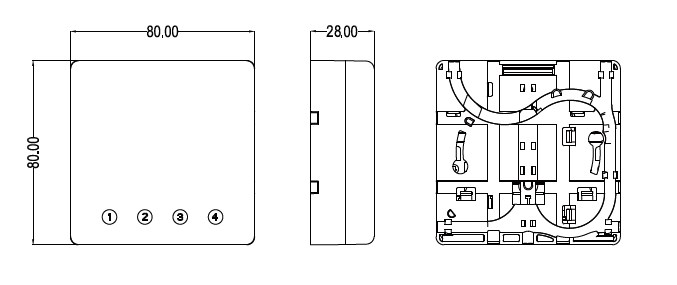

| Dimensions: | 80 x 80 x 28 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 4 |
| Mounting method: | Wall mounting |
| Mounting method: | DIN Rail |
| Number of Fibres: | 4 |
| Operating Temperature: | 0 – 50 °C |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
| Type of Splice protection: | Crimp or Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
Varianten
| Art. Nr. | Bezeichnung | Access Control | |
|---|---|---|---|
| FTTH-BOX-IN-6 | FTTH Box for 4 adapters SC-S or LC-D 80x80 with cable guide, crimpversion | Without | |
| FTTH-BOX-IN-7 | FTTH Box for 4 adapters SC-S or LC-D 80x80 with cable guide, shrinkversion | Without |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
