INFRALAN® Splice box sliding version SC OS2

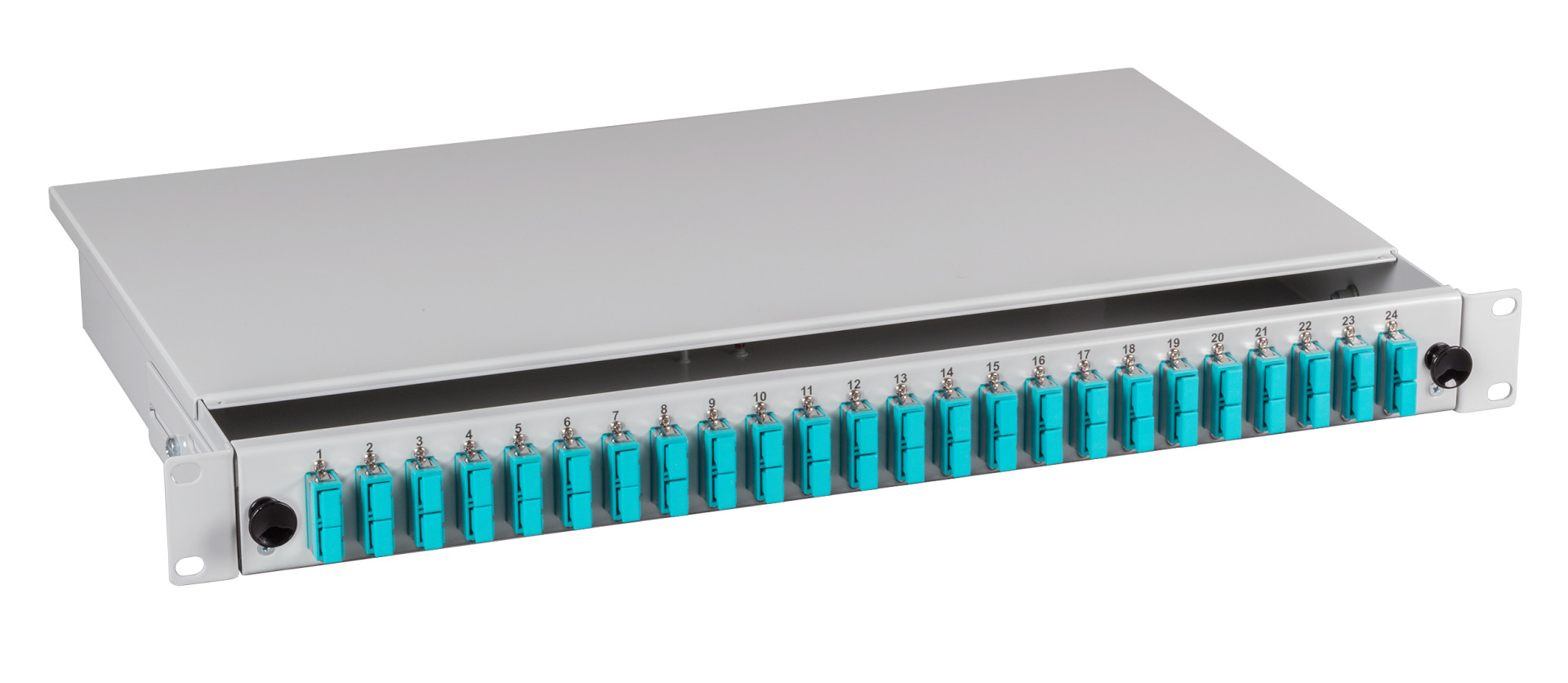

INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OS2
Varenummer:
ISB-SCDU-24-2-GR-ABA
EAN Nr.:
4049759263034
Produktinformation til INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OS2
Completely equipped INFRALAN® splice box with adapter and through-dyed pigtails
The SC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of SC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket

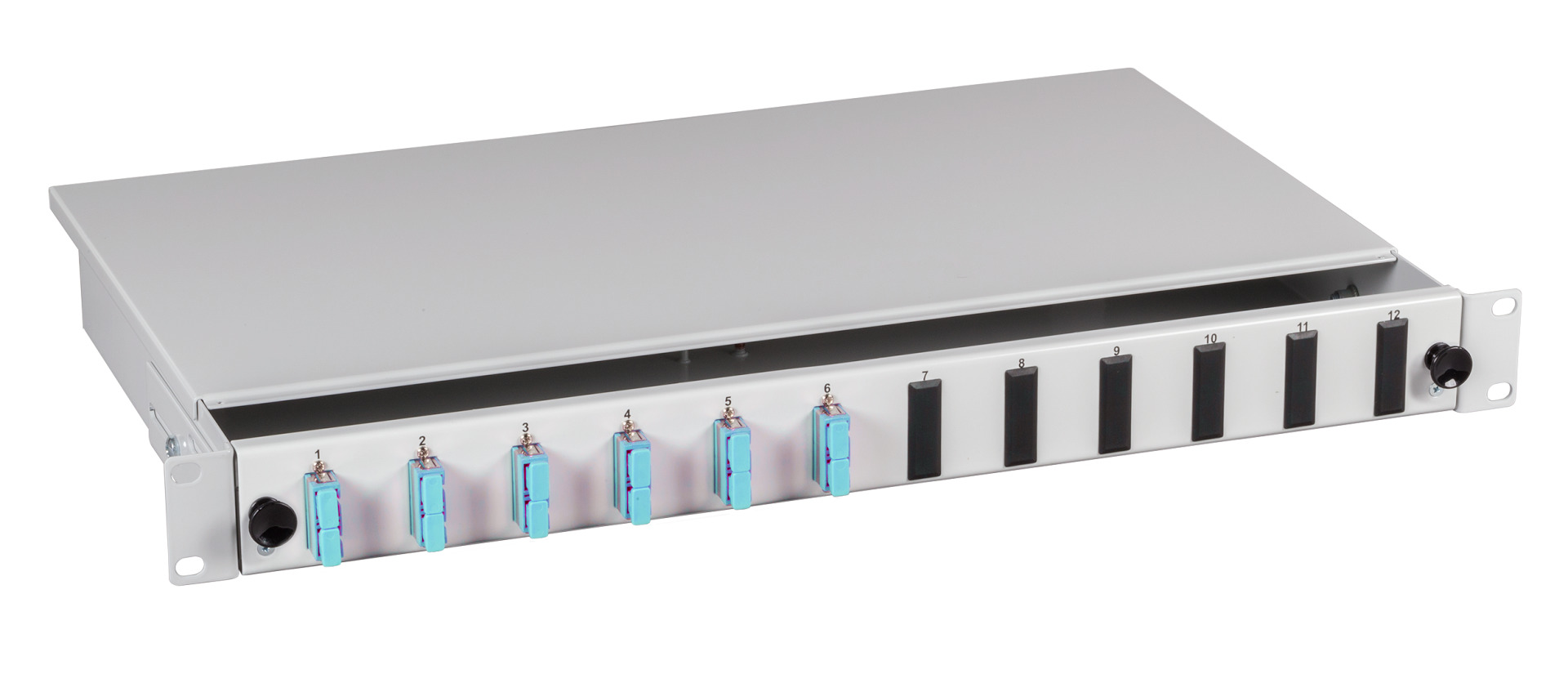

All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
The SC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of SC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
Tekniske egenskaber
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Extendable: | sliding version |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Width: | 483.0 mm |
| With Pigtail: | True |
| With front plate: | True |
| With housing: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Type of connector external | With number of couplings/adapters | Pigtail | RAL-number | Type of connector interior | Adapter colour | |
|---|---|---|---|---|---|---|---|---|---|
| ISB-SCDU-06-2-GR-ABA | INFRALAN® Splicebox sliding version SC, 12 stripped pigtails/ 6 adapter, OS2 | grey | SC-Duplex | 6 | 12 x SC | 7035 | SC-duplex | blue | |
| ISB-SCDU-12-2-GR-ABA | INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OS2 | grey | SC-Duplex | 12 | 24 x SC | 7035 | SC-duplex | blue | |
| ISB-SCDU-24-2-GR-ABA | INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OS2 | grey | SC-Duplex | 24 | 48 x SC | 7035 | SC-duplex | blue | |
| ISB-SCDA-06-2-SW-ABA | INFRALAN® Splicebox sliding version SC/APC, 12 stripped pigtails/ 6 adapter, OS2 | black | SC-Duplex | 6 | 12 x SC/APC | 9005 | SC-duplex | green | |
| ISB-SCDA-12-2-SW-ABA | INFRALAN® Splicebox sliding version SC/APC, 24 stripped pigtails/ 12 adapter,OS2 | black | SC-Duplex | 12 | 24 x SC/APC | 9005 | SC-duplex | green | |
| ISB-SCDA-24-2-SW-ABA | INFRALAN® Splicebox sliding version SC/APC, 48 stripped pigtails/ 24 adapter,OS2 | black | SC-Duplex | 24 | 48 x SC/APC | 9005 | SC-duplex | green | |
| ISB-SCDU-06-2-SW-ABA | INFRALAN® Splicebox sliding version SC, 12 stripped pigtails/ 6 adapter, OS2 | black | SC-Duplex | 6 | 12 x SC | 9005 | SC-duplex | blue | |
| ISB-SCDU-12-2-SW-ABA | INFRALAN® Splicebox sliding version SC, 24 stripped pigtails/ 12 adapter, OS2 | black | SC-Duplex | 12 | 24 x SC | 9005 | SC-duplex | blue | |
| ISB-SCDU-24-2-SW-ABA | INFRALAN® Splicebox sliding version SC, 48 stripped pigtails/ 24 adapter, OS2 | black | SC-Duplex | 24 | 48 x SC | 9005 | SC-duplex | blue |
