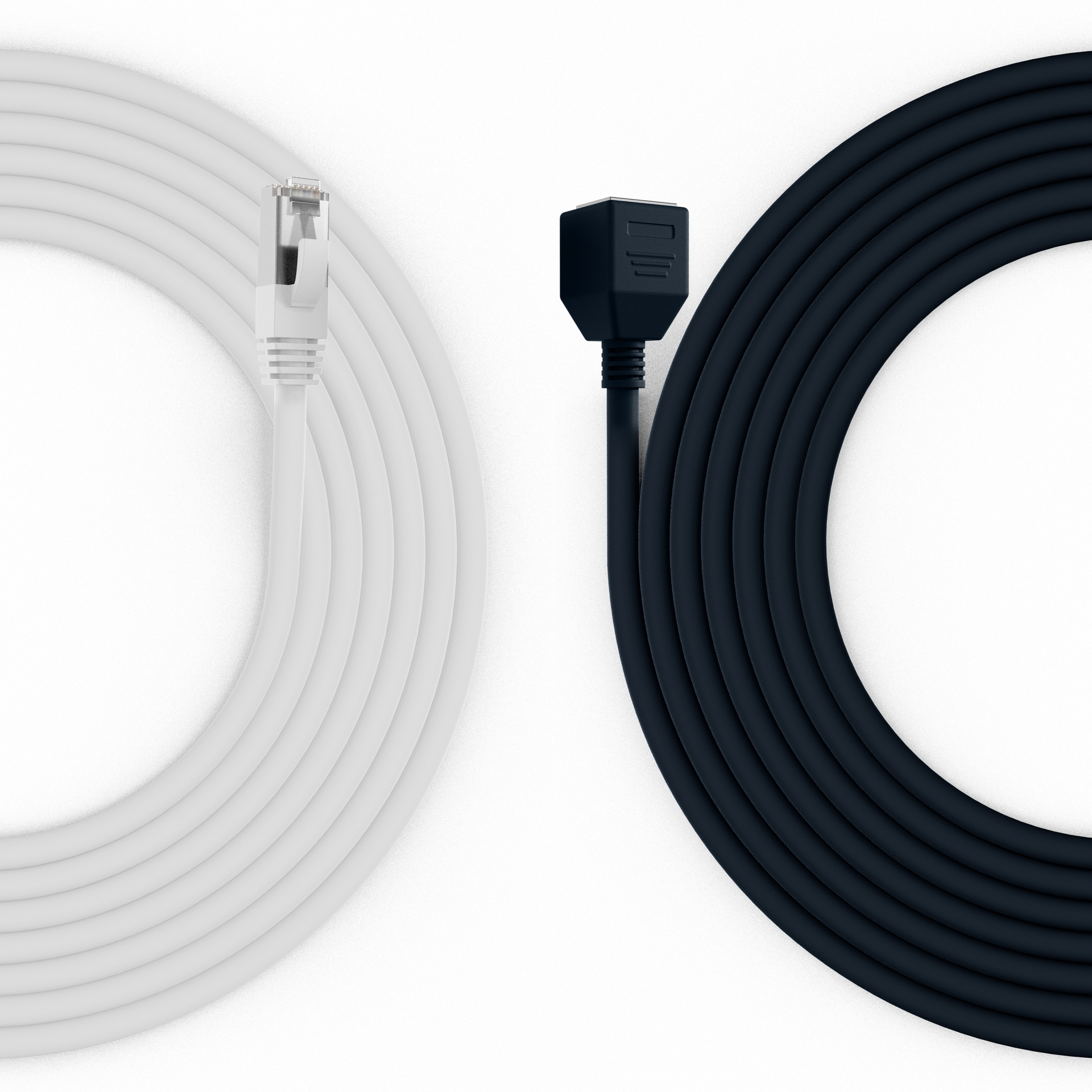

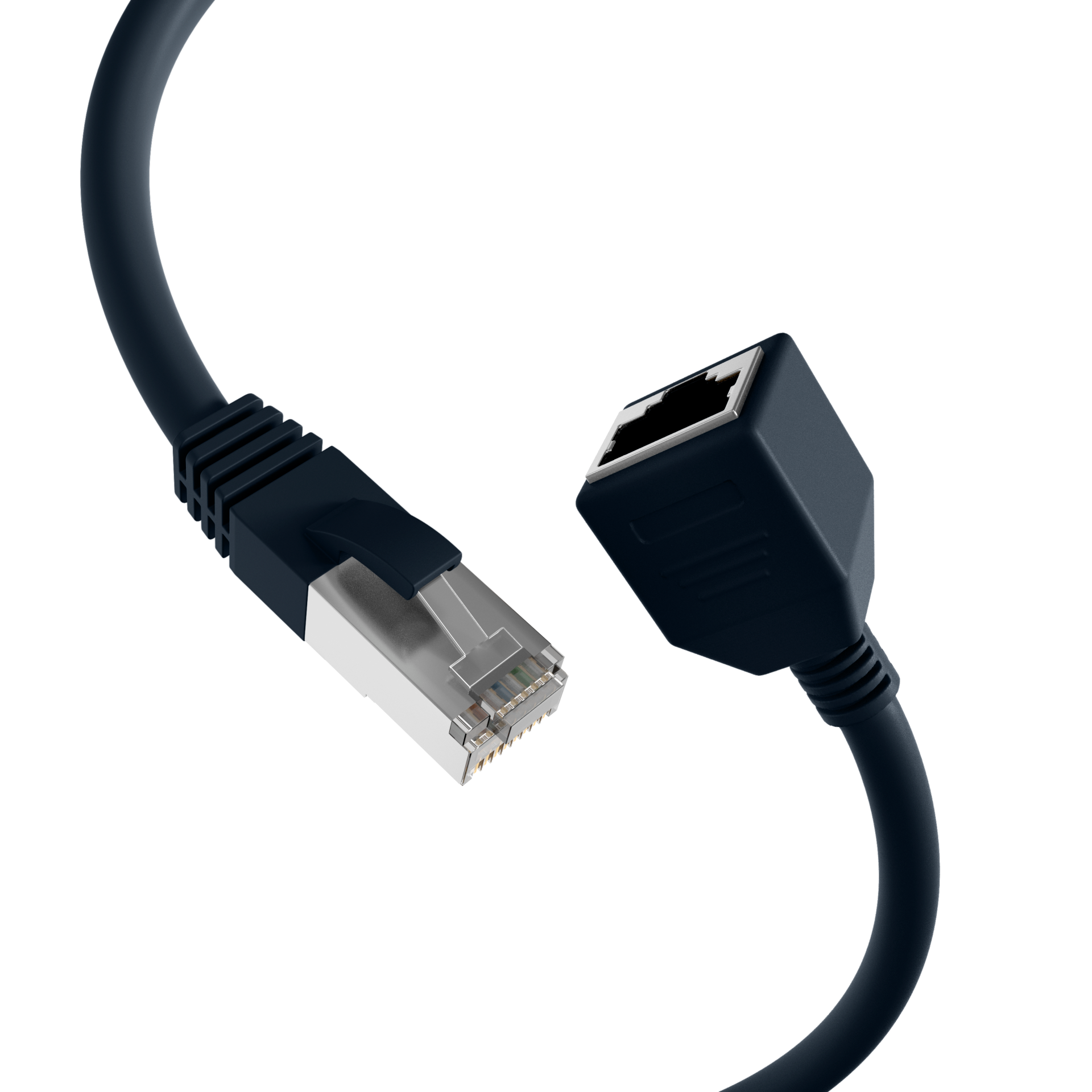

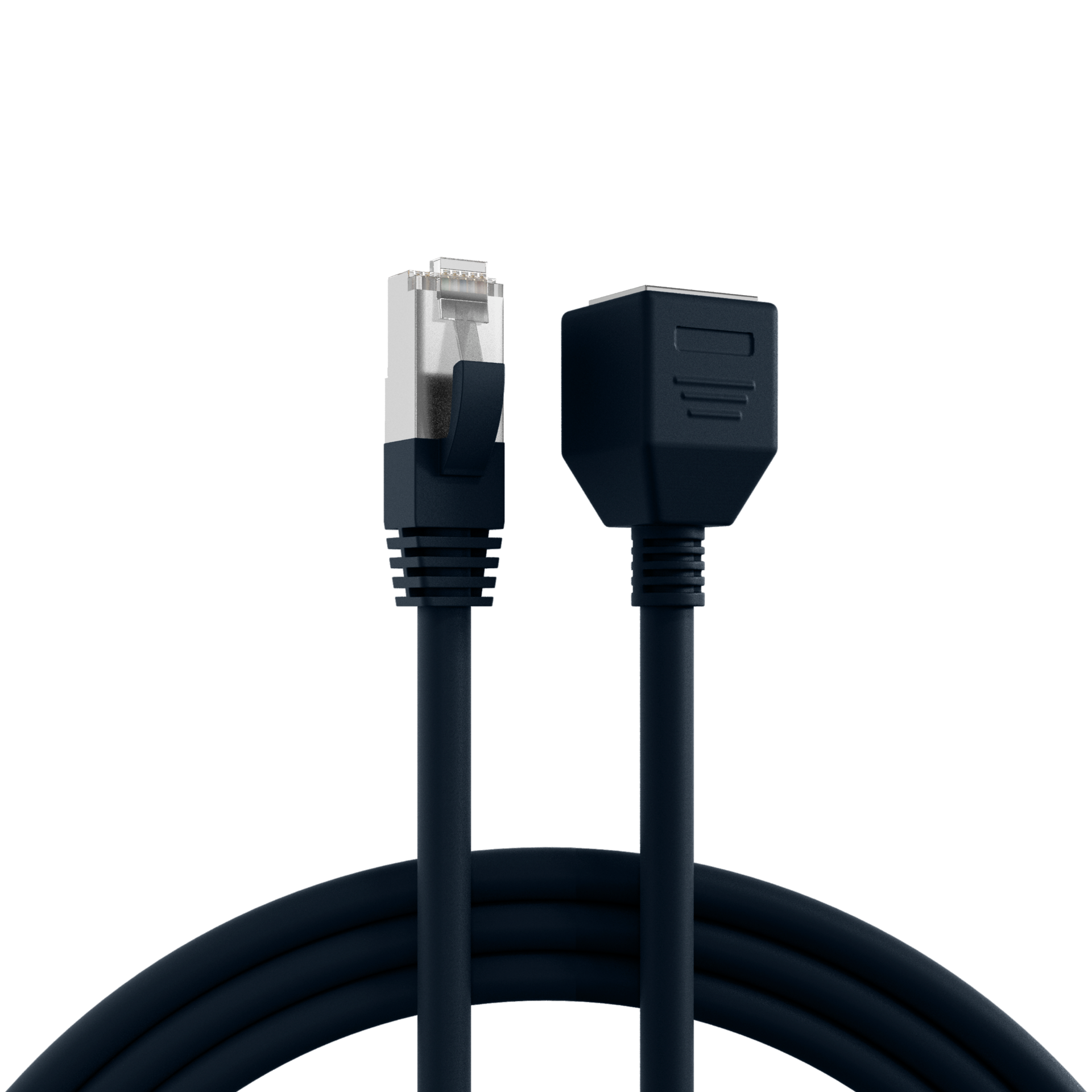

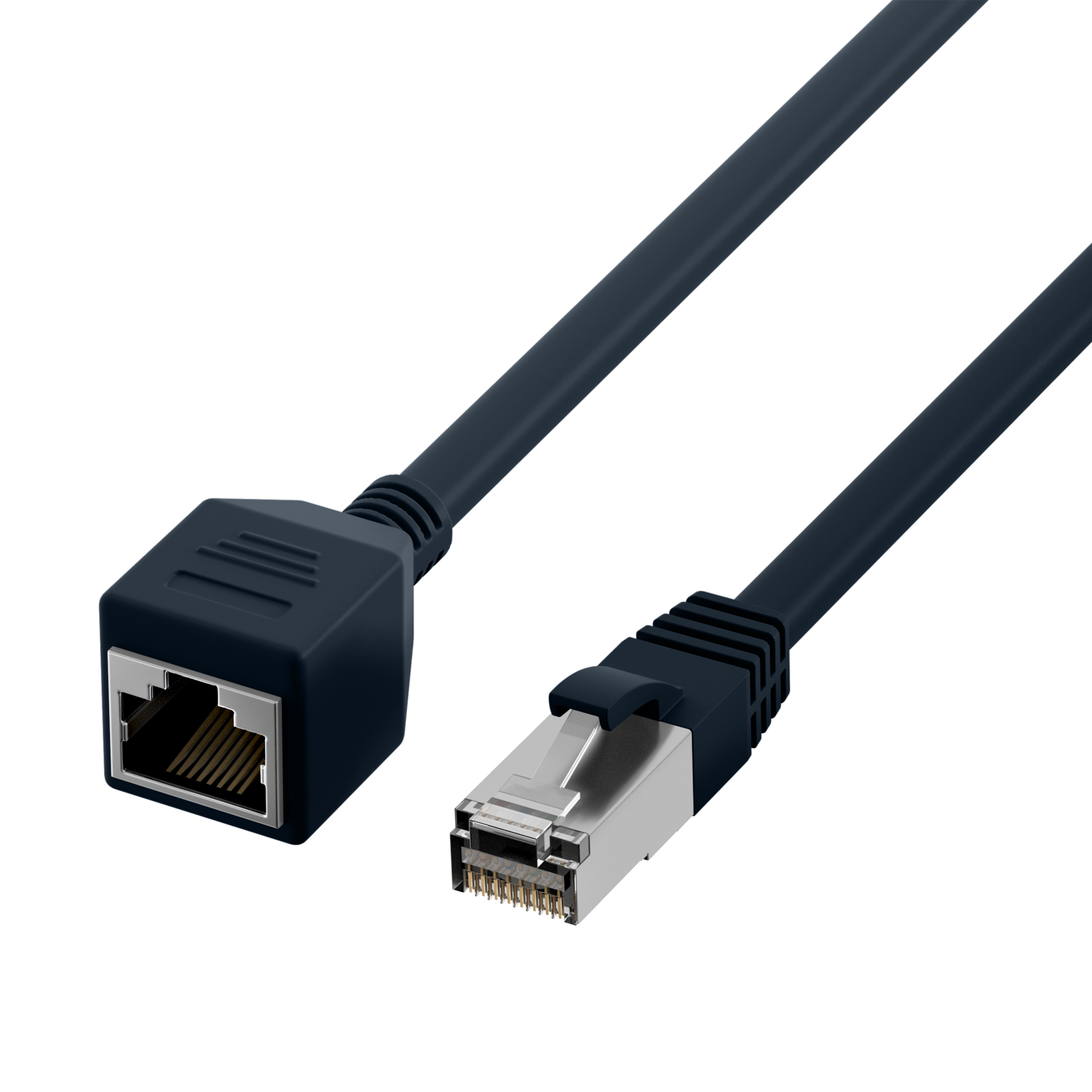

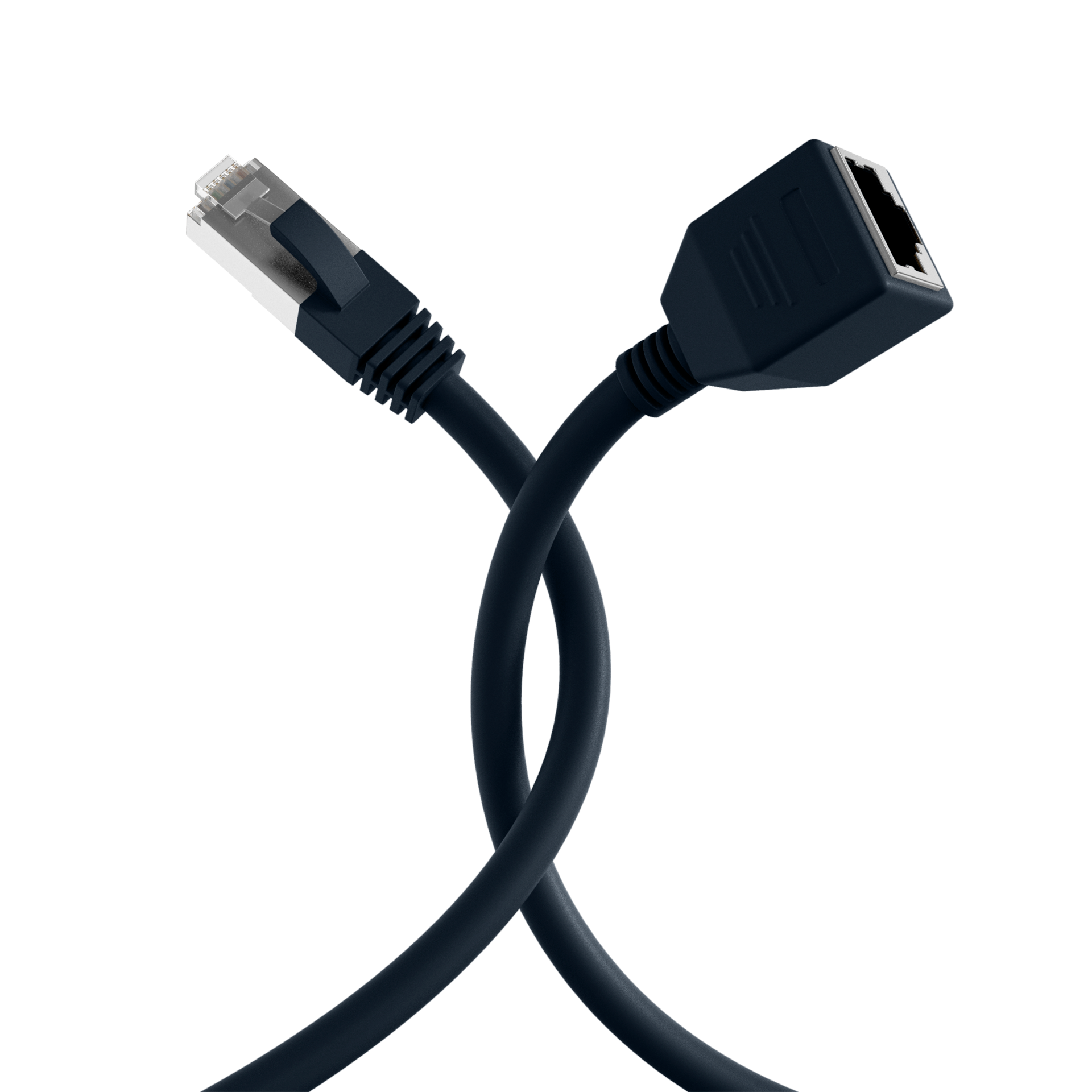

RJ45 Extension Cat.6A S/FTP LSZH AWG26 black
RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 1m
Varenummer:
K5546SW.1
EAN Nr.:
4049759260941
Produktinformation til RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 1m
RJ45 patch cable extension Cat.6A S/FTP LSZH AWG26
The Cat.6A (TIA) patch cable extension has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable extension is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af and PoE+ according to IEEE802.3at.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B.
>The patch cable extension has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
The Cat.6A (TIA) patch cable extension has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable extension is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af and PoE+ according to IEEE802.3at.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B.
>The patch cable extension has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is 500 MHz.
Tekniske egenskaber
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard |
| Contact Resistance: | 30 mΩ |
| Contacts: | 3 µ" gold plated |
| Current Rating: | max. 1 A |
| Insulation Resistance: | 10 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Mating cycles: | 750 |
| Model: | Shielded |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.2 mm |
| POE class: |
PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | www.efb-elektronik.de |
| Raw cable: | Cat.6A |
| Suitable for degree of protection (IP): | IP20 |
| Temperature Range (Operation): | -15 – 60 °C |
| Temperature Range (Storage): | -20 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: |
2.5Gbit 5Gbit 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| K5546SW.1 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 1m | 1.0 m | ±5 % | |
| K5546SW.2 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 2m | 2.0 m | ±5 % | |
| K5546SW.3 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 3m | 3.0 m | ±5 % | |
| K5546SW.5 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 5m | 5.0 m | ±5 % | |
| K5546SW.10 | RJ45 Extension Cat.6A S/FTP LSZH AWG26 black 10m | 10.0 m | ±5 % |
