RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black

Priser kun synlige for indloggede brugere

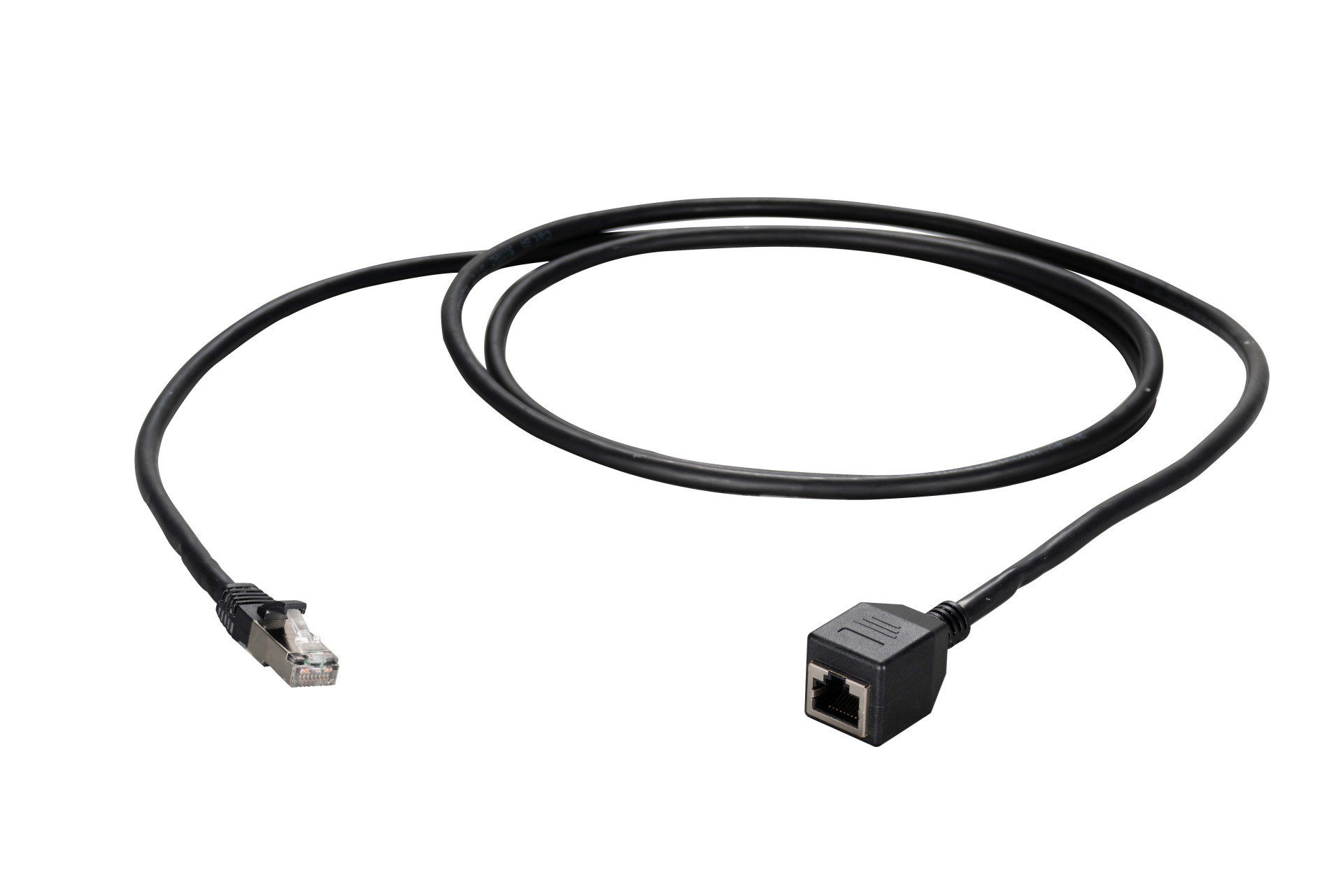

RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 1m
Varenummer: K5546SW.1
EAN nr.: 4049759260941
Stück

Produktinformation für RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 1m

Shielded RJ45 patch cable extension Cat.6A for transmissions according to ISO11801 for up to 10Gbit/s.

You have already installed a patch cable in your study/office. Previously, the cable was sufficient up to your device, but now that the office has been remodelled, it is no longer sufficient. Instead of replacing the entire patch cable because it has been laid at great expense, simply connect the RJ45 patch cable extension in the length that suits you to your end device.

In addition, the short version of the patch cable extension can be used to protect your device connections. Especially in the home office, with a lot of assembly and disassembly of the e.g. notebook, the socket of the notebook is heavily stressed. This can be circumvented by "interposing" the patch cable extension, because here you are then stressing the socket of the extension.

The RJ45 patch cable extension Cat.6A can be used with any conventional devices with RJ45 interface, such as computers, notebooks, DSL modems, routers, switches, game consoles, televisions and many more.

Tekniske egenskaber

AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Structured cabling;Industrial Ethernet;Data center
Bandwidth: 500MHz
Cable construction: 4x2
Cable type: S/FTP
Cabling Standard: ISO/IEC 11801;ANSI/TIA-568-B.2;EN50173
Category: 6A (TIA)
Colour anti-kink sleeve: black
Colour outer sheath: black
Conductive shield: Selected shield contact
Conductor Material: Copper
Connector: IEC 60603-7-51
Connector type: RJ45 Standard
Contact resistance: 30 mΩ
Contacts: 3 µ" gold plated
Current capacity: max. 1 A
Insulation resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: True
Mating cycles: 750
Model: Shielded
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.2 mm
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at
Pin assignment: 1:1
Raw cable: Cat.6A
Suitable for degree of protection (IP): IP20
Temperature Range (Operation): -15 – 60 °C
Temperature Range (Storage): -20 – 75 °C
Transmission: 10Gbit;2.5Gbit;5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)

Varianter

Art. Nej. Betegnelse Length Length tolerance
K5546SW.1 RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 1m 1.0 m ±5 % Vælg varianter
K5546SW.10 RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 10m 10.0 m ±5 % Vælg varianter
K5546SW.2 RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 2m 2.0 m ±5 % Vælg varianter
K5546SW.3 RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 3m 3.0 m ±5 % Vælg varianter
K5546SW.5 RJ45 patch cable extension Cat.6A, S/FTP, AWG26, black, 5m 5.0 m ±5 % Vælg varianter
