RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, black
Priser kun synlige for indloggede brugere
RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 0,25m, black
Varenummer:
MK6001W.0,25B
EAN nr.:
4049759266127
Produktinformation für RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 0,25m, black

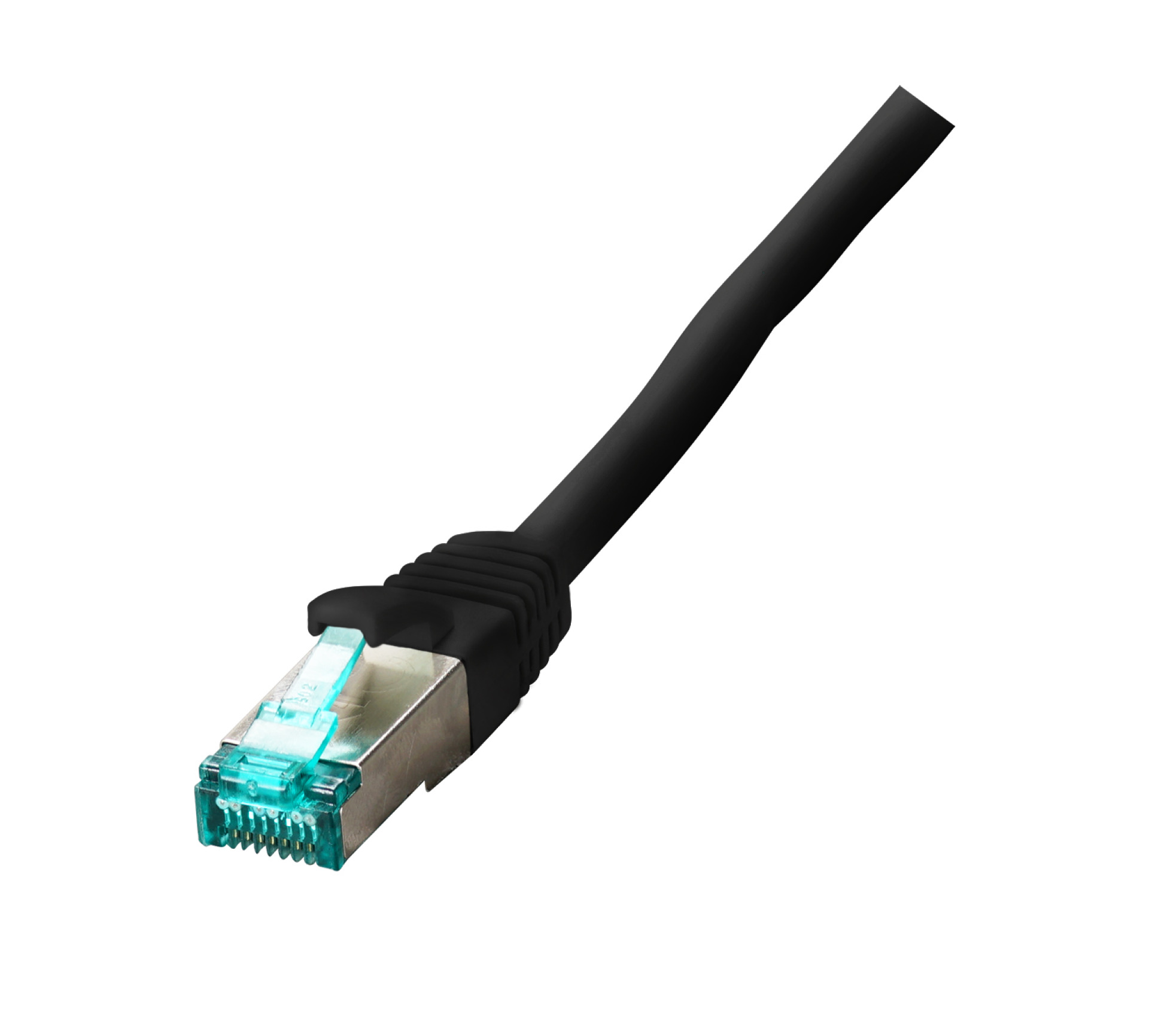

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

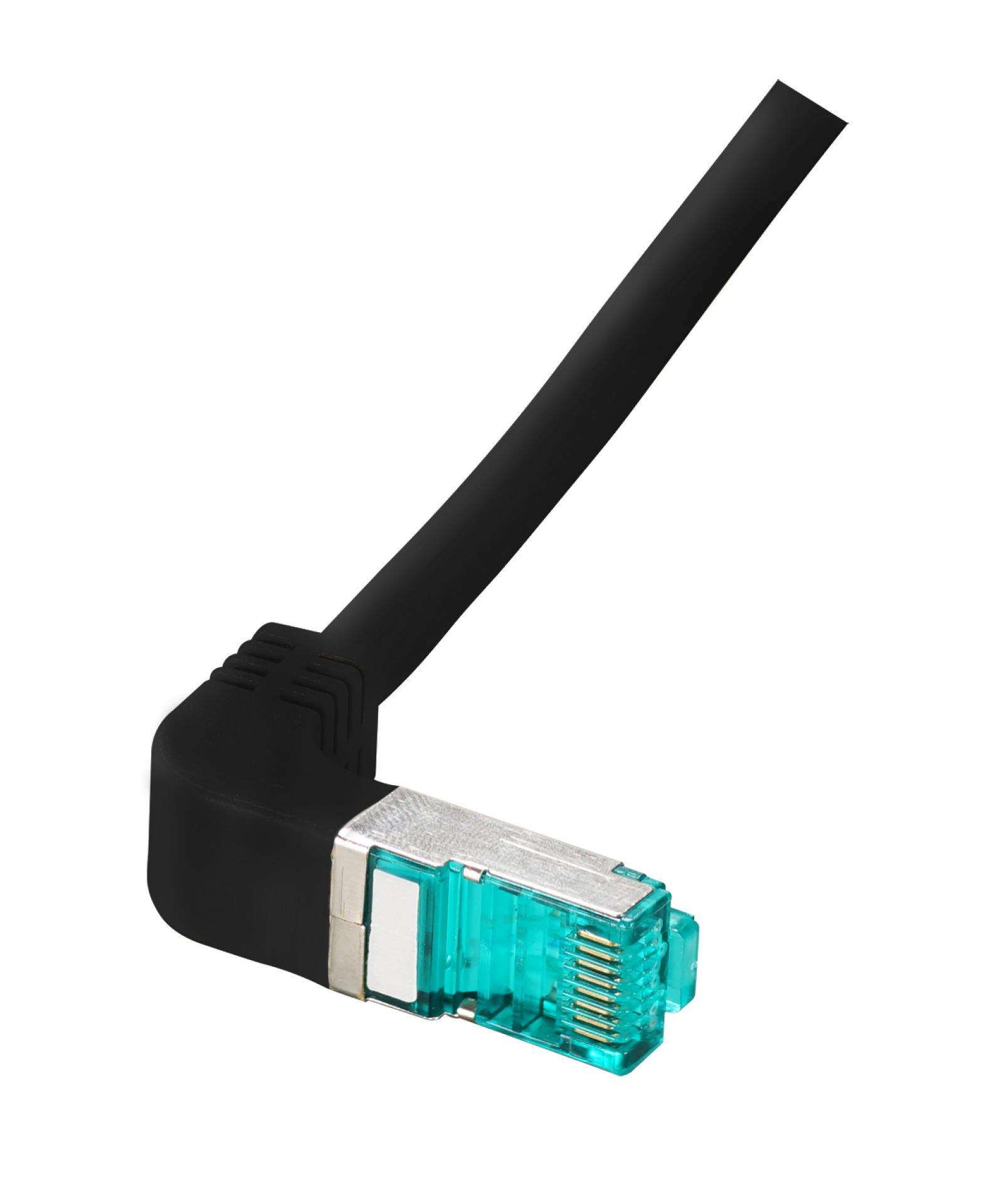

In addition, one side of the patch cord has a 90° angle, which makes patching even easier.
Cross section 4 x 2 x AWG27/7
Length imprint on boot
In addition, one side of the patch cord has a 90° angle, which makes patching even easier.
Cross section 4 x 2 x AWG27/7
Length imprint on boot
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| AWG-size: | 27/7 |
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard blue |
| Contact resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | True |
| Flame-retardant: | True |
| Halogen-free: | True |
| Impedance: | 100 ±15 Ω |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 74 % |
| Oil resistant: | False |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0 mm |
| Ozone resistance: | False |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.6A |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 60 °C |
| Transmission: |
2.5Gbit 5Gbit 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UV resistance: | False |
Varianter
| Art. Nej. | Betegnelse | Length | Length tolerance | |
|---|---|---|---|---|
| MK6001W.0,25B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 0,25m, black | 0.25 m | ±5 % | |
| MK6001W.0,5B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 0,5m, black | 0.5 m | ±5 % | |
| MK6001W.1B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 1m, black | 1.0 m | ±5 % | |
| MK6001W.2B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 2m, black | 2.0 m | ±5 % | |
| MK6001W.3B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 3m, black | 3.0 m | ±5 % | |
| MK6001W.5B | RJ45 Patch cable S/FTP, Cat.6A, LSZH, one side 90° angled, 5m, black | 5.0 m | ±5 % |
