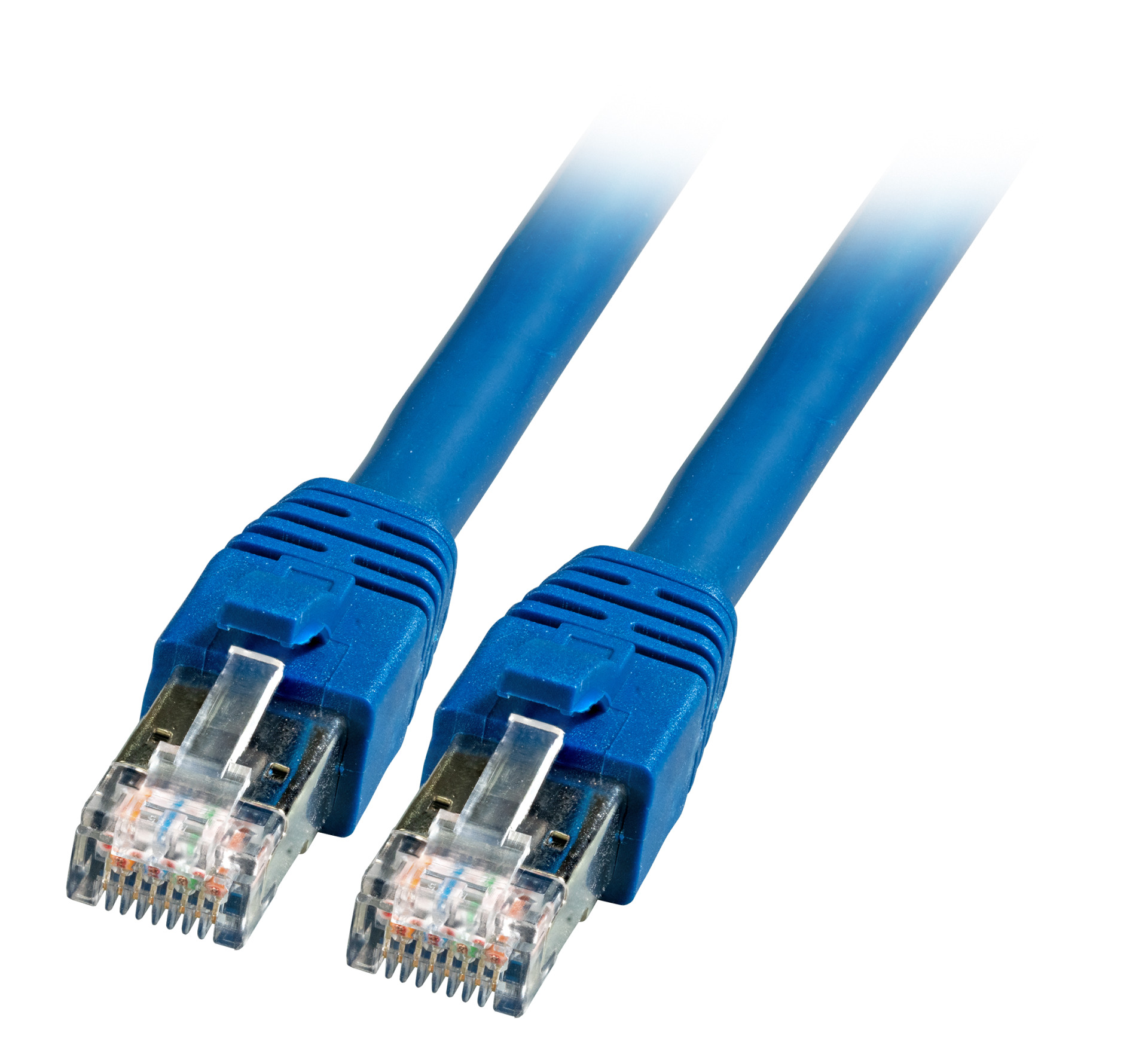

RJ45 Patch Cord Cat.8.1 S/FTP BC blue
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m
Varenummer:
K5528BL.0,5
EAN Nr.:
4049759215200
Produktinformation til RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m
RJ45 patch cable Cat.8.1 S/FTP LSZH BC
The Cat.8.1 patch cable has gold-plated contacts and meets the requirements for 25Gbit and 40Gbit Ethernet.
Technical product features
• Cat.8.1< br>• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the The shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 2000 MHz.
The Cat.8.1 patch cable has gold-plated contacts and meets the requirements for 25Gbit and 40Gbit Ethernet.
Technical product features
• Cat.8.1< br>• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the The shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.
The LAN cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is up to 2000 MHz.
Tekniske egenskaber
| AWG-size: | 24/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >40 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 8.1 |
| Colour anti-kink sleeve: | blue |
| Colour outer sheath: | blue |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-81 |
| Connector type: | RJ45 standard |
| Contact Resistance: | 5 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 10 MΩ |
| Jacket material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | no |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 8 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801 |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 2000MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 40Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K5528BL.0,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.1 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.2 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 2m | 2.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.3 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 3m | 3.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.7,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K5528BL.10 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC blue 10m | 10.0 m | PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
