19" Server Cabinets PRO, 800x1000 mm, 2-Part Doors

Priser kun synlige for indloggede brugere

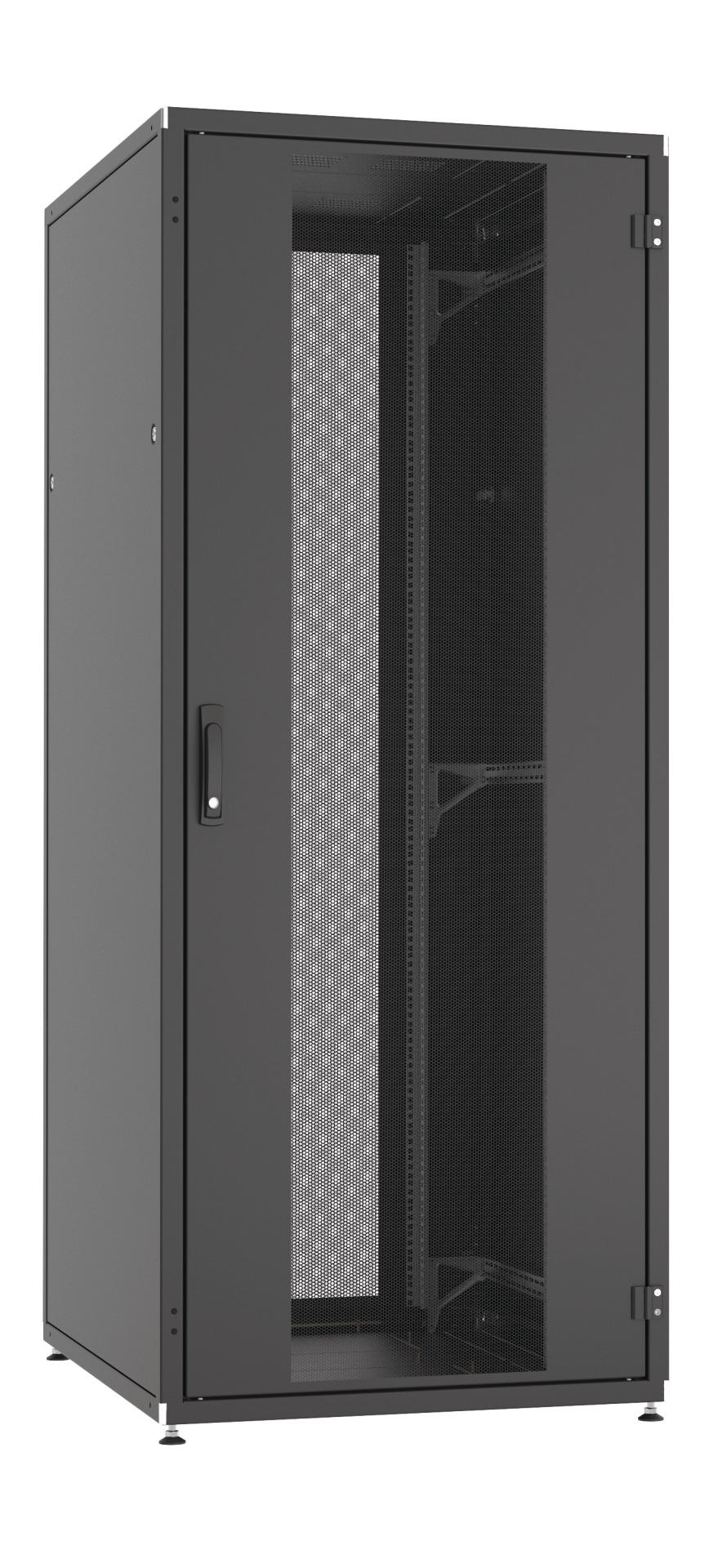

19" Server Cabinet PRO 27U, 800x1000 mm, F+R 2-teilig, RAL9005
Varenummer: PRO-2780TS.P2
EAN nr.: 4049759233297

Produktinformation für 19" Server Cabinet PRO 27U, 800x1000 mm, F+R 2-teilig, RAL9005

19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

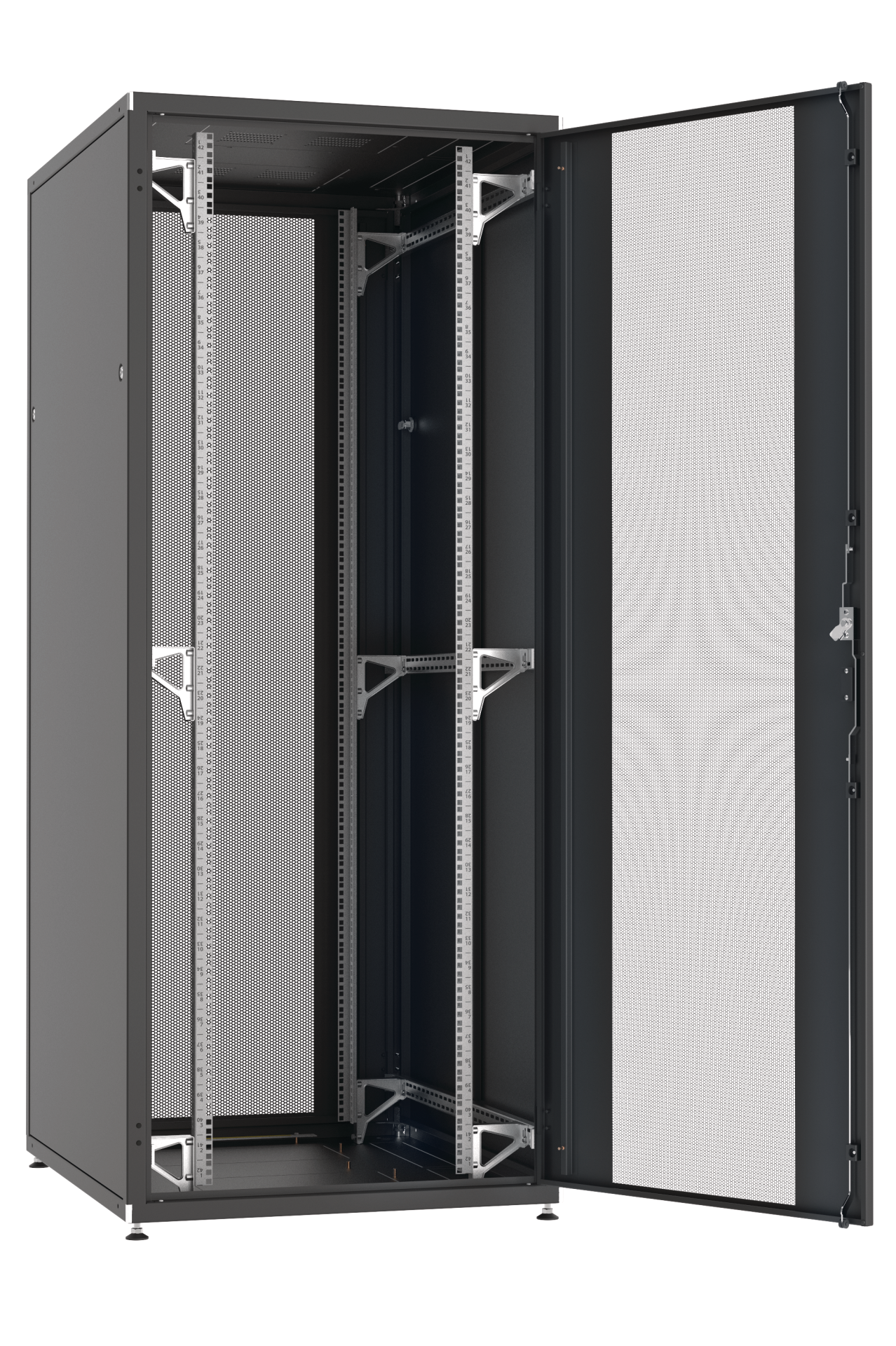

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

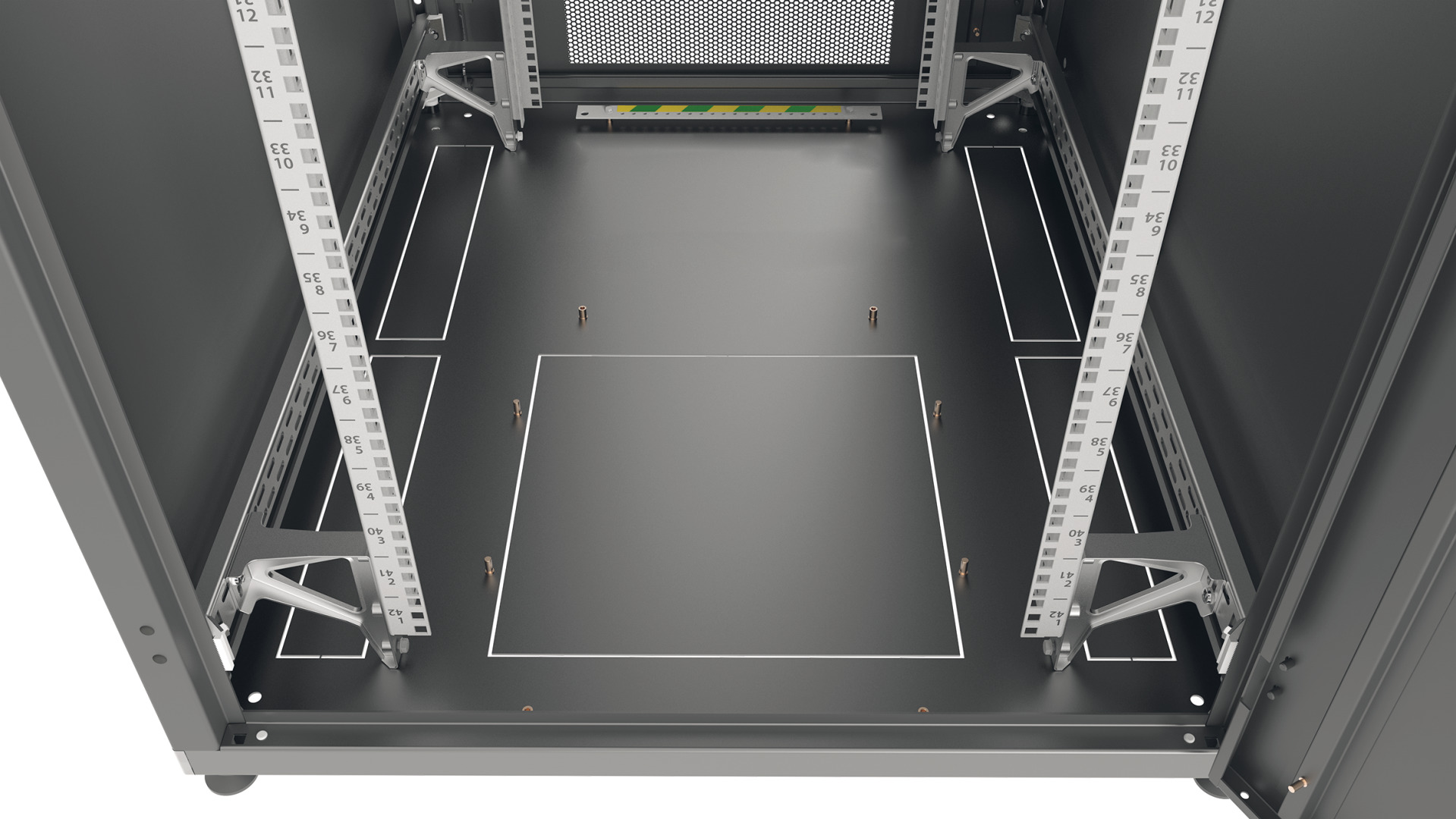

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

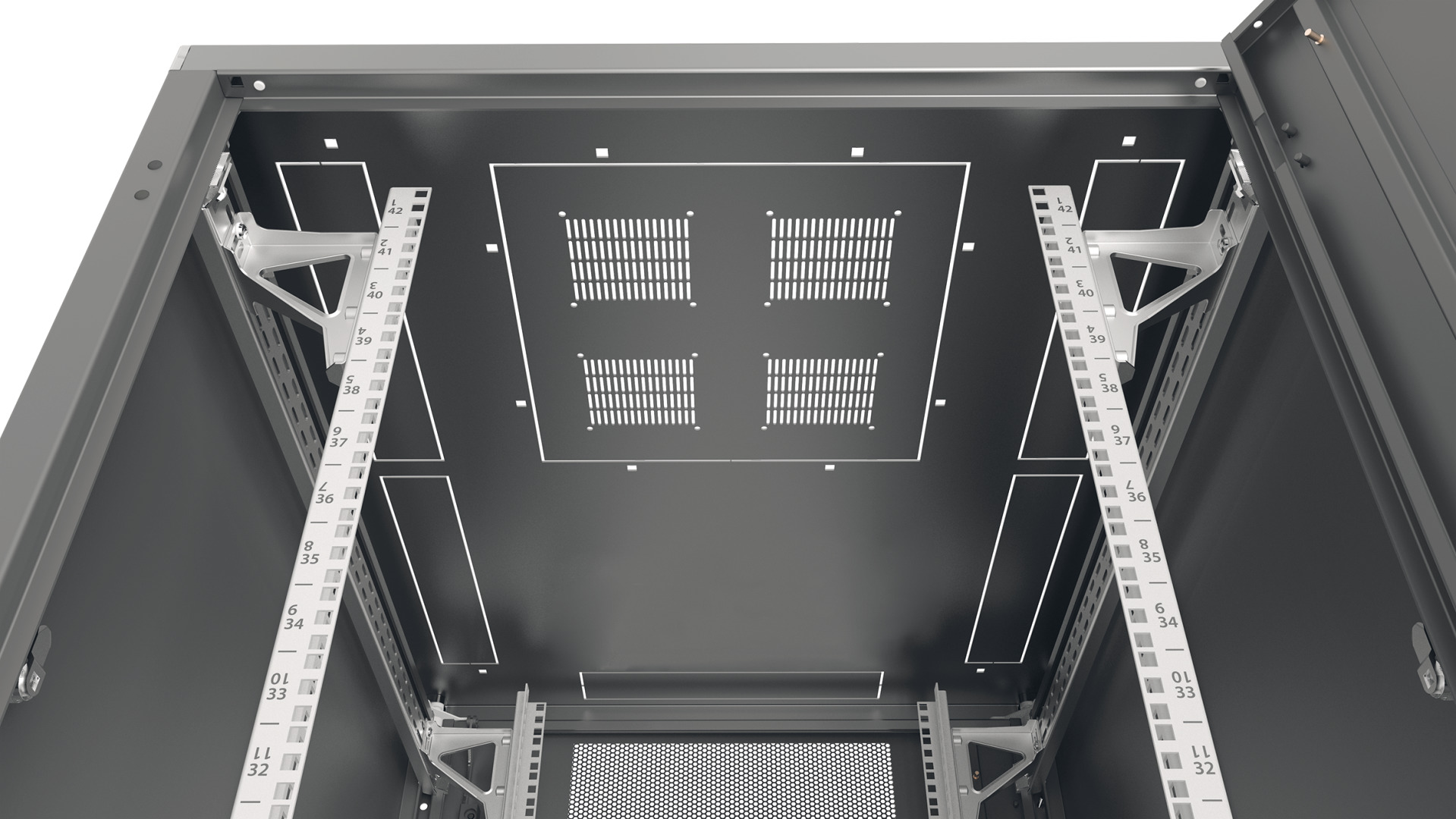

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Front door locking system: -
Material: steel
Model: With permanent frame
Modular spacing: 482,6 mm (19 inch)
Mounting level: Front and rear
Rear door locking system: -
Surface finishing: With powder coating
Type of back door: Steel perforated 2-part
Type of front door: Steel perforated 2-part
Type of profile rail: Crank
Type of ventilation: Passive
With backside door: True
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
With socket: False

Varianter

Art. Nej. Betegnelse Depth Width With vertical cable management Material rear door With glazed door Colour Front door locking system Rear door locking system Material front door Max. load capacity Number of height units Height RAL-number Number of doors
PRO-2780TS.P2 19" Server Cabinet PRO 27U, 800x1000 mm, F+R 2-teilig, RAL9005 1000 mm 800 mm False Steel False black - - Steel 1360 kg 27 U 1297 mm 9005 2 Vælg varianter
PRO-4280TS.P2 19" Server Cabinet PRO 42U, 800x1000 mm, F+R 2-Part, RAL9005 1000 mm 800 mm False Steel False black Three-point Three-point Steel 1360 kg 42 U 1963 mm 9005 2 Vælg varianter
PRO-4780TS.P2 19" Server Cabinet PRO 47U, 800x1000 mm, F+R 2-Part, RAL9005 1000 mm 800 mm False Steel False black Three-point Three-point Steel 1360 kg 47 U 2186 mm 9005 2 Vælg varianter
