INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca

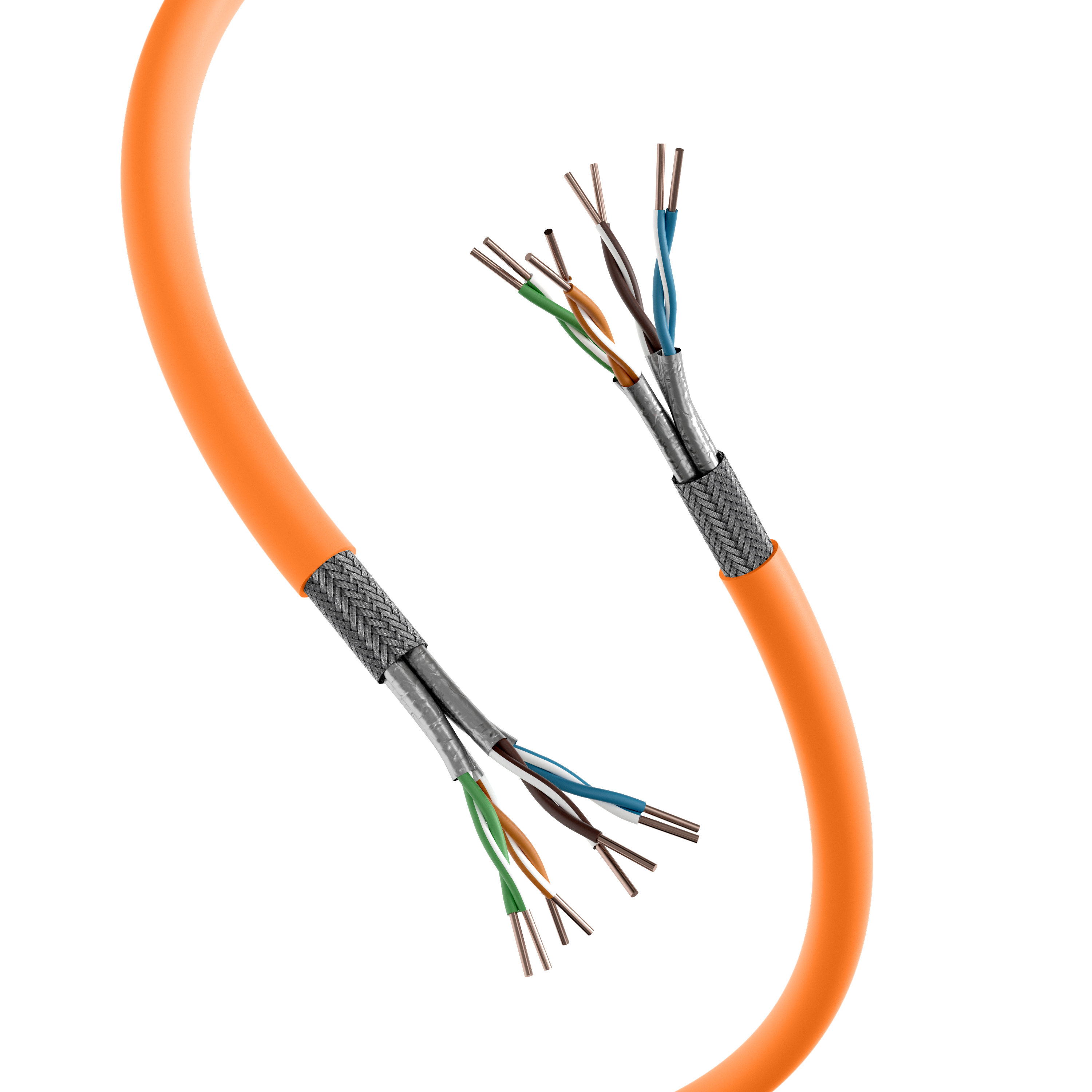

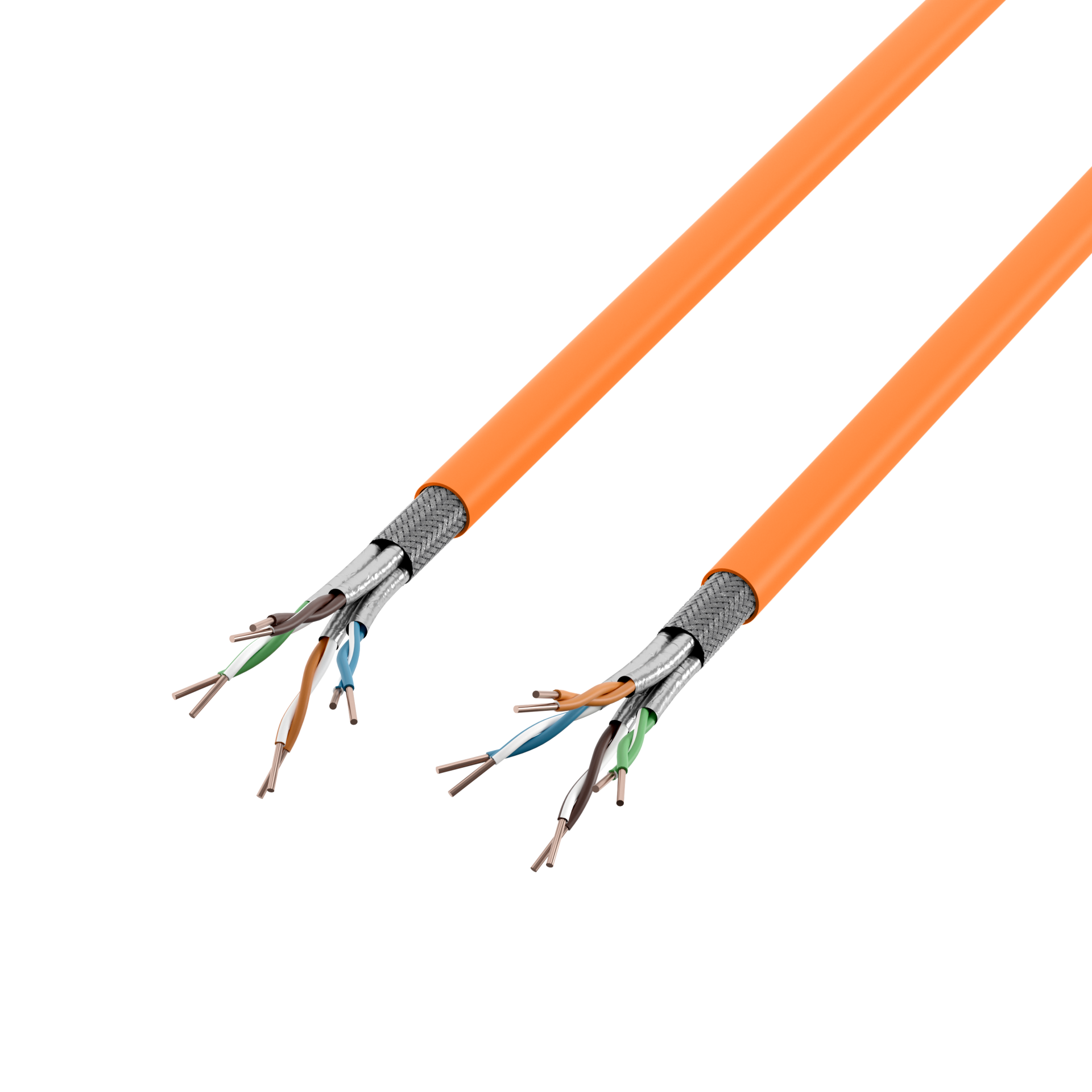

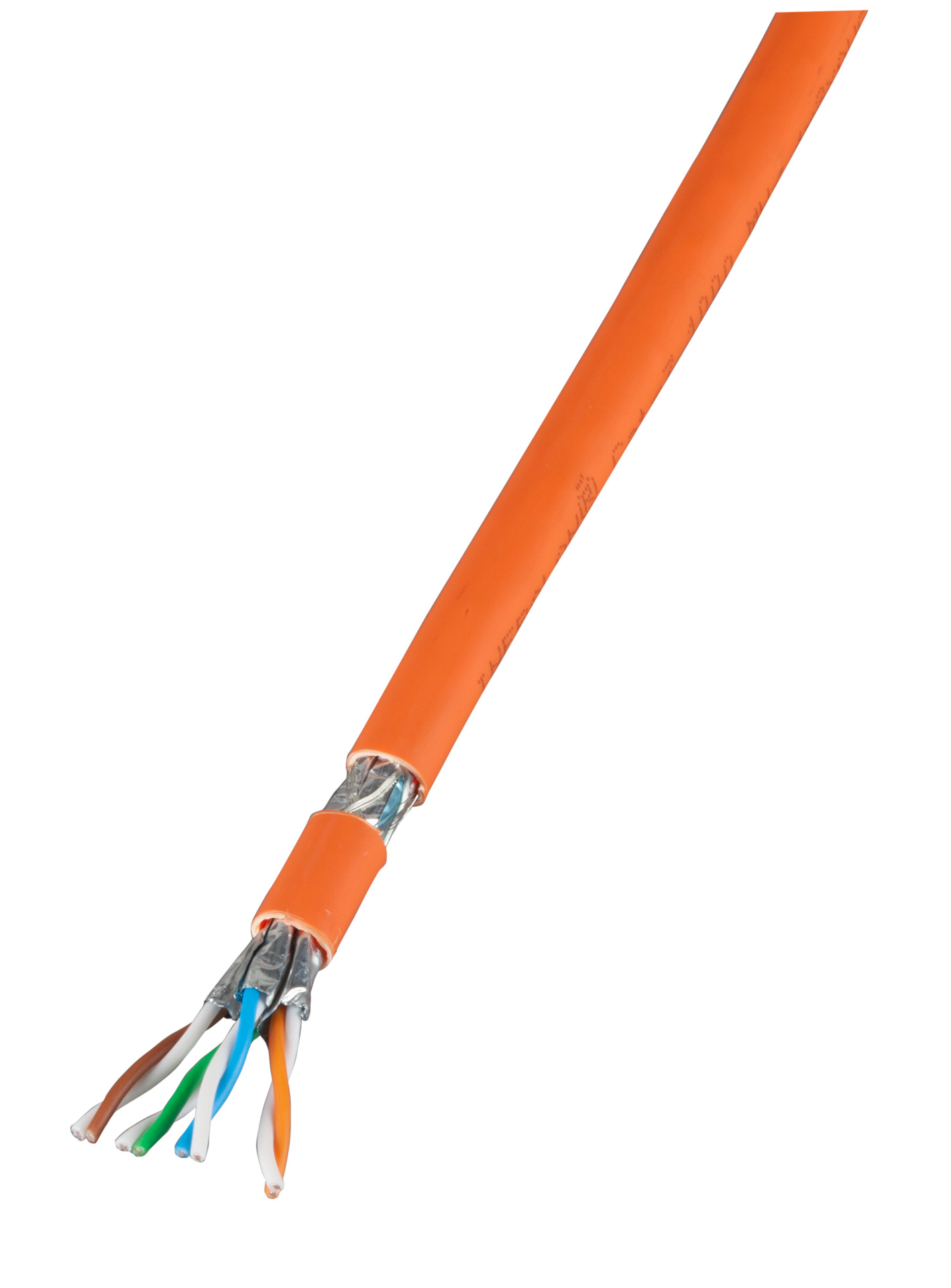

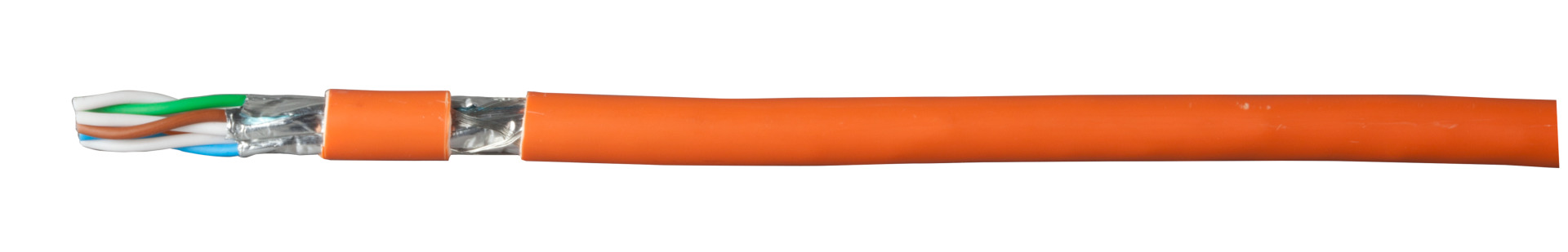

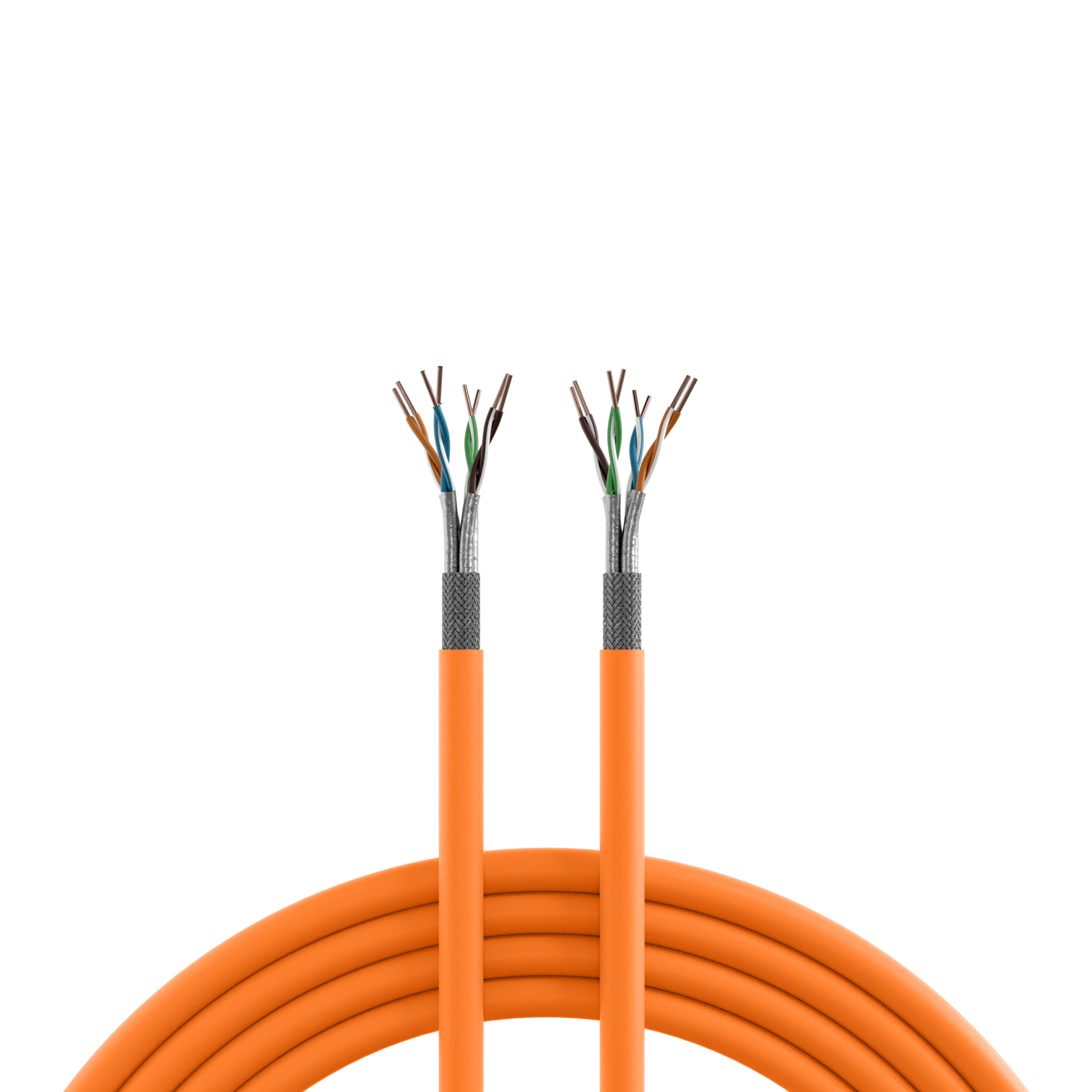

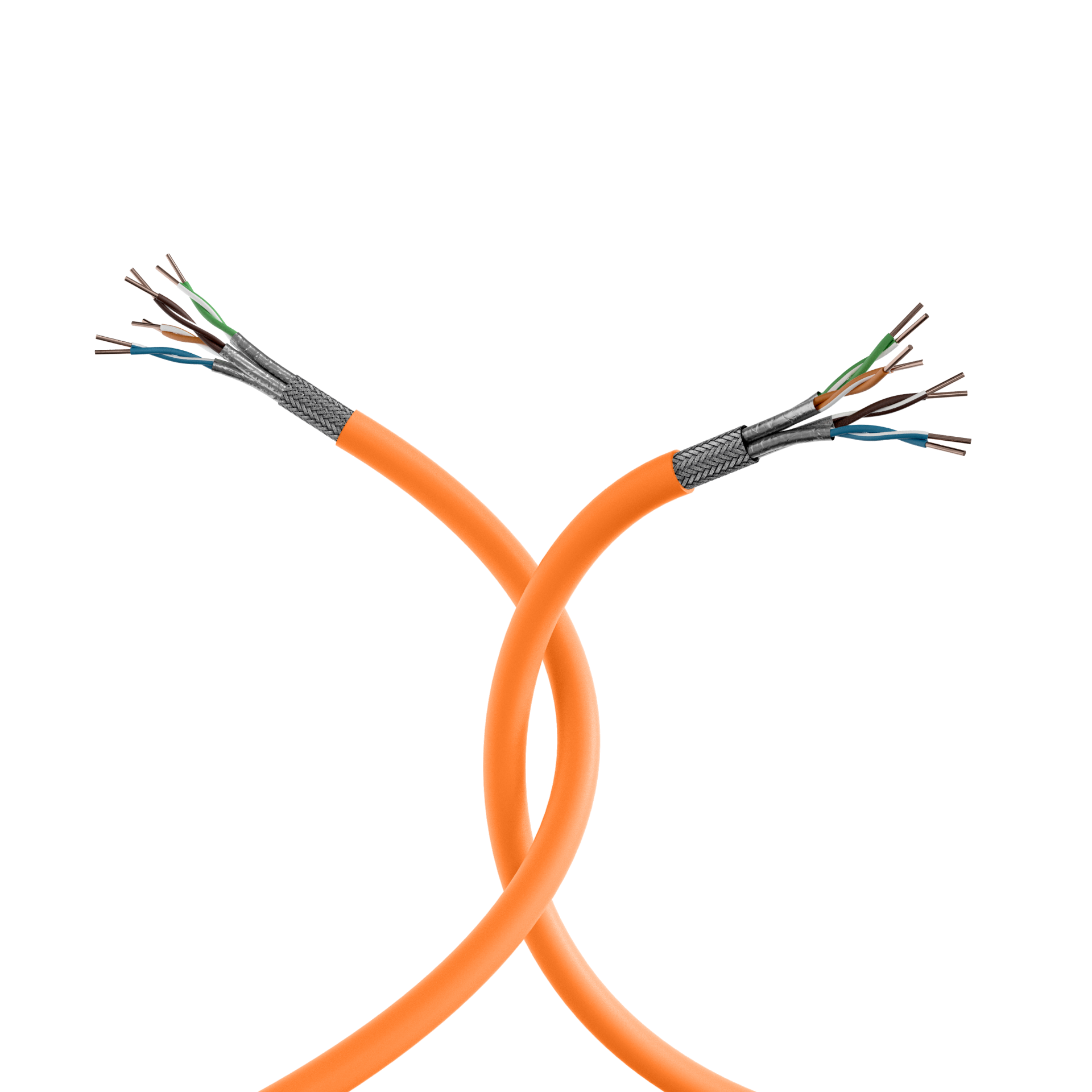

INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m
Varenummer:
99980.100-CPR
EAN-nr.:
4049759180768
Produktinformation til INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m
The INFRALAN® installation cable 99980.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

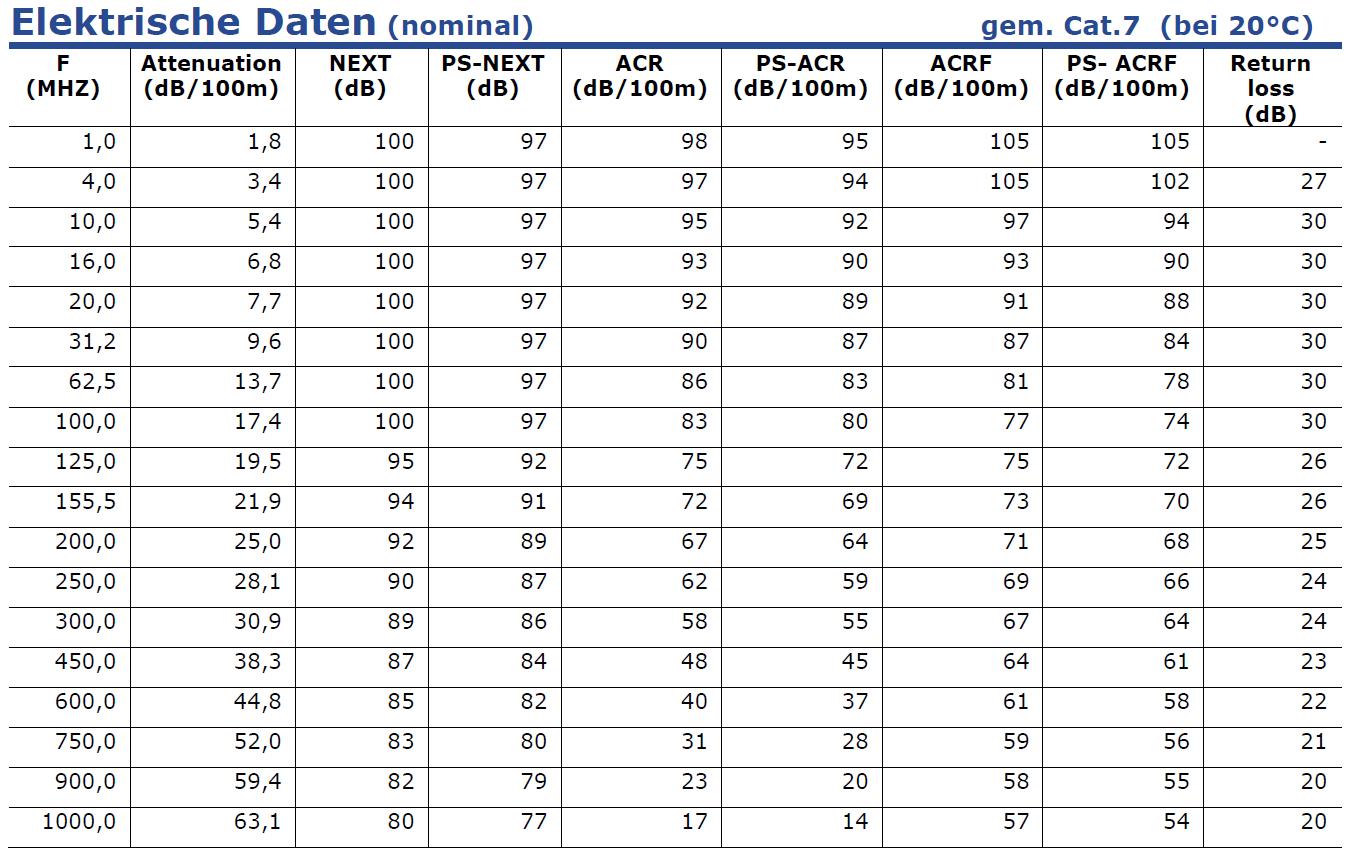

Tekniske egenskaber
| AWG-size: | 23/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Bending radius (static): | 4 x OD |
| Cable: |
EN 50288-4-1 1000 IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7 S/FTP AWG23 Eca |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Type 2 |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Eca |
| Flame retardant: | according to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 2000 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Low smoke (acc. EN 61034-2): | False |
| Max. frequency: | MHz MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | 12 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 30MHz: | 30 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | no |
Variants

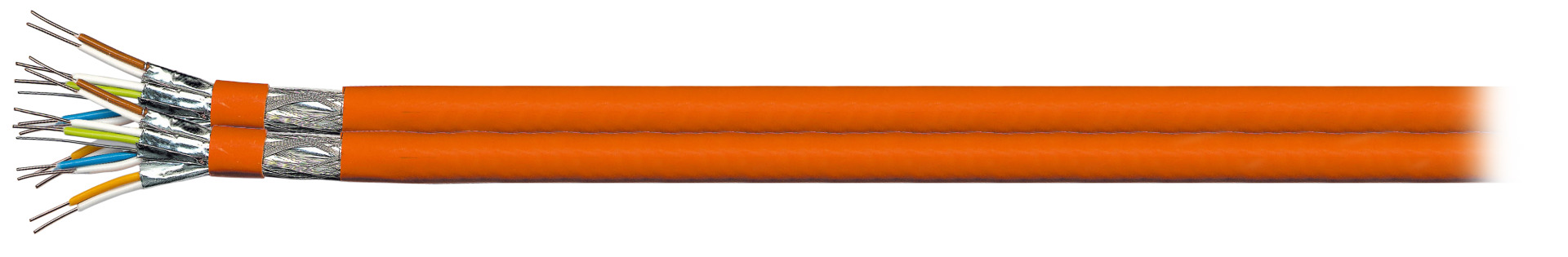

| ON | Label | Colour outer sheath | RAL colour | Type | Number of cores | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99980.100-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 100m | orange | RAL 2003 | simplex | 8 | 100.0 m | 26 kg/km | 54.5 kg/km | 110 N | 7.3 mm | 590 MJ/km | |
| 99980.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 4P CPR Eca orange, 500m | orange | RAL 2003 | simplex | 8 | 500.0 m | 26 kg/km | 54.5 kg/km | 110 N | 7.3 mm | 590 MJ/km | |
| 99980DX.500-CPR | INFRALAN® Cat.7 1000 AWG23, S/FTP 8P CPR Eca orange, 500m | orange | RAL 2003 | duplex | 2x8 | 500.0 m | 52 kg/km | 109.2 kg/km | 220 N | 7.2 x 15.0 mm | 1190 MJ/km | |
| 99980.1-CPR | INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca | orange | RAL 2003 | simplex | 8 | 1.0 m | 26 kg/km | 54.5 kg/km | 110 N | 7.3 mm | 590 MJ/km | |
| 99980.250-CPR | INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca | orange | RAL 2003 | simplex | 8 | 250.0 m | 26 kg/km | 54.5 kg/km | 110 N | 7.3 mm | 590 MJ/km | |
| 99980.60-CPR | INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca | orange | RAL 2003 | simplex | 8 | 60.0 m | 26 kg/km | 54.5 kg/km | 110 N | 7.3 mm | 590 MJ/km | |
| 99980DX.100-CPR | INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca | orange | RAL 2003 | duplex | 2x8 | 100.0 m | 52 kg/km | 109.2 kg/km | 220 N | 7.2 x 15.0 mm | 1190 MJ/km | |
| 99980DX.25-CPR | INFRALAN® Cat.7 Installation Cable S/FTP 1000 MHz, CPR Eca | orange | RAL 2003 | duplex | 2x8 | 25.0 m | 52 kg/km | 109.2 kg/km | 220 N | 7.2 x 15.0 mm | 1190 MJ/km |
