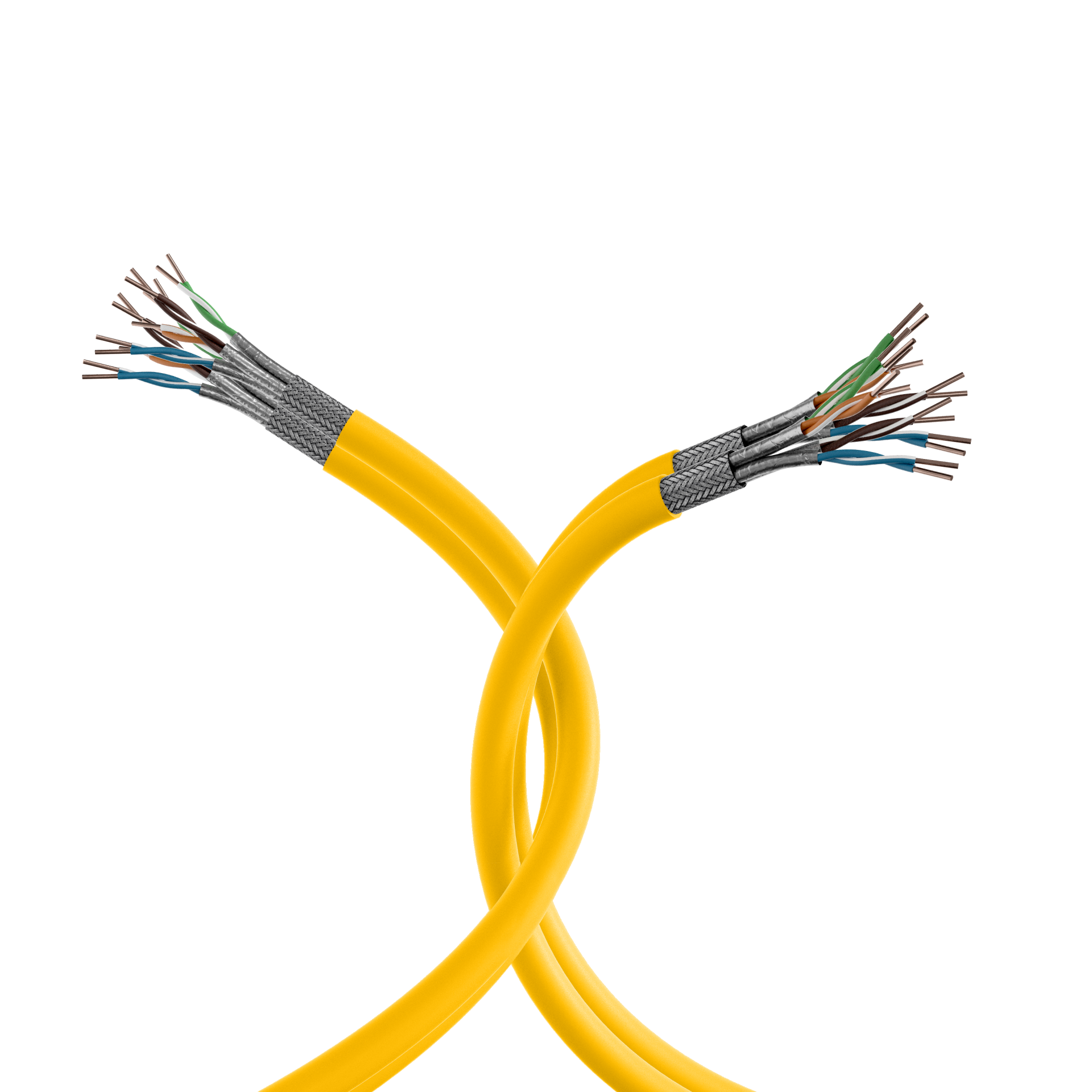

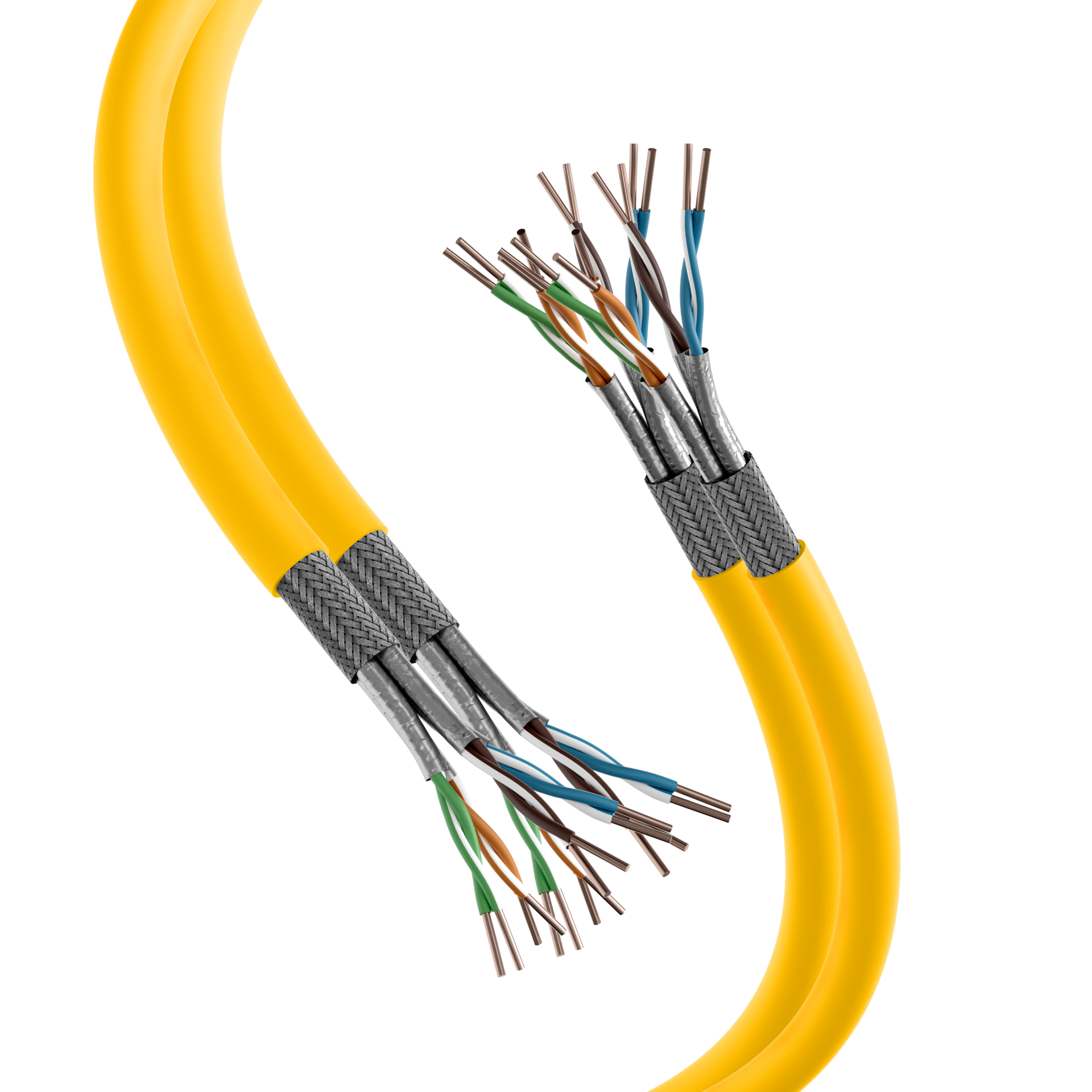

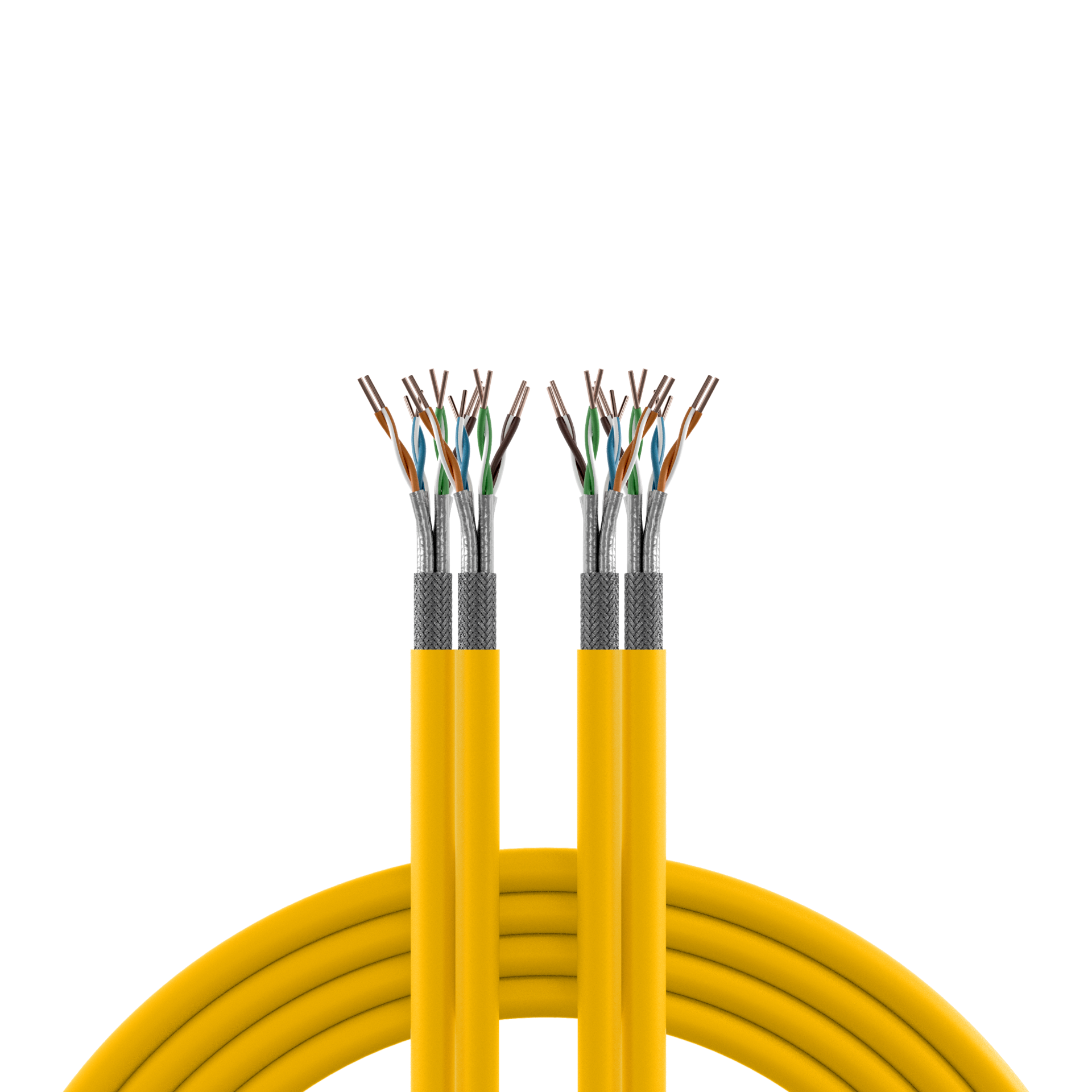

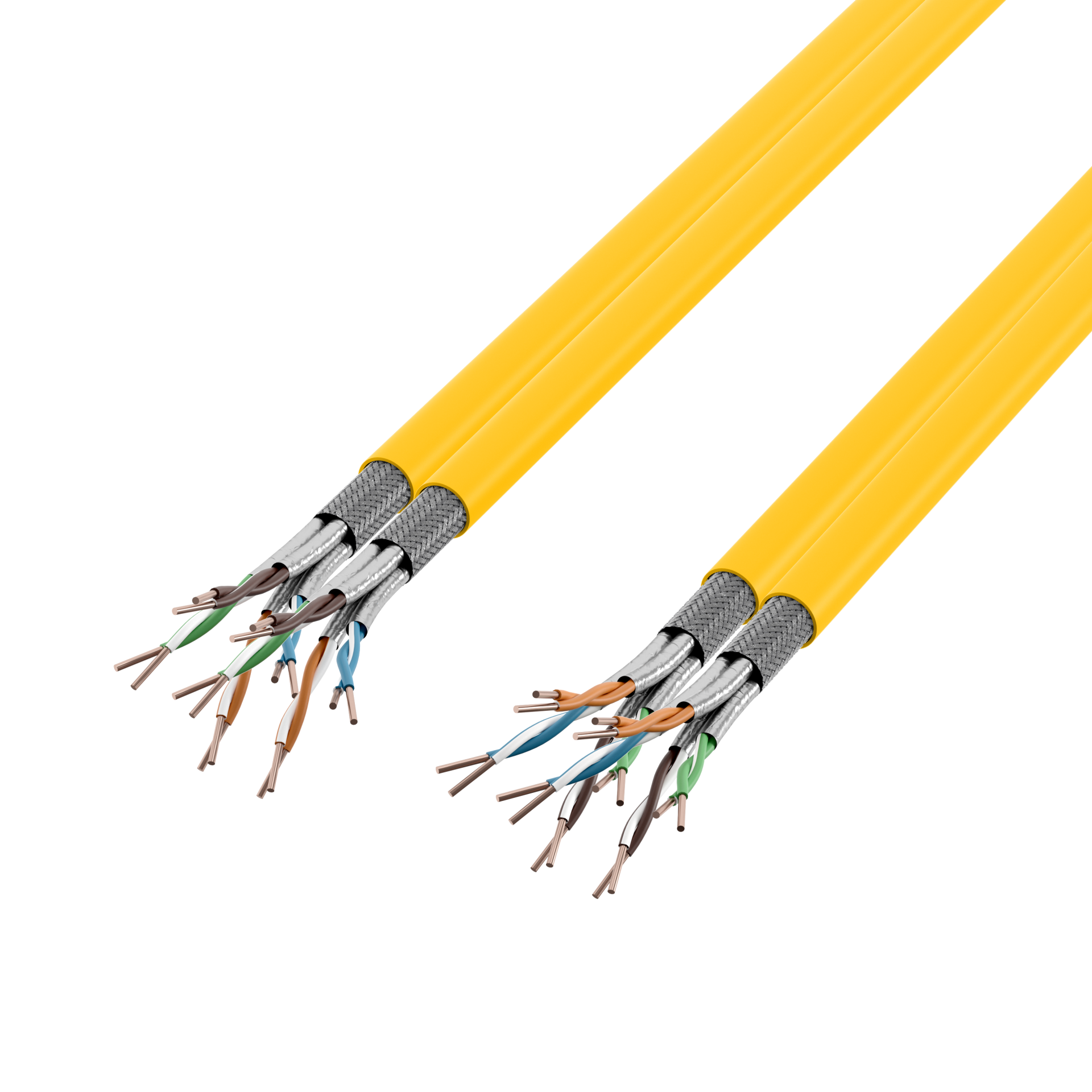

INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca
INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca
Varenummer:
99985DX.500-CPR
EAN Nr.:
4049759180973
Produktinformation til INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca
The INFRALAN® installation cable 99985.x-CPR is constructed for transmissions up to 1250 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Tekniske egenskaber
| AWG-size: | 23/1 |
|---|---|
| Bending radius (dynamic): | ≥ 60 mm |
| Bending radius (static): | ≥ 30 mm |
| Cable: | EN 50288-9-1 |
| Cable: | IEC 61156-5 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cabling standards: | ISO/IEC 11801 |
| Cabling standards: | EN 50173-1 |
| Capacity to earth: | ≤ 1600 pF/km |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Type 1b |
| Delay skew: | 20 ns/100m |
| Diameter conductor: | 0.56 mm |
| Dielectric strength DC: | 1 kV/1 min |
| Directive/Regulation: | REACH 1907/2006/EC |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Cca |
| Flame retardant: | acc. EN 60332-1 |
| Halogen free: | acc. EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | FRNC-B |
| Loop resistance: | ≤ 140 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Max. frequency: | 1250 MHz |
| NVP value: | 78 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | 0 – 50 °C |
| PoE: | acc. to IEEE802.3af PoE |
| PoE: | acc. to IEEE802.3bt 4PPoE |
| PoE: | acc. to IEEE802.3at PoE+ |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 20 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 30 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistant: | no |
Varianten
| Art. Nr. | Bezeichnung | Type | RAL colour | Number of cores | Colour outer sheath | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99985.500-CPR | INFRALAN® Cat.7A 1250 AWG23 S/FTP 4P CPR Cca rape yellow RAL1021, 500m | simplex | RAL1021 | 8 | rape yellow | 500.0 m | 32 kg/km | 62 kg/km | 95 N | 7.7 mm | 0.64 MJ/m | |
| 99985.1-CPR | INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca | simplex | RAL1021 | 8 | rape yellow | 1.0 m | 32 kg/km | 62 kg/km | 95 N | 7.7 mm | 0.64 MJ/m | |
| 99985.100-CPR | INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca | simplex | RAL1021 | 8 | rape yellow | 100.0 m | 32 kg/km | 62 kg/km | 95 N | 7.7 mm | 0.64 MJ/m | |
| 99985DX.500-CPR | INFRALAN® Cat.7A Installation Cable S/FTP 1250 MHz, CPR Cca | duplex | RAL1021 | 2x8 | rape yellow | 500.0 m | 64 kg/km | 124 kg/km | 190 N | 7.7 x 16.1 mm | 1.28 MJ/m |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
